AppAgentX: Evolving GUI Agents as Proficient Smartphone Users

1AGI Lab, Westlake University, 2Henan University, 3Southeast University
4IHPC, Agency for Science, Technology and Research, Singapore
5CFAR, Agency for Science, Technology and Research, Singapore
{jiangwenjia, chizhang}@westlake.edu.cn

App Agent X efficiently executes tasks by combining multiple steps into a chain.

Abstract

Recent advancements in Large Language Models (LLMs) have led to the development of intelligent LLM-based agents capable of interacting with graphical user interfaces (GUIs). These agents demonstrate strong reasoning and adaptability, enabling them to perform complex tasks that traditionally required predefined rules. However, the reliance on step-by-step reasoning in LLM-based agents often results in inefficiencies, particularly for routine tasks. In contrast, traditional rule-based systems excel in efficiency but lack the intelligence and flexibility to adapt to novel scenarios. To address this challenge, we propose a novel evolutionary framework for GUI agents that enhances operational efficiency while retaining intelligence and flexibility. Our approach incorporates a memory mechanism that records the agent's task execution history. By analyzing this history, the agent identifies repetitive action sequences and evolves high-level actions that act as shortcuts, replacing these low-level operations and improving efficiency. This allows the agent to focus on tasks requiring more complex reasoning, while simplifying routine actions. Experimental results on multiple benchmark tasks demonstrate that our approach significantly outperforms existing methods in both efficiency and accuracy. The code will be open-sourced to support further research.

Method

LLM-based GUI Agent Baseline

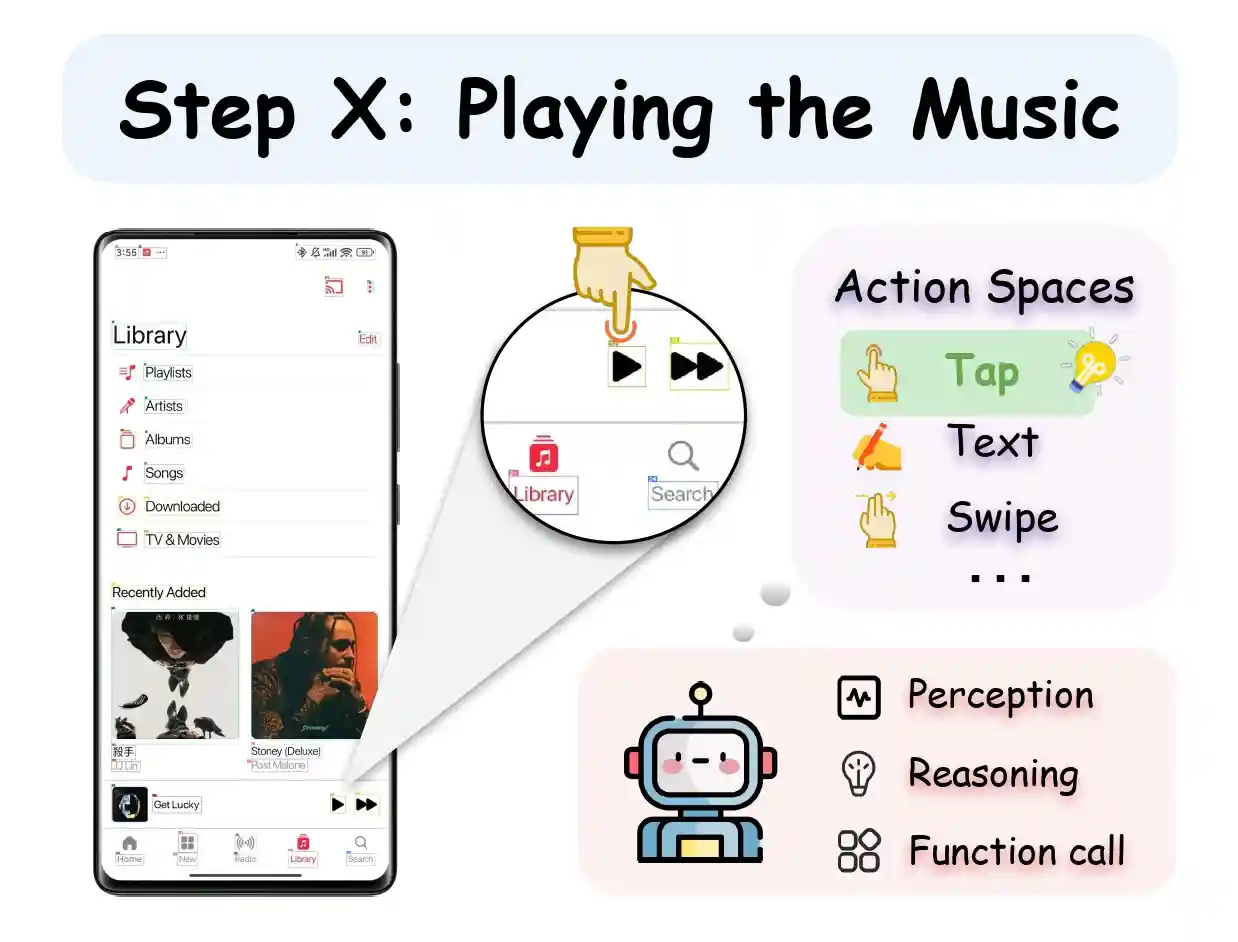

Omni-V Visualization

At each step, the agent captures the current screen of the device and analyzes the interface to select an appropriate action from the predefined action space. The chosen action is then executed to interact with the GUI.

Merging of Triples

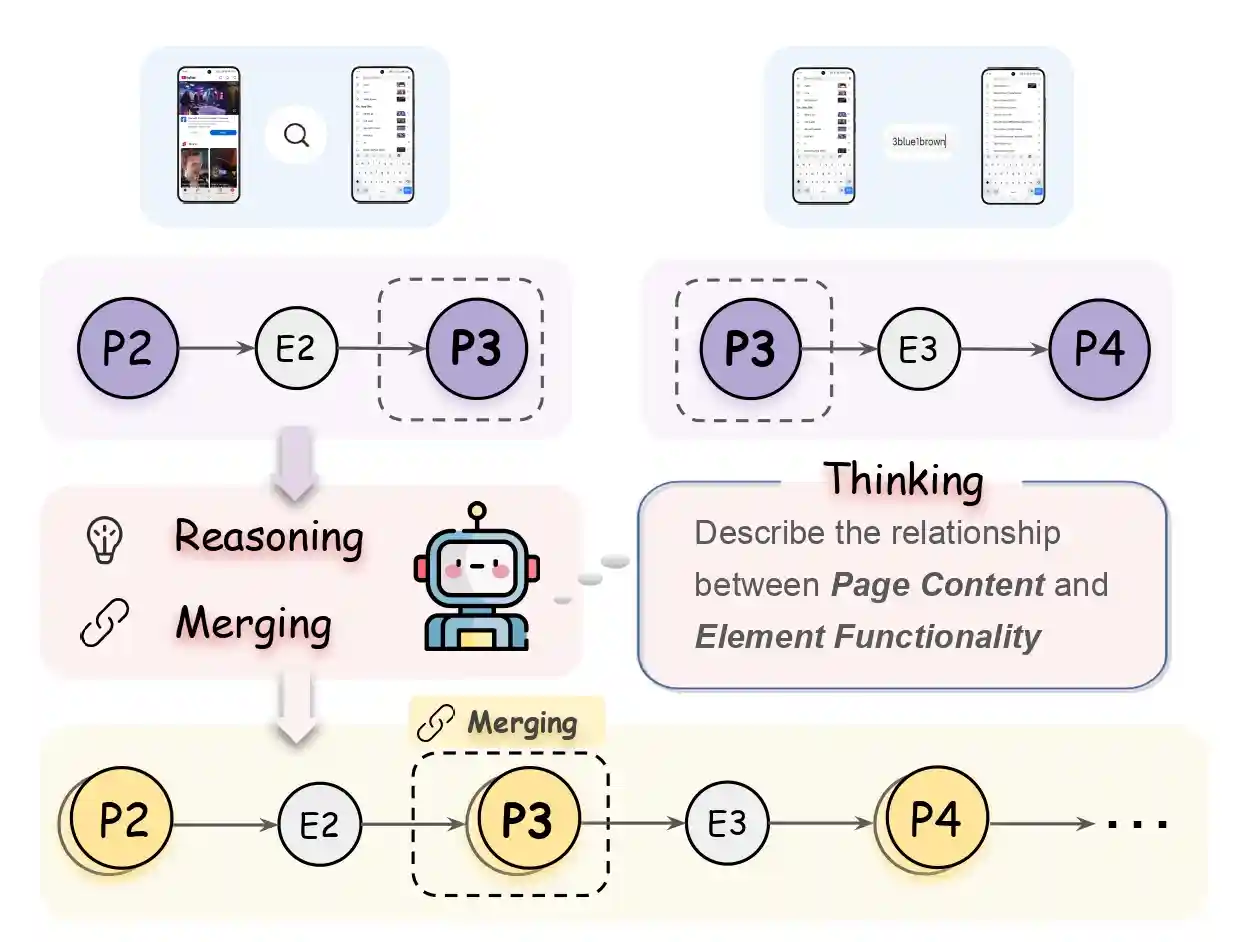

Memory Visualization

The trajectory of a task execution is decomposed into multiple overlapping triples. Based on these triples, the LLM generates functional descriptions of both pages and UI elements. The descriptions of pages that are repeatedly generated are then merged. The entire interaction history is recorded using a chain of nodes.

Evolution Mechanism

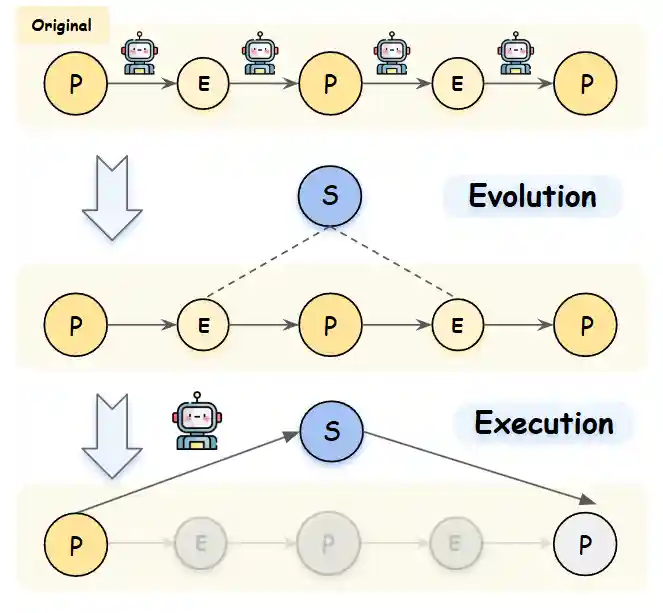

Evolution Visualization

The evolution mechanism identifies repetitive action sequences and creates high-level shortcuts, significantly reducing the number of steps and reasoning required for common tasks.

Content Details

Performance Visualization

Comparative analysis shows that AppAgentX significantly outperforms existing methods in both efficiency and success rate across multiple benchmark tasks.

Demo

Results

Metrics explanation:
• Steps↓: The average number of actions required to complete a task. Lower values indicate higher efficiency.
• Step Time (s)↓: The average time taken for each action (step) during task execution. Lower values indicate faster steps.
• Tokens (k)↓: The total number of tokens used by the language model during task execution. Fewer tokens indicate better resource efficiency.
• SR (Success Rate)↑: The percentage of tasks successfully completed. Higher values indicate better performance.
• Task Time↓: The total time taken to complete a task. Lower values mean faster task completion.

Method Memory Type Action Space Steps↓ Step Time (s)↓ Tokens (k)↓ SR ↑
GPT-4o (Baseline) None Basic 10.8 26 6.72 16.9%
Element Basic 9.3 24 8.46 69.7%
AppAgentX Chain Basic 9.1 23 9.26 70.8%
Chain Basic+Evolve 5.7 16 4.94 71.4%

Table 1: Analysis of Different Components in AppAgentX. This table compares the performance differences resulting from the different designs with the baseline. Both our memory design and evolution mechanism can improve success rate and efficiency.

Benchmarks Task Num. Framework Task Time↓ Tokens (k)↓ SR↑
DroidTask 158 AppAgent 106.24 11.5 46.3%
AppAgentX 56.29 5.1 88.2%
MobileBench (SAST) 332 AppAgent 150.24 7.6 72.6%
AppAgentX 42.38 5.4 86.1%

Table 2: Comparison with AppAgent on Large Benchmarks. This table evaluates the efficiency and accuracy of different frameworks on benchmarks containing a large number of tasks. In the MobileBench, SAST (Single-App-Single-Task) refers to a real dataset containing only a single task description.

LLM Previous Sota AppAgentX
Gemini-1.5-Pro 25.6 12.4
Claude-3.5 38.4 11.4
GPT-4o 43.5 17.5

Table 3: Comparison of Average Execution Time per Step. This table presents the average execution time (seconds ↓) across different LLMs and frameworks.

We propose an evolving GUI agent framework that enhances efficiency and intelligence by abstracting high-level actions from execution history. Unlike rule-based automation, our approach generalizes task execution by compressing repetitive operations, balancing intelligent reasoning with efficient execution. A chain-based knowledge framework enables continuous behavior refinement, improving adaptability and reducing redundancy. Exper- iments show our framework outperforms existing methods in accuracy and efficiency.

BibTeX

@misc{jiang2025appagentxevolvingguiagents,
                title={AppAgentX: Evolving GUI Agents as Proficient Smartphone Users},
                author={Wenjia Jiang and Yangyang Zhuang and Chenxi Song and Xu Yang and Chi Zhang},
                year={2025},
                eprint={2503.02268},
                archivePrefix={arXiv},
                primaryClass={cs.AI},
                url={https://arxiv.org/abs/2503.02268},
            }
