Msdf3, Font TextureAtlas Development

Preview

I have a modified version of the originalMsdf gen.

I call it Msdf3

I optimize 'Closest edge search' by using 'closet edges lookup table bitmap'

I have implement it here...

please note that now we are in debug mode,
it should be faster on release mode

All tests use Roboto font, 26 pts


1. PixelFarm's LcdEffect SubPixelRendering Atlas texture

(click on the image to see detail)

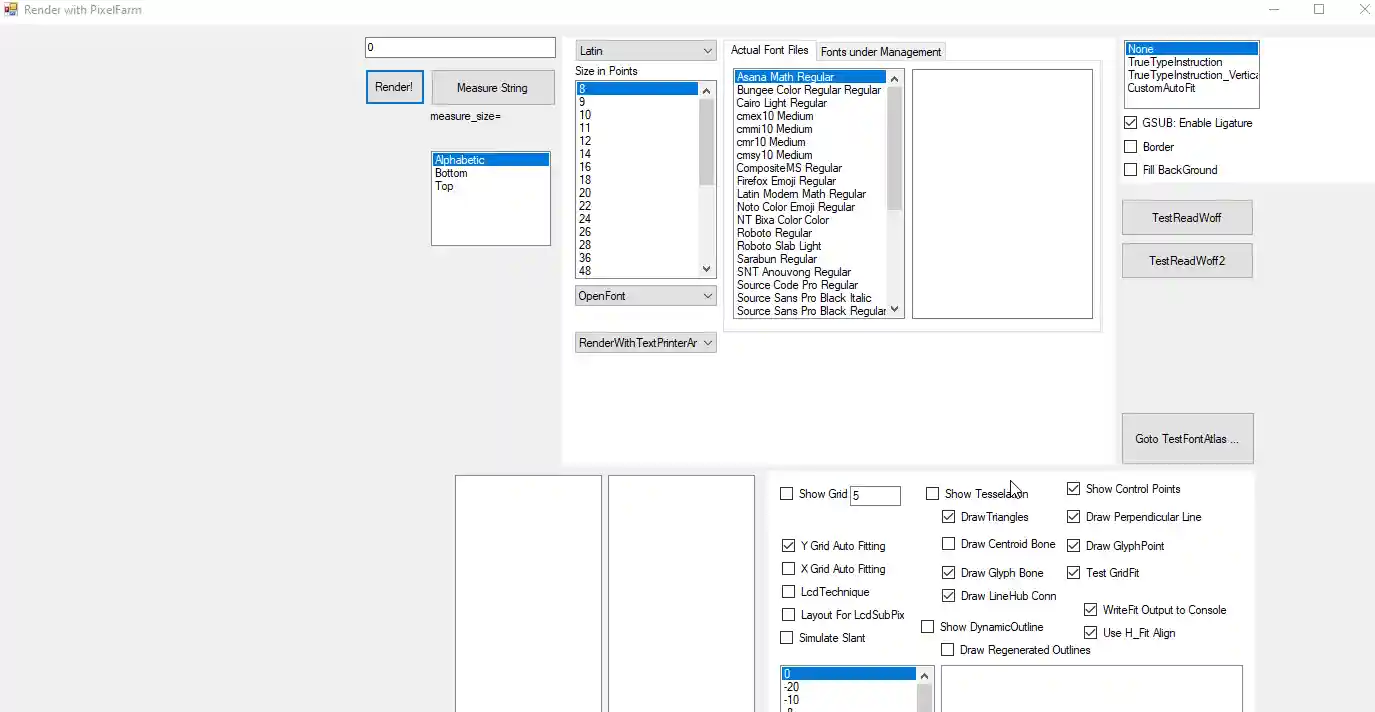

stencil_lcd_effect

PixelFarm's LcdEffectSubPixelRendering Atlas Texture, built-time about 220ms


2. Msdf gen,C# port from original

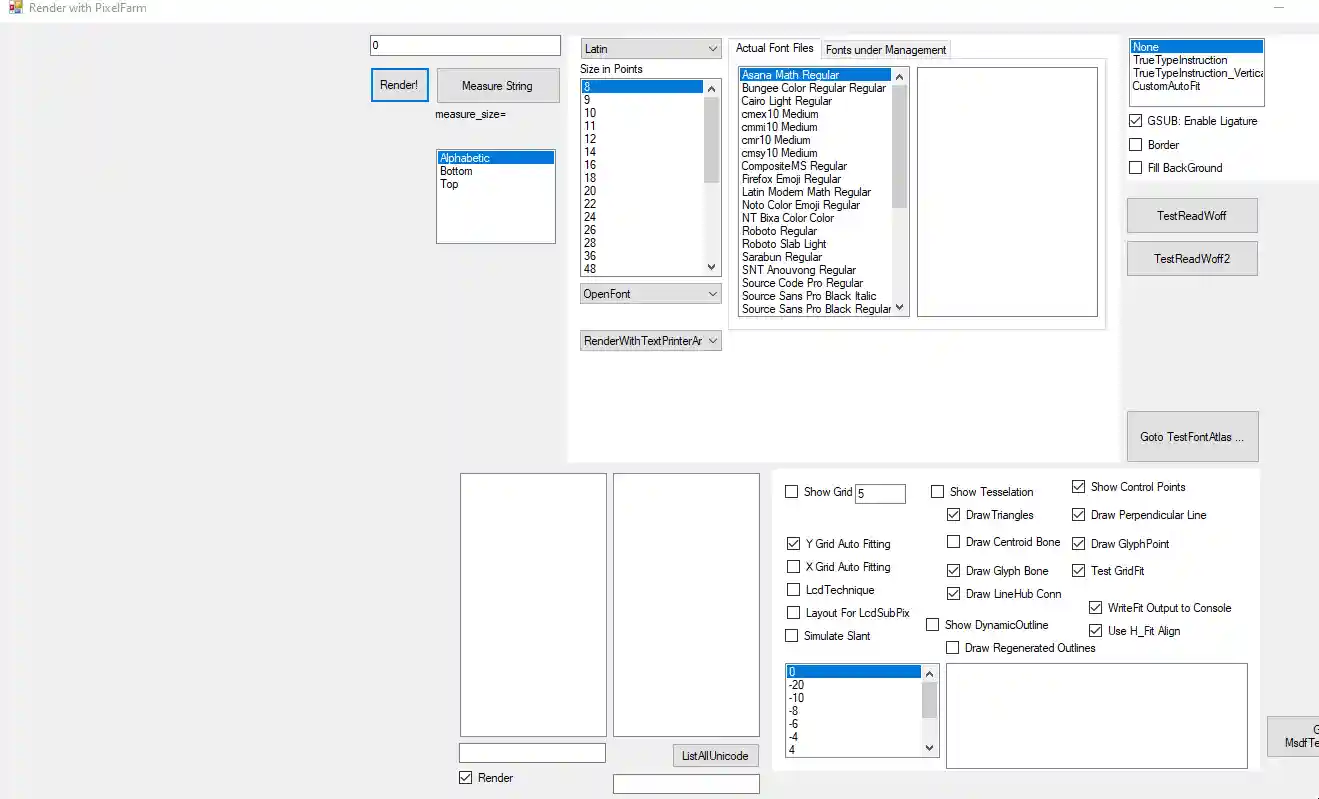

msdf

Msdf, C# version, built-time about 7,101ms


3. a Modified version, (I call it 'Msdf3')

msdf3

Msdf3, C# version, built-time about 1,096ms

Event the result images are different, but it give the acceptable glyph image,
(see later)
