Serial Studio API Client

Difficulty: 🟡 Intermediate | Time: ~10 minutes | License: GPL / Pro

A Python client for the Serial Studio API that allows external programs to control and configure Serial Studio through a TCP connection. Provides an interactive REPL, command-line interface, and automated testing capabilities.

Serial Studio API Client

What is this?

The Serial Studio API exposes a TCP server on port 7777 (default) that allows external programs to:

  • Read and modify Serial Studio configuration (UART settings, network settings, etc.)
  • Query connection status and available devices
  • Control the I/O manager (connect, disconnect, pause)
  • Send data to connected devices
  • Configure device drivers (UART, Network, BLE, Modbus, CAN Bus, MQTT)
  • Control export modules (CSV, MDF4)

This Python client provides:

  1. Interactive REPL: Explore the API with autocomplete-like features
  2. CLI Client: Send single commands or batches from the terminal
  3. Test Suite: Automated testing to verify API functionality

Quick Start

Prerequisites

  1. Serial Studio running with API Server enabled

    • Open Serial Studio
    • Go to Settings → Miscellaneous
    • Enable API Server
    • Default port: 7777 (configurable)

  2. Python 3.8 or later (no additional dependencies required)

Test the Connection

cd "examples/API Test"
python test_api.py send io.manager.getStatus

Expected output:

{
  "isConnected": false,
  "paused": false,
  "busType": 0,
  "configurationOk": false
}

Live Monitor Mode

Monitor Serial Studio in real-time with automatic status updates:

# Start live monitor (default 1 second updates)
python test_api.py monitor

# Fast updates (every 500ms)
python test_api.py monitor --interval 500

# Compact mode (append instead of clearing screen)
python test_api.py monitor --compact

Monitor Display

The live monitor shows:

  • Connection Status: Real-time connection state with visual indicators
  • Bus Configuration: Current I/O interface and settings
  • Driver Details: Port, baud rate, IP address, etc. (based on active driver)
  • Export Status: CSV/MDF4 export activity
  • Change Notifications: Alerts when connection or pause state changes
  • Update Statistics: Frame count and update interval

Press Ctrl+C to exit the monitor.

Interactive Mode (REPL)

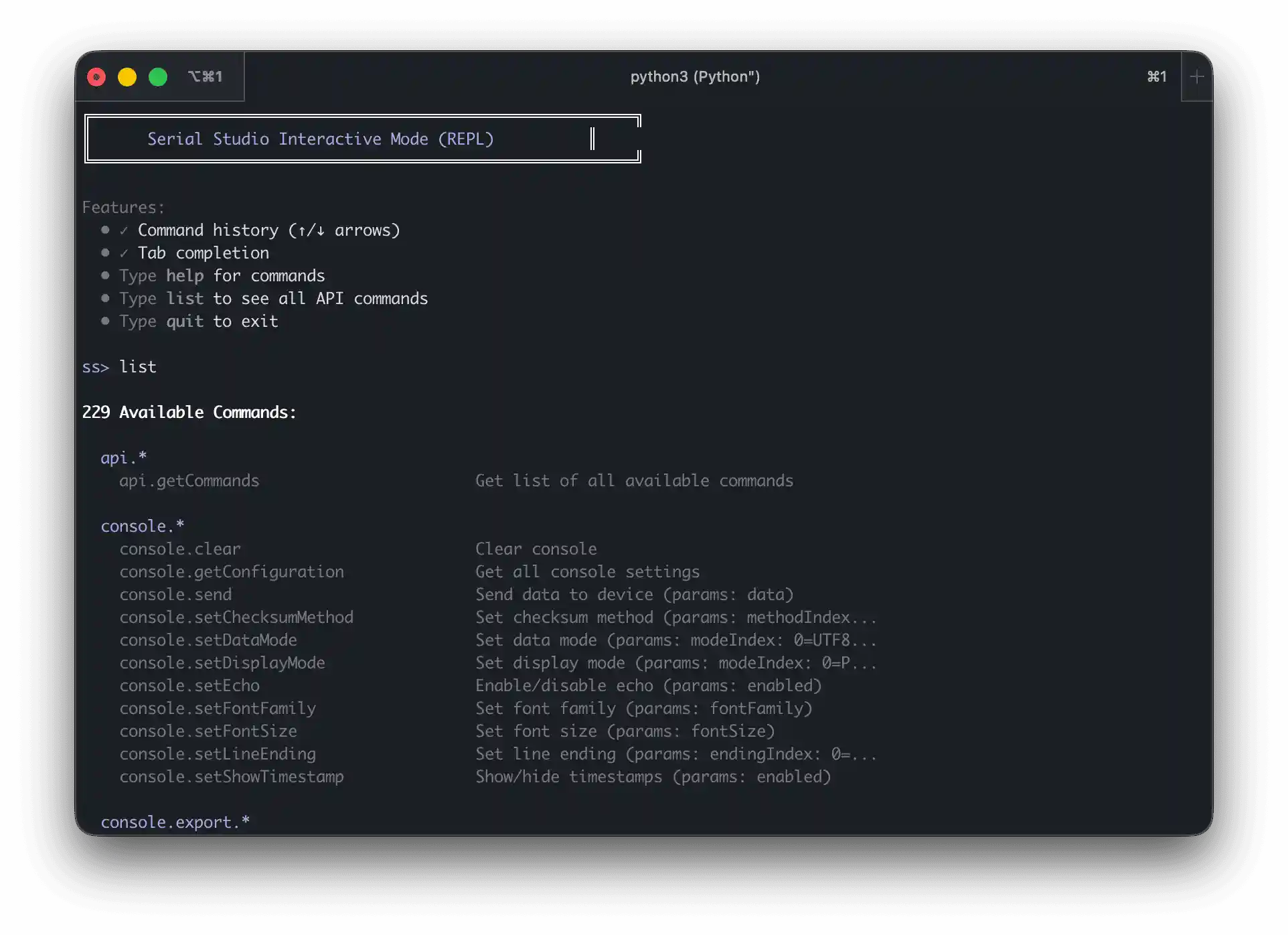

The interactive mode provides an easy way to explore and experiment with the API with a full-featured shell:

python test_api.py interactive

Features

  • Command History: Use ↑/↓ arrow keys to navigate through previous commands (requires readline)
  • Tab Completion: Press Tab to autocomplete command names
  • Colored Output: Syntax-highlighted responses and error messages
  • Persistent History: Commands are saved between sessions in ~/.serial_studio_api_history

REPL Commands

Inside the REPL, you can use these special commands:

Command Description
help Show help and available commands
list List all API commands with descriptions
clear Clear the screen
quit / exit Exit the REPL

Example REPL Session

$ python test_api.py interactive

Serial Studio API Interactive Client
Connected to 127.0.0.1:7777
Type 'help' for available commands, 'list' to see all API commands, or 'quit' to exit.

ss> io.manager.getStatus
{
  "isConnected": false,
  "paused": false,
  "busType": 0,
  "configurationOk": false,
  "readOnly": false,
  "readWrite": false,
  "busTypeName": "Serial Port"
}

ss> io.driver.uart.setBaudRate {"baudRate": 115200}
{
  "baudRate": 115200
}

ss> io.driver.uart.getConfiguration
{
  "port": "",
  "baudRate": 115200,
  "dataBits": 8,
  "parity": "None",
  "stopBits": 1,
  "flowControl": "None"
}

ss> list
Available commands (158 total):
  api.getCommands - Get list of all available commands
  io.manager.connect - Connect to the currently configured device
  io.manager.disconnect - Disconnect from the current device
  csv.player.open - Open CSV file for playback
  console.send - Send data to device
  project.file.open - Open project file
  ...

ss> quit
Goodbye!

Command-Line Usage

Send Single Commands

# Query connection status
python test_api.py send io.manager.getStatus

# Set UART baud rate (key=value format - works on all shells)
python test_api.py send io.driver.uart.setBaudRate -p baudRate=115200

# Set network address
python test_api.py send io.driver.network.setRemoteAddress -p address=192.168.1.100

# Multiple parameters
python test_api.py send io.driver.modbus.addRegisterGroup -p type=0 startAddress=0 count=10

# Boolean parameters
python test_api.py send io.manager.setPaused -p paused=true

# JSON format (alternative)
python test_api.py send io.driver.uart.setBaudRate --params '{"baudRate": 115200}'

List Available Commands

# Show all API commands with descriptions
python test_api.py list

# Output as JSON (for scripting)
python test_api.py list --json

Batch Commands from File

Execute multiple commands from a JSON file:

python test_api.py batch commands.json

Example commands.json:

[
  {
    "command": "io.manager.setBusType",
    "id": "set-bus",
    "params": {"busType": 0}
  },
  {
    "command": "io.driver.uart.setBaudRate",
    "id": "set-baud",
    "params": {"baudRate": 115200}
  },
  {
    "command": "io.driver.uart.getConfiguration",
    "id": "get-config"
  }
]

Live Monitor

# Monitor connection status in real-time
python test_api.py monitor

# Fast updates (500ms)
python test_api.py monitor --interval 500

# Compact output (no screen clearing)
python test_api.py monitor --compact

Run Test Suite

# Run all automated tests
python test_api.py test

# Verbose output
python test_api.py test --verbose

Available API Commands

Use python test_api.py list to see all commands, or run python test_api.py interactive and type list in the REPL.

Core API (GPL)

  • api.* - API introspection (1 command)
  • io.manager.* - I/O manager control (12 commands)
  • io.driver.uart.* - UART/Serial configuration (12 commands)
  • io.driver.network.* - Network (TCP/UDP) configuration (10 commands)
  • io.driver.ble.* - Bluetooth Low Energy (9 commands)
  • csv.export.* - CSV file export control (3 commands)
  • csv.player.* - CSV file playback (9 commands)
  • console.* - Console/terminal control (11 commands)
  • dashboard.* - Dashboard configuration (7 commands)
  • project.* - Project management (19+ commands)
    • project.file.* - File operations (new, open, save)
    • project.group.* - Group management (add, delete, duplicate)
    • project.dataset.* - Dataset management (add, delete, duplicate, setOption)
    • project.action.* - Action management (add, delete, duplicate)
    • project.parser.* - Frame parser code (getCode, setCode)
    • project.*.list - List operations (groups.list, datasets.list, actions.list)

Pro Features (Commercial License Required)

  • io.driver.modbus.* - Modbus RTU/TCP configuration (21 commands)
  • io.driver.canbus.* - CAN Bus configuration (9 commands)
  • mqtt.* - MQTT client configuration (27 commands)
  • mdf4.export.* - MDF4 file export control (3 commands)
  • mdf4.player.* - MDF4 file playback (9 commands)
  • io.driver.audio.* - Audio input/output (13 commands)

For full command reference, see API_REFERENCE.md.

Common Usage Examples

Example 1: Configure UART Connection

# Interactive mode
python test_api.py interactive

ss> io.manager.setBusType {"busType": 0}
ss> io.driver.uart.setBaudRate {"baudRate": 115200}
ss> io.driver.uart.setParity {"parityIndex": 0}
ss> io.driver.uart.setDataBits {"dataBitsIndex": 3}
ss> io.driver.uart.setStopBits {"stopBitsIndex": 0}
ss> io.driver.uart.getPortList
ss> io.driver.uart.setPortIndex {"portIndex": 0}
ss> io.manager.connect

Example 2: Configure Network (TCP) Connection

# Command-line mode
python test_api.py send io.manager.setBusType -p busType=1
python test_api.py send io.driver.network.setSocketType -p socketTypeIndex=0
python test_api.py send io.driver.network.setRemoteAddress -p address=192.168.1.100
python test_api.py send io.driver.network.setTcpPort -p port=8080
python test_api.py send io.manager.connect

Example 3: Configure Bluetooth LE

# Interactive mode for easier device discovery
python test_api.py interactive

ss> io.manager.setBusType {"busType": 2}
ss> io.driver.ble.getStatus
ss> io.driver.ble.startDiscovery
# Wait a few seconds...
ss> io.driver.ble.getDeviceList
ss> io.driver.ble.selectDevice {"deviceIndex": 0}
ss> io.driver.ble.getServiceList
ss> io.driver.ble.selectService {"serviceIndex": 0}
ss> io.driver.ble.getCharacteristicList
ss> io.driver.ble.setCharacteristicIndex {"characteristicIndex": 0}
ss> io.manager.connect

Example 4: Configure Modbus TCP (Pro)

python test_api.py send io.manager.setBusType -p busType=4
python test_api.py send io.driver.modbus.setProtocolIndex -p protocolIndex=1
python test_api.py send io.driver.modbus.setHost -p host=192.168.1.50
python test_api.py send io.driver.modbus.setPort -p port=502
python test_api.py send io.driver.modbus.setSlaveAddress -p address=1
python test_api.py send io.driver.modbus.setPollInterval -p intervalMs=1000
python test_api.py send io.driver.modbus.addRegisterGroup -p type=2 startAddress=0 count=10
python test_api.py send io.manager.connect

Example 5: Send Data to Connected Device

# Data must be Base64 encoded
echo -n "Hello World" | base64  # SGVsbG8gV29ybGQ=

python test_api.py send io.manager.writeData -p data=SGVsbG8gV29ybGQ=

Example 6: Control CSV Export

python test_api.py send csv.export.setEnabled -p enabled=true
python test_api.py send csv.export.getStatus
python test_api.py send csv.export.close
python test_api.py send csv.export.setEnabled -p enabled=false

Example 7: Configure Dashboard Settings

# Get current dashboard configuration
python test_api.py send dashboard.getStatus

# Set operation mode (0=ProjectFile, 1=DeviceSendsJSON, 2=QuickPlot)
python test_api.py send dashboard.setOperationMode -p mode=2

# Set visualization refresh rate (FPS)
python test_api.py send dashboard.setFPS -p fps=60

# Set data points per plot
python test_api.py send dashboard.setPoints -p points=500

# Query individual settings
python test_api.py send dashboard.getOperationMode
python test_api.py send dashboard.getFPS
python test_api.py send dashboard.getPoints

API Protocol Reference

Message Format

All messages are JSON objects terminated by a newline (\n).

Command Request

{
  "type": "command",
  "id": "unique-request-id",
  "command": "io.manager.getStatus",
  "params": {"paused": true}
}

Success Response

{
  "type": "response",
  "id": "unique-request-id",
  "success": true,
  "result": {
    "isConnected": false,
    "paused": false
  }
}

Error Response

{
  "type": "response",
  "id": "unique-request-id",
  "success": false,
  "error": {
    "code": "INVALID_PARAM",
    "message": "Invalid port: 70000. Valid range: 1-65535"
  }
}

Error Codes

  • INVALID_JSON: Malformed JSON message
  • INVALID_MESSAGE_TYPE: Unknown or missing message type
  • UNKNOWN_COMMAND: Command not recognized
  • INVALID_PARAM: Parameter value out of range or invalid
  • MISSING_PARAM: Required parameter not provided
  • EXECUTION_ERROR: Command failed during execution
  • OPERATION_FAILED: Operation could not be completed

Bus Types (for io.manager.setBusType)

Index Name License
0 UART (Serial) GPL/Pro
1 Network (TCP/UDP) GPL/Pro
2 Bluetooth LE GPL/Pro
3 Audio Pro
4 Modbus (RTU/TCP) Pro
5 CAN Bus Pro
6 MQTT Pro

Operation Modes (for dashboard.setOperationMode)

Index Name Description
0 ProjectFile Uses a project file to define dashboard structure and data parsing
1 DeviceSendsJSON Device sends pre-formatted JSON data (no parsing needed)
2 QuickPlot Automatically detects and plots CSV-formatted data

Troubleshooting

Connection Issues

Problem: Connection refused or Connection timed out

Solutions:

  1. Verify Serial Studio is running
  2. Check API Server is enabled (Settings → Extensions)
  3. Confirm port number (default: 7777)
  4. Try specifying host/port explicitly:
    python test_api.py --host 127.0.0.1 --port 7777 send io.manager.getStatus

Parameter Format Issues

Problem: "Invalid JSON parameters" error

Solutions:

  1. Use key=value format (easier on all shells):

    python test_api.py send io.driver.uart.setBaudRate -p baudRate=115200

  2. On Windows PowerShell, escape JSON quotes carefully:

    python test_api.py send io.driver.uart.setBaudRate --params '{\"baudRate\": 115200}'

  3. Use interactive mode for complex commands

Command Not Found

Problem: UNKNOWN_COMMAND error

Solutions:

  1. List all available commands:

  2. Check if command requires Pro license (see API_REFERENCE.md)

  3. Verify command spelling and case (commands are case-sensitive)

Advanced Usage

Scripting with JSON Output

# Get status and extract specific field
STATUS=$(python test_api.py send io.manager.getStatus --json)
IS_CONNECTED=$(echo $STATUS | jq -r '.result.isConnected')

if [ "$IS_CONNECTED" = "true" ]; then
    echo "Already connected"
else
    python test_api.py send io.manager.connect --json
fi

Automation Scripts

#!/bin/bash
# Example: Create a script to configure and connect to your device

python test_api.py send io.manager.setBusType -p busType=0
python test_api.py send io.driver.uart.setBaudRate -p baudRate=115200
python test_api.py send io.driver.uart.setPortIndex -p portIndex=0
python test_api.py send csv.export.setEnabled -p enabled=true
python test_api.py send io.manager.connect

echo "Setup complete! Device connected and logging to CSV."

Custom Integration

#!/usr/bin/env python3
# Example: Create your own Python wrapper for the Serial Studio API
import socket
import json

def send_command(command, params=None):
    """Send a command to Serial Studio API and return the response."""
    sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    sock.connect(("127.0.0.1", 7777))

    msg = {
        "type": "command",
        "id": "custom-1",
        "command": command
    }
    if params:
        msg["params"] = params

    sock.sendall((json.dumps(msg) + "\n").encode())
    response = json.loads(sock.recv(65536).decode())
    sock.close()

    return response

# Example usage
status = send_command("io.manager.getStatus")
print(f"Connected: {status['result']['isConnected']}")

send_command("io.driver.uart.setBaudRate", {"baudRate": 115200})

# Add your application logic here

Security Considerations

  1. Localhost Only: The API Server binds to localhost (127.0.0.1) by default and is not accessible from the network

  2. No Authentication: The API does not require authentication - anyone with local access can control Serial Studio

  3. Firewall: Ensure your firewall blocks external access to port 7777

  4. Production Use: Do not expose the API Server to untrusted networks

Files in This Example

  • test_api.py - Main Python client (CLI, REPL, tests)
  • README.md - This documentation file
  • API_REFERENCE.md - Complete API command reference

License

This example is dual-licensed:

  • GPL-3.0-only: For use with Serial Studio GPL builds
  • LicenseRef-SerialStudio-Commercial: For use with Serial Studio Pro

See the main LICENSE file in the repository root for details.

More Information

Contributing

Found a bug or have a suggestion? Please report it on the GitHub issue tracker.
