Results

---

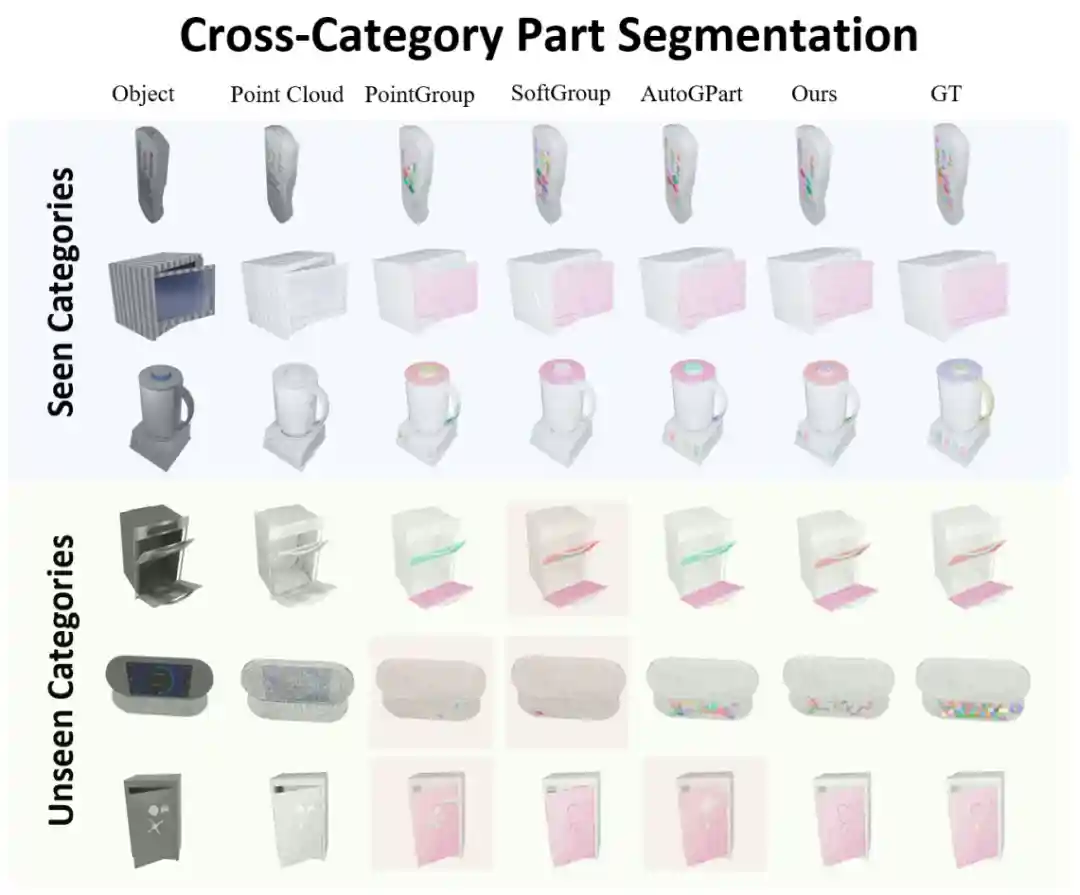

Cross-Category Part Segmentation

We visualize the results of the different methods on the seen and unseen categories, where the red blocks show the failures. Our method has fewer failure cases. In particular, on the unseen category, our method still achieves the desired performance when the performance of other methods drops significantly.

Cross-Category Part Pose Estimation

We visualize the results of the part pose estimation. Our method has better results on seen and unseen categories with better generalization across categories.

The following shows the visualization results for these two tasks. The left two figures show the results of cross-category part segmentation and pose estimation on seen and unseen categories, while the right figure shows some of the failure cases. Here we only show the revolute joint estimation results.

Cross-Category Part-based Object Manipulation

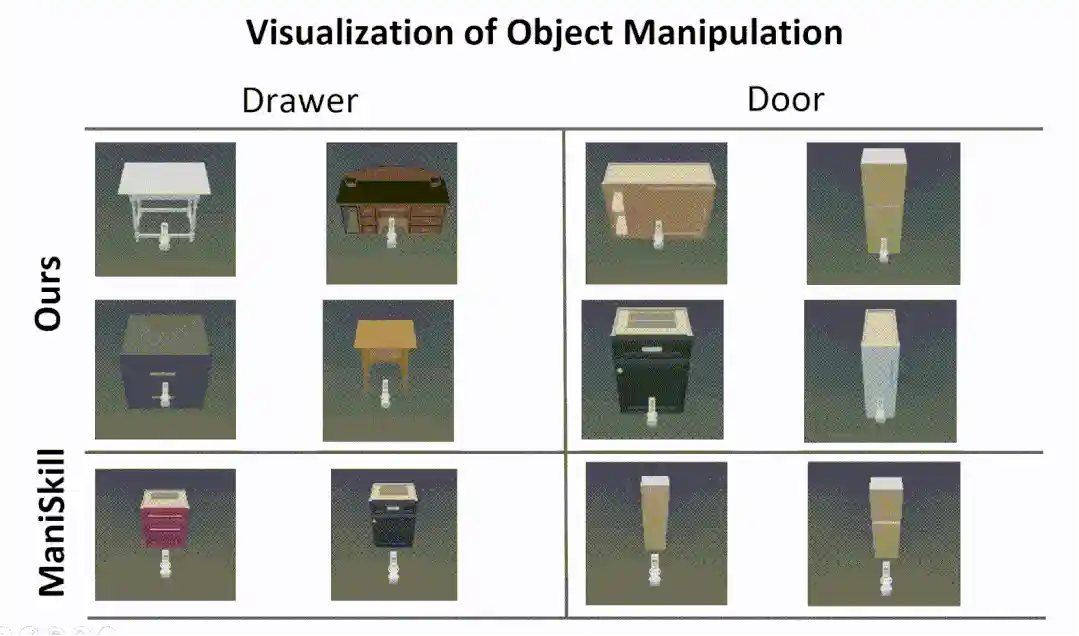

The following is a visualization of our part-based object manipulatio. Experiments in the simulator show that our approach enables more human-like interactions, while the RL algorithm from the ManiSkill benchmark often tries to open a door or drawer by prying and rubbing the edge of the door or drawer, rather than using the handle.

We further tested our method in real-world experiments, showing that our method is robust to Domain Gap, which allows us to generate reliable part segmentation and part pose estimation, and ultimately to successfully manipulate parts from unseen objects.

Note that we did this real world experiments with KINOVA Arm.

Note that we did this real world experiments with Franka Arm and using the CONFIG MODE to control the robot.
