In 2000 Klitzing published[1] on segmentotopes in general resp. his research on convex segmentochora in special. Segmentotopes are polytopes which bow to the following conditions:

The first condition shows that the circumradius is well defined. Moreover, in union with condition 3 this implies that all 2D faces have to be regular. The sandwich type 2nd condition implies that all edges, which aren't contained completely within one of the hyperplanes, would join both, i.e. having one vertex each in either plane. Thence segmentotopes have to be monostratic. In fact, segmentotopes are the monostratic orbiforms. (Orbiforms, a terminus which had been created several years later only, just use the first and third condition of those.) Finally it follows, that the bases have to be orbiforms, while all the lacing elements have to be (lower dimensional) segmentotpes.

The naming of individual segmentotopes usually is based on the 2 base polytopes: top-base polytope atop bottom-base polytope. Symbolically one uses the parallelness of those bases: Ptop || Pbottom. (For the smaller segmentotopes the choice of bases need not be unique.)

Segmentotopes are closely related to lace prisms. In fact those concepts have a large common intersection, but they are not identical. While lace prisms need an axis of symmetry (in fact one which is describable as Dynkin symbol), one uses the terminus "axis" in the context of segmentotopes only in the sense of the line defined by the centers of the circumspheres of d-1 dimensional bases. (Thus the topic of axial polytopes does more relate to lace towers (as multistratic generalizations of lace prisms) than to segmetotopes. None the less there is a large overlap.) – Note that the radius R of the d-1 dimensional circumsphere used for a segmentotpal base of dimension d-k might well be larger than the radius r of its d-k dimensional circumsphere: for k > 1 the latter might well be placed within the former with some additional shift s:   R2 = r2 + s2. For a simple example just consider squippy, the 4-fold pyramid, which is just half of an oct, when being considered as line || triangle: the subdimensional base, the single edge, there is placed off-set.

In fact, let rk be the individual circumradii of the bases, let sk be the respective shifts away from the axis (if subdimensional), let h be the axial height and R the global circumradius, then we have the following interrelation formula between all these sizes  4 R2 h2 = ((r22+s22)-(r12+s12))2 + 2 ((r12+s12)+(r22+s22)) h2 + h4.


Convex Segmentochora   (up)

Just as polytopes are distinguished dimensionally as polygons, polyhedra, polychora, etc. so too are segmentotopes.
The only segmentogons (without any further adjectivic restriction) clearly are

Segmentohedra already include infinite series like

(*) Grünbaumian bottom base understood to be withdrawn.
For convex ones d clearly has to be 1 and several of the above series then become finite.

Polychora generally have the disadvantage not being visually accessible. Segmentochora are not so hard for that: Just consider the 2 base polyhedra displayed concentrically, perhaps slightly scaled, while the lacings then get slightly deformed. Mathematically speaking, axial projections (view-point at infinity) and central projections (finite view-point), either one being taken on the axis for sure, from 4D onto 3D generally are well "viewable" for such monostratic figures. Especially when using real 3D graphics (like the here used VRMLs) instead of further projections onto 2D as in usual pictures: Note that all pictures at "segmentochoron display" within individual polychoron files will be linked to such VRML files.

Color coding of the following pictures:
fore color back color explanation

red

 -

Ptop

blue

 -

Pbottom

gold

 -

lacing edges
-

white

spherical geometry
-

light yellow

euclidean geometry – cf. also: decompositions
-

light green

hyperbolic geometry

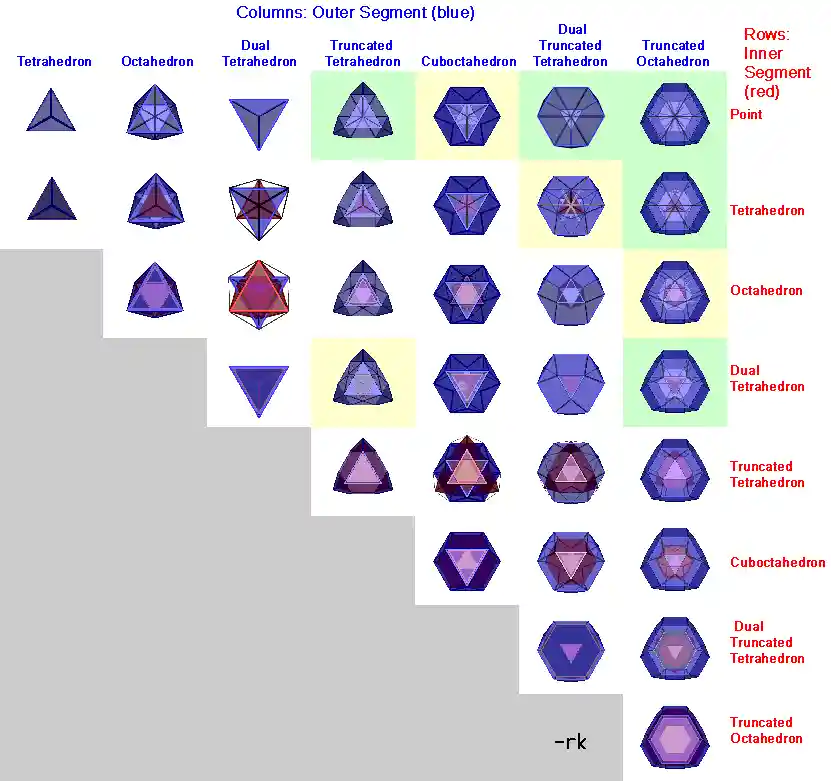

Cases with Tetrahedral Axis:

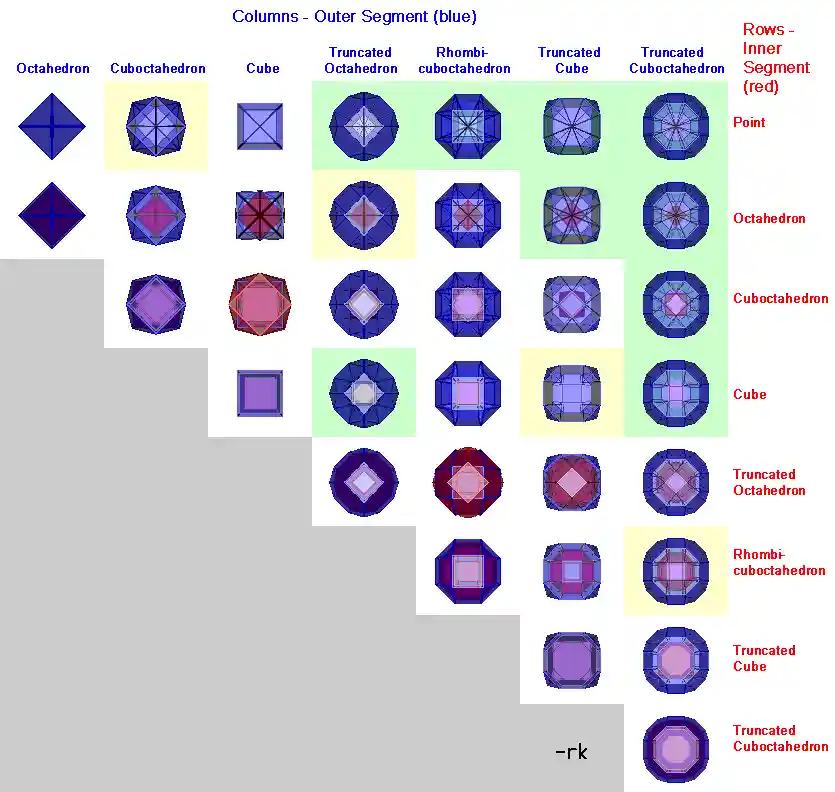

Cases with Octahedral Axis:

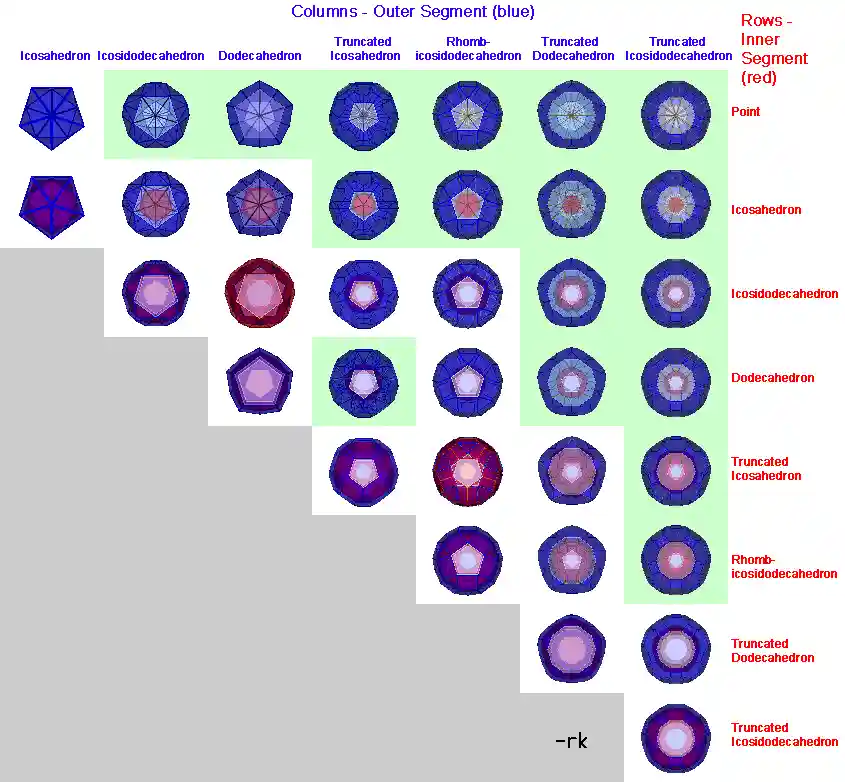

Cases with Icosahedral Axis:


Cases with n-Prismatic or n-Antiprismatic Axis:
ortho n-gon n-prism gyrated n-prism 2n-prism n-antiprism
  pt || n-p
(prism pyramids)		     pt || n-ap
(antiprism pyramids)		 point
line || ortho n-gon
(scalenes)		 line || n-p
(pyramid prisms)		       line segment
  n-g || n-p
(3,n-duoprisms)		 n-g || gyro n-p
(antifastegia)		 n-g || 2n-p
(magnabicupolic rings,
pucofastegia)		 n-g || n-ap
(= n-g || gyro n-p)		 n-gon
  2n-g || n-p
(orthobicupolic rings,
cupofastegia)		     2n-g || n-ap
(gyrobicupolic rings)		 2n-gon
  n-p || n-p
(4,n-duoprisms)		 n-p || gyro n-p
(antiprism prisms)		 n-p || 2n-p
(n-cupola prisms)		   n-prism
      2n-p || 2n-p
(4,2n-duoprisms)		   2n-prism
        n-ap || n-ap
(= n-p || gyro n-p)		 n-antiprism
Non-Lace-Prismatics:

Just as already often was used within the set of Johnson solids, several of the above segmentochora allow diminishings too. Those generally break some symmetries of one or both bases, and therefore too of the axial symmetry. Thus there is no longer a unifying symmetry according to which a Dynkin symbol could be designed, being the premise for lace prisms. Even though, such diminished ones are fully valid segmentotopes (following the above 3 conditions). An easy 3D example could be again line || triangle, the alternate description of the above mentioned squippy. The easiest 4D one clearly is squasc (i.e. the 1/4-lune of the hex). – Gyrations in some spare cases might apply as well, although those in general would conflict to the requirement of exactly 2 vertex layers.

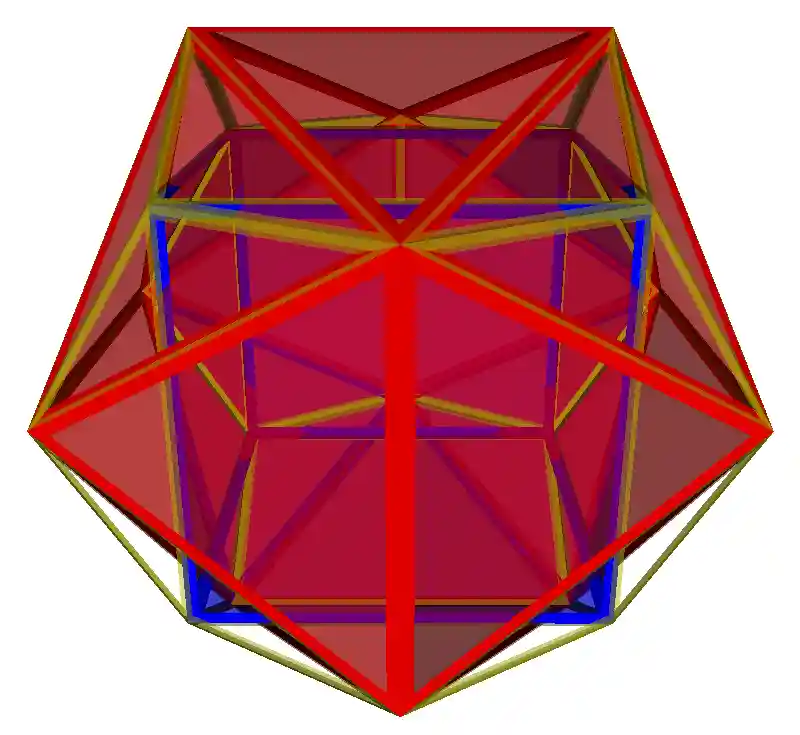

But there is also a generic non-lace-prismatic convex segmentochoron with octahedral symmetry at one base, with icosahedral symmetry at the other. (The common subsymmetry clearly is the pyrital. But that one does not bow to Dynkin symbol description.) That one uses as faces 1 cube (as bottom base), 6 trip (as line || square), 12 squippy (as triangle || line), 8 tet (as triangle || point), and 1 ike (as top base).

Full Table:
CircumradiusSegmentochoron
0.632456
K-4.1   pen = pt || tet        (regular)
K-4.1.1     = line || perp {3}
0.707107
K-4.2   hex = tet || dual tet     (regular)

K-4.3   octpy = pt || oct         (segment of hex)
K-4.3.1       = {3} || gyro tet

K-4.4   squasc = pt || squippy    (luna of hex)
K-4.4.1        = line || tet
K-4.4.2        = {3} || incl {3}
K-4.4.3        = line || perp {4}
0.774597
K-4.5   rap = tet || oct            (uniform)

K-4.6   traf = tet || squippy       (segment of rap)
K-4.6.1      = {3} || oct
K-4.6.2      = {3} || gyro trip

K-4.7   trippy = line || squippy    (segment of rap)
K-4.7.1        = {3} || tet
K-4.7.2        = pt || trip
K-4.7.3        = {3} || otho {4}
   (where 1 {3}-edge || 2 {4}-edges)

K-4.8   bidrap = {3} || squippy     (wedge of rap)
K-4.8.1        = {4} || tet
K-4.8.2        = line || ortho trip
0.790569
K-4.9   tepe = tet || tet        (uniform)
K-4.9.1      = line || para trip
K-4.9.2      = {4} || ortho {4}
0.816497
K-4.10   triddip = {3} || trip         (uniform)

K-4.11   ope = oct || oct              (uniform)
K-4.11.1     = trip || gyro trip

K-4.12   squippyp = squippy || squippy (segment of ope)
K-4.12.1          = {4} || trip
K-4.12.2          = line || cube

K-4.13   digytpuf = trip || refl ortho trip (gyrated ope)
0.879465
K-4.14   squaf = {4} || squap     (wedge of oct || cube)
K-4.14.1       = {4} || gyro cube

K-4.15   octacube = oct || cube

K-4.16   squippy || gyro cube

K-4.17   squappy = {4} || gyro squippy
K-4.17.1         = pt || squap
0.866025
K-4.18   tisdip = trip || trip (uniform)
K-4.18.1        = {4} || cube
0.962692
K-4.19   squappip = squap || squap    (uniform)
K-4.19.1          = cube || gyro cube
1
K-4.20   tes = cube || cube       (regular)

K-4.21   cubaike = cube || ike

K-4.22   paf = {5} || pap
K-4.22.1     = {5} || gyro pip

K-4.23   tetaco = tet || co       (segment of spid)

K-4.24   tet || tricu             (luna of spid)

K-4.25   tricuf = {3} || tricu    (luna of spid)
K-4.25.1        = {6} || trip

K-4.26   cubpy = {4} || squippy   (segment of ico)
K-4.26.1       = pt || cube

K-4.27   traw = {3} || gyro tricu (luna of ico)
K-4.27.1      = {6} || oct

K-4.28   bidoctaco = {4} || co    (wedge of ico)

K-4.29   octaco = oct || co       (segment of ico)

K-4.30   octatricu = oct || tricu (luna of ico)

K-4.31   squippiaco = squippy || co

K-4.32   squippiatricu = squippy || tricu

K-4.33   trateddi = {3} || teddi
1.028076
K-4.34   trapedip = {5} || pip (uniform)
1.031784
K-4.35   cubaco = cube || co
1.074481
K-4.36   ipe = ike || ike             (uniform)

K-4.37   gyepippip = gyepip || gyepip

K-4.38   peppyp = peppy || peppy
K-4.38.1        = line || pip

K-4.39   pappip = pap || pap
K-4.39.1        = pip || gyro pip

K-4.40   mibdip = mibdi || mibdi

K-4.41   teddipe = teddi || teddi
1.106168
K-4.42   squipdip = pip || pip (uniform)
1.118034
K-4.43   cope = co || co          (uniform)

K-4.44   tobcupe = tobcu || tobcu

K-4.45   tricupe = tricu || tricu
K-4.45.1         = trip || hip
1.130454
K-4.46   haf = {6} || hap
K-4.46.1     = {6} || gyro hip
1.154701
K-4.47   thiddip = {6} || hip (uniform)
1.183216
K-4.48   coatut = co || tut

K-4.49   tobcuatut = tobcu || tut

K-4.50   tricuatut = tricu || tut

K-4.51   tripuf = {6} || tricu
K-4.51.1        = {3} || hip

K-4.52   octatut = oct || tut
1.197085
K-4.53   happip = hap || hap      (uniform)
K-4.53.1        = hip || gyro hip
1.224745
K-4.54   shiddip = hip || hip  (uniform)

K-4.55   tuta = tut || inv tut (segment of rit)

K-4.56   tetatut = tet || tut  (segment of rit)
1.274755
K-4.57   tuttip = tut || tut (uniform)
1.409438
K-4.58   oaf = {8} || oap
K-4.58.1     = {8} || gyro op
1.428440
K-4.59   todip = {8} || op (uniform)
1.433724
K-4.60   sniccup = snic || snic (uniform)
1.447009
K-4.61   coasirco = co || sirco

K-4.62   coaescu = co || escu

K-4.63   coaop = co || op

K-4.64   squaw = {4} || gyro squacu
K-4.64.1       = {8} || squap
1.463603
K-4.65   oappip = oap || oap    (uniform)
K-4.65.1        = op || gyro op (uniform)
1.48563
K-4.66   sircope = sirco || sirco  (uniform)

K-4.67   esquigybcupe = esquigybcu || esquigybcu

K-4.68   escupe = escu || escu

K-4.69   squacupe = squacu || squacu
K-4.69.1          = cube || op

K-4.70   sodip = op || op          (uniform)

K-4.71   cubasirco = cube || sirco (segment of sidpith)

K-4.72   cube || esquibcu

K-4.73   squicuf = {4} || squacu   (wedge of sidpith)
K-4.73.1         = {8} || cube
1.487792
K-4.74   dope = doe || doe (uniform)
1.582890
K-4.75   sircoatoe = sirco || toe
1.612452
K-4.76   tutatoe = tut || toe (segment of prip)
1.618034
K-4.77   doaid = doe || id

K-4.78   ikadoe = ike || doe        (segment of ex)

K-4.79   gyepip || doe

K-4.80   pappy = {5} || gyro peppy
K-4.80.1       = pt || pap

K-4.81   papadoe = pap || doe

K-4.82   mibdiadoe = mibdi || doe

K-4.83   teddi adoe = teddi || doe

K-4.84   ikepy = pt || ike          (segment of ex)

K-4.85   gyepippy = pt || gyepip

K-4.86   peppypy = pt || peppy      (wedge of ex)
K-4.86.1         = line || perp {5}

K-4.87   mibdipy = pt || mibdi

K-4.88   teddipy = pt || teddi
CircumradiusSegmentochoron
1.658312
K-4.89   tope = toe || toe (uniform)
1.693527
K-4.90   iddip = id || id (uniform)

K-4.91   pobrope = pobro || pobro

K-4.92   perope = pero || pero
1.702385
K-4.93   daf = {10} || dap
K-4.93.1     = {10} || gyro dip
1.717954
K-4.94   tradedip = {10} || dip (uniform)
1.732051
K-4.95   coatoe = co || toe (segment of rico)
1.747560
K-4.96   dappip = dap || dap      (uniform)
K-4.96.1        = dip || gyro dip
1.765796
K-4.97   squadedip = dip || dip (uniform)
1.785406
K-4.98   toatic = toe || tic
1.847759
K-4.99    ticcup = tic || tic      (uniform)

K-4.100   sircoatic = sirco || tic (segment of srit)

K-4.101   esquigybcu || tic

K-4.102   sircoagytic = sirco || gyro tic

K-4.103   escu || tic

K-4.104   escu || gyro tic

K-4.105   squipuf = {8} || squacu  (segment of srit)
K-4.105.1         = {4} || op

K-4.106   opatic = op || tic       (segment of srit)

K-4.107   octasirco = oct || sirco (segment of spic)

K-4.108   squippy || escu

K-4.109   squippy || squacu
2.213060
K-4.110   sniddip = snid || snid (uniform)
2.288246
K-4.111   sriddip = srid || srid    (uniform)

K-4.112   gyriddip = gyrid || gyrid

K-4.113   pabgyriddip = pabgyrid || pabgyrid

K-4.114   mabgyriddip = mabgyrid || mabgyrid

K-4.115   tagyriddip = tagyrid || tagyrid

K-4.116   diriddip = dirid || dirid

K-4.117   pecupe = pecu || pecu
K-4.117.1        = pip || dip

K-4.118   pagydriddip = pagydrid || pagydrid

K-4.119   magydriddip = magydrid || magydrid

K-4.120   bagydriddip = bagydrid || bagydrid

K-4.121   pabidriddip = pabidrid || pabidrid

K-4.122   mabidriddip = mabidrid || mabidrid

K-4.123   gybadriddip = gybadrid || gybadrid

K-4.124   tedriddip = tedrid || tedrid
2.370932
K-4.125   gircope = girco || girco (uniform)
2.485450
K-4.126   sridati = srid || ti
2.527959
K-4.127   tipe = ti || ti (uniform)
2.613126
K-4.128   ticagirco = tic || girco (segment of proh & srico)

K-4.129   coatic = co || tic       (segment of srico)
3.011250
K-4.130   tiddip = tid || tid (uniform)
3.077684
K-4.131   idasrid = id || srid    (segment of rox)

K-4.132   id || drid

K-4.133   paw = {5} || gyro pecu  (wedge of rox)
K-4.133.1     = {10} || pap

K-4.134   id || pabidrid

K-4.135   id || mabidrid

K-4.136   id || tedrid

K-4.137   ikaid = ike || id       (segment of rox)

K-4.138   gyepip || id

K-4.139   peppia pero = peppy || pero

K-4.140   gyepipa pero = gyepip || pero

K-4.141   pippy = {5} || peppy    (segment of rox)
K-4.141.1       = pt || pip

K-4.142   papaid = pap || id      (wedge of rox)

K-4.143   mibdi aid = mibdi || id (wedge of rox)

K-4.144   pap || pero

K-4.145   mibdi || pero

K-4.146   {5} || pero             (wedge of rox)

K-4.147   teddi aid = teddi || id (wedge of rox)

K-4.148   teddi || pero
3.498949
K-4.149   toagirco = toe || girco (segment of prico)
3.835128
K-4.150   griddip = grid || grid (uniform)

K-4.151   tiatid = ti || tid
5.236068
K-4.152   doasrid = doe || srid (segment of sidpixhi)

K-4.153   doe || drid

K-4.154   pecuf = {5} || pecu   (wedge of sidpixhi)
K-4.154.1       = {10} || pip

K-4.155   doa pabidrid = doe || pabidrid

K-4.156   doe || mabidrid

K-4.157   doe || tedrid
6.073594
K-4.158   idati = id || ti (segment of srix)
6.735034
K-4.159   sridatid = srid || tid (segment of srahi)

K-4.160   gyrid || tid

K-4.161   pabgyrid || tid

K-4.162   mabgyrid || tid

K-4.163   tagyrid || tid

K-4.164   drid || tid

K-4.165   pepuf = {10} || pecu   (segment of srahi)
K-4.165.1       = {5} || dip

K-4.166   pagydrid || tid

K-4.167   magydrid || tid

K-4.168   bagydrid || tid

K-4.169   pabidrid || tid

K-4.170   mabidrid || tid

K-4.171   gybadrid || tid

K-4.172   tedrid || tid
9.744610
K-4.173   tidagrid = tid || grid (segment of prix)
...
K-4.174   n-af = {n} || n-ap
K-4.174.1      = {n} || gyro n-p
...
K-4.175   3,n-dip = {n} || n-p (uniform)
...
K-4.176   n-appip = n-ap || n-ap    (uniform)
K-4.176.1         = n-p || gyro n-p
...
K-4.177   4,n-dip = n-p || n-p (uniform)

(For degenerate segmentochora, i.e. having zero heights, cf. page "finite flat complexes".)


Close Relatives:

  1. In 2012 two sets of closely related monostratic polytopes where found:

    In fact the constraint, of the lacing edges all having unit lengths too, results in some specific shift values for the base polyhedra. As those base polyhedra on the other hand are not degenerate, this conflicts to having a common circumsphere in general: within the case of pyramids only the special value n=3 results in a true convex segmentochoron (being the hex), within the case of cupolae only the special value n=2 results in a true convex segmentochoron (being trip || refl ortho trip). Even though, the values n=3,4,5 resp. n=2,3,4,5 would well generate monostratic convex regular-faced polychora (CRFs).

    The closeness even could be pushed on a bit. If one of the (equivalent) bases each, which are segmentohedra in turn, would be diminished by omitting the smaller top face, i.e. maintaining therefrom only the larger bottom face, those would re-enter the range of valid segmentochora again: {n} || gyro n-py resp. {2n} || n-cu. In fact, here the necessary shifts of the bases could be assembled at the degenerate base alone. There a non-zero shift is known to be allowed.

    Without narrowing those findings, those 2 families could be de-mystified a bit by using different axes: the pyramidal case is nothing but the bipyramid of the n-antiprism, while the cupolaic case is nothing but the bistratic lace tower xxo-n-oxx oxo&#xt.

    Later the author realised also the existance of their ortho counterparts:

    Again those can be splitted at their now always prismatic pseudofacial equator For the pyramidal ones, the case n=2 becomes subdimensional, there representing nothing but the oct. The general case here is nothing but the n-prismatic bipyramid. For the cupolaic case N=2 clearly is full dimensional, but pairs of contained squippies become corealmic and thus unite into octs. Therefore that case happens to become nothing but ope.

  2. In 2014 three close relatives to pyramids have been found, which are not orbiform just because their base is not. Those are line || bilbiro, {3} || thawro, resp. {5} || pocuro. A further such case would be line || esquidpy.

  3. Besides of considering 2 parallel hyperplanes cutting out monostratic layers of larger polychora, in 2012 (and more deeply in 2013) considerations about 2 intersecting equatorial hyperplanes were done. Those clearly cut out wedges. The specific choice of those hyperplanes made up the terminus lunae. Only the CRF ones were considered. The following lunae are known so far:

  4. Surely the convexity restriction could be released. Some 3D examples can be found on the page on axials.
    Some 4D cases would be e.g.
    • 0.591923 - gissidpy = pt || gissid = oo3oo5/2ox&#x
    • 0.613502 - quithpy = pt || quith = oo3ox4/3ox&#x
    • 0.618034 - gikepy = pt || gike = ox3oo5/2oo&#x
    • 0.618034 - sissidpy = pt || sissid = ox5/2oo5oo&#x
    • 0.618034 - stasc = line || perp {5/2} = xo ox5/2oo&#x
    • 0.618034 - gissidragike = narrower gissid || gike = ox3oo5/3xo&#x
    • 0.618034 - shallower gissidasissid = gissid || sissid (with lacing starps)
    • 0.621876 - ogasc = line || perp {8/3} = xo ox4/3ox&#x
    • 0.658240 - shasc = line || perp {7/2} = xo ox7/2oo&#x
    • 0.662791 - gissidagike = taller gissid || gike = ox3oo5/2xo&#x
    • 0.662791 - taller gissidasissid = gissid || sissid (with lacing staps)
    • 0.662791 - stapepy = point || stap = oxo5/2oox&#x
    • 0.692924 - gissidagid = gissid || gid = oo3ox5/2xo&#x
    • 0.726543 - gikagid = gike || gid = xo3ox5/2oo&#x
    • 0.707107 - hossdap = pseudo sissid || pseudo sissid = reduced( β2β5o5/2o , by β5o5/2o )
    • 0.707107 - starpglassit = stappy || inv stappy = xooo5/2ooxo&#xr
    • 0.707107 - tho = tet || dual pseudo tet = hemi( x3o3/2o3o3*a )
    • 0.707107 - fitetaltet = faceted tet || dual tet = reduced( xx3/2ox3oo&#x , by x3/2x )
    • 0.739539 - quith || "thah-squares star" = reduced( xo4/3xx3/2ox&#x , by oct )
    • 0.774597 - tutrippapy = pt || tutrip = reduced( oox4/2oxx&#x , by ..x4/2..x )
    • 0.774597 - tubidrap = pseudo {4} || so = reduced( oxx4/2xox&#x , by ..x4/2..x )
    • 0.774597 - firp = tet || pseudo 2thah = reduced( xx3/2oo3ox&#x , by x3/2o3x )
    • 0.774597 - fitetaoct = faceted 3tet || oct = reduced( ox3/2xx3oo&#x , by x3/2x )
    • 0.774597 - hotetahoct = pseudo tet || pseudo oct = reduced( xx3/2ox3oo3*a&#x , by x3/2x )
    • 0.774597 - pafirp = tet || "thah-squares star" = reduced( xx3/2xo3ox&#x , by x3/2x )
    • 0.774597 - {3} || pseudo gyro trip = reduced( ox xx3/2ox&#x , by x3/2x )
    • 0.780850 - tistadip = {5/2} || stip = x3o x5/2o
    • 0.790569 - tutepe = pseudo {4} || {4/2}-prism = reduced( ox xo4/2xx&#x , by x.4/2x. )
    • 0.791345 - tistodip = {8/3} || stop = x3o x8/3o
    • 0.825168 - stappip = stap || stap = x s2s5/2s = narrower stip || stip = xx xo5/2ox&#x
    • 0.866025 - "coord-axes edge star" || cube
    • 0.874032 - stacupe = stip || 2pip = xx5/2ox&#x
    • 0.874032 - quit sissidagird = quit sissid || gird = reduced( ox5/4xx5/3xx&#x , by x5/4x )
    • 0.879465 - "thah-squares star" || cube
    • 0.881132 - sistadip = stip || stip = x4o x5/2o
    • 0.890446 - cubaquerco = cube || querco = ox3/2oo4xx&#x
    • 0.890446 - sistodip = stop || stop = x4o x8/3o
    • 0.912871 - "coord-planes square star" || cube
    • 0.951057 - sidtidap = sidtid || gyro sidtid = xo5/2ox3oo3*a&#x
    • 0.951057 - gidtidap = gidtid || gyro gidtid = xo5/4ox3oo3*a&#x
    • 0.951057 - ditdidap = ditdid || gyro ditdid (the blend of the latter 2)
    • 1              - sidtidpy = pt || sidtid = xo3oo3oo5/2*b&#x
    • 1              - gidtidpy = pt || gidtid = xo3oo3/2oo5*b&#x
    • 1              - ditdidpy = pt || ditdid = xo5oo3/2oo5/2*b&#x
    • 1              - tetacho = tet || cho = reduced( ox3/2ox3xx&#x , by x3/2x )
    • 1              - hotet aoho = pseudo 2tet || oho = reduced( xx3/2oo3ox3*a&#x , by x.3/2o.3o.3*a )
    • 1              - sissidagad = sissid || gad = xo5/2oo5ox&#x
    • 1              - co retro-cuploid = "thah-squares star" || co = reduced( ox3/2xx4oo&#x, by .x3/2.x4.o )
    • 1              - hoctaoho = pseudo 2oct || oho = reduced( xx3/2xo3ox3*a&#x, by x.3/2x.3o.3*a )
    • 1              - octacho = oct || cho = reduced( ox3/2xx3ox&#x, by x3/2x )
    • 1              - hothahacho = pseudo thah || cho = reduced( xx3/2ox3xx&&#x, by x3/2x )
    • 1              - gikaike = gike || ike
    • 1              - sirgikaike (edge-faceting of gikaike)
    • 1              - girgikaike (edge-faceting of gikaike)
    • 1              - cubagike = cube || gike
    • 1.064815 - gaddadid = gad || did = xo5ox5/2oo&#x
    • 1.064815 - sissidadid = sissid || did = oo5ox5/2xo&#x
    • 1.082392 - quithaquitco = quith || quitco = ox3xx4/3xx&#x
    • 1.120533 - tiggia gaquatid = tiggy || gaquatid = xx3xx5/3ox&#x
    • 1.136572 - gidtidagiid = gidtid || giid = oo3/2ox3xx5*a&#x
    • 1.183216 - ohoa hotut = oho || pseudo 2tut = reduced( xx3/2xo3xx3*a&#x, by x.3/2x.3o.3*a )
    • 1.183216 - choatut = cho || tut = reduced( ox3/2xx3xx&#x, by x3/2x )
    • 1.328131 - gaddaraded = gad || raded = xx5oo5/2ox&#x
    • 1.336349 - dida raded = raded || tigid = xx5ox5/2xo&#x
    • 1.414214 - didadoe = did || doe = reduced( oo5xx5/2ox&#x, by x5/2x )
    • 1.414214 - goccoa cotco = gocco || cotco = xx3ox4xx4/3*a&#x
    • 1.432173 - radedadoe = raded || doe = reduced( ox5xo5/2xx&#x , by x5/2x )
    • 1.618034 - gadadoe = gad || doe
    • 1.765796 - siida = siid || gyro siid = xo5/2ox3xx3*a&#x
    • 2.363565 - radeda tigid = did || tigid = ox5xx5/2oo&#x
    • 2.497212 - sissidaraded = sissid || raded = ox5oo5/2xx&#x
    • 3.835128 - sidtidasiid = sidtid || siid = xx5/2oo3ox3*a&#x
    • 4.352502 - diddatigid = did || tigid = ox5xx5/2oo&#x
    • 4.684471 - gidditdid aidtid = gidditdid || idtid = xx5/3xx3ox5*a&#x
    • ...             - n/d scalene = line || perp {n/d} = xo ox-n/d-oo&#x
    • ...
  5. By means of external blends at the bases multistratic stacks can be derived, right in the sense of lace towers. But in general, orbiformity thereby is lost. Only few are known, which then still are. Among those clearly are the ones which can be deduced as multistratic segments of uniform or even scaliform polytopes. But there are also rare exceptional finds beyond those, e.g.
    • sidrebcu = sissid || (pseudo) did || gad = xoo5/2oxo5oox&#xt
    • ...

Further Reading



----
 5D
----

(Just some) Convex Segmentotera   (up)

CircumradiusSegmentoteron
0.645497
hix = pt || pen        (regular)
    = line || perp tet
    = {3} || perp {3}
0.707107
tac = pen || dual pen     (regular)

hexpy = pt || hex         (segment of tac)

octasc = line || perp oct (lune of tac)

squete = {3} || perp {4}  (wedge of tac)
0.790569
hin = hex || gyro hex         (uniform)

rappy = pt || rap             (segment of hin)

trafpy = pt || traf           (wedge of hin
                               segment of rappy)

bidrappy = pt || bidrap       (segment of hin)

trippasc = line || perp trip  (segment of hin)

editetaf = line || tepe       (segment of hin)

tetaf = tet || inv tepe       (segment of hin)
      = tet || hex

ditetaf = {3} || gyro tepe    (wedge of hin)
        = pen || gyro trip

squasquasc = {4} || squasc    (wedge of hin)

tedhin = {4} || hex           (wedge of hin)

bidhin = oct || hex           (wedge of hin)
       = tet || inv rap

dihin = pen || inv rap        (segment of hin)

nibdihin = pen || inv traf    (wedge of hin)

triddaf = trip || bidual trip (wedge of hin)
0.806226
penp = pen || pen        (uniform)
     = line || tepe
     = {4} || ortho trip
0.816497
rix = pen || rap                    (uniform)

tepepy = pt || tepe                 (segment of rix)

octatepe = oct || tepe              (segment of rix)

bidrix = pen || bidrap              (segment of rix)
       = squippy || ortho tepe

tedrix = {4} || lacing-ortho ( {4} || lacing-ortho {4} )
       = {4} || ortho tepe          (wedge of rix)

trial triddip = {3} || gyro triddip (segment of rix)
0.841625
tratet = tet || tepe               (uniform)
       = {3} || triddip
       = trip || lacing-ortho trip
0.866025
hexip = hex || hex                      (uniform)
      = tepe || inv. tepe

octpyp = line || ope                    (segment of hexip)
       = octpy || octpy

squascop = {4} || part. ortho cube      (segment of hexip)
         = squasc || squasc

dot = rap || inv rap                    (uniform)

triddippy = pt || triddip               (segment of dot)

tetcubedaw = {2}-ap || axis-ortho {4}-p (lune of dot)

teta ope = tet || ope                   (segment of dot)
         = oct || rap

taope = {3} || ope                      (wedge of dot)

tridafup = triddip || bidual triddip    (segment of dot)

teddot = bidrap || gyro-inv bidrap      (diminishing of dot)
0.895420
squiddaf = {4}-prism || bidual {4}-prism (scaliform)

cubaope = cube || ope
0.912871
troct = oct || ope              (uniform)
      = triddip || gyro triddip

tisquippy = {3} || tisdip       (segment of troct)
          = trip || triddip
0.921954
rappip = rap || rap          (uniform)
       = ope || tepe

traffip = trip || inv tisdip (segment of rappip)

tepacube = tepe || cube      (wedge of rappip)
0.935414
squatet = tepe || tepe              (uniform)
        = {4} || tisdip
        = cube || lacing-ortho cube
0.957427
tratrip = trip || tisdip     (uniform)
        = triddip || triddip
1
squoct = ope || ope                         (uniform)
       = tisdip || {3}-gyro tisdip

squasquippy = {4} || tes                    (segment of squoct)

cubasquasc = cube || squasc                 (segment of traltisdip)

traltisdip = {3} || gyro tisdip

tisdipah = tisdip || {6}

hexaico = hex || ico                        (segment of rat)

rapaspid = rap || spid                      (segment of rat)

opepy = pt || ope                           (segment of rat)

squippyippy = pt || squippyp                (segment of rat)
            = line || cubpy

hexaco = hex || co                          (lune of rat)

rapaco = rap || co                          (lune of rat)

octpy || octaco                             (lune of rat)

opeaco = ope || co                          (segment of rat)

opeah = ope || {6}                          (wedge of rat)

tripgytricudaw = trip || ortho-gyro tricu   (wedge of rat)

oct-first lune of rat = rap || tetaco       (lune of rat)

tet-first lune of rat = hex || octaco       (lune of rat)
                      = rap || alt. tetaco

penatrip = pen || trip                      (wedge of scad)

penaspid = pen || spid                      (segment of scad)

tepaco = tepe || co                         (lune of scad)

pexhix = trip || axis-ortho base-para tricu (wedge of scad)
1.014647
piddaf = pip || bidual pip
1.040833
tracube = cube || tes      (uniform)
        = tisdip || tisdip
1.048144
petet = {5} || trapedip         (uniform)
      = pip || lacing-ortho pip
1.050501
icoap = ico || dual ico (scaliform)

coates = co || tes

icates = tes || ico

tessap = hex || tes

{4} || gyro tes         (wedge of tessap)
1.106168
poct = trapedip || {3}-gyro trapedip (uniform)
1.112583
trike = ike || ipe (uniform)
1.118034
pent = tes || tes        (regular)

icope = ico || ico       (uniform)

opeacope = ope || cope   (segment of icope)

cubpyp = line || tes     (segment of icope)

trawp = ope || hip       (wedge of icope)
      = traw || traw

spiddip = spid || spid   (uniform)

tepeacope = tepe || cope (segment of spiddip)

tricufip = hip || tisdip
         = tricuf || tricuf
1.120019
cubacope = cube || cope
1.143215
trapip = pip || squipdip      (uniform)
       = trapedip || trapedip
1.154701
traco = co || cope            (uniform)

tritricu = triddip || thiddip (segment of traco)
1.172604
hatet = {6} || thiddip          (uniform)
      = hip || lacing-ortho hip

pexhix = {6} || triddip
1.185120
squike = ipe || ipe (uniform)
1.190238
opeatut = ope || tut            (wedge of spix)

copatut = cope || tut           (wedge of spix)

rapatut = rap || tut            (wedge of spix)

rapalsrip = rap || inv srip     (segment of spix)

spidasrip = spid || srip        (segment of spix)

tetacope = tet || cope          (segment of spix)

triddipa hip = {3} || tricupe   (wedge of spix)
             = trip || tripuf
             = triddip || hip

tripa thiddip = {6} || tricupe  (wedge of spix)
              = trip || thiddip

pabex hix = thiddip || antipara thiddip (scaliform)

triddip althiddip = triddip || gyro thiddip
1.213922
pecube = squipdip || squipdip (uniform)
1.224745
octhipdaw = {3}-ap || axis-ortho {6}-p

hoct = thiddip || {3}-gyro thiddip (uniform)

hisquippy = {6} || shiddip         (segment of hoct)

squaco = cope || cope              (uniform)

squatricu = tisdip || shiddip      (segment of squaco)
          = tricupe || tricupe

icarit = ico || rit            (segment of nit)

octco tuttric = octaco || tut  (wedge of nit)
              = oct || coatut
              = co || octatut

rapasrip = rap || srip         (segment of nit)

pabdinit = srip || inv srip    (scaliform,
                                segment of nit)

octacope = oct || cope         (segment of nit)

trial tricupe = {3} || tricupe (wedge of nit)

tisdippy = pt || tisdip        (segment of nit)

ica tutcup = ico || tuta       (segment of nit)

coa tutcup = co || tuta        (wedge of nit)

coarit = co || rit             (wedge of nit)
1.227160
tessarit = tes || rit
1.258306
trahip = thiddip || thiddip (uniform)
       = hip || shiddip
1.274755
tepatut = tepe || tut         (wedge of siphin)

tutaf = tut || inv tuttip     (wedge of siphin)

tutas = tuta || alt. tuta     (scaliform,
                               segment of siphin)

rita = rit || gyro rit        (scaliform,
                               segment of siphin)

hexalrit = hex || gyro rit    (segment of siphin)

octa tutcup = oct || tuta

tripalhip = trip || lacing-ortho hip

tetco tuttric = tet || coatut (segment of penasrip)
              = co || tetatut
              = tut || tetaco

penasrip = pen || srip

spidatip = spid || tip

sripaltip = srip || inv tip
1.284523
srippip = srip || srip        (uniform)

opeatuttip = ope || tuttip    (segment of srippip)

copea tuttip = cope || tuttip (segment of srippip)

tripufip = trip || shiddip    (wedge of srippip)
         = tripuf || tripuf
1.290994
rapatip = rap || tip        (segment of sarx)

sripatip = srip || tip      (segment of sarx)

coatuttip = co || tuttip    (segment of sarx)

trathiddip = {3} || thiddip (segment of sarx)
1.302772
pepip = pedip || pedip (uniform)
1.307032
tratut = tut || tuttip (uniform)
CircumradiusSegmentoteron
1.322876
hacube = shiddip || shiddip      (uniform)

rittip = rit || rit              (uniform)

tutcupip = tuttip || inv tuttip  (segment of rittip)
         = tuta || tuta

tepeatuttip = tepe || tuttip     (segment of rittip)
            = tetatut || tetatut
1.360147
tippip = tip || tip (uniform)
1.369306
squatut = tuttip || tuttip (uniform)
1.414214
pennatip = pen || tip       (segment of rin)

tipadeca = tip || deca      (segment of rin)

octatuttip = oct || tuttip  (segment of sibrid)

sripadeca = srip || deca    (half of sibrid)

hatricu = thiddip || hiddip (half of haco)
1.442951
otet = {8} || todip          (uniform)
     = op || lacing-ortho op
1.462497
trasnic = snic || sniccup (uniform)
1.485633
owoct = todip || {3}-gyro todip (uniform)
1.5
decap = deca || deca (uniform)
1.502958
rita sidpith = rit || sidpith

sirco acope = sirco || cope
1.513420
trasirco = sirco || sircope (uniform)
1.515539
tradoe = doe || dope (uniform)
1.518409
squasnic = sniccup || sniccup (uniform)
1.567516
ocube = sodip || sodip          (uniform)

squasirco = sircope || sircope  (uniform)

sidpithip = sidpith || sidpith  (uniform,
                                 segment of scant)

tessasidpith = tes || sidpith   (segment of scant)

squicuffip = squicuf || squicuf (wedge of sidpithip)
           = tes || op
1.569562
squadoe = dope || dope (uniform)
1.583946
toa sircope = toe || sircope
1.618035
idadope = id || dope
1.620185
ritag thex = rit || gyro thex (segment of sirhin)

thexa = thex || gyro thex     (scaliform,
                               segment of sirhin)

teta tuttip = tet || tuttip   (segment of sirhin)

rapadeca = rap || deca        (segment of sirhin)

deca aprip = deca || prip     (segment of sirhin)

tutcupa toe = tuta || toe     (wedge of sirhin)
1.632993
tipalprip = tip || inv prip (segment of cappix)

tuttipa toe = tuttip || toe (wedge of cappix)
1.658312
triddippa hiddip = trddip || hiddip (segment of card)

pripa = prip || inv prip            (segment of card)

sripaprip = srip || prip            (segment of card)

thexip = thex || thex               (uniform)
1.645329
otricu = todip || hodip (half of oco)
1.683251
tratoe = toe || tope (uniform)
1.688194
prippip = prip || prip            (uniform)

tuttipa tope = tuttip || tope     (segment of prippip)
             = tutatoe || tutatoe
1.693527
exip = ex || ex      (uniform)

gappip = gap || gap  (uniform)

sadip = sadi || sadi (uniform)
1.695040
cuba sircope = cube || sircope
1.717954
trid = id || iddip (uniform)
1.719624
haop = hodip || hodip (uniform)
1.732051
squatoe = tope || tope        (uniform)

icathex = ico || thex         (segment of sart)

thexarico = thex || rico      (segment of sart)

sripalprip = srip || inv prip (segment of sart)

trashiddip = {3} || shiddip   (segment of sart)

cotut totric = co || tutatoe  (wedge of sart)
             = coatut || toe
             = tut || coatoe
1.738546
ricoasadi = rico || sadi

doa iddip = doe || iddip
1.765796
squid = iddip || iddip (uniform)
1.778824
ricoa = rico || gyro rico (scaliform)
1.802776
ricope = rico || rico       (uniform)

copatope = cope || tope     (segment of ricope)
         = coatoe || coatoe
1.847759
coasircope = co || sircope

ica sidpith = ico || sidpith

ricasrit = rico || srit

ricoaspic = rico || spic
1.848423
pripalgrip = prip || gyro grip (segment of pattix)

tutatope = tut || tope         (segment of pattix)
1.870173
tratic = tic || ticcup (uniform)
1.870829
ritarico = rit || rico   (segment of spat)

spidaprip = spid || prip (segment of spat)

pripagrip = prip || grip (segment of spat)

gripa = grip || inv grip (segment of spat)

copatoe = cope || toe    (wedge of spat)
1.910497
grippip = grip || grip (uniform)
1.914214
ticca sircope = tic || sircope

squatic = ticcup || ticcup (uniform)

spiccup = spic || spic     (uniform)

srittip = srit || srit     (uniform,
                            segment of span)

sidpith || srit            (segment of span)
1.914854
deca agrip = deca || grip (segment of pirx)
1.994779
cuba octu = cube || octu
2.117085
twacube = sitwadip || sitwadip (uniform)
2.150581
taha = tah || gyro tah (scaliform,
                        segment of pirhin)

tipagrip = tip || grip
2.179449
tahp = tah || tah (uniform)
2.207107
tattip = tat || tat (uniform)

srit || tat         (segment of sirn)

rap || tip          (segment of sirn)

sircoa ticcup = sirco || ticcup (segment of sirn)

{4} || todip        (segment of sirn)
2.231808
trasnid = snid || sniddip (uniform)
2.236068
ricatah = rico || tah    (segment of sibrant)

sripagrip = srip || grip (segment of sibrant)

coatope = co || tope     (wedge of sibrant)
2.268840
squasnid = sniddip || sniddip (uniform)
2.291288
gippiddip = gippid || gippid (uniform)
2.306383
trasrid = srid || sriddip (uniform)
2.327373
gripagippid = grip || gippid (segment of cograx)
2.342236
squasrid = sriddip || sriddip (uniform)
2.371708
thexagtah = thex || gyro tah
2.388442
tragirco = girco || gircope (uniform)
2.423081
squagirco = gircope || gircope (uniform)

prittip = prit || prit         (uniform)
2.544388
trati = ti || tipe (uniform)
2.576932
squati = tipe || tipe (uniform)
2.632865
ritasrit = rita || srit

sricoa = srico || gyro srico     (scaliform)

prohalsrico = proh || gyro srico (diminishing of sricoa)
2.647378
tico || prissi
2.660531
prohp = proh || proh     (uniform,
                          segment of carnit)

prit || proh             (segment of carnit)

sritapritsritaprit = srit || prit (segment of carnit)

hodip || tisdip          (segment of carnit)

sricope = srico || srico (uniform)
2.692582
ticope = tico || tico (uniform)
2.738613
pripa gippid = prip || gippid (segment of pattit)
2.878460
tataproh = tat || proh (segment of capt)
3
tahatico = tah || tico (segment of pirt)
3.025056
tratid = tid || tiddip (uniform)
3.047217
grittip = grit || grit (segment of prin)
3.052479
squatid = tiddip || tiddip (uniform)
3.118034
roxip = rox || rox (uniform)
3.239235
prohagrit = proh || grit  (segment of pattin)

ticca gircope = tic || gircope
3.450631
contip = cont || cont (uniform)
3.522336
pricoa = prico || gyro prico (scaliform)
3.534493
pricope = prico || prico       (uniform)

gidpithip = gidpith || gidpith (uniform,
                                segment of cogart)
3.736068
hipe = hi || hi (uniform)
3.845977
tragrid = grid || griddip (uniform)
3.867584
squagrid = griddip || griddip (uniform)
3.988340
gritta gidpith = grit || gidpith (segment of cogrin)
4.311477
gricoa = grico || gyro grico (scaliform)
4.328427
gricope = grico || grico (uniform)
4.562051
rahipe = rahi || rahi (uniform)
4.670365
thipe = thi || thi (uniform)
4.749980
texip = tex || tex (uniform)
4.776223
grixip = grix || grix (uniform)
5.194028
gippiccup = gippic || gippic (uniform)
5.259887
sidpixhip = sidpixhi || sidpixhi (uniform)
6.094140
srixip = srix || srix (uniform)
6.753568
srahip = srahi || srahi (uniform)
7.596108
xhip = xhi || xhi (uniform)
8.294035
prahip = prahi || prahi (uniform)
9.757429
prixip = prix || prix (uniform)
11.263210
grahip = grahi || grahi (uniform)
12.796423
gidpixhip = gidpixhi || gidpixhi (uniform)
...
3,n-dippip = n-p || 4,n-dip     (uniform)
           = 3,n-dip || 3,n-dip
...
n,tet-dip = n-gon || 3,n-dip        (uniform)
          = n-p || lacing-ortho n-p
...
n,cube-dip = 4,n-dip || 4,n-dip (uniform)
...
n,tricu-dip = 3,n-dip || 6,n-dip (half of n,co-dip)
...
n,m-dippip = n,m-dip || n,m-dip (uniform)
...
(n,m-ap)-dip = n,m-dip || para-gyro n,m-dip (uniform)
...
n,m-dafup = n,m-dip || bidual n,m-dip (scaliform)
...
n-daf = n-p || bidual n-p (scaliform)
...
(n, dual n, n-p)-tric = n-g || gyro 3,n-dip
...
(n, n-p, gyro n-p)-tric = n-g || n-appip

(For degenerate segmentotera, i.e. having zero heights, cf. page "finite flat complexes".)

Some non-convex segmentotera would be:



----
 6D
----

(Just some) Convex Segmentopeta   (up)

CircumradiusSegmentopeton
0.654654
hop = pt || hix        (regular)
    = line || perp pen
    = {3} || perp tet
0.707107
gee = hix || inv hix      (regular)

tacpy = pt || tac         (segment of gee)

hexasc = line || perp hex (lune of gee)

octete = {3} || perp oct  (wedge of gee)

squepe = {4} || perp tet  (wedge of gee)
0.816497
hixip = hix || hix                (uniform)
      = line || penp
      = trip || part. ortho trip

dijak = hin || tac                (segment of jak)

tedjak = hex || hin               (scaliform,
                                   tridiminished jak)

hedjak = {4} || hin               (wedge of jak)

hinpy = pt || hin                 (segment of jak)

dihinpy = pt || dihin             (segment of jak)

rapesc = line || perp rap         (segment of jak)

tripal triddip = trip || dual-perp triddip
                                  (wedge of jak)

hixalrix = hix || inv rix         (segment of jak)

hixaltriddip = hix || alt triddip (wedge of jak)

penaf = pen || inv penp           (segment of jak)

rapalpenp = rap || inv penp       (segment of jak)

trippete = {3} || perp trip       (segment of jak)
0.845154
ril = hix || rix                  (uniform)

penppy = pt || penp               (segment of ril)

rapa penp = rap || penp           (segment of ril)

trial tratet = {3} || dual tratet (segment of ril)

octa tratet = oct || tratet       (segment of ril)

tidril = hix || tedrix            (wedge of ril)

pedril = {4} || tratet            (segment of ril)
0.856349
trapen = pen || penp   (uniform)
       = {3} || tratet
0.866025
hax = hin || gyro hin          (uniform)

taccup = tac || tac            (uniform)

tetdip = tet || tratet         (uniform)

tratetdafup = tratet || bidual tratet (scaliform)

tetal tratet = tet || inv tratet

tepasc = line || perp tepe

rixpy = pt || rix              (segment of hax)

hixadot = hix || dot           (segment of hax)

hixacube = hix || cube         (wedge of hax)

rixa = rix || inv rix          (scaliform,
                                segment of hax)

hexaf = hex || gyro hexip      (segment of hax)

octatepepy = pt || octatepe    (wedge of hax)
           = tet || rappy
           = oct || tepepy

hixa tetaope = hix || teta ope (half of hax)

hixaope = hix || ope           (quarter of hax)

tritra ope = (trig, dual trig, para trip, gyro trip) lace simplex
0.912871
trahex = hex || hexip (uniform)
0.918559
trial troct = {3} || gyro troct
0.925820
bril = rix || dot                        (uniform)

tratetpy = pt || tratet                  (segment of bril)

tratet altroct = tratet || gyro troct    (segment of bril)

teta troct = tet || troct                (segment of bril)

pena rappip = pen || rappip              (segment of bril)

rappaf = rap || inv. rappip              (segment of bril)

triddippa tridafup = triddip || tridafup (segment of bril)

tisdip altratet = tisdip || gyro tratet

tatraffip = {3} || traffip
          = trip || gyro tisquippy
          = traf || tisdip
0.935414
hinnip = hin || hin                (uniform)
       = hexip || alt hexip

tetafip = tepe || inv squatet      (segment of hinnip)
        = tepe || hexip

penpal rappip = penp || alt rappip (segment of hinnip)
              = dihin || dihin

rappyp = line || rappip            (segment of hinnip)
0.948683
squapen = penp || penp   (uniform)
        = {4} || squatet
0.957427
rixip = rix || rix         (uniform)

tepepyp = line || squatet  (segment of rixip)
        = tepepy || tepepy
0.966092
trarap = rap || rappip                 (uniform)
       = tratet || troct

titraf = triddip || gyro-para tratrip  (segment of trarap)
CircumradiusSegmentopeton
1
dotip = dot || dot                (uniform)
      = rappip || inv rappip

tridafupip = tridafup || tridafup (segment of dotip)
           = tratrip || bidual tratrip

squahex = hexip || hexip          (uniform)

hixascad = hix || scad            (segment of staf)

spidapenp = spid || penp          (segment of staf)

hexippy = pt || hexip             (segment of rag)

hexipaico = hexip || ico          (wedge of rag)

hexipaco = hexip || co            (wedge of rag)

taccarat = tac || rat             (segment of rag)

hexarat = hex || rat              (segment of rag)

rixascad = rix || scad            (segment of rag)

dotpy = pt || dot                 (segment of mo)

dottascad = dot || scad           (segment of mo)

hinro = hin || rat                (segment of mo)

hinatedrat = hin || tedrat        (segment of mo)

icoahin = ico || hin              (segment of mo)

hinaco = hin || co                (segment of mo)

penal rappip = pen || alt rappip  (segment of mo)

spidarappip = spid || rappip      (wedge of mo)

tetaopepy = pen || ope            (wedge of mo)
          = tet || opepy
          = pt || teta ope

hexaoctaco tettic = co || bidhin  (wedge of dottascad)
                  = oct || hexaco
                  = tet || alt. rapaco

tetaco altepetric = co || tetaf
                  = tet || hexaco
                  = tet || inv tepaco

triddipasc = line || perp triddip
1.118034
ratip = rat || rat    (uniform)

scadip = scad || scad (uniform)
1.123033
icaf = ico || dual icope
1.195229
rixalspix = rix || inv spix (segment of scal)

scadaspix = scad || spix    (segment of scal)
1.224745
ax = pent || pent                   (regular)

troctpy = pt || troct               (segment of brag)

dottaspix = dot || spix             (segment of brag)

spixa = spix || inv spix            (segment of brag)

ratanit = rat || nit                (segment of brag)

hexcopedaw = hex || axis-ortho cope (segment of brag)

hexaicope = hex || icope            (segment of brag)

troctal traco = troct || inv. traco
1.228783
pentanit = pent || nit
1.290994
spixip = spix || spix         (uniform)

ritgyt = rit || gyro rita     (scaliform,
                               wedge of rojak)

ritahin = rit || hin          (wedge of rojak)

hinanit = hin || nit          (segment of rojak)

nitasiphin = nit || siphin    (segment of rojak)

ratasiphin = rat || siphin    (segment of rojak)

rixaspix = rix || spix        (segment of rojak)

spixalsarx = spix || inv sarx (segment of rojak)

icarita = ico || rita         (wedge of rojak)

hexaico alrittric = hex || alt. icarit (wedge of rojak)
                  = ico || hexalrit
                  = rit || alt. hexaico

rappippy = pt || rappip       (segment of rojak)

sripaf = srip || srippip
1.316561
trasrip = srip || srippip (uniform)
1.322876
tettut = tut || tratut          (uniform)

hinasiphin = hin || siphin      (segment of sochax)

siphina = siphin || alt. siphin (segment of sochax)

ritas = rita || alt. rita       (segment of siphina)
1.362770
rixatix = rix || tix (segment of sril)
1.369306
siphinnip = siphin || siphin (uniform)
1.384437
sarxip = sarx || sarx (uniform)
1.414214
tixip = tix || tix           (uniform)

nitarin = nit || rin         (segment of brox)

rixasarx = rix || sarx       (segment of brox)

sarxasibrid = sarx || sibrid (segment of brox)
1.418705
pentarin = pent || rin
1.581139
bittixa = bittix || inv bittix (scaliform)
1.614654
open = {8} || otet (uniform)
1.632993
thexgyt = thex || gyro thexa (scaliform,
                              wedge of hejak)

hinarin = hin || rin         (segment of hejak)
1.658312
cappixa = cappix || alt cappix (scaliform)

sirhina = sirhin || alt sirhin (scaliform,
                                segment of sophax)
1.732051
cardip = card || card        (uniform,
                              segment of ram)

dottasibrid = dot || sibrid  (segment of ram)

sibridacard = sibrid || card (segment of ram)

nitasirhin = nit || sirhin   (segment of ram)

sirhinasart = sirhin || sart (segment of ram)
1.936492
thina = thin || alt thin     (scaliform)
                              segment of sirhax)

sirhinathin = sirhin || thin (segment of sirhax)
2.160247
tahgyt = tah || gyro taha (scaliform,
                           wedge of harjak)

rinathin = rin || thin    (segment of harjak)
2.236068
sartabittit = sart || bittit        (segment of siborg)

bittita sibrant = bittit || sibrant (segment of siborg)
2.345208
squagippid = gippiddip || gippiddip (uniform)
3
gocadip = gocad || gocad (uniform)
4.855004
gacnetip = gacnet || gacnet (uniform)
...
(n,pen)-dip = {n} || (n,tet)-dip (uniform)
...
(n-g, dual n-g, para n-p, gyro n-p) lace simplex
...
(n,m)-dip || (n,m)-dafup

Some non-convex segmentopeta would be:



----
 7D
----

(Just some) Convex Segmentoexa   (up)

CircumradiusSegmentoexon
0.661438
oca = pt || hop        (regular)
    = line || perp hix
    = {3} || perp pen
    = tet || perp tet
0.707107
zee = hop || inv hop       (regular)

geepy = pt || gee          (segment of zee)

taccasc = line || perp tac (lune of zee)

hexete = {3} || perp hex   (wedge of zee)

squix = {4} || perp pen    (wedge of zee)

octepe = tet || perp oct   (wedge of zee)
0.823754
hopip = hop || hop (uniform)
0.866025
roc = hop || ril                (uniform)

hixippy = pt || hixip           (segment of roc)

trialtrapen = {3} || inv trapen (segment of roc)

octatetdip = oct || tetdip      (segment of roc)

rapatrapen = rap || trapen      (segment of roc)

rixahixip = rix || hixip        (segment of roc)

tedroc = tedrix || hixip        (segment of roc)

geep = gee || gee               (uniform)
     = hixip || inv hixip

tacpyp = line || taccup         (segment of geep)

trahix = hix || hixip           (uniform,
                                 wedge of naq)

rila = ril || alt. ril          (scaliform,
                                 segment of naq)

jaka = jak || alt. jak          (scaliform,
                                 segment of naq)

jakpy = pt || jak               (segment of naq)

dijakpy = pt || dijak           (segment of naq)

hixaf = hix || inv hixip        (segment of naq)

hopalril = hop || inv ril       (segment of naq)

gahax = gee || hax              (segment of naq)

hinsc = line || perp hin        (wedge of naq)

hexalhax = hex || alt. hax      (wedge of naq)

trapendafup = trapen || bidual trapen (scaliform)

rapete = {3} || perp rap

trippepe = trip || perp tet
0.912871
tratac = tac || taccup (uniform)
0.935414
hesa = hax || gyro hax                    (uniform)

rilpy = pt || ril                         (segment of hesa)

hexal trahex = hex || gyro trahex         (segment of hesa)

hopabril = hop || bril                    (segment of hesa)

rilalbril = ril || alt. bril              (segment of hesa)

hinaf = hin || alt. hinnip                (segment of hesa)

trahex dafup = trahex || dual-gyro trahex (segment of hesa)

tetal tetdip = tet || dual tetdip

tethex = hex || trahex                    (uniform)
       = tetdip || para-dual tetdip
       = hexip || lacing-ortho hexip

penpasc = line || perp penp

tridafupap = tridafup || lacing-ortho tridafup (scaliform)
0.957427
squahix = hixip || hixip (uniform)

jakip = jak || jak       (uniform)
0.968246
broc = ril || bril               (uniform)

rapaltrarap = rap || alt. trarap (segment of broc)

tetocta = tetoct || alt. tetoct  (scaliform,
                                  segment of broc)
0.978945
trahin = hin || hinnip (uniform)
0.981981
rillip = ril || ril (uniform)
0.991632
trippen = trapen || trapen (uniform)
0.992157
trial trarap = {3} || alt. trarap
CircumradiusSegmentoexon
1
he = bril || inv bril       (uniform)

tetdippy = pt || tetdip     (segment of he)

tetdippa octdip = tetdip || octdip     (segment of he)

trarapdafup = trarap || bi-alt. trarap (segment of he)

trapen altralrap = trapen || bi-alt. trarap

squarat = ratip || ratip    (uniform)
                             diminishing of barz)

tettepe = tetdip || tetdip  (uniform)

trarix = rix || rixip       (uniform,
                             wedge of laq)

haxpy = pt || hax           (segment of laq)

ratahax = rat || hax        (wedge of laq)

haxarag = hax || rag        (segment of laq)

jakamo = jak || mo          (segment of laq)

hopalbril = hop || inv bril (segment of laq)

brilastaf = bril || staf    (segment of laq)

rixapy = pt || rixa         (wedge of laq)

taccuppy = pt || taccup     (segment of rez)

garag = gee || rag          (segment of rez)

rilastaf = ril || staf      (segment of rez)

hopastaf = hop || staf      (segment of suph
                             diminishing of laq)

rixasc = line || perp rix

rixaf = rix || inv rixip

trial trahex = {3} || inv trahex

trahex aico = trahex || ico

ratahinnip = rat || hinnip
1.040833
titridafup = trittip || bidual trittip (scaliform)

rixap = rixip || inv rixip             (scaliform)
1.052209
brillip = bril || bril (uniform)
1.060660
haxip = hax || hax (uniform)
1.118034
tratratrip = trittip || trittip (uniform)

stafip = staf || staf           (uniform)

hinnipa ratip = hinnip || ratip
1.154701
trarat = rat || ratip (uniform)
1.224745
trahexpy = pt || trahex  (segment of barz)

ragabrag = rag || brag   (segment of barz)

scala = scal || inv scal (scaliform,
                          segment of barz)
1.322876
hept = ax || ax                   (regular)

brilalspil = bril || inv spil     (segment of sco)

scala spil = scal || spil         (segment of sco)

cubico = squico || squico         (uniform,
                                   segment of lin)

rojaka = rojak || alt. rojak      (scaliform,
                                   segment of lin)

haxabrag = hax || brag            (segment of lin)

haxa cytedbrag = hax || cytedbrag (segment of lin)

moarojak = mo || rojak            (segment of lin)

bragasochax = brag || sochax      (segment of lin)

brilpy = pt || bril               (segment of lin)

hinaratip = hin || ratip          (segment of lin)

spila = spil || inv spil          (scaliform)
1.384437
rojakip = rojak || rojak (uniform)
1.414214
trasarx = sarx || sarxip   (uniform)

bragabrox = brag || brox   (segment of sez)

ragasochax = rag || sochax (segment of ranq)

jakarojak = jak || rojak   (segment of ranq)

rojakatrim = rojak || trim (segment of ranq)
1.451600
srillip = sril || sril (uniform)
1.457317
ohix = {8} || open (uniform)
1.581139
broxarax = brox || rax          (segment of bersa)

sabrila = sabril || inv. sabril (scaliform)
1.658312
jakatrim = jak || trim       (segment of stanq)

hejaka = hejak || alt. hejak (segment of stanq)
1.732051
haxabrox = hax || brox        (segment of rolaq)

broxa sophax = brox || sophax (segment of rolaq)

rojaka hejak = rojak || hejak (segment of rolaq)
1.936492
crala = cral || inv. cral          (scaliform)

shopjaka = shopjak || alt. shopjak (scaliform,
                                    segment of branq)
2.207940
thaxa = thax || alt. thax (scaliform,
                           segment of sirhesa)
2.5
hagippiddip = hagippid || hagippid (uniform)
3.774917
gotafip = gotaf || gotaf (uniform)
6.264982
gopamp = gopam || gopam (uniform)
...
n,n,n-tippip = n,n,n-tip || n,n,n-tip (uniform)
...
(n,m)-dafupap = (n,m)-dafup || lacing-ortho (n,m)-dafup (scaliform)

Some non-convex segmentoexa would be:



----
 8D
----

(Just some) Convex Segmentozetta   (up)

CircumradiusSegmentozetton
0.666667
ene  = pt || oca (regular)
0.707107
ek  = oca || dual oca      (regular)

zeepy  = pt || zee         (segment of ek)

geeasc = line || perp gee (wedge of ek)
       = pt || geepy

taccete = {3} || perp tac (wedge of ek)
        = line || perp tacpy
        = pt || taccasc

hexepe = tet || perp hex (lune of ek)
       = {3} || perp hexpy
       = line || perp hexasc
       = pt || hexete
0.829156
ocpe  = oca || oca (uniform)
0.866025
zeep  = zee || zee (uniform)
0.872872
trihop  = hop || hopip (uniform)
0.881917
rene  = oca || roc (uniform)
0.894427
pendip  = pen || tetpen (uniform)
0.948683
penhex = hex || tethex (uniform)
       = hexip || trahex
       = tetpen || first-dual tetpen
0.957427
octhix = oct || octpen (uniform)
       = ope || tetoct
       = trahix || first-dual trahix
0.963624
squahop  = hopip || hopip (uniform)
CircumradiusSegmentozetton
1
trajak = jak || jakip        (uniform,
                              wedge of fy)

brene  = roc || broc          (uniform,
                              segment of fy)

hocto  = hesa || gyro hesa    (uniform,
                              segment of fy)

penrap = rap || tetrap       (uniform,
       = rappip || trarap     segment of fy)
       = tetpen || octpen

triphix  = trahix || trahix   (uniform)

tethin  = hin || trahin       (uniform)

rocip  = roc || roc           (uniform)

rocpy  = pt || roc            (segment of hocto)

rocahe = roc || he           (segment of hocto)

ocabroc = oca || broc        (segment of hocto)

broca = broc || inv broc     (scaliform,
                              segment of hocto)

ocasuph = oca || suph        (segment of soxeb)

naqpy = pt || naq            (segment of fy)

jakapy = pt || jaka          (wedge of fy)

jakaf = jak || alt. jakip    (wedge of fy)

jakap = jaka || jaka         (scaliform,
                              segment of fy)

naqalaq = naq || laq         (segment of fy)

naqpe  = naq || naq           (uniform,
                              segment of fy)

zahesa = zee || hesa         (segment of fy)

hesa arez = hesa || rez      (segment of fy)

ocalroc  = oca || inv roc     (segment of fy)

rocalbroc  = roc || inv broc  (segment of fy)

rocasuph  = roc || suph       (segment of fy)

hexal hesa  = hex || alt hesa (wedge of codify)

zarez = zee || rez           (segment of rek)

octa tethex  = oct || tethex

tethex aico  = tethex || ico

rapepe = tet || perp rap
1.054093
tetrappal octrap = tetrap || alt. octrap
1.118034
laqpe  = laq || laq (uniform)
1.224745
rezabarz = rez || barz (segment of bark)
1.414214
octo  = hept || hept              (regular)

trarojak = rojak || rojakip      (uniform)

barzasez = barz || sez           (segment of tark)

hesapy  = pt || hesa              (segment of bay)

laqalin  = laq || lin             (segment of bay)

linaranq  = lin || ranq           (segment of bay)

rojakaf = rojak || alt rojakip   (segment of bay)

rojakap = rojakip || alt rojakip (segment of bay)
        = rojaka || rojaka

moarojka = mo || rojaka          (wedge of bay)
         = rojak || moarojak



----
 9D
----

(Just some) Convex Segmentoyotta   (up)

CircumradiusSegmentoyotton
0.670820
day = pt || ene (regular)
0.707107
vee = ene || dual ene (regular)
0.833333
enep = ene || ene (uniform)
0.866025
ekip = ek || ek (uniform)
0.877971
trioc = oca || ocpe (uniform)
0.894427
reday = ene || rene (uniform)
CircumradiusSegmentoyotton
0.903696
penhix = hix || tethix (uniform)
       = pen || pendip
0.968246
squoc = ocpe || ocpe (uniform)
1.024695
breday = rene || brene (uniform)
1.060660
henne = hocto || gyro hocto (uniform)
1.095445
treday = brene || trene (uniform)
1.118034
rapdafup = rapdip || bi-alt. rapdip (scaliform)
1.5
enne = octo || octo (regular)



-----
 10D
-----

(Just some) Convex Segmentoxenna   (up)

CircumradiusSegmentoxennon
0.674200
ux = pt || day (regular)
0.707107
ka = day || dual day (regular)
0.904534
ru = day || reday (uniform)
CircumradiusSegmentoxenna
1.044466
bru = reday || breday (uniform)
1.128152
tru = breday || treday (uniform)
