CWE - CWE-416: Use After Free (4.19.1)

Weakness ID: 416

Vulnerability Mapping: ALLOWED This CWE ID may be used to map to real-world vulnerabilities
Abstraction: Variant Variant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.

Description

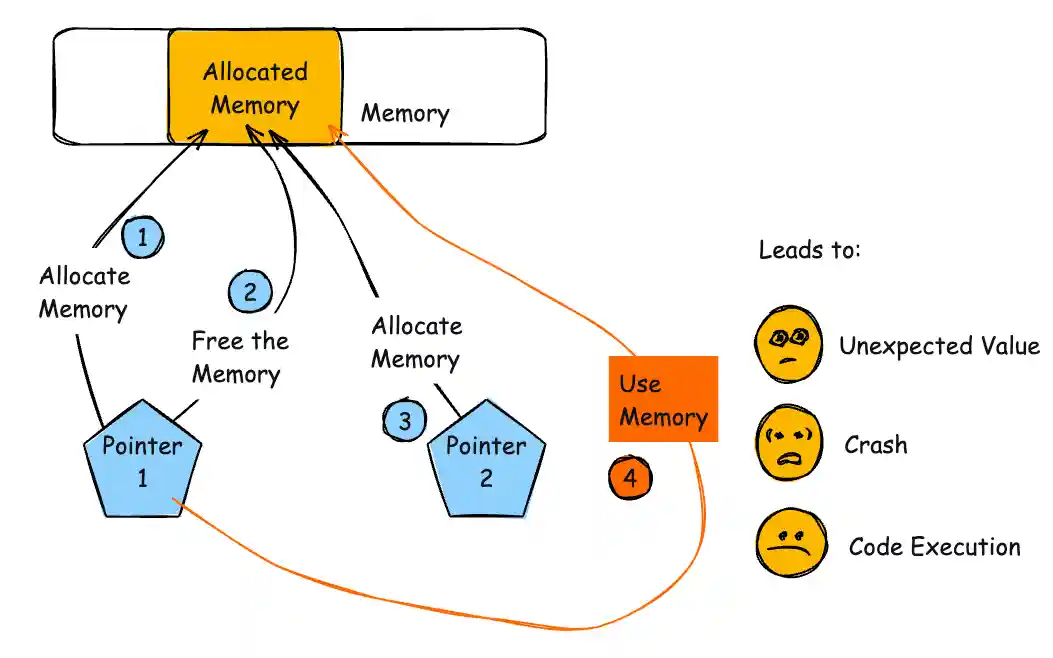

The product reuses or references memory after it has been freed. At some point afterward, the memory may be allocated again and saved in another pointer, while the original pointer references a location somewhere within the new allocation. Any operations using the original pointer are no longer valid because the memory "belongs" to the code that operates on the new pointer.

Alternate Terms

Dangling pointer	a pointer that no longer points to valid memory, often after it has been freed
UAF	commonly used acronym for Use After Free
Use-After-Free

Common Consequences

Section Help This table specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.

Impact	Details
Modify Memory	Scope: Integrity The use of previously freed memory may corrupt valid data, if the memory area in question has been allocated and used properly elsewhere.
DoS: Crash, Exit, or Restart	Scope: Availability If chunk consolidation occurs after the use of previously freed data, the process may crash when invalid data is used as chunk information.
Execute Unauthorized Code or Commands	Scope: Integrity, Confidentiality, Availability If malicious data is entered before chunk consolidation can take place, it may be possible to take advantage of a write-what-where primitive to execute arbitrary code. If the newly allocated data happens to hold a class, in C++ for example, various function pointers may be scattered within the heap data. If one of these function pointers is overwritten with an address to valid shellcode, execution of arbitrary code can be achieved.

Potential Mitigations

Phase(s)	Mitigation
Architecture and Design	Strategy: Language Selection Choose a language that provides automatic memory management.
Implementation	Strategy: Attack Surface Reduction When freeing pointers, be sure to set them to NULL once they are freed. However, the utilization of multiple or complex data structures may lower the usefulness of this strategy. Effectiveness: Defense in Depth Note: If a bug causes an attempted access of this pointer, then a NULL dereference could still lead to a crash or other unexpected behavior, but it will reduce or eliminate the risk of code execution.

Phase(s)

Mitigation

Architecture and Design

Strategy: Language Selection

Choose a language that provides automatic memory management.

Implementation

Strategy: Attack Surface Reduction

When freeing pointers, be sure to set them to NULL once they are freed. However, the utilization of multiple or complex data structures may lower the usefulness of this strategy.

Effectiveness: Defense in Depth

Note: If a bug causes an attempted access of this pointer, then a NULL dereference could still lead to a crash or other unexpected behavior, but it will reduce or eliminate the risk of code execution.

Relationships

Section Help This table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

Relevant to the view "Research Concepts" (View-1000)

Nature	Type	ID	Name
ChildOf	Base - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.	825	Expired Pointer Dereference
PeerOf	Variant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.	415	Double Free
CanFollow	Class - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.	362	Concurrent Execution using Shared Resource with Improper Synchronization ('Race Condition')
CanFollow	Base - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.	364	Signal Handler Race Condition
CanFollow	Class - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.	754	Improper Check for Unusual or Exceptional Conditions
CanFollow	Base - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.	1265	Unintended Reentrant Invocation of Non-reentrant Code Via Nested Calls
CanPrecede	Base - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.	120	Buffer Copy without Checking Size of Input ('Classic Buffer Overflow')
CanPrecede	Base - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.	123	Write-what-where Condition

Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (View-1003)

Nature	Type	ID	Name
ChildOf	Class - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.	672	Operation on a Resource after Expiration or Release

Relevant to the view "CISQ Quality Measures (2020)" (View-1305)

Nature	Type	ID	Name
ChildOf	Class - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.	672	Operation on a Resource after Expiration or Release

Relevant to the view "CISQ Data Protection Measures" (View-1340)

Nature	Type	ID	Name
ChildOf	Class - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.	672	Operation on a Resource after Expiration or Release

Modes Of Introduction

Section Help The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

Phase	Note
Implementation

Applicable Platforms

Section Help This listing shows possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

Class: Memory-Unsafe (Often Prevalent)

C (Often Prevalent)

C++ (Often Prevalent)

Likelihood Of Exploit

Demonstrative Examples

Example 1

The following example demonstrates the weakness.

(bad code)

Example Language: C

#include <stdio.h>
#include <unistd.h>
#define BUFSIZER1 512
#define BUFSIZER2 ((BUFSIZER1/2) - 8)
int main(int argc, char **argv) {

char *buf1R1;
char *buf2R1;
char *buf2R2;
char *buf3R2;
buf1R1 = (char *) malloc(BUFSIZER1);
buf2R1 = (char *) malloc(BUFSIZER1);
free(buf2R1);
buf2R2 = (char *) malloc(BUFSIZER2);
buf3R2 = (char *) malloc(BUFSIZER2);
strncpy(buf2R1, argv[1], BUFSIZER1-1);
free(buf1R1);
free(buf2R2);
free(buf3R2);

}

Example 2

The following code illustrates a use after free error:

(bad code)

Example Language: C

char* ptr = (char*)malloc (SIZE);
if (err) {

abrt = 1;
free(ptr);

}
...
if (abrt) {

logError("operation aborted before commit", ptr);

}

When an error occurs, the pointer is immediately freed. However, this pointer is later incorrectly used in the logError function.

Selected Observed Examples

Note: this is a curated list of examples for users to understand the variety of ways in which this weakness can be introduced. It is not a complete list of all CVEs that are related to this CWE entry.

Reference	Description
CVE-2022-20141	Chain: an operating system kernel has insufficent resource locking (CWE-413) leading to a use after free (CWE-416).
CVE-2022-2621	Chain: two threads in a web browser use the same resource (CWE-366), but one of those threads can destroy the resource before the other has completed (CWE-416).
CVE-2021-0920	Chain: mobile platform race condition (CWE-362) leading to use-after-free (CWE-416), as exploited in the wild per CISA KEV.
CVE-2020-6819	Chain: race condition (CWE-362) leads to use-after-free (CWE-416), as exploited in the wild per CISA KEV.
CVE-2010-4168	Use-after-free triggered by closing a connection while data is still being transmitted.
CVE-2010-2941	Improper allocation for invalid data leads to use-after-free.
CVE-2010-2547	certificate with a large number of Subject Alternate Names not properly handled in realloc, leading to use-after-free
CVE-2010-1772	Timers are not disabled when a related object is deleted
CVE-2010-1437	Access to a "dead" object that is being cleaned up
CVE-2010-1208	object is deleted even with a non-zero reference count, and later accessed
CVE-2010-0629	use-after-free involving request containing an invalid version number
CVE-2010-0378	unload of an object that is currently being accessed by other functionality
CVE-2010-0302	incorrectly tracking a reference count leads to use-after-free
CVE-2010-0249	use-after-free related to use of uninitialized memory
CVE-2010-0050	HTML document with incorrectly-nested tags
CVE-2009-3658	Use after free in ActiveX object by providing a malformed argument to a method
CVE-2009-3616	use-after-free by disconnecting during data transfer, or a message containing incorrect data types
CVE-2009-3553	disconnect during a large data transfer causes incorrect reference count, leading to use-after-free
CVE-2009-2416	use-after-free found by fuzzing
CVE-2009-1837	Chain: race condition (CWE-362) from improper handling of a page transition in web client while an applet is loading (CWE-368) leads to use after free (CWE-416)
CVE-2009-0749	realloc generates new buffer and pointer, but previous pointer is still retained, leading to use after free
CVE-2010-3328	Use-after-free in web browser, probably resultant from not initializing memory.
CVE-2008-5038	use-after-free when one thread accessed memory that was freed by another thread
CVE-2008-0077	assignment of malformed values to certain properties triggers use after free
CVE-2006-4434	mail server does not properly handle a long header.
CVE-2010-2753	chain: integer overflow leads to use-after-free
CVE-2006-4997	freed pointer dereference
CVE-2003-0813	Chain: A multi-threaded race condition (CWE-367) allows attackers to cause two threads to process the same RPC request, which causes a use-after-free (CWE-416) in one thread

Weakness Ordinalities

Ordinality	Description
Resultant	(where the weakness is typically related to the presence of some other weaknesses) If the product accesses a previously-freed pointer, then it means that a separate weakness or error already occurred previously, such as a race condition, an unexpected or poorly handled error condition, confusion over which part of the program is responsible for freeing the memory, performing the free too soon, etc.

Ordinality

Description

Resultant

(where the weakness is typically related to the presence of some other weaknesses)

If the product accesses a previously-freed pointer, then it means that a separate weakness or error already occurred previously, such as a race condition, an unexpected or poorly handled error condition, confusion over which part of the program is responsible for freeing the memory, performing the free too soon, etc.

Detection Methods

Method	Details
Fuzzing	Fuzz testing (fuzzing) is a powerful technique for generating large numbers of diverse inputs - either randomly or algorithmically - and dynamically invoking the code with those inputs. Even with random inputs, it is often capable of generating unexpected results such as crashes, memory corruption, or resource consumption. Fuzzing effectively produces repeatable test cases that clearly indicate bugs, which helps developers to diagnose the issues. Effectiveness: High
Automated Static Analysis	Automated static analysis, commonly referred to as Static Application Security Testing (SAST), can find some instances of this weakness by analyzing source code (or binary/compiled code) without having to execute it. Typically, this is done by building a model of data flow and control flow, then searching for potentially-vulnerable patterns that connect "sources" (origins of input) with "sinks" (destinations where the data interacts with external components, a lower layer such as the OS, etc.) Effectiveness: High
Automated Dynamic Analysis	Use tools that are integrated during compilation to insert runtime error-checking mechanisms related to memory safety errors, such as AddressSanitizer (ASan) for C/C++ [REF-1518]. Effectiveness: Moderate Note:Crafted inputs are necessary to reach the code containing the error, such as generated by fuzzers. Also, these tools may reduce performance, and they only report the error condition - not the original mistake that led to the error.

Method

Details

Fuzzing

Fuzz testing (fuzzing) is a powerful technique for generating large numbers of diverse inputs - either randomly or algorithmically - and dynamically invoking the code with those inputs. Even with random inputs, it is often capable of generating unexpected results such as crashes, memory corruption, or resource consumption. Fuzzing effectively produces repeatable test cases that clearly indicate bugs, which helps developers to diagnose the issues.

Effectiveness: High

Automated Static Analysis

Automated static analysis, commonly referred to as Static Application Security Testing (SAST), can find some instances of this weakness by analyzing source code (or binary/compiled code) without having to execute it. Typically, this is done by building a model of data flow and control flow, then searching for potentially-vulnerable patterns that connect "sources" (origins of input) with "sinks" (destinations where the data interacts with external components, a lower layer such as the OS, etc.)

Effectiveness: High

Automated Dynamic Analysis

Use tools that are integrated during compilation to insert runtime error-checking mechanisms related to memory safety errors, such as AddressSanitizer (ASan) for C/C++ [REF-1518].

Effectiveness: Moderate

Note:Crafted inputs are necessary to reach the code containing the error, such as generated by fuzzers. Also, these tools may reduce performance, and they only report the error condition - not the original mistake that led to the error.

Functional Areas

Memory Management

Affected Resources

Memory

Memberships

Section Help This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.

Vulnerability Mapping Notes

Usage	ALLOWED (this CWE ID may be used to map to real-world vulnerabilities)
Reason	Acceptable-Use
Rationale	This CWE entry is at the Variant level of abstraction, which is a preferred level of abstraction for mapping to the root causes of vulnerabilities.
Comments	Carefully read both the name and description to ensure that this mapping is an appropriate fit. Do not try to 'force' a mapping to a lower-level Base/Variant simply to comply with this preferred level of abstraction.

Taxonomy Mappings

Mapped Taxonomy Name	Node ID	Fit	Mapped Node Name
ISA/IEC 62443	Part 4-1		Req SI-1
7 Pernicious Kingdoms			Use After Free
CLASP			Using freed memory
CERT C Secure Coding	MEM00-C		Allocate and free memory in the same module, at the same level of abstraction
CERT C Secure Coding	MEM01-C		Store a new value in pointers immediately after free()
CERT C Secure Coding	MEM30-C	Exact	Do not access freed memory
Software Fault Patterns	SFP15		Faulty Resource Use
