GitHub - 42-CC-RNCP/ft_linux: Build your own Linux system from scratch — not by using it, but by understanding every layer that makes it boot.

kfs_vmenv (ft_linux)

Build your own Linux system from scratch — not by using it, but by understanding every layer that makes it boot.

Objectives

  • Build a bootable Linux system from scratch
  • Understand cross-compilation and toolchain isolation
  • Compile and configure a custom Linux kernel (4.x)
  • Design and initialize a root filesystem
  • Configure bootloader and init system

This project is not about installing Linux. It is about understanding how Linux is constructed.

1.2 LFS / BLFS / ALFS Relationship

Host System (Debian 10)
        │
        ▼
LFS  (Linux From Scratch)
        │
        ▼
BLFS (Beyond Linux From Scratch)
        │
        ▼
ALFS (Automated Linux From Scratch)

LFS (Linux From Scratch)

  • Manual construction of a Linux system from source
  • Build temporary toolchain
  • Construct root filesystem
  • Build kernel and boot system

This project follows the LFS methodology. https://www.linuxfromscratch.org/museum/lfs-museum/8.4/LFS-BOOK-8.4-HTML/

BLFS (Beyond Linux From Scratch)

  • Extends LFS with additional userland components
  • GUI, networking services, system utilities
  • Used for expanding the base system

Not the core focus of this project.

ALFS (Automated Linux From Scratch)

  • Automates LFS build process
  • Script-based system construction

bootstrap.sh in this repository acts as an ALFS-style automation layer.

2.1 Build Pipeline Overview

The build pipeline is orchestrated by a single entry script (root-only) that defines environment variables, step dependencies, and execution modes.

High-Level Execution Flow

bootstrap.sh (root)
    │
    ├── Export global environment variables
    ├── Define ordered build steps
    ├── Provide execution modes (--auto / --step / --from)
    └── Execute each step with error isolation

Environment Initialization

At startup, the script defines and exports all critical build variables:

  • ARCH – Host architecture (uname -m)
  • KERNEL_VERSION – Target kernel version (e.g. 4.20.12)
  • KERNEL_URL – Kernel source location
  • IMAGE / IMAGE_SIZE – Virtual disk image configuration
  • MNT_ROOT, ROOT_MNT, BOOT_MNT – Mount layout
  • LFS – Root of the LFS target system
  • LFS_TGT – Cross-compilation triplet (<arch>-lfs-linux-gnu)

This guarantees that every sub-script shares a consistent and reproducible build context.

Core Build Stages

The effective build stages are:

  1. cleanup – Reset tools and temporary environment
  2. create_disk – Create and partition disk image
  3. init_lfs – Initialize LFS directory structure
  4. link_tools – Prepare /tools symbolic links
  5. build_temp_toolchain – Build temporary cross toolchain (Chapter 5)
  6. finalize_tools_owner – Hand ownership of /tools to root
  7. mount_lfs – Mount virtual partitions
  8. build_lfs_toolchain – Build final toolchain inside chroot (Chapter 6)
  9. install_bootscripts – Install SysV boot scripts
  10. config_system – Configure hostname, fstab, networking
  11. build_kernel – Compile Linux kernel
  12. config_bootloader – Generate bootloader configuration
  13. install_grub – Install GRUB into disk image
  14. init_blfs / build_blfs – Optional BLFS expansion layer

Dual-Mode chroot Strategy

The script automatically switches between two chroot modes:

Legacy chroot (temporary toolchain stage)

Uses:

  • /tools/bin/env
  • /tools/bin/bash
  • PATH includes /tools/bin

Used during early Chapter 6 build.

Revised chroot (final system stage)

2.2 Host Environment Preparation

Host Requirements

  • Debian 10.13
  • sudo privileges
  • Required development tools (see scripts/setup_host_env.sh)

Why Debian 10.13?

  • Compatible with Linux kernel 4.x
  • Stable glibc and binutils versions
  • Avoid incompatibilities with newer distributions

3. Technical Deep Dive

3.1 Essential System Inspection Commands

Check Current Partition Layout

lsblk -f

NAME   FSTYPE LABEL UUID                                 MOUNTPOINT
sda
├─sda1 ext2         xxxx-xxxx                            /boot
├─sda2 ext4         yyyy-yyyy                            /
└─sda3 swap         zzzz-zzzz                            [SWAP]

fdisk -l
blkid

These commands allow inspection of:

  • Block devices
  • Partition tables
  • Filesystem types

Check Current Kernel Version

Or:

Kernel images are typically located in:

Check Hostname

hostname
cat /etc/hostname

The hostname is configured in userland and not hardcoded in the kernel.

3.2 Disk Partition Design

Reference: scripts/create_disk.sh

Example Layout

/dev/sda1  /boot   ext2
/dev/sda2  /       ext4
/dev/sda3  swap

Design Considerations

  • ext2 for /boot: simple and stable
  • ext4 for /: journaling support and robustness
  • swap partition: allows memory pressure experimentation

3.3 Key System Components

1. SysV Init

LFS uses a traditional SysV-style init system.

It is responsible for:

  • starting services
  • mounting filesystems
  • setting hostname
  • handling runlevels

Boot sequence:

BIOS
 → GRUB
 → Kernel
 → /sbin/init
 → rc scripts

Runlevels define system states.

2. GRUB

GRUB (GRand Unified Bootloader) is responsible for loading the Linux kernel into memory and passing control to it.

BIOS/UEFI → GRUB → Linux kernel → init process

  • Loads kernel image
  • Passes root filesystem parameters

3. udev

Dynamic device management system.

  • Kernel emits device events
  • udev creates device nodes in /dev
  • Enables dynamic hardware recognition

Ref: ./scripts/config_system.sh (udev rules)

2️⃣ Linux Kernel

What it is: The kernel is the core of the operating system. It manages:

  • CPU scheduling
  • memory management
  • virtual memory
  • device drivers
  • filesystems
  • process isolation

Why it matters in LFS: You compile the kernel yourself. This means:

  • You choose which drivers are built-in.
  • You decide whether filesystems are modular or static.
  • You control hardware support.

In LFS, the kernel is not a black box — it is explicitly configured and built as part of the system construction.

This is where your system becomes a real OS rather than just a toolchain sandbox.

3️⃣ Temporary Toolchain (Chapter 5)

What it is: A minimal compiler environment built in /tools, including:

  • Binutils
  • GCC (stage 1)
  • Glibc

Why it exists: It isolates the final system from the host distribution.

Without this step, your final system would accidentally link against host libraries — breaking purity.

Conceptually: Host system → Temporary toolchain → Final LFS system

This stage ensures that the final LFS binaries are self-contained and independent.

4️⃣ Final Toolchain (Chapter 6)

After entering chroot, you rebuild:

  • Binutils
  • GCC
  • Glibc
  • Core system libraries

Why rebuild again? Because now everything is built inside the LFS root using the temporary toolchain.

This removes all host contamination and produces a clean, self-hosted system.

This is the architectural turning point of LFS.

5️⃣ Glibc

What it is: The GNU C Library — the interface between user-space programs and the kernel.

It provides:

  • system call wrappers
  • memory allocation (malloc)
  • POSIX APIs
  • dynamic linking

Why it is critical in LFS: Almost every user program depends on glibc. If glibc is wrong, the entire system collapses.

In LFS, glibc defines the ABI of your system.

6️⃣ Coreutils, Bash, and Essential Userland Tools

These provide:

  • ls, cp, mv, cat
  • shell execution (bash)
  • text processing (sed, grep, awk)

In modern distributions, these are invisible background components. In LFS, you build them explicitly, which reveals:

  • dependency ordering
  • toolchain reliance
  • filesystem hierarchy requirements

This is where your system transitions from “bootable” to “usable.”

8️⃣ Filesystem Hierarchy (FHS)

LFS enforces manual creation of:

  • /bin
  • /usr
  • /lib
  • /etc
  • /var

This teaches:

  • separation of static vs variable data
  • runtime vs configuration
  • toolchain vs system binaries

In LFS, the filesystem layout is not assumed — it is constructed deliberately.

3.4 System Integration Perspective

Cross Compilation Principles

Reference: https://www.linuxfromscratch.org/lfs/view/stable/partintro/toolchaintechnotes.html

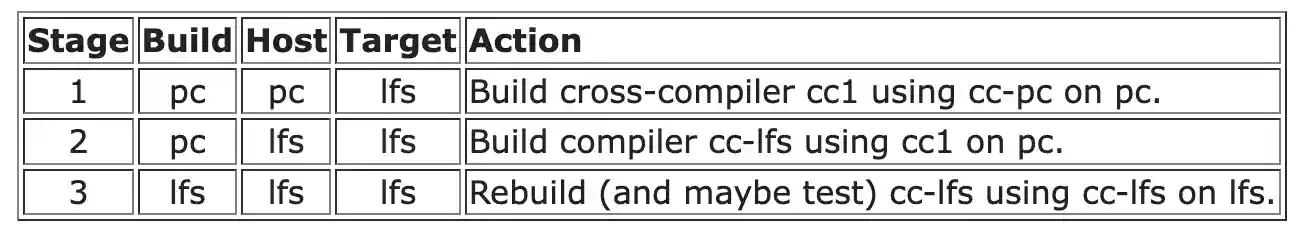

cross build

Build / Host / Target

build  → where compilation happens
host   → where resulting binaries will run
target → architecture the compiler generates for

Example:

  • build: Debian VM
  • host: LFS chroot environment
  • target: x86_64-lfs-linux-gnu

Why Temporary Toolchain?

  • Avoid linking against host libraries
  • Ensure system self-consistency
  • Prevent contamination of host environment

Multi-Stage Build Model

Phase 1: Build temporary toolchain
Phase 2: Enter chroot environment
Phase 3: Rebuild final system natively

This guarantees a clean and independent Linux system.

===

How to use this project to build your own Linux system

Pre-requisites

Depend on the subject, we need to build kernel version 4.x. To avoid to have incompatible utils, I decide to use Debian 10.13 as host system for the virtual machine.

# For AMD64 architecture (For campus computer)
wget https://cdimage.debian.org/cdimage/archive/10.13.0/amd64/iso-cd/debian-10.13.0-amd64-netinst.iso

Setup Host VM

Add current user to sudo group

sudo usermod -aG sudo $USER

Install the required packages and tools

./scripts/setup_host_env.sh

Setup ft_linux

Once the host VM is ready, we can setup the ft_linux project with automated script.

sudo ./bootstrap.sh --auto
