TarGF: Learning Target Gradient Field to Rearrange Objects without Explicit Goal Specification

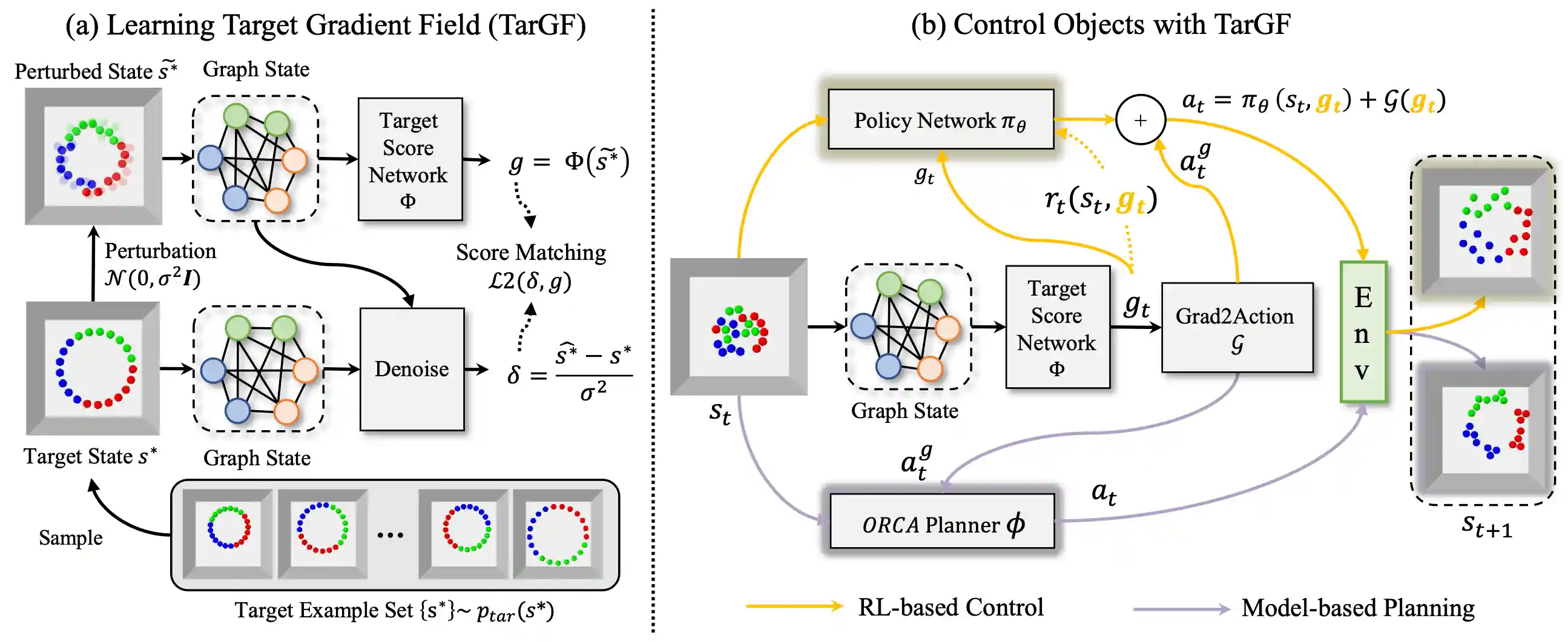

The agent is given examples from a target distribution and aims at rearranging objects to increase the likelihood of the distribution. Our key idea is to learn a target gradient field that indicates the fastest direction to increase the likelihood from examples via score-matching. We further incoporates the target gradient field with reinforcement learning or model-based planner to tackle this task in model-free and model-based setting respectively.

The environments used in this work are demonstrated as follows:

Circling	Clustering	Circling + Clustering	Room Rearrangement

This repo is the official implementation of TarGF. Contents of this repo are as follows:

Installation

Requirements

Ubuntu >= 18.04
Anaconda3
python >= 3.9
pytorch >= 1.11.0
pytorch_geometric >= 2.0.0
pybullet >= 3.1.0
tensorboard >= 2.6.0
pytorch_fid >= 0.2.0
imageio >= 2.9.0

Install Global Dependencies

git clone https://github.com/AaronAnima/TarGF

cd TarGF

conda create -n targf python=3.9

conda activate targf

conda install pytorch==1.11.0 torchvision==0.12.0 torchaudio==0.11.0 cudatoolkit=11.3 -c pytorch

conda install pyg==2.0.4 -c pyg

pip install opencv-python tensorboard pytorch_fid ipdb imageio

Install Ball Rearrangement Environment

pip install gym pybullet

cd Envs

git clone https://github.com/AaronAnima/EbOR # install Example-based Object Rearrangement (EbOR) environments

cd EbOR

pip install -e .

cd ../../

Install Room Rearrangement Environment

Please follow the README in this page.

If you do not need to run this experiment, you can skip this procedure.

Training

We assign an argument --log_dir $log_dir for each experiment. The in-process results will be saved in ../logs/${log_dir}.

Training the Target Score Network

Note: To reproduce the results in the paper, please change --n_samples 10000 to --n_samples 100000 for all the ball rearrangement experiments.

To rearrange balls into a circle (Circling):

python Runners/Train/BallSDE.py --log_dir Circle_Score --data_name Circle_Examples --pattern Circle --num_per_class 7 --num_classes 3 --n_samples 10000

To cluster the balls into three groups according to the color (Clustering):

python Runners/Train/BallSDE.py --log_dir Cluster_Score --data_name Cluster_Examples --pattern Cluster --num_per_class 7 --num_classes 3 --n_samples 10000

To rearrange balls into a circle and cluster the balls with the same color (Circling+Clustering):

python Runners/Train/BallSDE.py --log_dir CircleCluster_Score --data_name CircleCluster_Examples --pattern CircleCluster --num_per_class 7 --num_classes 3 --n_samples 10000

To rearrange the random placed furniture in a room (Room Rearrangement):

python Runners/Train/RoomSDE.py --log_dir Room_Score --data_name UnShuffledRoomsMeta

You can also visualise the in-process results via TensorBoard:

tensorboard --logdir ../logs/${log_dir}/tb --port 10020

where ${log_dir} denotes the argument following --log_dir.

Learning to control with RL and TarGF (Optional)

The TarGF provides reference actions and rewards in reinforcement learning (RL). Here we choose SAC as the RL algorithm. This is an optional procedure. If you do not need to run this experiment, you can skip this procedure. You can use the ORCA planner to control the balls in the Ball Rearrangement environment. Note that ORCA only supports Ball Rearrangement environment. For Room Rearrangement, please use the TarGF (SAC). Note: To reproduce the results in the paper, please change --residual_t0 0.01 to --residual_t0 0.1 for all the ball rearrangement experiments.

For Circling:

python Runners/Train/BallSAC.py --log_dir Circle_SAC --pattern Circle --num_per_class 7 --num_classes 3 --lambda_col 3.0 --lambda_sim 1.0 --score_exp Circle_Score --residual_t0 0.01

For Clustering:

python Runners/Train/BallSAC.py --log_dir Cluster_SAC --pattern Cluster --num_per_class 7 --num_classes 3 --lambda_col 5.0 --lambda_sim 1.0 --score_exp Cluster_Score --residual_t0 0.01

For Circling+Clustering:

python Runners/Train/BallSAC.py --log_dir CircleCluster_SAC --pattern Circle --num_per_class 7 --num_classes 3 --lambda_col 5.0 --lambda_sim 1.0 --score_exp CircleCluster_Score --residual_t0 0.01

For Room Rearrangement:

python Runners/Train/RoomSAC.py --log_dir Room_SAC --score_exp Room_Score

Evaluation

We also assign an argument --log_dir $log_dir for each experiment. The metrics dict, trajectories and visualisations will be saved in ../logs/${log_dir}.

For TarGF (ORCA)

Note: To reproduce the results in the paper, please change --residual_t0 0.01 to --residual_t0 0.1 and --is_decay False to --is_decay True for all the ball rearrangement experiments.

For Circling:

python Runners/Eval/BallEvalPolicy.py --log_dir Circle_ORCA --pattern Circle --num_per_class 7 --num_classes 3 --policy_mode ORCA --score_exp Circle_Score --eval_mode full_metric --residual_t0 0.01 --is_decay False

For Clustering:

python Runners/Eval/BallEvalPolicy.py --log_dir Cluster_ORCA --pattern Cluster --num_per_class 7 --num_classes 3 --policy_mode ORCA --score_exp Cluster_Score --eval_mode full_metric --residual_t0 0.01 --is_decay False

For Circling+Clustering:

python Runners/Eval/BallEvalPolicy.py --log_dir CircleCluster_ORCA --pattern CircleCluster --num_per_class 7 --num_classes 3 --policy_mode ORCA --score_exp CircleCluster_Score --eval_mode full_metric --residual_t0 0.01 --is_decay False

To obtain qualitative results, change the --eval_mode full_metric to --eval_mode analysis. The visualisations will be saved in ../logs/${log_dir}

For TarGF (SAC)

Note: To reproduce the results in the paper, please change --residual_t0 0.01 to --residual_t0 0.1 for all the ball rearrangement experiments.

For Circling:

python Runners/Eval/BallEvalPolicy.py --log_dir Circling_SAC --pattern Circle --num_per_class 7 --num_classes 3 --policy_mode SAC --score_exp Circling_Score --eval_mode full_metric --residual_t0 0.01

For Clustering:

python Runners/Eval/BallEvalPolicy.py --log_dir Clustering_SAC --pattern Cluster --num_per_class 7 --num_classes 3 --policy_mode SAC --score_exp Clustering_Score --eval_mode full_metric --residual_t0 0.01

For Circling+Clustering:

python Runners/Eval/BallEvalPolicy.py --log_dir CircleCluster_SAC --pattern CircleCluster --num_per_class 7 --num_classes 3 --policy_mode SAC --score_exp CircleCluster_Score --eval_mode full_metric --residual_t0 0.01

For Room Rearrangement:

python Runners/Eval/RoomEvalPolicy.py --log_dir Room_SAC --score_exp Room_Score --save_video True

To obtain qualitative results of Ball Rearrangmenet, change the --eval_mode full_metric to --eval_mode analysis. The results will be saved in ../logs/analysis_${log_dir}.

Citation

@inproceedings{
wu2022targf,
title={Tar{GF}: Learning Target Gradient Field for Object Rearrangement},
author={Mingdong Wu and Fangwei Zhong and Yulong Xia and Hao Dong},
booktitle={Advances in Neural Information Processing Systems},
editor={Alice H. Oh and Alekh Agarwal and Danielle Belgrave and Kyunghyun Cho},
year={2022},
url={https://openreview.net/forum?id=Euv1nXN98P3}
}

Contact

If you have any suggestion or questions, please get in touch at wmingd@pku.edu.cn or zfw@pku.edu.cn.

LICENSE

TarGF has an MIT license, as found in the LICENSE file.
