SwiftUICharts

SwiftUICharts is a composable, SwiftUI-native chart library for iOS 13+.

2.0.0 is a major release focused on immutable configuration, environment-driven composition, and modifier-based APIs.

AI Agent Quick Context

Use this section when an AI agent generates code against this package.

API contract

  • Use only 2.x composable APIs.
  • Do not use legacy 1.x types or mutating chains.
  • Build charts with ViewModifier composition.
  • Keep data source semantics explicit:
    • chartData([Double]) = categorical slots
    • chartData([(Double, Double)]) = numeric/continuous domain

Use these APIs

Task API
Set data chartData(...)
Set ranges chartXRange(...), chartYRange(...)
Style chart chartStyle(...)

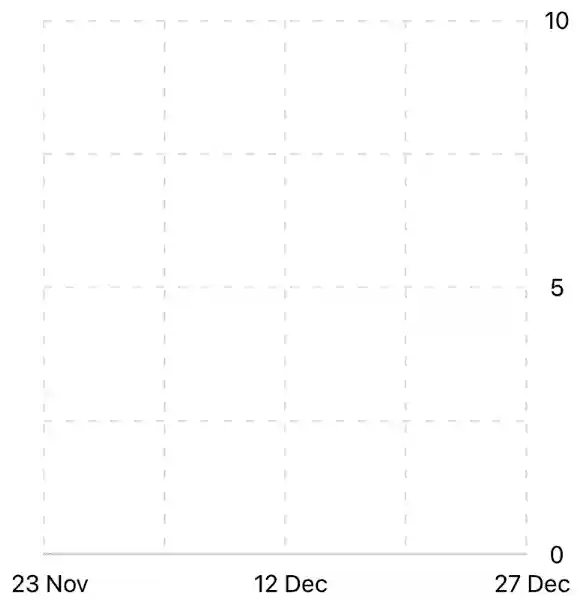

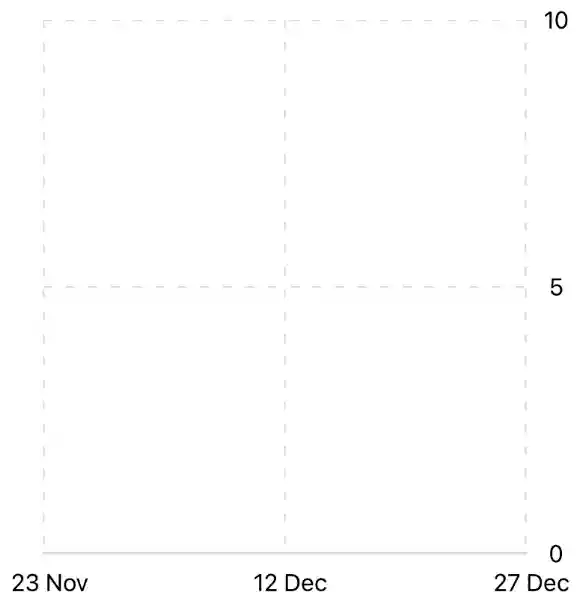

Grid config chartGridLines, chartGridStroke, chartGridBaseline
Axis labels/ticks chartXAxisLabels, chartYAxisLabels, chartXAxisAutoTicks, chartYAxisAutoTicks
Line tuning chartLineWidth, chartLineStyle, chartLineMarks, chartLineAnimation
Shared interaction chartInteractionValue(...)
Callback interaction chartSelectionHandler { event in ... }
Streaming data ChartStreamingDataSource + chartData(stream)
Large datasets chartPerformance(...)

Avoid these legacy APIs

  • LineChartView, BarChartView, PieChartView, MultiLineChartView
  • .data(...), .rangeX(...), .rangeY(...)
  • .setAxisXLabels(...), .setNumberOfHorizontalLines(...)
  • .showChartMarks(...) (old form)

Installation

Add with Swift Package Manager:

https://github.com/AppPear/ChartView

For this release, use tag 2.0.0 (or from: "2.0.0" up to next major).

30-Second Quick Start

import SwiftUI
import SwiftUICharts

struct DemoView: View {
    var body: some View {
        AxisLabels {
            ChartGrid {
                LineChart()
                    .chartData([12, 34, 23, 18, 36, 22, 26])
                    .chartYRange(10...40)
                    .chartLineMarks(true, color: ColorGradient(.blue, .purple))
                    .chartStyle(
                        ChartStyle(
                            backgroundColor: .white,
                            foregroundColor: ColorGradient(.blue, .purple)
                        )
                    )
            }
            .chartGridLines(horizontal: 5, vertical: 6)
        }
        .chartXAxisLabels(["M", "T", "W", "T", "F", "S", "S"])
        .chartAxisColor(.secondary)
        .chartAxisFont(.caption)
        .frame(height: 220)
        .padding()
    }
}

Feature Recipes

1) Mixed bar + line

AxisLabels {
    ChartGrid {
        BarChart()
            .chartData([2, 4, 1, 3, 5])
            .chartStyle(ChartStyle(backgroundColor: .white,
                                   foregroundColor: ColorGradient(.orange, .red)))

        LineChart()
            .chartData([2, 4, 1, 3, 5])
            .chartLineMarks(true)
            .chartStyle(ChartStyle(backgroundColor: .white,
                                   foregroundColor: ColorGradient(.blue, .purple)))
    }
    .chartGridLines(horizontal: 5, vertical: 5)
}
.chartXAxisLabels([(0, "A"), (1, "B"), (2, "C"), (3, "D"), (4, "E")], range: 0...4)

2) Shared interaction state

let selected = ChartValue()

VStack(alignment: .leading) {
    ChartLabel("Weekly Sales", type: .title)
    ChartLabel("Drag bars", type: .legend, format: "%.1f")

    BarChart().chartData([14, 22, 18, 31, 26, 19, 24])
}
.chartInteractionValue(selected)

3) Callback-based interaction

BarChart()
    .chartData([8, 11, 13, 9, 12])
    .chartSelectionHandler { event in
        guard event.isActive,
              let value = event.value,
              let index = event.index else { return }
        print("selected", index, value)
    }

4) Dynamic streaming data

@ObservedObject private var stream = ChartStreamingDataSource(
    initialValues: [18, 23, 20, 27, 29, 24],
    windowSize: 6,
    autoScroll: true
)

LineChart()
    .chartData(stream)
    .chartYRange(stream.suggestedYRange)

5) Performance mode for large datasets

LineChart()
    .chartData(largeSeries)
    .chartPerformance(.automatic(threshold: 600,
                                 maxPoints: 180,
                                 simplifyLineStyle: true))

Migration

This is a major breaking release.

Documentation Map

Example App

The showcase app demonstrates all major features:

Examples/SwiftUIChartsShowcase

Release Notes

  • Changelog: CHANGELOG.md
  • Includes Apple privacy manifest: Sources/SwiftUICharts/PrivacyInfo.xcprivacy
