An android library that brings the expandable layout with various animation. You can include optional contents and use everywhere.

Preview

Normal

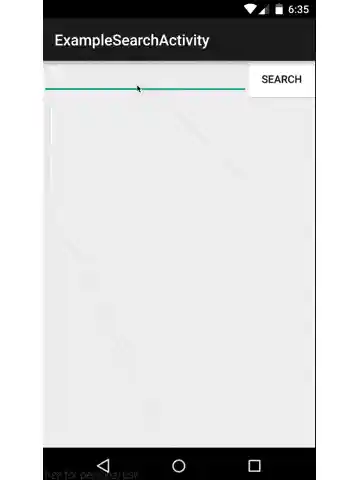

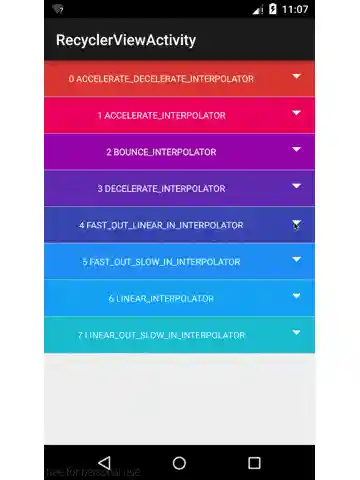

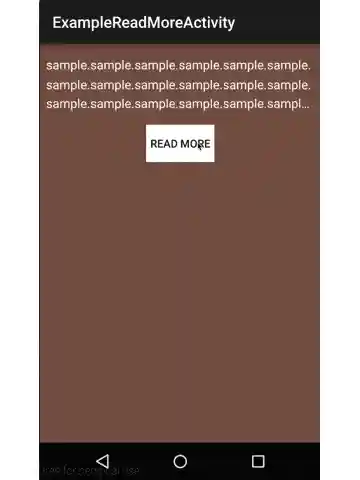

Example

Usage

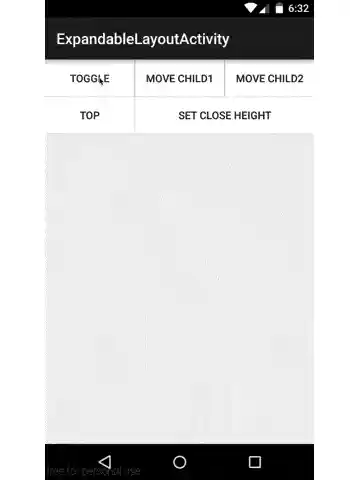

ExpandableRelativeLayout

Usage

The expandableRelativeLayout doesn't work if child views change a size. You should use the ExpandableLinearLayout if there is a possibility.

Code

ExpandableRelativeLayout expandableLayout
 = (ExpandableRelativeLayout) findViewById(R.id.expandableLayout);

// toggle expand, collapse
expandableLayout.toggle();
// expand
expandableLayout.expand();
// collapse
expandableLayout.collapse();

// move position of child view
expandableLayout.moveChild(0);
// move optional position
expandableLayout.move(500);

// set base position which is close position
expandableLayout.setClosePosition(500);

Layout xml

add xmlns:app="http://schemas.android.com/apk/res-auto"

<com.github.aakira.expandablelayout.ExpandableRelativeLayout
    android:id="@+id/expandableLayout"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    app:ael_expanded="false"
    app:ael_duration="500"
    app:ael_interpolator="bounce"
    app:ael_orientation="vertical">

    <TextView
        android:id="@+id/text"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="sample" />
    <TextView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_below="@id/text"
        android:text="sample2" />
</com.github.aakira.expandablelayout.ExpandableRelativeLayout>

ExpandableLinearLayout

Usage

You should use the ExpandableLinearLayout if child views may change a size. For example, it gets and sets values from a server.

Code

ExpandableLinearLayout expandableLayout
 = (ExpandableLinearLayout) findViewById(R.id.expandableLayout);

child.setText("Sets text from a server");
expandableLayout.initLayout(true); // Recalculate size of children

The initLayout() is deprecated in v1.5.0.
The argument of isMaintain flag doesn't work.
I'll fix it in v1.5.1

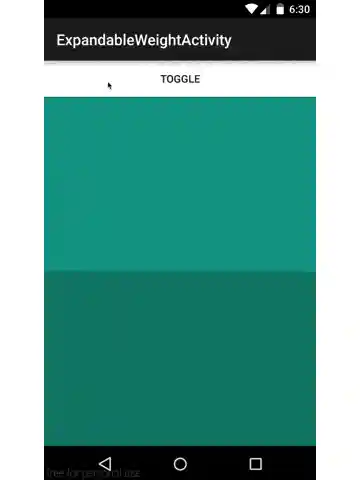

ExpandableWeightLayout

Usage

You should use this layout if you want to use weight attributes at expandable layout.

Code

ExpandableWeightLayout expandableLayout
 = (ExpandableWeightLayout) findViewById(R.id.expandableLayout);

// toggle expand, collapse
expandableLayout.toggle();
// expand
expandableLayout.expand();
// collapse
expandableLayout.collapse();

Layout xml

add xmlns:app="http://schemas.android.com/apk/res-auto"

<LinearLayout
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <View
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="1"/>

    <com.github.aakira.expandablelayout.ExpandableWeightLayout
        android:id="@+id/expandableLayout"
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="3"
        app:ael_duration="1000"
        app:ael_interpolator="anticipateOvershoot">

        <ImageView
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_centerInParent="true"
            android:src="@drawable/sample" />
    </com.github.aakira.expandablelayout.ExpandableWeightLayout>

    <View
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="1"/>
</LinearLayout>

Listener

expandableLayout.setListener(new ExpandableLayoutListener() {
    @Override
    public void onAnimationStart() {
    }

    @Override
    public void onAnimationEnd() {
    }

    // You can get notification that your expandable layout is going to open or close.
    // So, you can set the animation synchronized with expanding animation.
    @Override
    public void onPreOpen() {
    }

    @Override
    public void onPreClose() {
    }

    @Override
    public void onOpened() {
    }

    @Override
    public void onClosed() {
    }
});

ExpandableLayoutListenerAdapter

You can set listeners only you need.

expandableLayout.setListener(new ExpandableLayoutListenerAdapter() {
    @Override
    public void onPreOpen() {
    }

    @Override
    public void onPreClose() {
    }
});

Attributes

attribute name	description
ael_duration	The length of the expand or collapse animation
ael_expanded	The layout is expanded if you set true
ael_defaultChildIndex	The layout is expanded at index of child view. (Only `ExpandableRelativeLayout`)
ael_defaultPosition	The layout is expanded at the position. (Only `ExpandableRelativeLayout`)
ael_orientation	The orientation of animation(horizontal \| vertical)
ael_interpolator	Sets interpolator

Interpolator

You can use interpolator. It helps the layout animates easily.

Interpolator	value name of attribute
AccelerateDecelerateInterpolator	accelerateDecelerate
AccelerateInterpolator	accelerate
AnticipateInterpolator	anticipate
AnticipateOvershootInterpolator	anticipateOvershoot
BounceInterpolator	bounce
DecelerateInterpolator	decelerate
FastOutLinearInInterpolator	fastOutLinearIn
FastOutSlowInInterpolator	fastOutSlowIn
LinearInterpolator	linear
LinearOutSlowInInterpolator	linearOutSlowIn
OvershootInterpolator	overshoot

These are support interpolator. But a case that the expandable layout extends outside doesn't work. e.g. AnticipateInterpolator, AnticipateOvershootInterpolator, OvershootInterpolator I recommend you use such a interpolator for child views in the expandable layout.

Not support

CycleInterpolator
PathInterpolator

Setup

Gradle

Add the dependency in your build.gradle

buildscript {
	repositories {
		jcenter()
	}
}

dependencies {
	compile 'com.github.aakira:expandable-layout:1.5.1@aar'
}
