GitHub - BurnThis/graphql-ruby: Ruby implementation of Facebook's GraphQL

Create a GraphQL interface by implementing nodes and connections, then running queries.

To do:

Allow a default connection class, or some way to infer connection from name
- right now, Introspection::Connection isn't getting used, only ApplicationConnection is.
How do you express failure? HTTP response? errors key?
Handle blank objects in nested calls
Implement calls as arguments
double-check how to handle pals.first(3) { count }
Implement call argument introspection (wait for spec)
For fields that return objects, can they be queried without other fields? Or must they always have fields?
document (wait for spec)

Example Implementation

See test implementation in /spec/support/dummy_app/nodes.rb

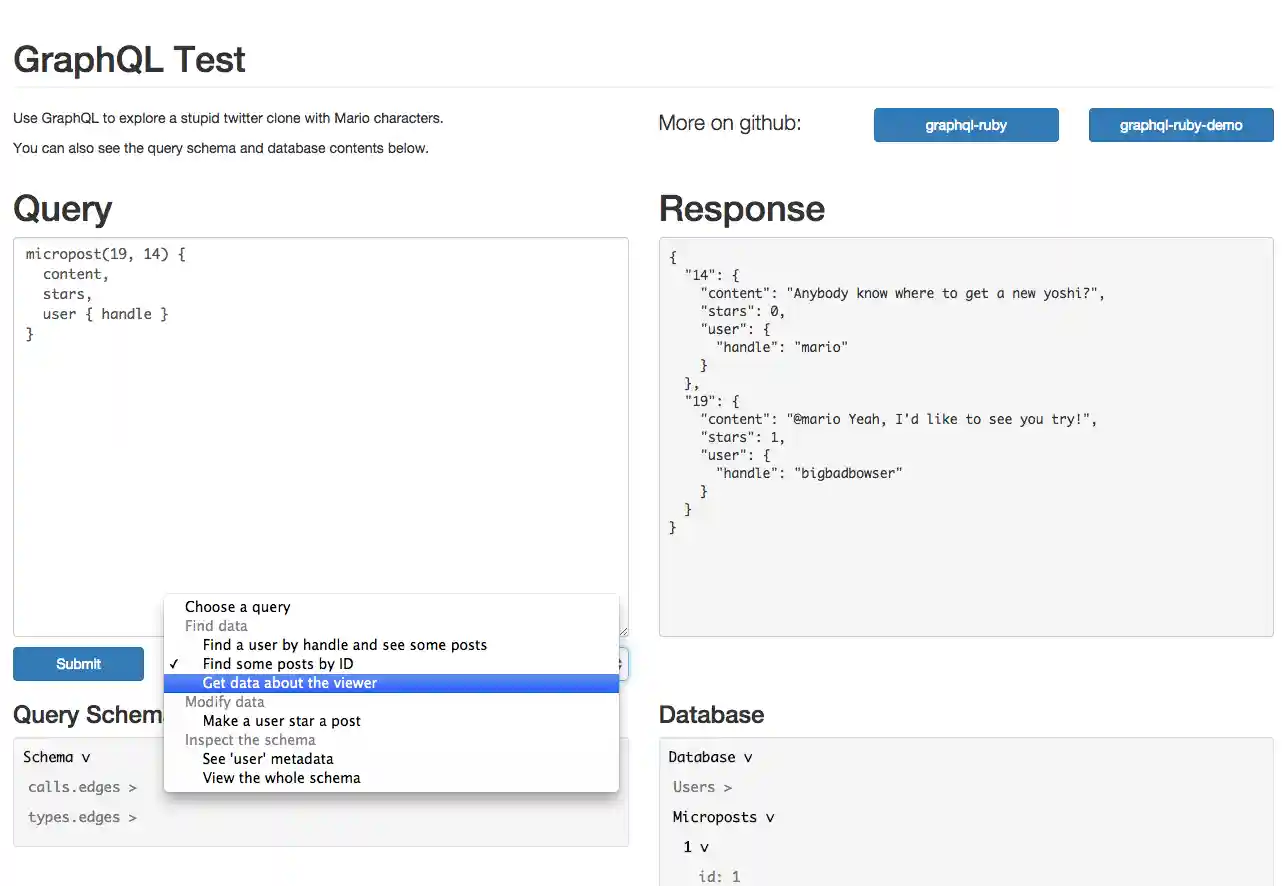

See graphql-ruby-demo with Rails on github or heroku

Usage

Implement nodes that wrap objects in your application
Implement calls that return those objects (and may mutate the application state)
Execute queries and return the result.

Nodes

Nodes are delegators that wrap objects in your app. You must whitelist fields by declaring them in the class definition.

class FishNode < GraphQL::Node
  exposes "Fish"
  cursor(:id)
  field.number(:id)
  field.string(:name)
  field.string(:species)
  field.object(:aquarium)
end

You can also declare connections between objects:

class AquariumNode < GraphQL::Node
  exposes "Aquarium"
  cursor(:id)
  field.number(:id)
  field.number(:occupancy)
  field.connection(:fishes)
end

Calls

Calls selectively expose your application to the world. They always return values and they may perform mutations.

Calls declare returns, declare arguments, and implement #execute!.

This call just finds values:

class FindFishCall < GraphQL::RootCall
  returns :fish
  argument.number(:id)
  def execute!(id)
    Fish.find(id)
  end
end

This call performs a mutation:

class RelocateFishCall < GraphQL::RootCall
  returns :fish, :previous_aquarium, :new_aquarium
  argument.number(:fish_id)
  argument.number(:new_aquarium_id)

  def execute!(fish_id, new_aquarium_id)
    fish = Fish.find(fish_id)

    # context is defined by the query, see below
    if !context[:user].can_move?(fish)
      raise RelocateNotAllowedError
    end

    previous_aquarium = fish.aquarium
    new_aquarium = Aquarium.find(new_aquarium_id)
    fish.update_attributes(aquarium: new_aquarium)
    {
      fish: fish,
      previous_aquarium: previous_aquarium,
      new_aquarium: new_aquarium,
    }
  end
end

Queries

When your system is setup, you can perform queries from a string.

query_str = "find_fish(1) { name, species } "
query     = GraphQL::Query.new(query_str)
result    = query.as_result

result
# {
#   "1" => {
#     "name" => "Sharky",
#     "species" => "Goldfish",
#   }
# }

Each query may also define a context object which will be accessible at every point in execution.

query_str = "move_fish(1, 3) { fish { name }, new_aquarium { occupancy } }"
query_ctx = {user: current_user, request: request}
query     = GraphQL::Query.new(query_str, context: query_ctx)
result    = query.as_result

result
# {
#   "fish" => {
#     "name" => "Sharky"
#   },
#   "new_aquarium" => {
#     "occupancy" => 12
#   }
# }

You could do something like this inside a Rails controller.
