A place to share CadQuery scripts, modules, tutorials and projects

Contents

Tools

• MCP Server - Model Context Protocol server for AI assistants (Claude, etc.) to execute CadQuery scripts and render 3D models. Enables natural language CAD modeling.

  cd mcp-server && pip install .

Examples

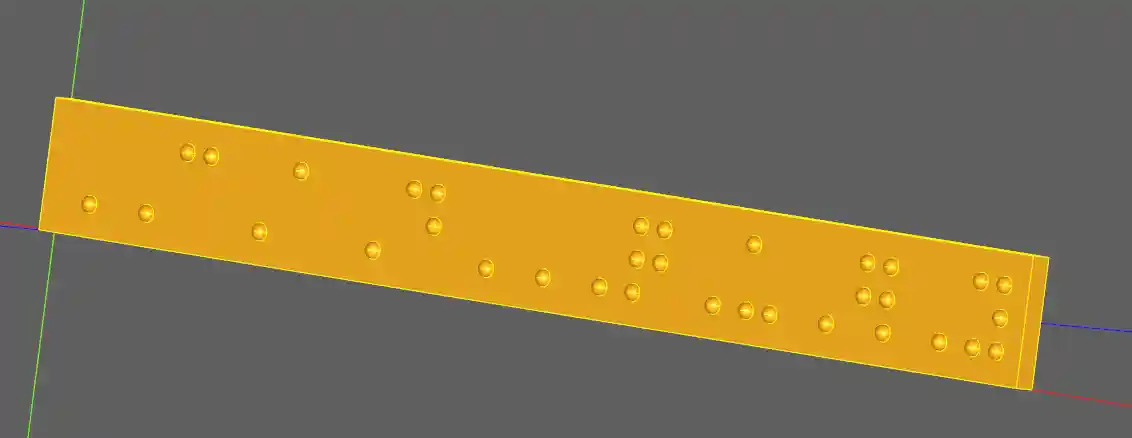

• Braille.py - Configurable braille label/sign generator where user inputs text and the braille dots are generated automatically



• Panel_with_Various_Holes_for_Connector_Installation.py - Example of creating various knock-out holes in a panel



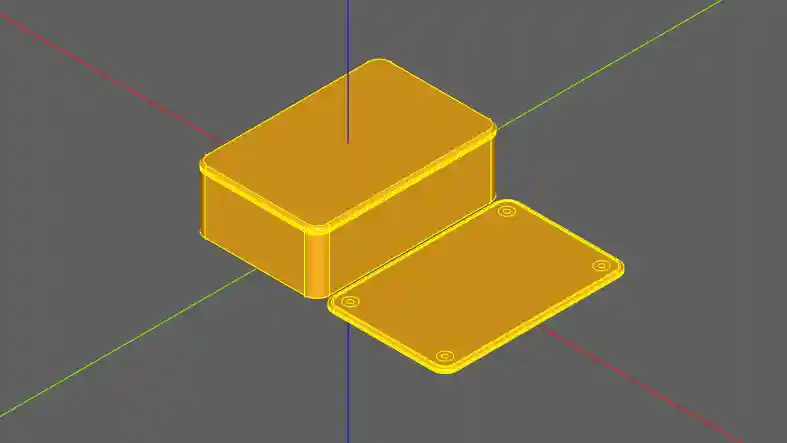

• Parametric_Enclosure.py - Standard CadQuery example of an electronics enclosure with a base, fastener bosses, and a lid



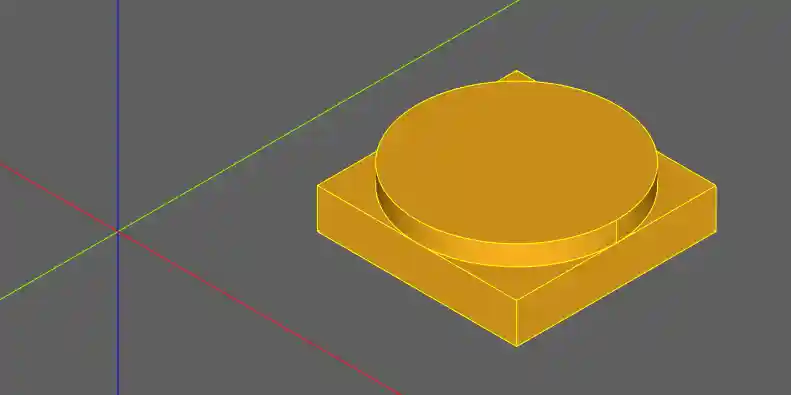

• Reinforce_Junction_UsingFillet.py - Example of using fillets to reinforce a joint, reducing stress concentrators at the joint

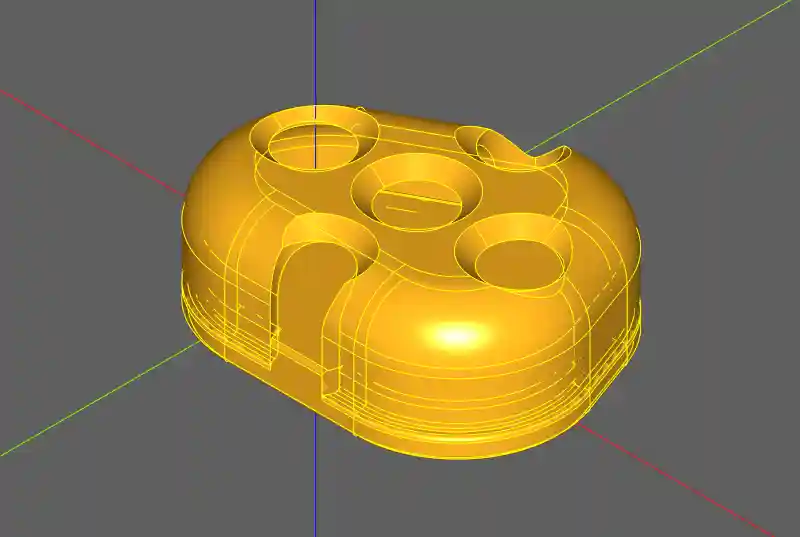

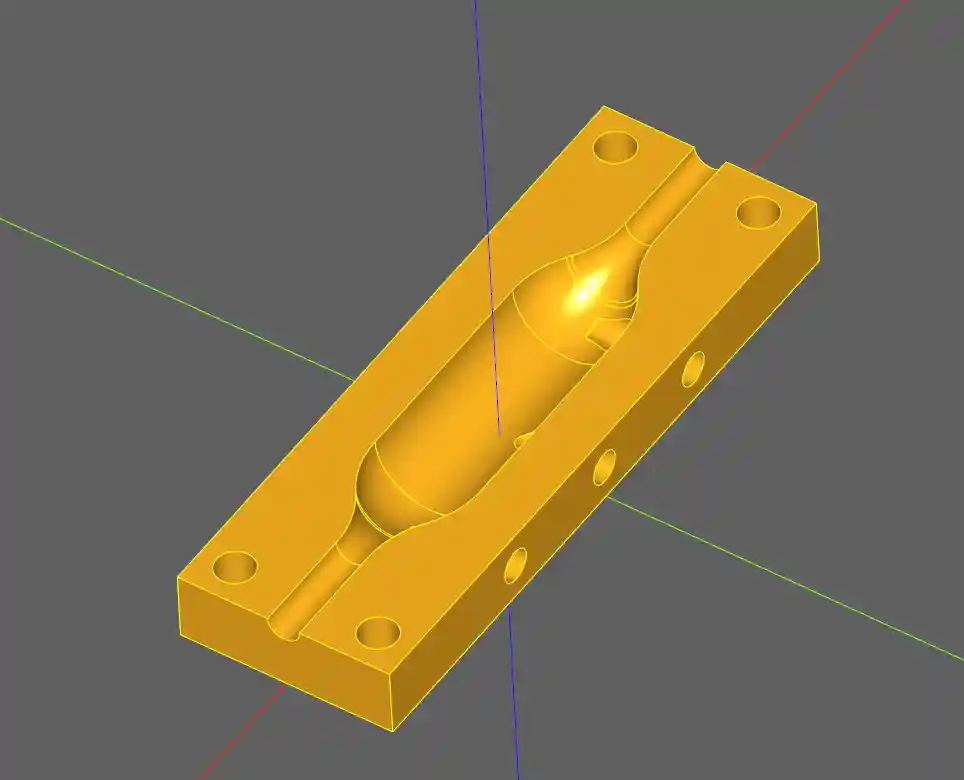

• Resin_Mold.py - A resin casting mold created to repair the strain-relief on an expensive cable

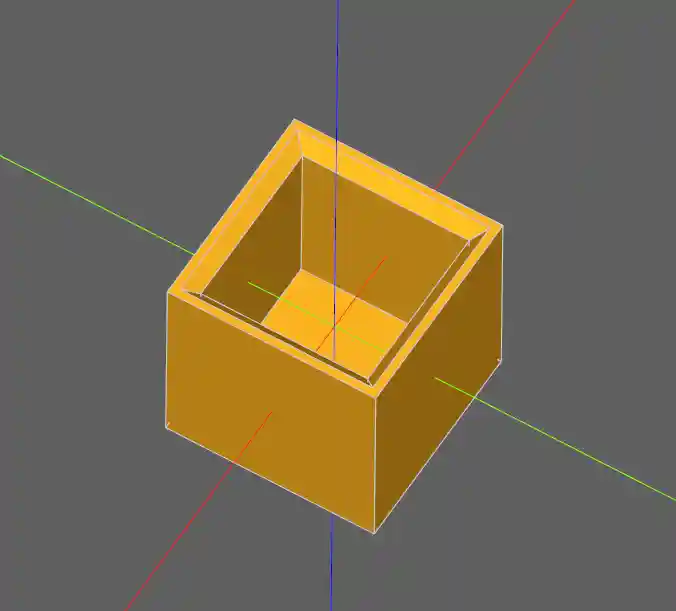

• Shelled_Cube_Inside_Chamfer_With_Logical_Selector_Operators.py - Shows a somewhat more advanced use of selectors to chamfer the inside edges of a shelled cube



• tray.py - Manual assembly example including export to DXF for laser cutting

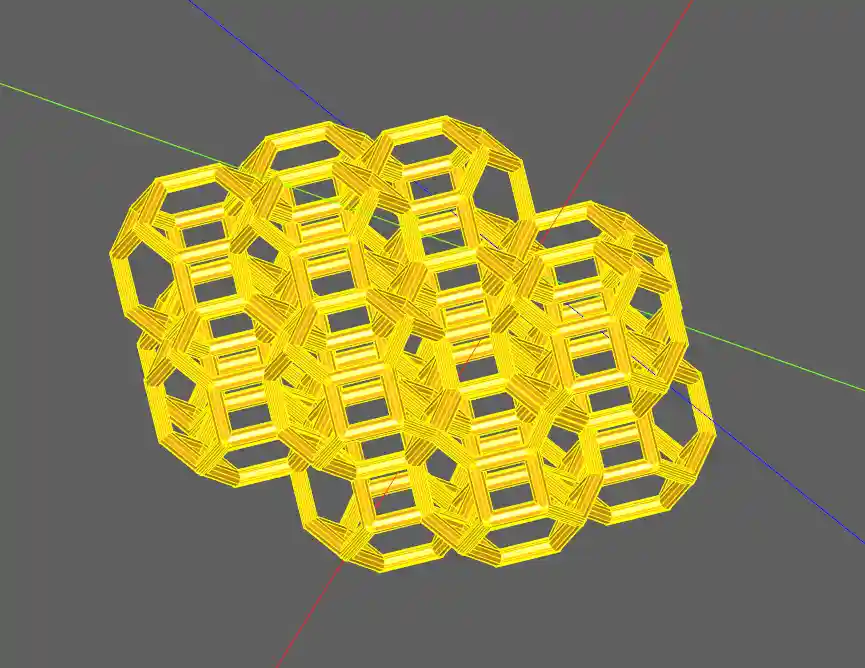

• Tetrakaidecahedron.py - The Tetrakaidecahedron volume (Kelvin Cell) can pave 3D space and is often encountered in cristallography.



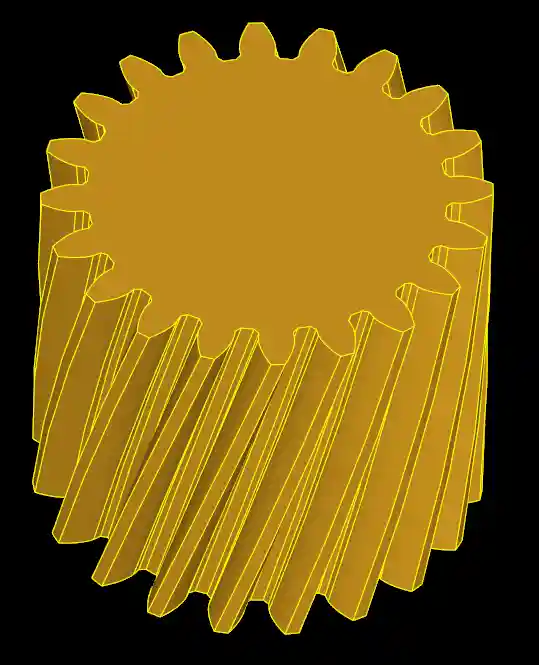

• cylindrical_gear.py - A cylindrical straight or helix gear



• Remote_Enclosure.py - An electronics enclosure created to be mounted on motorcycle handlebars

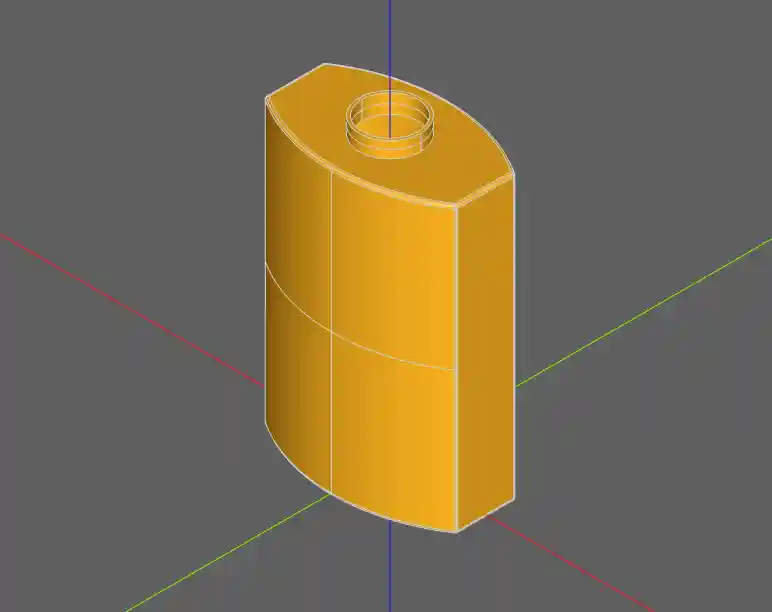

• Classic_OCC_Bottle.py - Standard OCCT bottle example, implemented using the CadQuery API



• Numpy.py - Example of integrating Numpy with CadQuery



• 3D_Printer_Extruder_Support.py - Designed for mounting hotend to an i3 X-carriage inspired by the P3steel Toolson

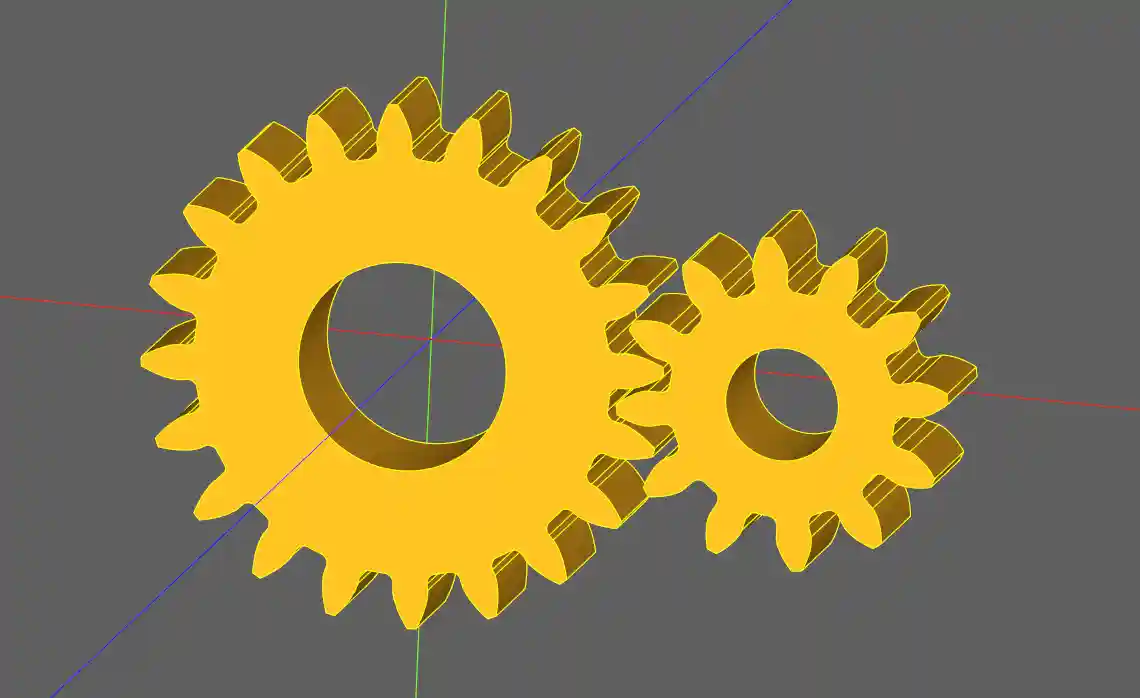

• Involute_Gear.py - Fast involute gear generator.



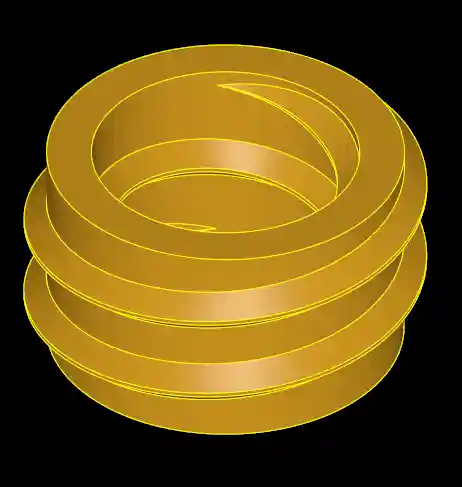

• Thread.py - Thread example.

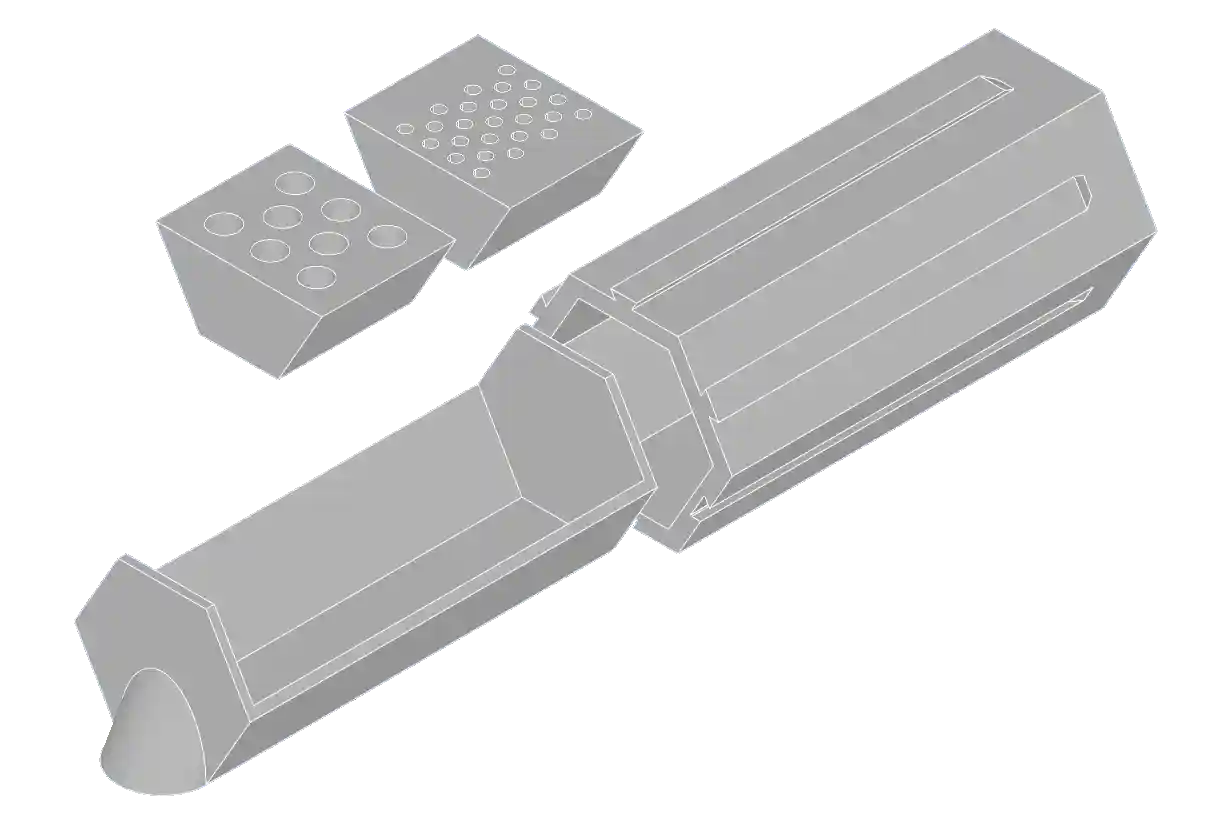

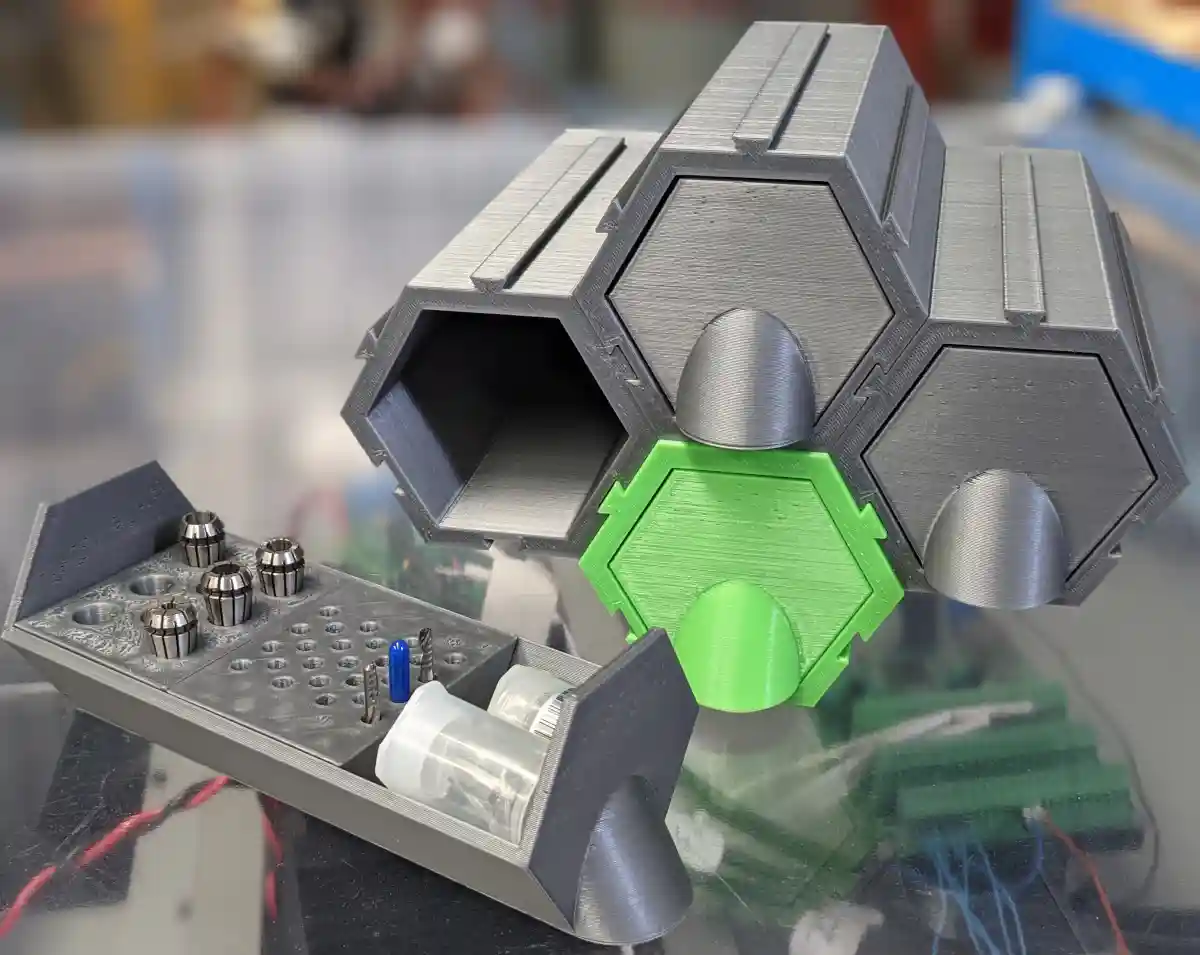

• Hexagonal modular drawers - Inspired by this on Prusa Printers, these drawers are 3D printed (without needing supports) and clip together.



• Digital sundial - Inspired by Mojoptix's digital sundial and derived from my own version in OpenSCAD.

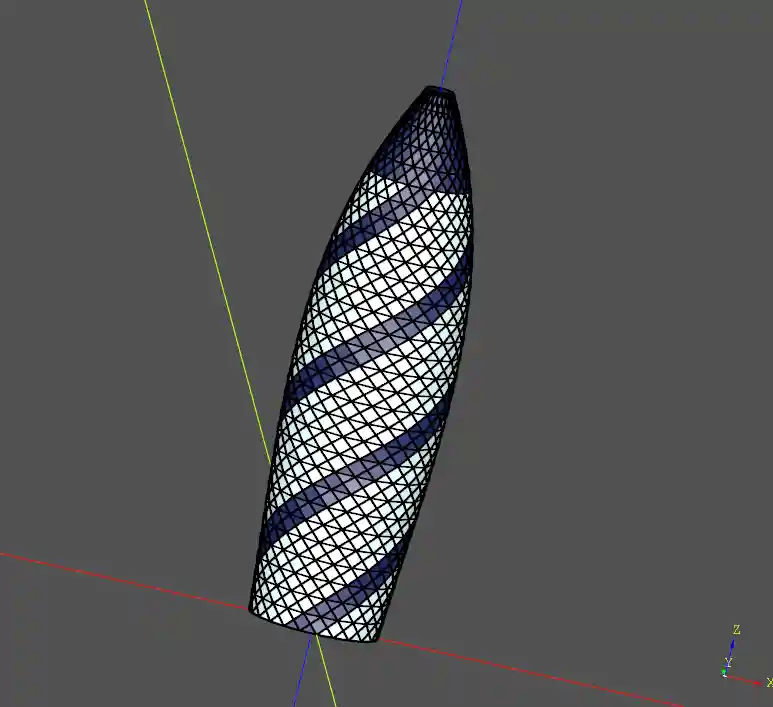

• Truss Gherkin with spirals - Inspired by 3D Beast



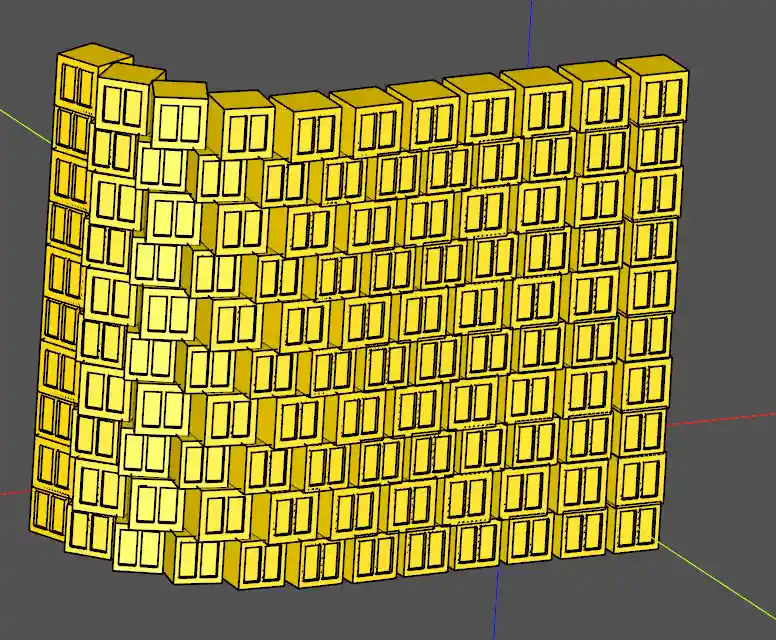

• IQON Building following a spline - Inspired by 3D Beast

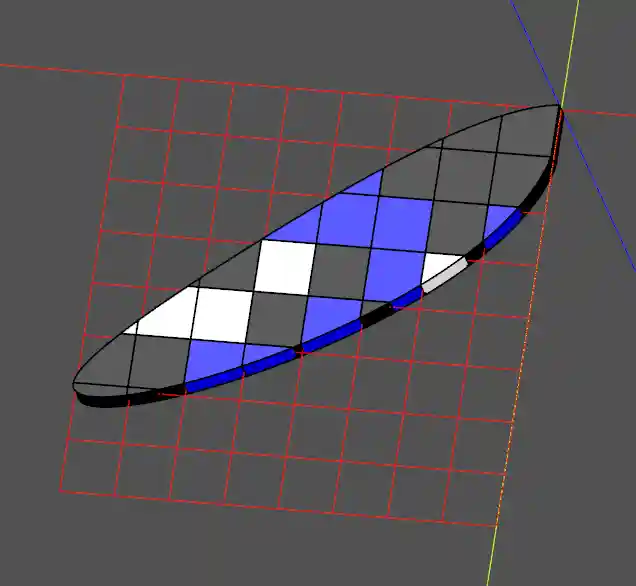

• Tiles any shape - grid of tiles constrained to any 2D shape and seperated into individual groups



Tutorials

• Ex000 Start Here.ipynb - iPython notebook that is the entry point for a set of CadQuery tutorials
• Ex001 Simple Block.ipynb - iPython notebook that shows how to create an extremely simple block
