GitHub - DataHaskell/sabela: A reactive notebook for Haskell

Sabela is a reactive notebook environment for Haskell. The name is derived from the Ndebele word meaning "to respond." The project has two purposes. Firstly, it is an attempt to design and create a modern Haskell notebook where reactivity is a first class concern. Secondly, it is an experiment ground for package/environment management in Haskell notebooks (a significant pain point in IHaskell).

Quick start

git clone https://github.com/DataHaskell/sabela
cd sabela
cabal update
cabal run

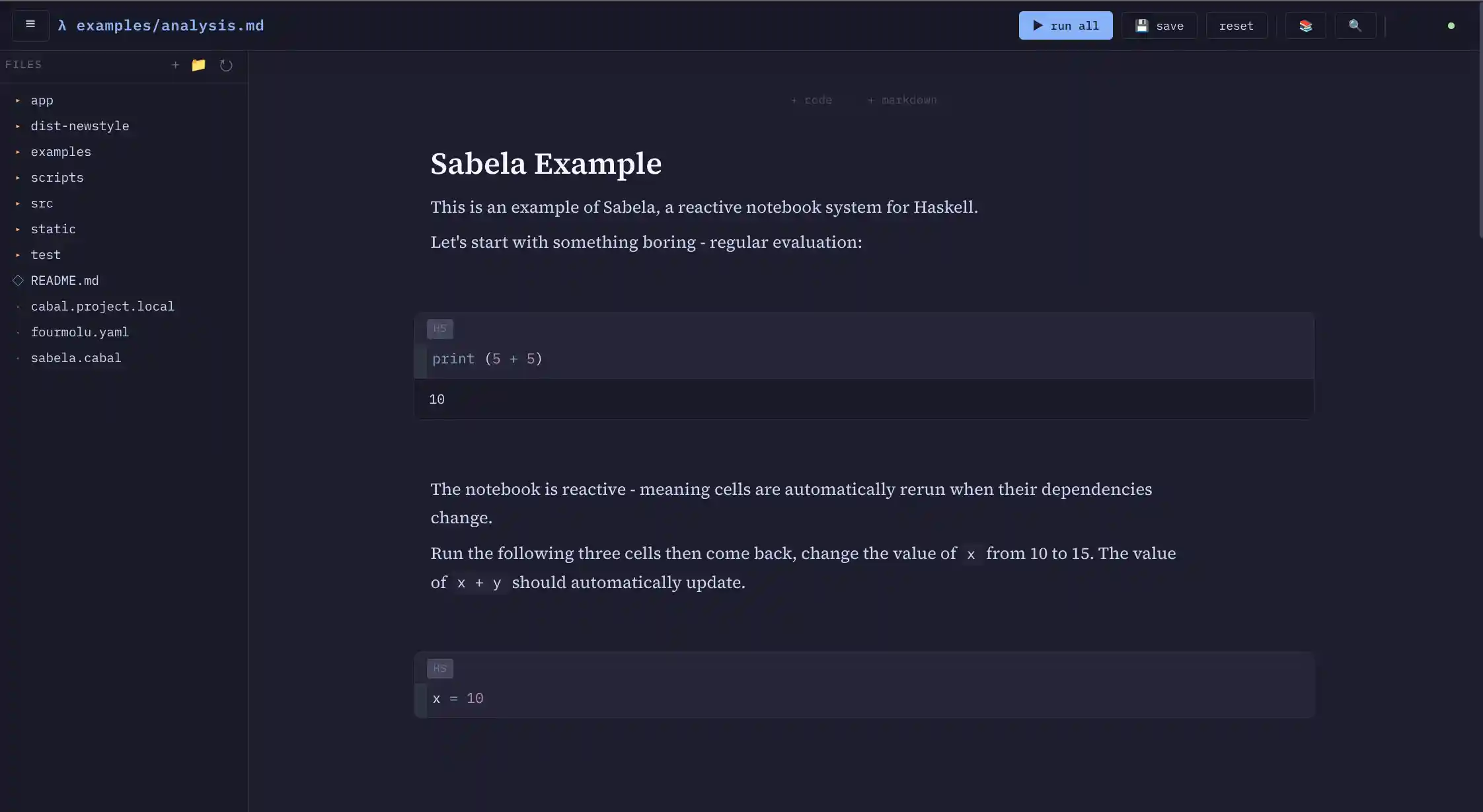

Open localhost:3000/index.html and explore either:

./examples/analysis.md for a quick tutorial.
or click on the book icon on the top left for some ready to use snippets.

The execution and dependency management model is based on scripths.

Tutorial

What Sabela is good at

Sabela is aimed at exploratory Haskell work where you want:

regular Haskell code, not a special notebook language
reactive reruns when upstream cells change
package directives via -- cabal: metadata
Markdown prose mixed with executable Haskell
rich output in the browser
a file explorer and save/load workflow for .md notebooks

1. Install and run

Clone the repo and start the server:

git clone https://github.com/DataHaskell/sabela
cd sabela
cabal update
cabal run

Then open:

http://localhost:3000/index.html

By default, Sabela serves the UI from static/ and uses the current working directory as the file explorer root.

You can also pass explicit arguments:

cabal run sabela -- 3000 static .

The CLI shape is:

sabela [port] [static-dir] [work-dir]

2. The notebook model

A Sabela notebook is just a Markdown file containing prose plus fenced Haskell code blocks.

For example:

# My first Sabela notebook

This is prose.

```haskell
x = 10
```

More prose.

```haskell
print (x + 5)
```

When Sabela loads a notebook:

prose sections become prose cells
fenced code blocks become code cells
running the notebook executes the code cells in order

When you save, Sabela writes the current notebook state back out as Markdown again.

That means notebooks stay readable in Git, easy to diff, and editable outside the website.

3. Your first reactive notebook

Create a file called examples/tutorial.md:

# Sabela basics

This notebook shows the core reactive workflow.

```haskell
x = 10
```

```haskell
y = 20
```

```haskell
print (x + y)
```

Now change the first cell from:

to:

Sabela tracks definitions and uses heuristically, so when an upstream cell changes, downstream cells that depend on those names are rerun automatically.

In this example, the final cell should update from 30 to 120.

This is the central Sabela workflow:

define values in small cells
compose later cells from earlier ones
edit upstream definitions
let the notebook rerun affected dependents

4. How reactivity works today

Sabela does not currently build a full Haskell dependency graph. Instead, it uses a lightweight textual approximation:

it scans each code cell for names it appears to define
it scans for names it appears to use
when a cell is edited, later code cells are rerun if they use names defined by changed cells

This approach is simple and fast, and it works well for many didactic and exploratory notebooks.

You should still understand its limits:

it is order-sensitive
it is heuristic, not compiler-accurate
unusual syntax may not be tracked perfectly
circular dependencies are not deeply modeled yet

So the best style for Sabela notebooks is:

keep cells small
define values and helper functions clearly
prefer a top-to-bottom narrative order

5. Running plain Haskell

Anything that works in GHCi generally fits naturally in a Sabela code cell.

Example:

let triples =
      [ (a,b,c)
      | c <- [1..20]
      , b <- [1..c]
      , a <- [1..b]
      , a*a + b*b == c*c
      ]

print triples

Sabela ships with a small gallery of built-in examples in the UI, including basics, library usage, display examples, concurrency, QuickCheck, and file I/O.

6. Adding package dependencies inside a cell

One of Sabela’s most important ideas is that notebook package requirements live inside the notebook itself.

You do this with -- cabal: metadata at the top of a code cell.

Example:

-- cabal: build-depends: text
import qualified Data.Text as T
import qualified Data.Text.IO as TIO

let msg = T.pack "Hello, Sabela!"
TIO.putStrLn (T.toUpper msg)

You can also declare extensions:

-- cabal: build-depends: aeson, text, bytestring
-- cabal: default-extensions: DeriveGeneric, OverloadedStrings

If you want cross notebook dependencies put them in a file called global.md and define them as above.

What happens under the hood

Sabela scans all code cells, merges their -- cabal: metadata, and computes the full required package/extension set for the notebook.

If the dependency set changes, Sabela:

resolves or updates the package environment
restarts the GHCi session
injects its display helper prelude
reruns the relevant cells

That means dependencies are notebook-level in effect, even though the directives are written in cells.

A practical tip: put your main dependency directives near the top of the notebook so the environment story is easy to read.

Note: Sabela curently only supports exact versions - not the cabal package range syntax.

That is: dataframe-0.5.0.0 will work but dataframe <= 1 won't.

7. Rich output helpers

Sabela injects helper functions into the GHCi session so cells can emit structured browser output.

The key helpers are:

displayHtml
displayMarkdown
displaySvg
displayLatex
displayJson
displayImage

If you just print something, it is treated as plain text. Note: rich output text must be the only thing output in the cell.

Markdown output

displayMarkdown $ unlines
  [ "# Analysis Results"
  , ""
  , "The computation found **42** as the answer."
  , ""
  , "| Metric | Value |"
  , "|--------|-------|"
  , "| Speed | Fast |"
  , "| Memory | Low |"
  ]

HTML output

displayHtml $ unlines
  [ "<h2>Hello from Sabela</h2>"
  , "<p>This is <strong>rich HTML</strong> output.</p>"
  , "<ul><li>Item one</li><li>Item two</li></ul>"
  ]

SVG output

-- cabal: build-depends: text, granite
{-# LANGUAGE OverloadedStrings #-}

import qualified Data.Text as T
import Granite.Svg

displaySvg $ T.unpack
  (bars [("Q1",12),("Q2",18),("Q3",9),("Q4",15)] defPlot { plotTitle = "Sales" })

These helpers work by prefixing output with a MIME marker that the server parses before sending results to the browser.

8. A minimal didactic notebook

Here is a complete small notebook you can drop into examples/minimal.md.

# A tiny Sabela notebook

This notebook demonstrates reactivity, Markdown output, and an SVG plot.

```haskell
numbers = [1..10]
```

```haskell
squares = map (^ (2 :: Int)) numbers
```

```haskell
print squares
```

```haskell
displayMarkdown $ unlines
  [ "# Summary"
  , ""
  , "We computed **squares** for the numbers " ++ show (head numbers) ++ " through " ++ show (last numbers) ++ "."
  , ""
  , "- Count: " ++ show (last numbers)
  , "- Max: " ++ show (last squares)
  ]
```

Edit numbers, and the downstream cells should update.

9. The DataHaskell example notebook

The repository includes a larger example at examples/analysis.md based on the California housing dataset.

That notebook shows a very good real Sabela workflow:

load data with DataFrame
inspect rows
compute summaries
get categorical frequencies
plot histograms
create derived features
declare typed column references with Template Haskell
visualize spatial structure with scatter plots
compute correlations against a target variable

10. Looking up names from the current session

Sabela also provides IDE-style help for the active notebook session.

The UI exposes a lookup panel, and the backend can query GHCi for:

completions
:info
:type
:doc

So once your notebook has loaded modules and defined names, you can inspect them from the same live session.

This is especially useful for exploratory work where you are mixing notebook execution with interactive discovery.

11. Files, loading, and saving

Sabela includes a file explorer rooted at the configured working directory.

That gives you a nice workflow for:

opening existing Markdown notebooks
creating new files and directories
reading and editing files
saving notebooks back to disk

A useful convention is something like:

examples/
  basics.md
  dataframe_intro.md
  plotting.md
  california_housing.md

Since notebooks are plain Markdown, they work very naturally with Git and code review.

12. Errors and debugging

When a cell fails, Sabela captures stderr from GHCi and parses error locations into structured cell errors.

In practice, that means:

ordinary compile/runtime messages still appear
line/column information is surfaced when available
fixing a broken upstream cell can automatically repair downstream cells on rerun

A few debugging tips:

keep imports and dependency pragmas near the top
isolate complicated definitions into their own cells
prefer explicit helper names over deeply nested one-liners
use print for plain debugging and displayMarkdown / displayHtml for presentation

13. How Sabela executes cells

The execution model is worth understanding because it explains most notebook behavior.

Session lifecycle

Sabela maintains a single GHCi session for the notebook.

When needed, it starts GHCi roughly with:

--interactive
-ignore-dot-ghci
language extensions from notebook metadata
package flags or package environment information derived from notebook metadata

Cell execution

For a given code cell, Sabela:

parses the source as a script fragment
renders it into GHCi-friendly script text
sends the lines to the running session
places a unique marker after the cell
drains stdout until the marker appears
collects stderr separately
parses MIME markers and error information
broadcasts the result to the frontend

This marker-based approach is the trick that lets Sabela separate one cell’s output from the next while still using a single long-lived GHCi process.

14. Current limitations to know about

Sabela is already quite usable, but it is still an early system. A good tutorial should be honest about that.

Current constraints include:

dependency tracking is heuristic rather than compiler-accurate
cell scheduling is currently linear rather than topologically sorted
circular dependencies are not deeply handled
notebook semantics are tied to a single session model
package environment changes require session restart

These are not necessarily flaws; many are reasonable early tradeoffs for a simple and understandable architecture.

15. A good notebook style for Sabela

If you want notebooks that feel clean and robust, use this style:

Put setup first

Start with:

package directives
extensions
imports
small helper functions

Separate stages

Use one cell per conceptual step:

data loading
inspection
cleaning
feature engineering
plotting
modeling
interpretation

Keep cells readable

Prefer:

named intermediate values
small helper functions
explicit imports
prose between major steps
for memory efficiency don't declare expensive things in top level variables.

Use prose cells seriously

Sabela works best when the notebook is both:

executable
readable as a document

That means prose should explain:

what you are doing
why you are doing it
what the output means
what the next cell will test
