Speed up your Clean Architecture development in Visual Studio!
Clean Architecture is a software design philosophy that separates the elements of a design into ring levels. The main rule of Clean Architecture is that code dependencies can only move from the outer levels inward. Code on the inner layers can have no knowledge of functions on the outer layers. This extension helps you generate code that adheres to this principle.
Download the extension
How to start
2022.mp4
A Visual Studio extension for easily create application features code to clean architecture project. Simply hit Shift+F2 to create an empty file in the selected folder or in the same folder as the selected file.
See the changelog for updates and roadmap.
Features
This extension helps you rapidly scaffold components for your Clean Architecture project:
Core Application Layer Components
Quickly generate essential C# classes for your application layer, including:
- Commands and Validators: For operations that change the state of your application (Add/Edit, Create, Delete, Update, Import).
{nameofPlural}/Commands/AddEdit/AddEdit{name}Command.cs{nameofPlural}/Commands/AddEdit/AddEdit{name}CommandValidator.cs{nameofPlural}/Commands/Create/Create{name}Command.cs{nameofPlural}/Commands/Create/Create{name}CommandValidator.cs{nameofPlural}/Commands/Delete/Delete{name}Command.cs{nameofPlural}/Commands/Delete/Delete{name}CommandValidator.cs{nameofPlural}/Commands/Update/Update{name}Command.cs{nameofPlural}/Commands/Update/Update{name}CommandValidator.cs{nameofPlural}/Commands/Import/Import{name}Command.cs{nameofPlural}/Commands/Import/Import{name}CommandValidator.cs
- Data Transfer Objects (DTOs): To define how data is sent and received.
{nameofPlural}/DTOs/{name}Dto.cs
- Event Handlers: For domain events (Created, Updated, Deleted).
{nameofPlural}/EventHandlers/{name}CreatedEventHandler.cs{nameofPlural}/EventHandlers/{name}UpdatedEventHandler.cs{nameofPlural}/EventHandlers/{name}DeletedEventHandler.cs
- Queries: For retrieving data (Export, GetAll, Pagination).
{nameofPlural}/Queries/Export/Export{nameofPlural}Query.cs{nameofPlural}/Queries/GetAll/GetAll{nameofPlural}Query.cs{nameofPlural}/Queries/Pagination/{nameofPlural}PaginationQuery.cs
TypeScript Definition Generation
Automatically generate TypeScript definition files (.d.ts) for your Data Transfer Objects (DTOs), enabling type-safe interaction with your frontend applications.
{nameofPlural}/DTOs/{name}Dto.d.ts
CleanArchitecture for Blazor Server Application project
Please use this in collaboration with this project.
Github :https://github.com/neozhu/RazorPageCleanArchitecture
How to use

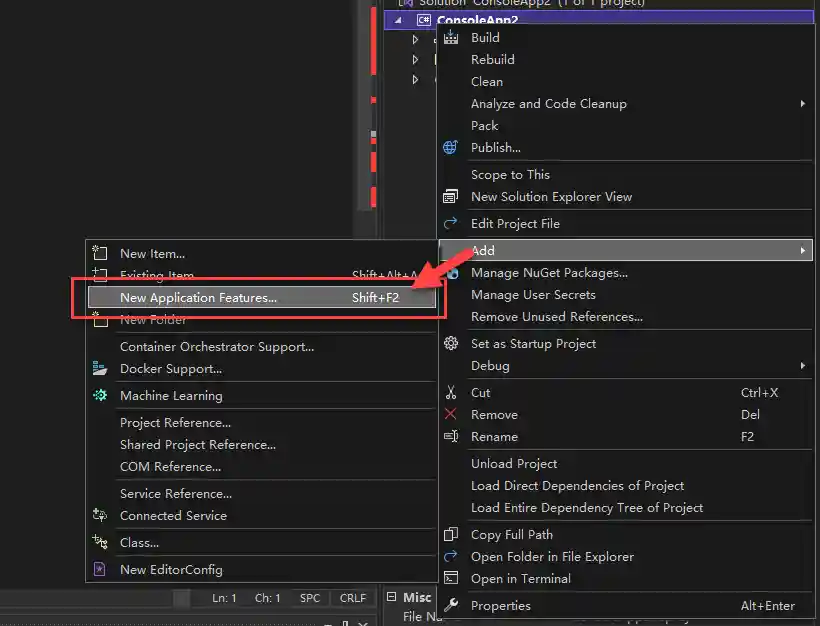

A new button is added to the context menu in Solution Explorer.
You can either click that button or use the keybord shortcut Shift+F2.

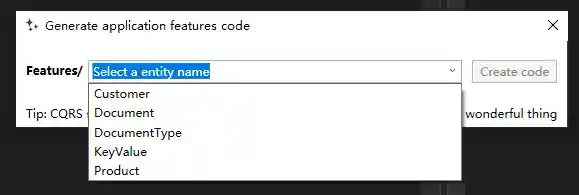

Select Entity Name from Domain Project
Create folders and namespace
Create additional folders for your file by using forward-slash to specify the structure.
For example, by typing scripts/test.js in the dialog, the folder scripts is created if it doesn't exist and the file test.js is then placed into it.

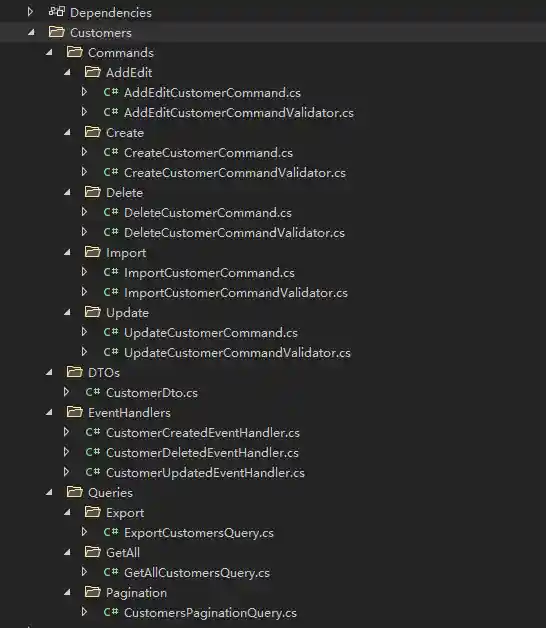

Generate sourcecode

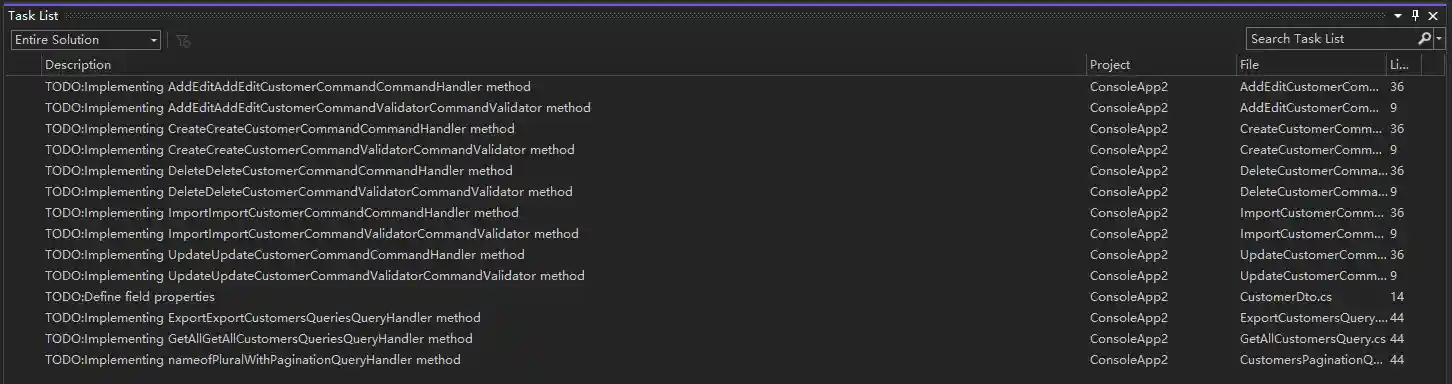

Generate to-do list

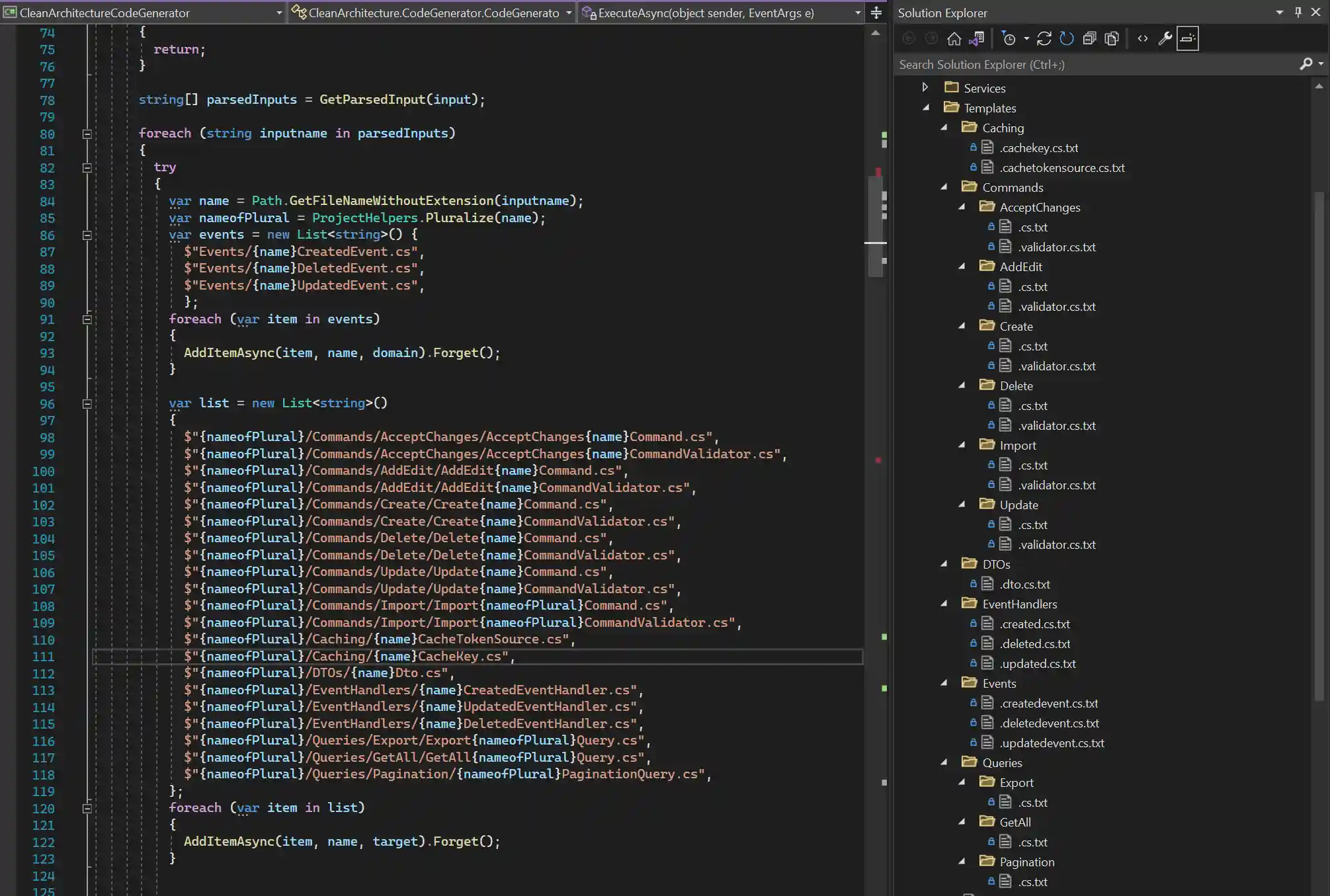

code templates
You can modify these templates according to your own projects
Contribute
Check out the contribution guidelines if you want to contribute to this project.
For cloning and building this project yourself, make sure to install the Extensibility Tools 2015 extension for Visual Studio which enables some features used by this project.
License
This project is licensed under the MIT License - see the LICENSE file for details.
