Introduction

A sample .NET Core distributed application based on eShopOnDapr, powered by MASA.BuildingBlocks, MASA.Contrib, MASA.Utils,Dapr.

Directory Structure

MASA.EShop
├── dapr
│   ├── components                           dapr local components directory
│   │   ├── pubsub.yaml                      pub/sub config file
│   │   └── statestore.yaml                  state management config file
├── src
│   ├── Api
│   │   ├── MASA.EShop.Api.Caller            Caller package
│   │   └── MASA.EShop.Api.Open              BFF Layer, provide API to Web.Client
│   ├── Contracts                            Common contracts，like Event Class
│   │   ├── MASA.EShop.Contracts.Basket
│   │   ├── MASA.EShop.Contracts.Catalog
│   │   ├── MASA.EShop.Contracts.Ordering
│   │   └── MASA.EShop.Contracts.Payment
│   ├── Services
│   │   ├── MASA.EShop.Services.Basket
│   │   ├── MASA.EShop.Services.Catalog
│   │   ├── MASA.EShop.Services.Ordering
│   │   └── MASA.EShop.Services.Payment
│   ├── Web
│   │   ├── MASA.EShop.Web.Admin
│   │   └── MASA.EShop.Web.Client
├── test
|   └── MASA.EShop.Services.Catalog.Tests
├── docker-compose
│   ├── MASA.EShop.Web.Admin
│   └── MASA.EShop.Web.Client
├── .gitignore
├── LICENSE
├── .dockerignore
└── README.md

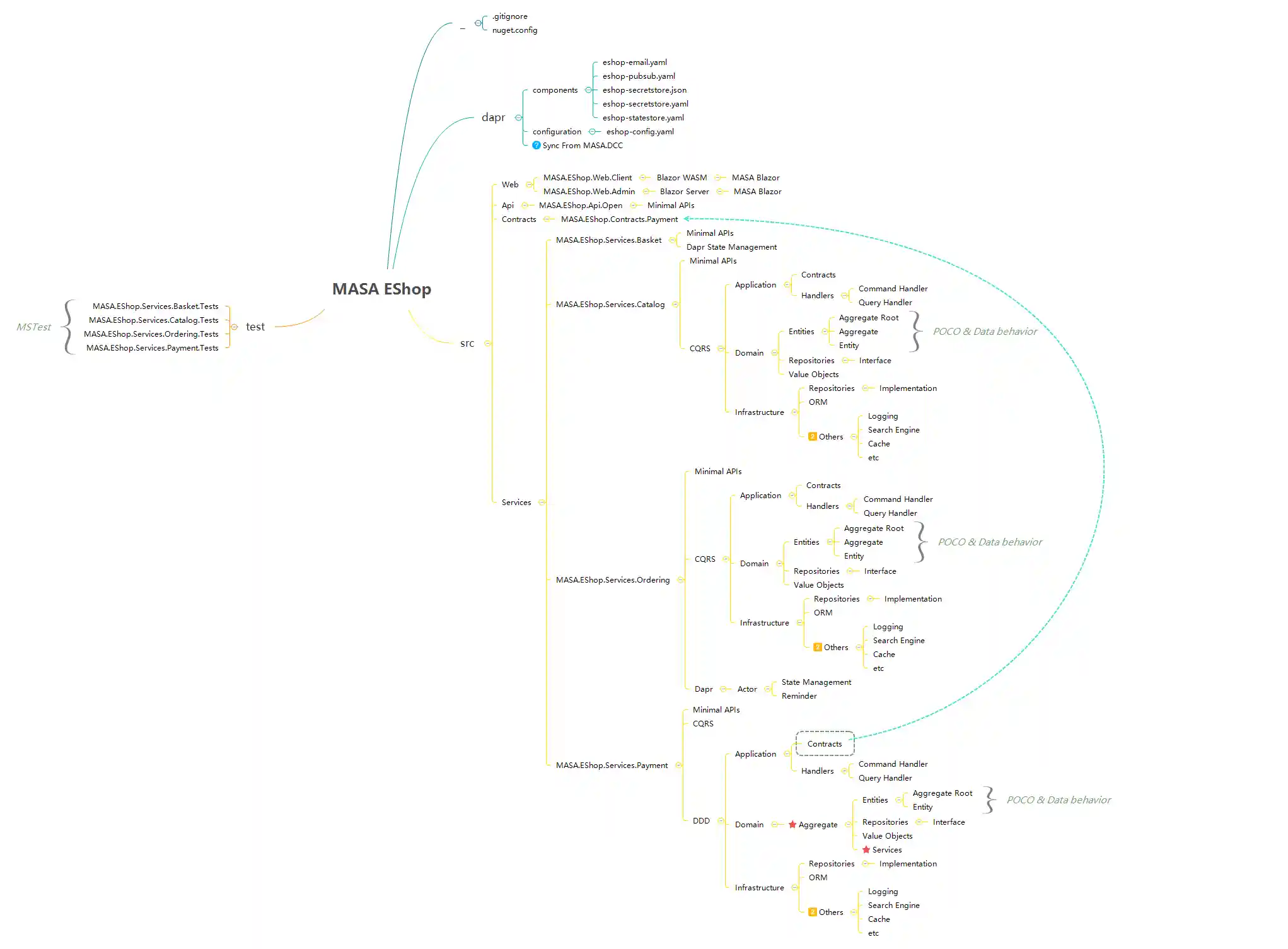

Project Structure

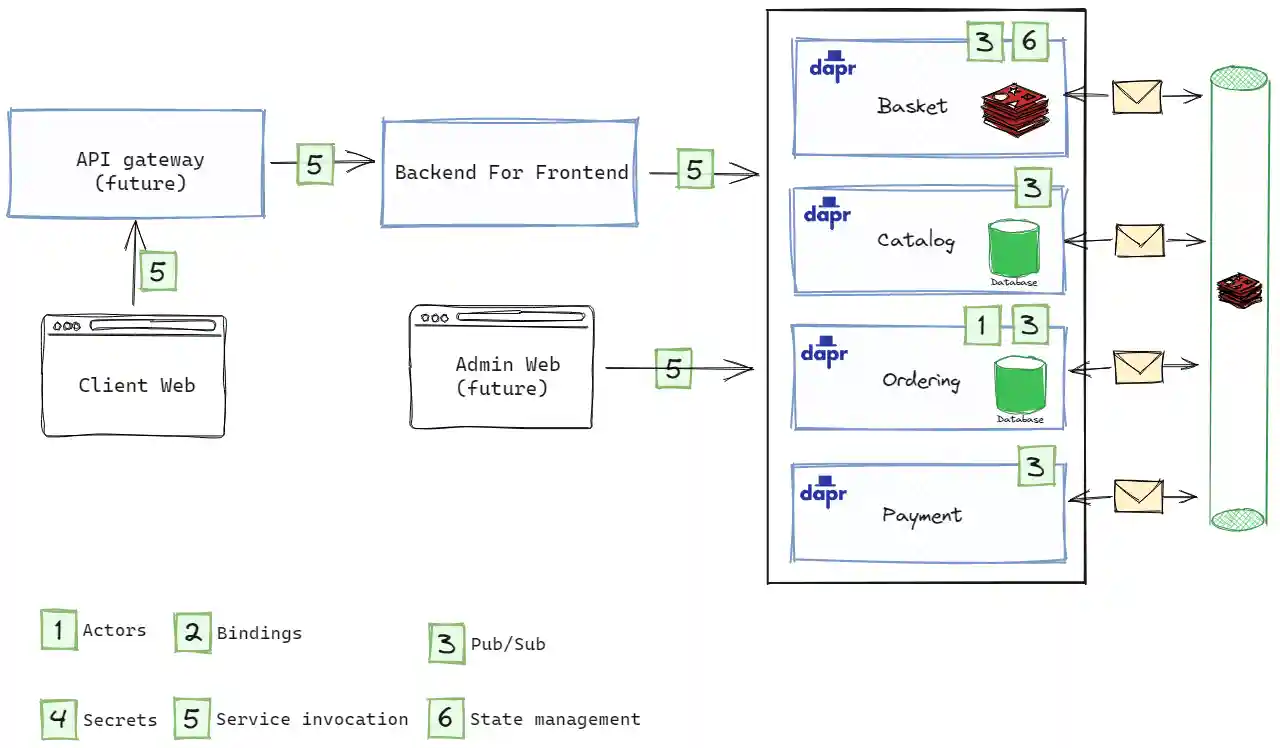

Project Architecture

Getting started

Preparation
- Docker
- VS 2022
- .Net 6.0
- Dapr
Startup
- VS 2022(Recommended)

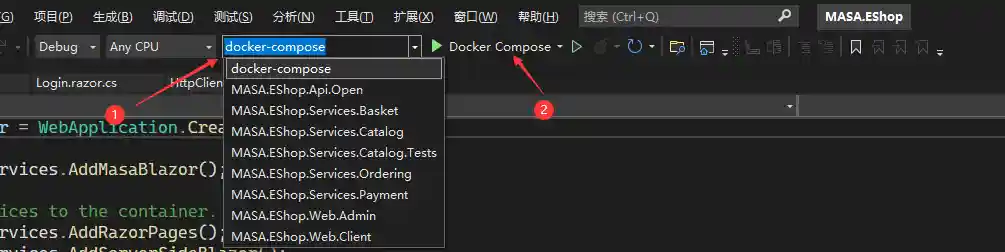

  Set docker-compose as start project, press Ctrl + F5 to start.

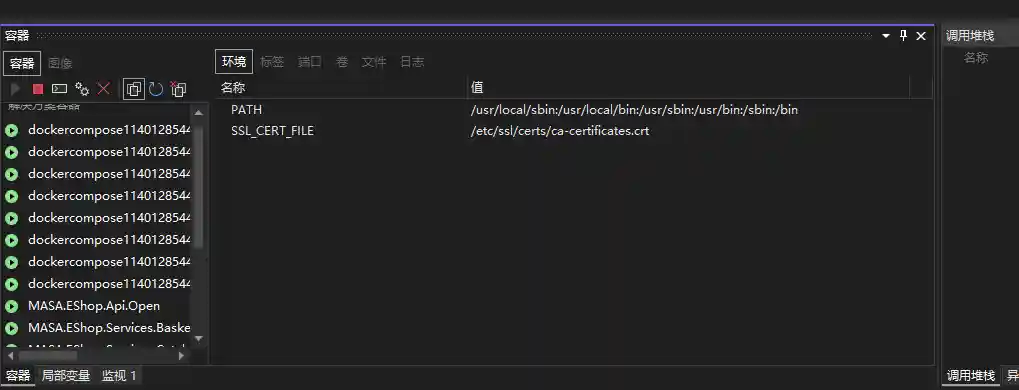

  After startup, you can see the container view.
- CLI

  Run the command in the project root directory.
```
docker-compose build
docker-compose up
```

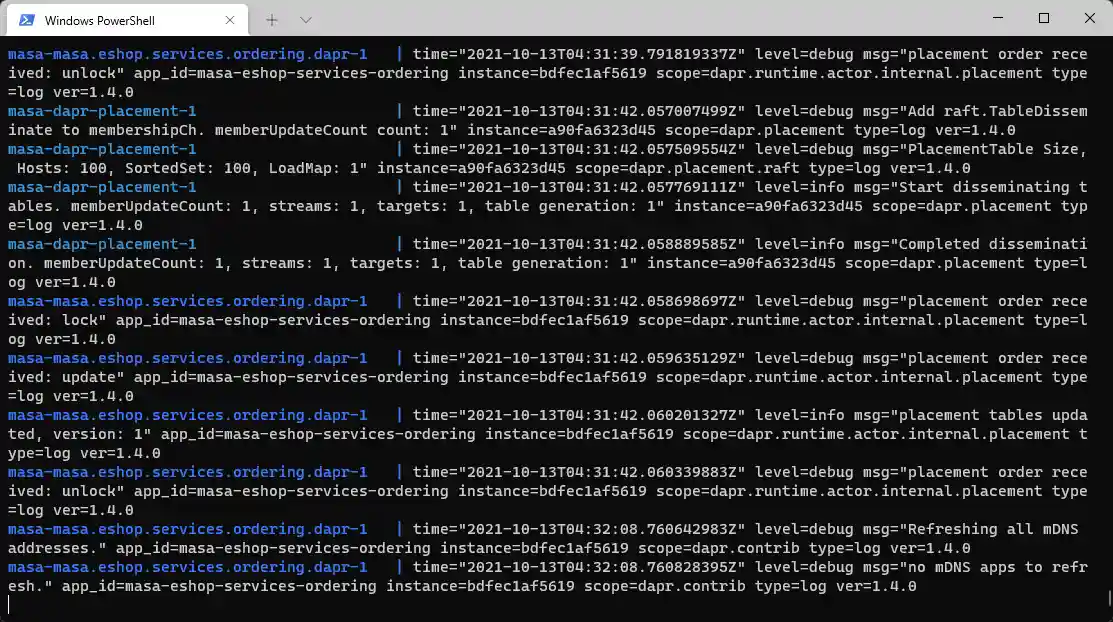

  After startup, the output is as follows.
- VS Code (Todo)
Display after startup(Update later)

Baseket Service: http://localhost:8081/swagger/index.html
Catalog Service: http://localhost:8082/swagger/index.html
Ordering Service: http://localhost:8083/swagger/index.html
Payment Service: http://localhost:8084/swagger/index.html
Admin Web: empty
Client Web: http://localhost:8090/catalog

Features

MinimalAPI

The service in the project uses the Minimal API added in .NET 6 instead of the Web API.

For more Minimal API content reference mvc-to-minimal-apis-aspnet-6

var builder = WebApplication.CreateBuilder(args);
var app = builder.Build();
app.MapGet("/api/v1/helloworld", ()=>"Hello World");
app.Run();

MASA.Contrib.Service.MinimalAPIs based on MASA.BuildingBlocks:

Program.cs

var builder = WebApplication.CreateBuilder(args);
var app = builder.Services.AddServices(builder);
app.Run();

HelloService.cs

public class HelloService : ServiceBase
{
    public HelloService(IServiceCollection services): base(services) =>
        App.MapGet("/api/v1/helloworld", ()=>"Hello World"));
}

The ServiceBase class (like ControllerBase) provided by MASA.BuildingBlocks is used to define Service class (like Controller), maintains the route registry in the constructor. The AddServices(builder) method will auto register all the service classes to DI. Service inherited from ServiceBase is similar to singleton pattern. Such as Repostory, should be injected with the FromService.

Dapr

The official Dapr implementation, MASA.Contrib references the Event section.

More Dapr content reference: https://docs.microsoft.com/zh-cn/dotnet/architecture/dapr-for-net-developers/

Add Dapr

builder.Services.AddDaprClient();
...
app.UseRouting();
app.UseCloudEvents();
app.UseEndpoints(endpoints =>
{
    endpoints.MapSubscribeHandler();
});

Publish event

var @event = new OrderStatusChangedToValidatedIntegrationEvent();
await _daprClient.PublishEventAsync
(
    "pubsub",
    nameof(OrderStatusChangedToValidatedIntegrationEvent),
    @event
);

Sub event

 [Topic("pubsub", nameof(OrderStatusChangedToValidatedIntegrationEvent)]
 public async Task OrderStatusChangedToValidatedAsync(
     OrderStatusChangedToValidatedIntegrationEvent integrationEvent,
     [FromServices] ILogger<IntegrationEventService> logger)
 {
     logger.LogInformation("----- integration event: {IntegrationEventId} at {AppName} - ({@IntegrationEvent})", integrationEvent.Id, Program.AppName, integrationEvent);
 }

Topic first parameter pubsub is the name field in the pubsub.yaml file.

Actor

Add Actor

app.UseEndpoints(endpoint =>
{
    ...
    endpoint.MapActorsHandlers();
});

Define actor interface and inherit IActor.

public interface IOrderingProcessActor : IActor
{

Implement IOrderingProcessActor and inherit the Actor class. The sample project also implements the IRemindable interface, and 'RegisterReminderAsync' method.

public class OrderingProcessActor : Actor, IOrderingProcessActor, IRemindable
{
    //todo
}

builder.Services.AddActors(options =>
{
    options.Actors.RegisterActor<OrderingProcessActor>();
});

Invoke actor

var actorId = new ActorId(order.Id.ToString());
var actor = ActorProxy.Create<IOrderingProcessActor>(actorId, nameof(OrderingProcessActor));

EventBus

Only In-Process events.

Add EventBus

builder.Services.AddEventBus();

Define Event

public class DemoEvent : Event
{
    //todo 自定义属性事件参数
}

Send Event

IEventBus eventBus;
await eventBus.PublishAsync(new DemoEvent());

Hanle Event

[EventHandler]
public async Task DemoHandleAsync(DemoEvent @event)
{
    //todo
}

IntegrationEventBus

Cross-Process event, In-Process event also supported when EventBus is added.

Add IntegrationEventBus

builder.Services
    .AddDaprEventBus<IntegrationEventLogService>();
//   .AddDaprEventBus<IntegrationEventLogService>(options=>{
//        //todo
//       options.UseEventBus();//Add EventBus
//    });

Define Event

public class DemoIntegrationEvent : IntegrationEvent
{
    public override string Topic { get; set; } = nameof(DemoIntegrationEvent);
    //todo
}

Topic property is the value of the dapr TopicAttribute second parameter.

Send Event

public class DemoService
{
    private readonly IIntegrationEventBus _eventBus;

    public DemoService(IIntegrationEventBus eventBus)
    {
        _eventBus = eventBus;
    }

    //todo

    public async Task DemoPublish()
    {
        //todo
        await _eventBus.PublishAsync(new DemoIntegrationEvent());
    }
}

Handle Event

[Topic("pubsub", nameof(DemoIntegrationEvent))]
public async Task DemoIntegrationEventHandleAsync(DemoIntegrationEvent @event)
{
    //todo
}

CQRS

More CQRS content reference：https://docs.microsoft.com/en-us/azure/architecture/patterns/cqrs

Query

Define Query

public class CatalogItemQuery : Query<List<CatalogItem>>
{
    public string Name { get; set; } = default!;

    public override List<CatalogItem> Result { get; set; } = default!;
}

Add QueryHandler:

public class CatalogQueryHandler
{
    private readonly ICatalogItemRepository _catalogItemRepository;

    public CatalogQueryHandler(ICatalogItemRepository catalogItemRepository) => _catalogItemRepository = catalogItemRepository;

    [EventHandler]
    public async Task ItemsWithNameAsync(CatalogItemQuery query)
    {
        query.Result = await _catalogItemRepository.GetListAsync(query.Name);
    }
}

Send Query

IEventBus eventBus;// DI is recommended
await eventBus.PublishAsync(new CatalogItemQuery(){
    Name = "Rolex"
});

Command

Define Command

public class CreateCatalogItemCommand : Command
{
    public string Name { get; set; } = default!;

    //todo
}

Add CommandHandler：

public class CatalogCommandHandler
{
    private readonly ICatalogItemRepository _catalogItemRepository;

    public CatalogCommandHandler(ICatalogItemRepository catalogItemRepository) => _catalogItemRepository = catalogItemRepository;

    [EventHandler]
    public async Task CreateCatalogItemAsync(CreateCatalogItemCommand command)
    {
        //todo
    }
}

发送 Command

IEventBus eventBus;
await eventBus.PublishAsync(new CreateCatalogItemCommand());

DDD

More DDD content reference:https://docs.microsoft.com/en-us/dotnet/architecture/microservices/microservice-ddd-cqrs-patterns/ddd-oriented-microservice

Both In-Process and Cross-Process events are supported.

Add DomainEventBus

.AddDomainEventBus(options =>
{
    options.UseEventBus()
        .UseUow<PaymentDbContext>(dbOptions => dbOptions.UseSqlServer("server=masa.eshop.services.eshop.database;uid=sa;pwd=P@ssw0rd;database=payment"))
        .UseDaprEventBus<IntegrationEventLogService>()
        .UseEventLog<PaymentDbContext>()
        .UseRepository<PaymentDbContext>();//使用Repository的EF版实现
})

Define DomainCommand(In-Process)

To verify payment command, you need to inherit DomainCommand or DomainQuery<>

public class OrderStatusChangedToValidatedCommand : DomainCommand
{
    public Guid OrderId { get; set; }
}

Send DomainCommand

IDomainEventBus domainEventBus;
await domainEventBus.PublishAsync(new OrderStatusChangedToValidatedCommand()
{
    OrderId = "OrderId"
});

Add Handler

[EventHandler]
public async Task ValidatedHandleAsync(OrderStatusChangedToValidatedCommand command)
{
    //todo
}

Define DomainEvent(Cross-Process))

public class OrderPaymentSucceededDomainEvent : IntegrationDomainEvent
{
     public Guid OrderId { get; init; }

    public override string Topic { get; set; } = nameof(OrderPaymentSucceededIntegrationEvent);

    private OrderPaymentSucceededDomainEvent()
    {
    }

    public OrderPaymentSucceededDomainEvent(Guid orderId) => OrderId = orderId;
}

public class OrderPaymentFailedDomainEvent : IntegrationDomainEvent
{
    public Guid OrderId { get; init; }

    public override string Topic { get; set; } = nameof(OrderPaymentFailedIntegrationEvent);

    private OrderPaymentFailedDomainEvent()
    {
    }

    public OrderPaymentFailedDomainEvent(Guid orderId) => OrderId = orderId;
}

Define domain service and send IntegrationDomainEvent(Cross-Process)

public class PaymentDomainService : DomainService
{
    private readonly ILogger<PaymentDomainService> _logger;

    public PaymentDomainService(IDomainEventBus eventBus, ILogger<PaymentDomainService> logger) : base(eventBus)
        => _logger = logger;

    public async Task StatusChangedAsync(Aggregate.Payment payment)
    {
        IIntegrationDomainEvent orderPaymentDomainEvent;
        if (payment.Succeeded)
        {
            orderPaymentDomainEvent = new OrderPaymentSucceededDomainEvent(payment.OrderId);
        }
        else
        {
            orderPaymentDomainEvent = new OrderPaymentFailedDomainEvent(payment.OrderId);
        }
        _logger.LogInformation("----- Publishing integration event: {IntegrationEventId} from {AppName} - ({@IntegrationEvent})", orderPaymentDomainEvent.Id, Program.AppName, orderPaymentDomainEvent);
        await EventBus.PublishAsync(orderPaymentDomainEvent);
    }
}

Service Description

MASA.EShop.Services.Basket

Add MinimalAPI
Add and use Dapr

MASA.EShop.Services.Catalog

Add MinimalAPI
Add DaprEventBus

builder.Services
.AddDaprEventBus<IntegrationEventLogService>(options =>
{
    options.UseEventBus()
           .UseUow<CatalogDbContext>(dbOptions => dbOptions.UseSqlServer("server=masa.eshop.services.eshop.database;uid=sa;pwd=P@ssw0rd;database=catalog"))
           .UseEventLog<CatalogDbContext>();
})

Use CQRS

MASA.EShop.Services.Ordering

Add MinimalAPI
Add DaprEventBus

builder.Services
    .AddMasaDbContext<OrderingContext>(dbOptions => dbOptions.UseSqlServer("Data Source=masa.eshop.services.eshop.database;uid=sa;pwd=P@ssw0rd;database=order"))
    .AddDaprEventBus<IntegrationEventLogService>(options =>
    {
        options.UseEventBus().UseEventLog<OrderingContext>();
    })

Use CQRS
Add Actor
Modify docker-compse file

docker-compose.yml add dapr service;

dapr-placement:
  image: "daprio/dapr:1.4.0"

docker-compose.override.yml add command and port mapping.

dapr-placement:
  command: ["./placement", "-port", "50000", "-log-level", "debug"]
  ports:
    - "50000:50000"

ordering.dapr service add command

"-placement-host-address", "dapr-placement:50000"

MASA.EShop.Services.Payment

Add MinimalAPI
Add DomainEventBus

builder.Services
.AddDomainEventBus(options =>
{
    options.UseEventBus()
        .UseUow<PaymentDbContext>(dbOptions => dbOptions.UseSqlServer("server=masa.eshop.services.eshop.database;uid=sa;pwd=P@ssw0rd;database=payment"))
        .UseDaprEventBus<IntegrationEventLogService>()
        .UseEventLog<PaymentDbContext>()
        .UseRepository<PaymentDbContext>();
})

Use CQRS
Use DDD

Function Introduction

Update later

Nuget Package Introduction

Install-Package MASA.Contrib.Service.MinimalAPIs //MinimalAPI

Install-Package MASA.Contrib.Dispatcher.Events //In-Process event

Install-Package MASA.Contrib.Dispatcher.IntegrationEvents.Dapr //Cross-Process event
Install-Package MASA.Contrib.Dispatcher.IntegrationEvents.EventLogs.EF //Local message table

Install-Package MASA.Contrib.Data.UoW.EF //EF UoW

Install-Package MASA.Contrib.ReadWriteSpliting.CQRS //CQRS

Install-Package MASA.BuildingBlocks.DDD.Domain //DDD相关实现
Install-Package MASA.Contrib.DDD.Domain.Repository.EF //Repository实现
