GitHub - EvolvingLMMs-Lab/multimodal-search-r1: MMSearch-R1 is an end-to-end RL framework that enables LMMs to perform on-demand, multi-turn search with real-world multimodal search tools.

Multimodal-Search-R1: Incentivizing LMMs to Search

Paper ｜ Blog ｜ Model ｜ Data

Overview

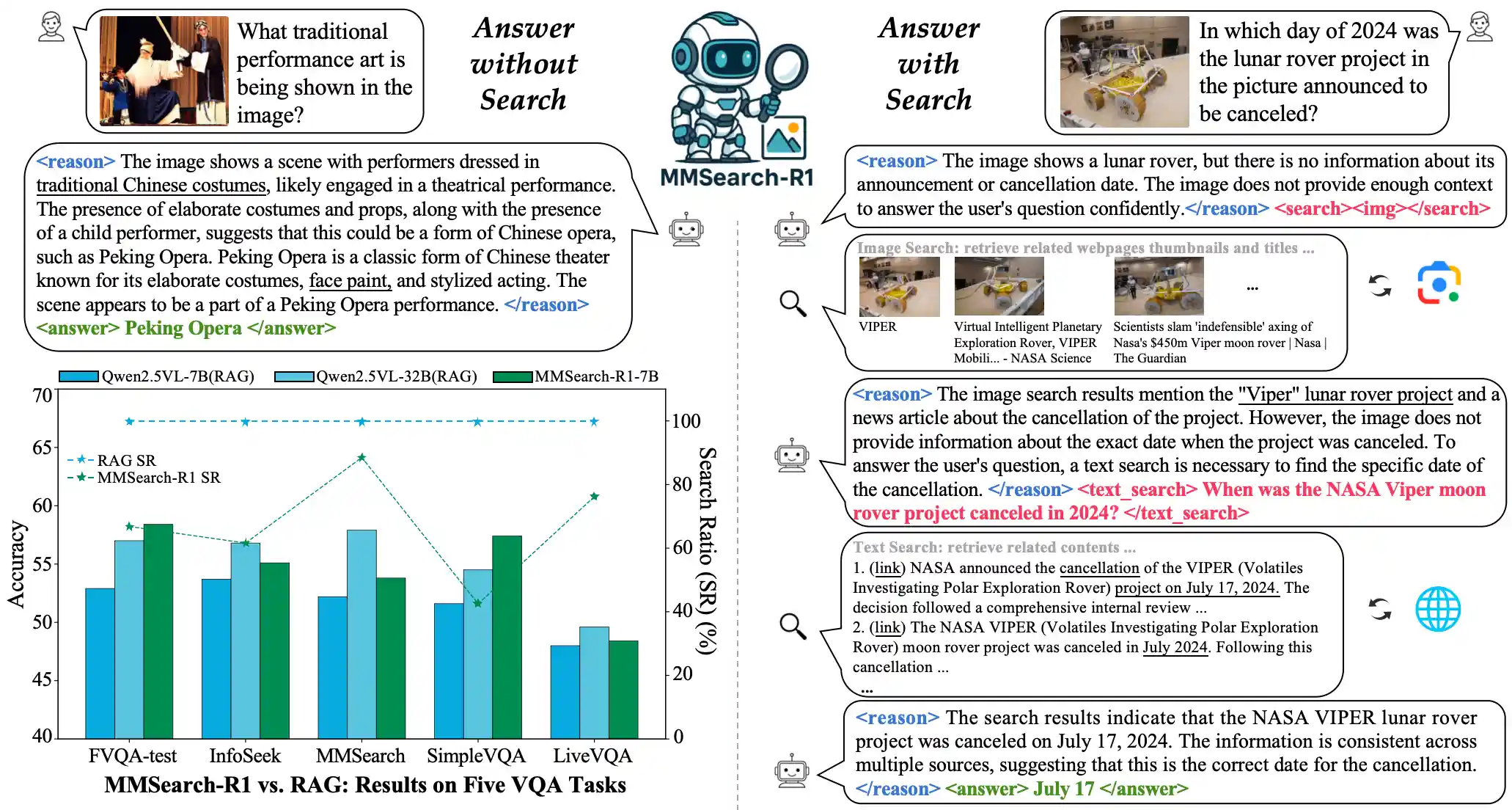

Overview of MMSearch-R1

MMSearch-R1 is an end-to-end RL framework that enables LMMs to perform on-demand, multi-turn search with real-world multimodal search tools.

News

Table of Content

Installation

# Clone this repo with submodules
git clone --recurse-submodules https://github.com/EvolvingLMMs-Lab/multimodal-search-r1.git
cd multimodal-search-r1
# Init Conda Env
conda create -n mmsearch_r1 python==3.10 -y
conda activate mmsearch_r1
# Install Dependencies
pip3 install -e ./verl
pip3 install vllm==0.8.2
pip3 install transformers==4.51.0
pip3 install flash-attn==2.7.4.post1
# Init wandb
pip3 install wandb
export WANDB_API_KEY="XXX"
wandb login $WANDB_API_KEY

Multimodal Search Tool Implemention

We draw inspiration from open-sourced implementation OpenDeepResearcher, which integrates SerpApi, JINA Reader, and LLM-based summarization to retrieve and condense web content relevant to a given question. Currently, MMSearch-R1 includes two types of search tools: an image search tool and a text search tool.

  • Image Search Tool: This tool is built solely on SerpAPI. The model provides the image (via URL or other form) to the tool, which is responsible for retrieving the top-k visually relevant web pages. The tool returns a sequence of interleaved thumbnails and titles extracted from those pages.
  • Text Search Tool: This tool combines SerpAPI, JINA Reader, and Qwen3-32B for summarization. The model submits a text query, and SerpAPI retrieves the top-k relevant web page URLs. JINA Reader parses and cleans the content of those pages, and Qwen3-32B generates summaries based on the original query. The tool ultimately returns a list of summarized passages from the top-k relevant webpages with their respective links.

⚠️⚠️⚠️ Before initiating formal training, you are expected to build your own search tool pipeline under the mmsearch_r1/utils/tools/ directory and invoke it appropriately during the multi-turn rollout process.

Data Construction

Both the training and validation datasets follow the format defined by veRL. We provide an example dataset under directory mmsearch_r1/data as a reference to help you prepare your own training data.

Train & Eval

We recommend use the command below for unified training and evaluation:

bash mmsearch_r1/scripts/run_mmsearch_r1_grpo.sh

We highlight the important configurations for training the Multi-Round Search LMMs:

  • actor_rollout_ref.rollout.name: should be vllm_multiturn_mmsearch for multi-turn search rollout;
  • actor_rollout_ref.actor.use_multi_turn_response_mask: should be True, as we use it to refine the original response_mask for accurate loss calculation.
  • actor_rollout_ref.rollout.max_gen_round: The max number of turns during rollout;
  • data.max_response_length: The max response length for each turn;
  • actor_rollout_ref.rollout.response_length_total: The max conversation length for all turns (except the user prompt in the first turn);

For evaluation only, configure these parameters in the above script:

...
trainer.val_files=${path_to_val_data} \
trainer.val_only=True \
trainer.val_only_save_dir=${path_to_save_dir} \
trainer.val_generations_to_log_to_wandb=64 # num of val generations to log, this should be larger than the size of val dataset for complete saving

The model's responses will be saved in JSON format under ${path_to_save_dir}, which can be used for subsequent analysis and evaluation.

ToDo

  • Model and Datasets
  • Inference script example

Acknowledgement

We sincerely thank these repositories for providing helpful open-source resources: Qwen2.5-VL, veRL, OpenDeepResearcher, cfpark00/verl, Search-R1, MMSearch.

Citation

@article{wu2025mmsearch,
  title={MMSearch-R1: Incentivizing LMMs to Search},
  author={Wu, Jinming and Deng, Zihao and Li, Wei and Liu, Yiding and You, Bo and Li, Bo and Ma, Zejun and Liu, Ziwei},
  journal={arXiv preprint arXiv:2506.20670},
  year={2025}
}
