A package that let you draw a flow chart diagram with different kinds of customizable elements. Dashboards can be saved for later use.

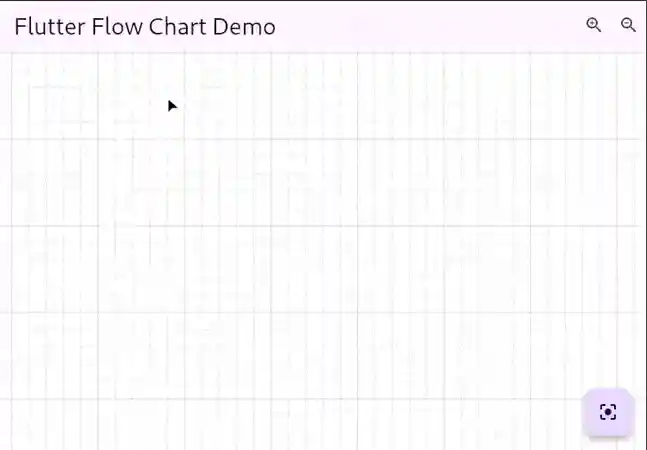

See the online example here
Features
- diamond, rectangle, oval, storage, parallelogram elements
- elements can be customizable with background, border and text color, border thickness, text size, and weight.
- interactively connect elements
- save/load dashboard
Usage
First create a Dashboard:
Dashboard dashboard = Dashboard( blockDefaultZoomGestures: false, // optional handlerFeedbackOffset: Offset.zero, // optional minimumZoomFactor: 1.25, // optional defaultArrowStyle: ArrowStyle.curve, // optional );
- Following arrow styles are available
- ArrowStyle.curve,
- ArrowStyle.segmented,
- ArrowStyle.rectangular,
then crete the [FlowChart] widget where you can react to the user interactions:
FlowChart( dashboard: dashboard, onDashboardTapped: ((context, position) {}), onDashboardLongtTapped: ((context, position) {}), onElementLongPressed: (context, element) {}, onElementPressed: (context, element) {}, onHandlerPressed: (context, position, handler, element) {}, onHandlerLongPressed: (context, position, handler, element) {}, onScaleUpdate: (newScale) {}, )
then use the _dashboard_ variable to add, remove, resize, etc. elements or load/save the dashboard.
In the [example](https://github.com/alnitak/flutter_flow_chart/blob/master/example/lib/main.dart), the [StarMenu](https://pub.dev/packages/star_menu) package is used to easily interact with user inputs.
The Dashboard
The **Dashboard** object contains all the methods described below used to interact with the flow chart.
| **relevant methods** | **description** |
| -------------------------- | ------------------------------------------------------------------------------------------------------------------------ |
| _setGridBackgroundParams_ | set grid background parameters |
| _setHandlerFeedbackOffset_ | set the feedback offset to help on mobile device to see the end of arrow and not hiding behind the finger when moving it |
| _setElementResizable_ | set the element as resizable. A handle will be displayed on the bottom right and will disappear when finish resizing |
| _addElement_ | add a _FlowElement_ to the dashboard |
| _removeAllElements_ | remove all elements |
| _removeElementConnection_ | remove the given handler connection of the given element |
| _removeElementConnections_ | remove all the connections from the given element |
| _removeElementById_ | remove all the elements with the given id from the dashboard |
| _removeElement_ | remove the given element |
| _addNextById_ | make a connection from the given sourceElement to the elements with the given id |
| _recenter_ | Recenter the dashboard relative to the first element in the element array |
| _saveDashboard_ | save the dashboard into the given file path |
| _loadDashboard_ | clear the dashboard and load the new one |
| _setZoomFactor_ | Zoom the entire dashboard and content by the given factor corresponding to the given epicenter |
| _dissectElementConnection_ | Dissect the connection into two segments from the given point. Only available on ArrowStyle.segmented |
| _dissectElementConnection_ | Remove dissection by the given pivot |
| _setArrowStyle_ | Update arrow style for single connection using the source and destination elements |
The FlowElement
The _FlowElement_ defines the element kind with its position, size, colors and so on.
| **properties** | **type** | **description** |
| ----------------- | ---------------------- | ---------------------------------------------------------------------------- |
| _position_ | Offset | The position of the _FlowElement_ |
| _size_ | Size | The size of the _FlowElement_ |
| _text_ | String | Element text |
| _textColor_ | Color | Text color |
| _fontFamily_ | String | Text font family |
| _textSize_ | double | Text size |
| _textIsBold_ | bool | Makes text bold if true |
| _kind_ | ElementKind | Element shape: enum {rectangle, diamond, storage, oval, parallelogram} |
| _handlers_ | List<Handler> | Connection handlers: enum {topCenter, bottomCenter, rightCenter, leftCenter} |
| _handlerSize_ | Size | The size of element handlers |
| _backgroundColor_ | Size | Background color of the element |
| _borderColor_ | Size | Border color of the element |
| _borderThickness_ | Size | Border thickness of the element |
| _elevation_ | Size | Shadow elevation |
| _next_ | List<ConnectionParams> | Shadow elevation |
| **relevant methods** | **description** |
| -------------------- | ------------------------------------------------------------------------------------------------------------------------------------ |
| _setIsResizing_ | When setting to true, a handler will disply at the element bottom right to let the user to resize it. When finish it will disappear. |
| _setText_ | Set element text |
| _setTextColor_ | Set text color |
| _setTextSize_ | Set text size |
| _setTextIsBold_ | Set text bold |
| _setBackgroundColor_ | Set background color |
| _setBorderColor_ | Set border color |
| _setBorderThickness_ | Set border thickness |
| _setElevation_ | Set elevation |
| _changePosition_ | Change element position in the dashboard |
| _changeSize_ | Change element size |
Examples
Add an element to Dashboard
Dashboard dashboard = Dashboard(); /////////////////////////////////// /// Define 2 elements FlowElement element1 = FlowElement( /// position in the local dashboard coordinates position: const Offset(100, 100), /// element size size: const Size(100, 100), /// text to show text: 'diamond', /// rectangle, diamond, storage, oval or parallelogram element kind kind: ElementKind.diamond, /// which handler to make active handlers: [ Handler.bottomCenter, Handler.topCenter, Handler.leftCenter, Handler.rightCenter, ]); FlowElement element2 = FlowElement( position: const Offset(300, 100), size: const Size(100, 150), text: 'rect', kind: ElementKind.rectangle, handlers: [ Handler.bottomCenter, Handler.topCenter, Handler.leftCenter, Handler.rightCenter, ]); /////////////////////////////////// /// Add the element to Dashboard dashboard.addElement(element); /////////////////////////////////// /// Connect right handler of element1 /// to the left handler of element2 dashboard.addNextById( element1, element2.id, ArrowParams( thickness: 1.5, color: Colors.Black, startArrowPosition: Alignment.centerRight, endArrowPosition: Alignment.centerLeft, ), ); /////////////////////////////////// /// Save/load dashboard Directory appDocDir = await path.getApplicationDocumentsDirectory(); dashboard.saveDashboard('${appDocDir.path}/FLOWCHART.json'); dashboard.loadDashboard('${appDocDir.path}/FLOWCHART.json');
Adding custom data to FlowElement
The library supports attaching arbitrary data to each element via the generic elementData field. To preserve this data across JSON save/load you must provide a serializer when creating the Dashboard. The serializer implements the DataSerializer<T, JSON> mixin and converts between your data type and a JSON-compatible representation (typically Map<String, dynamic>).
Notes
- The
Dashboard,FlowChartandFlowElementmust use the same generic type T. - If no serializer is provided,
elementDatawill be treated as JSON serializable as it is, but will cause an error when the data is not serializable.
Minimal example
// Serializer that converts ExampleData <-> Map<String, dynamic> class ExampleDataSerializer with DataSerializer<ExampleData, Map<String, dynamic>> { @override ExampleData? fromJson(Map<String, dynamic>? source) { if (source == null) return null; return ExampleData( name: source['name'] as String, value: source['value'] as int, ); } @override Map<String, dynamic>? toJson(ExampleData? data) { if (data == null) return null; return <String, dynamic>{ 'name': data.name, 'value': data.value, }; } } class ExampleData { ExampleData({ required this.name, required this.value }); final String name; final int value; } // Create a dashboard that knows how to (de)serialize ExampleData final Dashboard<ExampleData> dashboard = Dashboard<ExampleData>( dataSerializer: ExampleDataSerializer(), ); // Use the same generic type for the FlowChart FlowChart<ExampleData>( dashboard: dashboard, onDashboardTapped: ((context, position) {}), onDashboardLongtTapped: ((context, position) {}), onElementLongPressed: (context, element) {}, onElementPressed: (context, element) {}, onHandlerPressed: (context, position, handler, element) {}, onHandlerLongPressed: (context, position, handler, element) {}, onScaleUpdate: (newScale) {}, ); // Create an element with custom data final FlowElement<ExampleData> element = FlowElement<ExampleData>( position: const Offset(300, 100), size: const Size(100, 150), text: 'rect', kind: ElementKind.rectangle, handlers: [ Handler.bottomCenter, Handler.topCenter, Handler.leftCenter, Handler.rightCenter, ], elementData: ExampleData(value: 42, name: 'Example Data'), ); // Save/load will preserve `elementData` thanks to the provided serializer await dashboard.saveDashboard('${appDocDir.path}/FLOWCHART.json'); await dashboard.loadDashboard('${appDocDir.path}/FLOWCHART.json');
This preserves your custom data across persistence and ensures type-safety when interacting with elements in the UI.
Adding custom element to FlowChart
The library supports custom elements via ElementKind.custom.
- When you use
ElementKind.custom, provide acustomElementBuilderto theFlowChartconstructor. The builder is called for each element withkind == ElementKind.customand must return aWidget.
Minimal example
// flow chart construction FlowChart( dashboard: dashboard, // ...callbacks... // custom element builder: receives (BuildContext, FlowElement<T>) customElementBuilder: (context, element) => SomeCustomWidget(text: element.text), ); // new element (same as any other element) dashboard.addElement( FlowElement( position: position, size: const Size(100, 150), text: '${dashboard.elements.length}', handlerSize: 25, handlers: [ Handler.bottomCenter, Handler.leftCenter, Handler.rightCenter, ], elementData: ExampleData(name: 'Example', value: 42), kind: ElementKind.custom, ), );
Multiple custom element types
- The library does not provide multiple custom builders. Use
elementDataas a discriminator: store a type/id in your custom data and inspect it insidecustomElementBuilderto render different widgets.
// element with discriminator dashboard.addElement( FlowElement( position: position, size: const Size(100, 150), text: '1', handlers: [Handler.bottomCenter], elementData: ExampleData(name: 'Example', value: 42, type: 'STAR'), kind: ElementKind.custom, ), ); // builder inspects element.elementData FlowChart( dashboard: dashboard, customElementBuilder: (context, element) { final data = element.elementData as ExampleData?; if (data?.type == 'STAR') return StarWidget(data: data); if (data?.type == 'CIRCLE') return CircleWidget(data: data); return DefaultCustomWidget(text: element.text); }, );
This keeps the API simple while letting you implement any number of custom element views.
