Basic Computer Bus System Wire Tracer

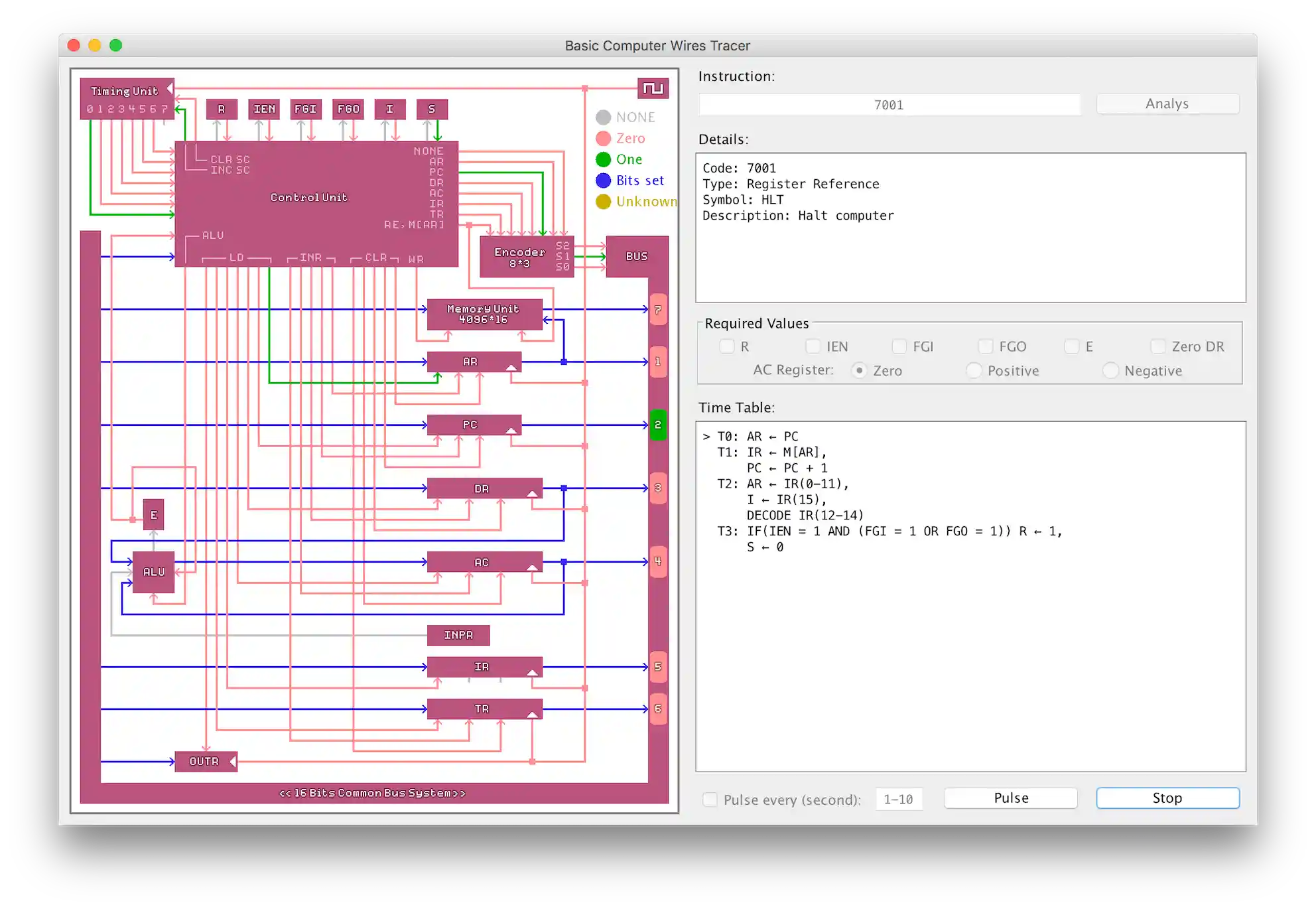

A Java application that shows a hardwired control unit as block diagram to show control signals generated to different parts of a basic computer.

Instruction Set

Memory Reference 0xxx 1xxx 2xxx 3xxx 4xxx 5xxx 6xxx 8xxx 9xxx Axxx Bxxx Cxxx Dxxx Exxx

Register Reference 7800 7400 7200 7100 7080 7040 7020 7010 7008 7004 7002 7001

Input / Output F800 F400 F200 F100 F080 F040
