Analyze binaries and containers to extract and disassemble seccomp-bpf profiles. This tools is designed to help you determine whether or not a given seccomp-bpf profile is more or less constrained than others as well as give you the ground truth for the filters applied to a process.

Features:

• Extracts true seccomp filter from a process/container via ptrace
• Disassembles the seccomp-BPF filter for the given seccomp profile
• Lists all allowed and blocked syscalls based on the active seccomp profile.
• Reduces down the various actions (KILL_THREAD, KILL_PROCESS, ERRNO, BLOCK) into a restriction or an allowance for easier understanding
• Outputs a summary of system call rules for analysis.

seccomp_diff.py

CLI tool that will diff two given containers' given seccomp profiles.

Usage:

usage: seccomp_diff.py [-h] [-k] [-d]

Get container information from Docker or Kubernetes.

optional arguments:
  -h, --help        show this help message and exit
  -k, --kubernetes  Use Kubernetes to fetch container info.
  -d, --docker      Use Docker to fetch container info (default).

Example:

sudo python seccomp_diff.py -d

seccomp-dump

Disassemble and display the seccomp-bpf profiles applied to a given process or container.

Usage

usage: seccomp_dump.py [-h] [--dump] [--summary] [--list] [--allarch] [pid]

Inspect seccomp profiles for a given PID.

positional arguments:
  pid         PID of the process to inspect

optional arguments:
  -h, --help  show this help message and exit
  --dump      Dump the raw seccomp filters
  --summary   Display a summary of the seccomp filters
  --list      Display a list of pids with seccomp filters
  --allarch   Search for all syscalls across any architecture

Example: List processes with seccomp profiles

python seccomp_dump.py --list

Example Dump given process' seccomp profile

 sudo python seccomp_dump.py --dump 436762
l0000: 20 00 00 00000004        A = [4](ARCH)
l0001: 15 00 04 c000003e        IF ARCH != X86_64: 6(l0006)
l0002: 20 00 00 00000000        A = [0](SYSCALL)
l0003: 35 00 01 40000000        jlt #0x40000000, l5
l0004: 15 00 01 ffffffff        IF SYSCALL != 0xffffffff: KILL(l0006)
l0005: 06 00 00 7ffc0000        RETURN LOG
l0006: 06 00 00 00000000        RETURN KILL

web.py

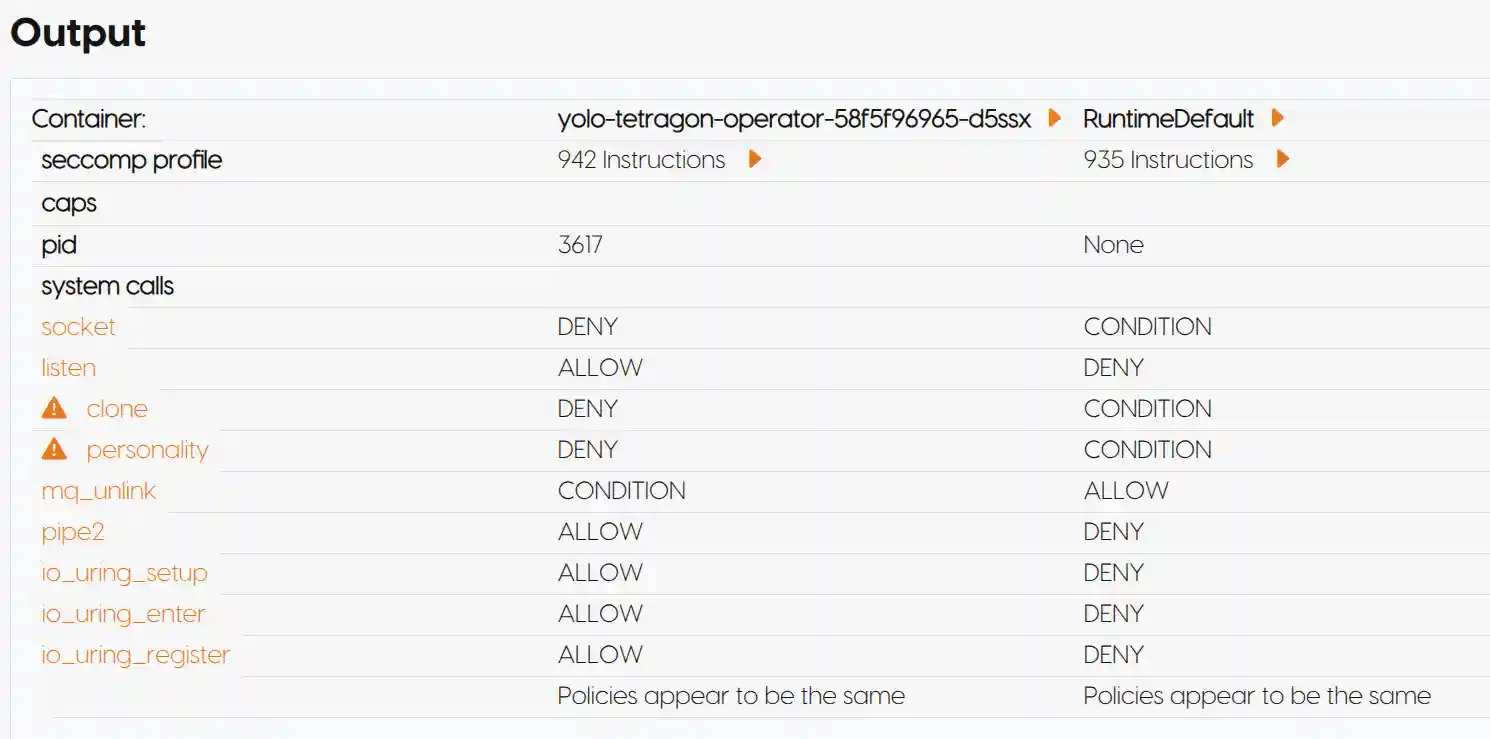

A web interface for seccomp-diff to visually diff system calls. Ideal for use within a Kubernetes cluster.

Usage

Example run locally:

sudo pip install -r requirements.txt
sudo python web.py

Example Docker run:

docker run --rm -it \
  --pid=host --privileged \
  --cap-add=SYS_PTRACE \
  --security-opt seccomp=unconfined -v /var/run/docker.sock:/var/run/docker.sock \
  -v /proc:/host/proc:ro -v /run/containerd/containerd.sock:/run/containerd/containerd.sock \
  antitree/seccomp-diff

If running on k3s, mount /run/k3s/containerd/containerd.sock instead of /run/containerd/containerd.sock.

Example helm chart:

helm install seccomp-diff charts/seccomp-diff
kubectl port-forward service/seccomp-diff 5000:5000

When running inside Kubernetes with the agent DaemonSet, set the AGENT_ENDPOINTS environment variable on the web deployment to a comma-separated list of agent service URLs (for example http://seccomp-diff-agent.seccomp-diff.svc.cluster.local:8000). The web interface will query each agent for container details and seccomp summaries.

If your environment uses a non-standard location for the containerd socket (for example /run/k3s/containerd/containerd.sock on k3s), update the Helm value agent.containerdSocket accordingly. The agent will also try to guess between the common containerd and k3s paths when no value is provided.

New DaemonSet Architecture

seccomp-diff can now be deployed in two parts: a lightweight web interface and an agent that runs as a DaemonSet on every node. The agent collects container information, communicates with containerd and extracts seccomp bytecode. The web service queries each agent over HTTP and aggregates the results so a single instance can display seccomp information for the whole cluster.

To deploy the agent use the provided agent-daemonset.yaml and agent-service.yaml templates. The web deployment no longer requires host privileges because all low level operations are handled by the agents.

Example k8s deployment

apiVersion: apps/v1
kind: Deployment
metadata:
  name: seccomp-diff
spec:
  replicas: 1
  selector:
    matchLabels:
      app: seccomp-diff
  template:
    metadata:
      labels:
        app: seccomp-diff
    spec:
      containers:
      - name: seccomp-diff
        image: antitree/seccomp-diff:latest
        env:
        - name: AGENT_ENDPOINTS
          value: "http://seccomp-diff-agent.seccomp-diff.svc.cluster.local:8000"
        command: ["flask"]
        args: ["run", "--debug"]

Current Limitations

• Only visually diffs x86_64 for now

Related work

https://github.com/david942j/seccomp-tools - original powerful seccomp tool set written in Ruby that inspired this project https://github.com/kleptog/PyBPF - module that does some of the heavy lifting of the BPF struct

Thanks

• Jay Beale
• Mike Yamamoto
• Alex Page

License

This project is licensed under the MIT License. See the LICENSE file for details.
