STARS GUI

This project has to purpose to create an animation of celestial bodies and they gravitational interactions, according to Newton's law and Euler's resolution.

This project permits to easily see how the different bodies in a set of celestial bodies, for example the solar system, how they influence the others and how they are influenced by them. So, anyone who want to see, for example, how the solar system runs, or any other set of celestial bodies does, can use it as a first step to see how a little piece of our universe can work !

However, it is only good as a first step, the equations used here are very basic, even if they handdle a big variety of situations.

Explore the docs »

Request Feature

Table of Contents

About The Project

The Implementation

This project easily implement a resolution of Newton's gravitational law equation using Euler's method for a problem. For a defined number of celestial objects, the program compute the trajectory and provide a playful representation. The program also copute all the interactions between the different stars.

It can handles different objects called CelestialBody in the code, with different positions from the middle, velocity, masses etc... All of the details are bellow in Parameters part.

Built With

Getting Started

Installation

Clone the repo

git clone git@github.com:art-test-stack/stars_gui.git

Create a virtual environment

For example I use virtualenv:
```
virtualenv -p python 3.10 venv
```
Install pip packages
```
pip install -r requirements.txt
```

The Parameters:

The different basic parameters can be found on constants.py.

from dataclasses import dataclass
from typing import List

@dataclass
class CelestialBodyBase:
    name: str
    r_i : float
    v_i : List[float]
    mass: float
    color: str

name: the name of the celestial body
r_i: the distance to the middle of the canva (the biggest body is placed their). The angle is randomly set up on the circle defined by the middle and the radius.
v_i: the absolute velocity of the celestial body
mass: the mass of the celestial object
color: the color of the celestial object

The Equations:

According to Newton's law, for a set of $n$ celestial objects, we have the force applied to the $i$-th object given by:

$$F_i = - Gm_i \sum_{j=1, j\neq i}^n \frac{m_j}{r^2}\vec{u_{ij}}$$

where,

$G$: is the universal gravitational constant
$m_i$: is the mass of the $i$-th object
$r$: is the distance between the two objects $j$ and $i$
$\vec{u_{ij}}$: is the unitar vector from $i$ to $j$

Then for evey object $i$, we compute its acceleration at time-step $t$, which is simply:

$$a_i(t) = F_i(t) / m_i$$

Then, using Euler's resolution method, we have:

$$dv_i(t) = a_i(t) \cdot dt$$

$$dx_i(t) = dv_i(t) \cdot dt$$

Hence, we can compute the new velocity, the one at time $t+dt$:

$$v_i(t + dt) := v_i(t) + dv_i(t)$$

And the new position:

$$x_i(t + dt) := x_i(t) + dx_i(t)$$

Notice that the computation have been made not considering the type of the referential. In the program, everything are compute in an euclidian one.

Run The Animation:

Just run:

Usage

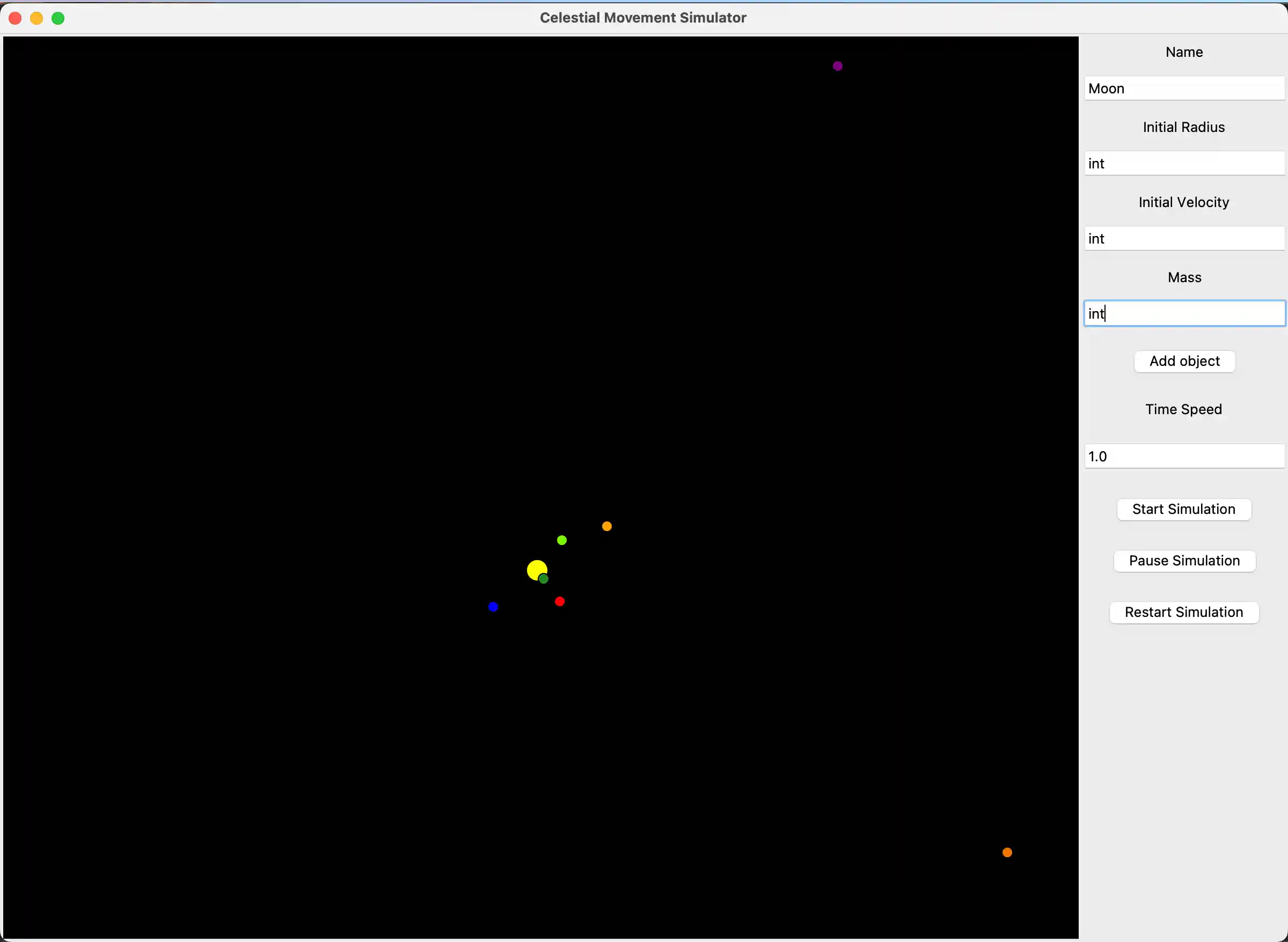

After having followed every part above, python should open a window looking live the one bellow.

You can add some objects by giving them some particularities. By default, when you start simulation, it runs with all the planetaries of the solar system, plus the sun and the objects you added.

Roadmap

Make interactive GUI
Select manually different options
Live simulation
Change equations
Black Holes
