RRandR - A graphical interface to the RandR X Window System extension

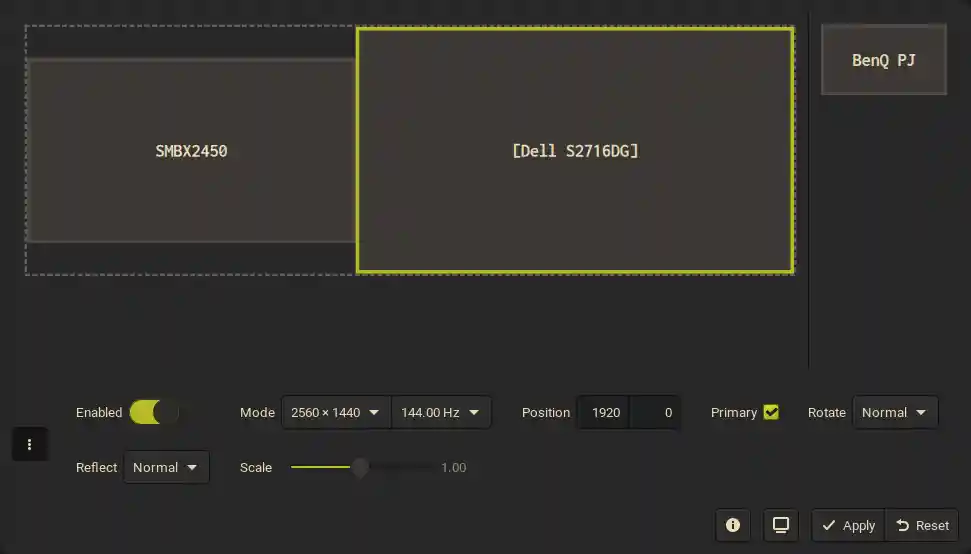

RRandR - A graphical interface to the RandR X Window extension

About

RRandR is a graphical interface to the X Resize, Rotate and Reflect Extension (RandR). It aims to provide the core features of the official command line configuration utility xrandr in an easy accessible manner. RRandR was mainly developed for users running an X Server without a desktop environment as an alternative to other standalone graphical tools like ARandR, lxrandr or grandr. It can however be used side-by-side with destkop-integrated system tools.

Features

  • Position outputs in a screen by dragging
  • Enable and disable outputs
  • Change resolution and refresh rate
  • Set primary output
  • Rotate, reflect and scale output
  • Automatic revert after timeout
  • Human-readable output names
  • Visual output identification
  • Update view on external screen configuration changes
  • Run custom script on applying and reverting changes
  • Convenient shortcuts (see Ctrl + ?)
  • Configurable light and dark theme colors for dragging area (see: configuration)
  • Show optional xrandr command
  • Localization

Installation

For Arch Linux users an upstream version of RRandR is available in the Arch User Repository (AUR): rrandr-git.

Manual Build & Installation

Build

  • Install build dependencies:
  • Install dependencies:
    • gtk4, pango, cairo, libxcb, glib2, glibc, gcc-libs
    • Dependency names might differ depending on your distribution
    • Arch Linux: pacman -S gtk4
  • Get, build & run:
    • git clone https://github.com/brofi/rrandr
    • cd rrandr
    • cargo build --release
    • target/release/rrandr

Install (optional)

#!/bin/bash
# Run as superuser from project root

# Install binary
install -Dm755 target/release/rrandr -t /usr/bin
# Install license
install -Dm644 COPYING -t /usr/share/licenses/rrandr
# Install logo
install -Dm644 rrandr/src/res/rrandr.svg -t /usr/share/pixmaps
# Install desktop file
desktop-file-install rrandr/src/res/rrandr.desktop
update-desktop-database
# Install translations
mapfile -t linguas < rrandr/po/LINGUAS
for lang in "${linguas[@]}"; do
    install -Dm644 "target/po/$lang/LC_MESSAGES/rrandr.mo" -t \
        "/usr/share/locale/$lang/LC_MESSAGES"
done

Configuration

RRandR is configured via a TOML configuration file. A configuration can be put in the following locations:

  1. $XDG_CONFIG_HOME/rrandr/rrandr.toml
  2. $XDG_CONFIG_HOME/rrandr.toml
  3. $HOME/.rrandr.toml

Where $XDG_CONFIG_HOME if unset defaults to $HOME/.config.

The following sections describe all available configuration attributes grouped by TOML table.

[] Root level configuration

Attribute Type Default Description
show_xrandr Boolean false Show an additional xrandr command for the current configuration
revert_timeout Integer 15 Time in seconds until applied changes are being reverted
apply_hook String `` Execute this child program when the screen configuration has been applied successfully. Useful for example to reset a wallpaper when not using a desktop environment. Variable expansion, globs, operators, filename expansion, etc. are not supported.
revert_hook String `` Execute this child program when the screen configuration has been reverted.

[display] Output area configuration

Attribute Type Default Description
snap_strength Float or "auto" auto Snapping strength when dragging outputs or auto. High values make it more "sticky", while 0 means no snapping. If left to default snap_strength = min_size / 6 where min_side is the smallest side of any enabled output in px. E.g. when smallest screen resolution is Full HD => snap_strength = 180.
pos_move_dist Integer 10 Move distance when moving an output via keybindings
output_line_width Float 3.5 Thickness of the output outline in px
output_line_style BorderStyle solid Style of the output outline
selection_line_width Float 3.5 Thickness of the selection outline in px
selection_line_style BorderStyle solid Style of the selection outline
screen_line_width Float 2.5 Thickness of the screen outline in px
screen_line_style BorderStyle dashed Style of the screen outline

[display.font] Output area font configuration

Attribute Type Default Description
family String monospace Font family
size Integer 12 Font size in pt
weight Weight bold Font weight

[display.colors.light] Output area light theme colors

Attribute Type Default Description
text Color #000000 Output name text color
output Color #e8e6e3 Output background color
border Color #d8d4d0 Output border color
screen Color #cdc7c2 Screen rectangle color
selection Color #3584e4 Output selection color

[display.colors.dark] Output area dark theme colors

Attribute Type Default Description
text Color #ffffff Output name text color
output Color #202020 Output background color
border Color #282828 Output border color
screen Color #1b1b1b Screen rectangle color
selection Color #1b68c6 Output selection color

[popup] Identify popup configuration

Attribute Type Default Description
ratio Float 0.125 Resolution to popup size ratio
padding Integer 5 Padding in mm
spacing Integer 10 Margin from screen edge in mm
border_width Integer 1 Border width in mm
timeout Float 2.5 Time in seconds the identify popup stays on screen

[popup.font] Identify popup font configuration

Attribute Type Default Description
family String Sans Font family
size Integer or "auto" auto Font size in pt or "auto"
weight Weight bold Font weight

[popup.colors.light] Identify popup light theme colors

Attribute Type Default Description
text Color #000000 Text color
background Color #f6f5f4 Background color
border Color #cdc7c2 Border color

[popup.colors.dark] Identify popup dark theme colors

Attribute Type Default Description
text Color #ffffff Text color
background Color #353535 Background color
border Color #1b1b1b Border color
