ZbxTable is an intelligent Zabbix operations platform developed using Go language, providing powerful monitoring data visualization, alert management, and AI-powered intelligent analysis.

✨ What's New in 3.0

ZbxTable 3.0 is a milestone release with major feature enhancements:

• 🤖 AI-Powered Analysis - Integrated AI models (Ollama/Deepseek) for intelligent alert analysis and solution recommendations
• 🌐 Multi-Tenant Architecture - Support for managing multiple Zabbix instances with instance-level data isolation and access control
• 📢 Enhanced Alert Management - New alert distribution rule engine with alert suppression, status tracking, and event logging
• 💾 Database Optimization - Full support for MySQL and PostgreSQL with unified GORM data access layer
• 🔐 Enhanced Security - Encrypted storage for sensitive information with auto-generated encryption keys
• ⚡ Cache System Refactoring - Using go-cache instead of Redis for simplified deployment
• 📝 Upgraded Logging System - Automatic log rotation by date with compression of historical logs

Features

Core Features

• 🎨 Topology Management - Custom topology drawing with real-time status display
• 📊 Device Management - Device classification and export (Linux, Windows, Network, Storage, etc.)
• 📈 Report System - Export Zabbix alerts and metrics data to Excel for specific time periods
• 🔍 Alert Analysis - Analyze alert data for specific time periods, generate Top 10 alerts, etc.
• 📅 Scheduled Tasks - Scheduled report generation and automatic delivery

Alert Management

• 📧 Multi-Channel Notifications - Support for Email, WeChat Work, Webhook, and more
• 🎯 Alert Distribution - Flexible alert rule engine with multi-dimensional matching conditions
• 🔕 Alert Suppression - Multi-dimensional suppression rules (time period, host, severity, etc.)
• 📊 Alert Tracking - Complete alert status tracking and event logging
• 🤖 AI Analysis - Intelligent alert cause analysis with solution recommendations

System Management

• 🌐 Multi-Instance Management - Manage multiple Zabbix instances from a unified platform
• 🔐 Access Control - Role-based access control (RBAC) with fine-grained permissions
• ⚙️ Configuration Management - Database-driven configuration system with runtime updates
• 📱 Menu Management - Dynamic menu system with role-based menu permissions
• 🔒 Security Encryption - Automatic encryption for sensitive information

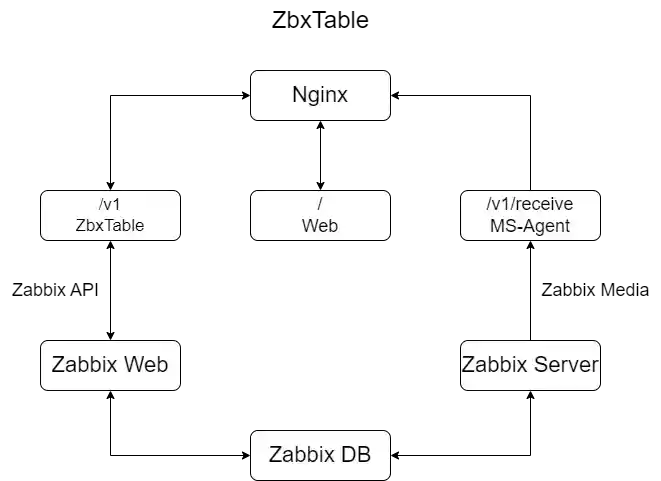

Architecture

Component

ZbxTable: Backend written using Gin framework and Go language.

ZbxTable-Web: Front end written using Vue.

🛠️ Technology Stack

Backend

• Language: Go 1.23+
• Web Framework: Gin
• ORM: GORM
• Database: MySQL 5.7+ / PostgreSQL 12+
• AI Integration: Ollama / Deepseek API

Frontend

• Framework: Vue.js 2.x
• UI Components: Ant Design Vue
• Charts: ECharts
• Topology: G6

Alert Reception

• Webhook Method: ZbxTable provides Webhook API endpoint to receive Zabbix alerts directly
• Endpoint: http://your-zbxtable-server:8088/v1/receive
• Authentication: Token-based authentication
• Format: JSON

Configure Webhook media type in Zabbix to send alerts to ZbxTable's Webhook endpoint for alert reception and distribution. For detailed configuration, please refer to the official documentation.

Demo

https://demo.zbxtable.com

Default credentials: admin / Zbxtable

Compatibility

⚠️ Important Notice

ZbxTable 3.0 is not compatible with 2.x database structure. Fresh installation is recommended. If you are using version 2.x, please backup important data and perform a fresh installation of version 3.0.

Quick Start

Method 1: One-Click Installation Script (Recommended)

Suitable for CentOS, Ubuntu, Debian and other Linux systems with automatic configuration.

# Online installation
curl -fsSL https://dl.cactifans.com/zbxtable/install.sh | sudo bash

# Or download and install
wget https://dl.cactifans.com/zbxtable/install.sh
sudo bash install.sh

Installation script features:

• ✅ Automatic OS detection
• ✅ Download latest version automatically
• ✅ Create system user and directories
• ✅ Configure systemd service
• ✅ Configure firewall rules
• ✅ Start service automatically

After installation:

• First installation: http://your-server-ip:8088
• Default credentials: admin / Zbxtable (Please change immediately)

Method 2: Binary Deployment

1. Download Binary

Download from GitHub Releases or mirror site:

# Download from GitHub (e.g., v3.0.0)
wget https://github.com/canghai908/zbxtable/releases/download/v3.0.0/zbxtable-v3.0.0-linux-amd64.tar.gz

# Or download from mirror site
wget https://dl.cactifans.com/zbxtable/zbxtable-latest-linux-amd64.tar.gz

# Extract
tar -xzf zbxtable-v3.0.0-linux-amd64.tar.gz
cd zbxtable-v3.0.0-linux-amd64

2. Create Database

MySQL:

CREATE DATABASE zbxtable CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci;
CREATE USER 'zbxtable'@'localhost' IDENTIFIED BY 'your_password';
GRANT ALL PRIVILEGES ON zbxtable.* TO 'zbxtable'@'localhost';
FLUSH PRIVILEGES;

PostgreSQL:

CREATE DATABASE zbxtable;
CREATE USER zbxtable WITH PASSWORD 'your_password';
GRANT ALL PRIVILEGES ON DATABASE zbxtable TO zbxtable;

3. Start Service

Create System User:

# Create zbxtable system user
sudo useradd -r -s /sbin/nologin zbxtable

# Create installation directory
sudo mkdir -p /usr/local/zbxtable

# Copy binary file
sudo cp zbxtable /usr/local/zbxtable/

# Set permissions
sudo chown -R zbxtable:zbxtable /usr/local/zbxtable
sudo chmod +x /usr/local/zbxtable/zbxtable

Configure systemd Service:

# Create systemd service file
sudo tee /etc/systemd/system/zbxtable.service > /dev/null << EOF
[Unit]
Description=ZbxTable - Zabbix Monitoring Tool
After=network.target

[Service]
Type=simple
User=zbxtable
Group=zbxtable
WorkingDirectory=/usr/local/zbxtable
ExecStart=/usr/local/zbxtable/zbxtable web
Restart=on-failure
RestartSec=5s

[Install]
WantedBy=multi-user.target
EOF

# Reload systemd
sudo systemctl daemon-reload

# Start service
sudo systemctl start zbxtable

# Enable auto-start on boot
sudo systemctl enable zbxtable

# Check service status
sudo systemctl status zbxtable

4. Access Installation Wizard

Visit http://your-server-ip:8088 and follow the installation wizard to configure database connection and complete the setup.

📚 Documentation

• Release Notes 3.0 - Detailed version update information
• System Documentation - Complete system documentation
• API Documentation - API reference
• Official Website - More documentation and tutorials

📊 System Requirements

Minimum Configuration

• CPU: 2 cores
• Memory: 4 GB
• Disk: 20 GB
• OS: CentOS 7/8, Ubuntu 18.04+, Debian 9+, RHEL 7/8

Recommended Configuration

• CPU: 4 cores
• Memory: 8 GB
• Disk: 50 GB SSD
• Database: MySQL 5.7+ or PostgreSQL 12+

Network Requirements

• Access to Zabbix Server API
• Access to SMTP server (if using email notifications)
• Access to WeChat Work API (if using WeChat notifications)
• Internet access (if using Deepseek API)

🔄 Upgrading from 2.1 to 3.0

⚠️ Important: ZbxTable 3.0 is completely incompatible with 2.x database structure and cannot be directly upgraded.

Recommended steps:

1. Backup important data from 2.x version (topology maps, custom configurations, etc.)
2. Perform fresh installation of 3.0 version (using one-click script or binary deployment)
3. Reconfigure the system (Zabbix instances, alert rules, etc.)

If you must retain historical data, please contact technical support for data migration solutions.

🔒 Security Recommendations

1. Change Default Password - Change admin password immediately after first login
2. Use HTTPS - Configure Nginx reverse proxy with SSL certificate
3. Firewall Configuration - Only open necessary ports and restrict source IPs
4. Regular Backups - Backup database and configuration files daily
5. Permission Management - Use principle of least privilege and review user permissions regularly

📦 Code Repositories

ZbxTable: https://github.com/canghai908/zbxtable

ZbxTable-Web: https://github.com/canghai908/zbxtable-web

👥 Team

Back-end development: canghai908

Front-end development: ahyiru

🤝 Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

📞 Support

• GitHub Issues: https://github.com/canghai908/zbxtable/issues
• Documentation: https://zbxtable.com
• Demo: https://demo.zbxtable.com

📄 License

ZbxTable is available under the Apache-2.0 license. See the LICENSE file for more info.

ZbxTable 3.0 - Making Zabbix Monitoring Smarter and More Powerful! 🚀
