Amazon EKS from Code to Deploy (Level 100-200)

Pre-requisites

• AWS Accounts

• IAM user, please create before continue the lab

  http://aws-core-services.ws.kabits.com/getting-started-with-iam

Recommended Knowledge

• Docker, If you do not know docker, please make sure you take a look at the document below:

  https://aws.amazon.com/th/docker/

  https://docs.aws.amazon.com/AmazonECS/latest/developerguide/docker-basics.html

  https://docs.docker.com/get-started/

• The Beginners Guide to Running Docker Containers on AWS

  https://www.youtube.com/watch?v=brqgukelX6A

  https://www.youtube.com/watch?v=lO2wU2rcGUw&t=674s

Lab 1: Amazon EKS from Code to Deploy

1.) Create EKS cluster with following lab url:

https://www.eksworkshop.com/020_prerequisites/workspace/#region-3

Follow step by step, till you have finished "Test the Cluster"

2.) Getting VPC ID

 VPCID=$(aws eks describe-cluster --name eksworkshop-eksctl \
--query "cluster.resourcesVpcConfig.vpcId" \
--output text)

 echo $VPCID

3.) Create Security Group and Postgres Database using Amazon RDS

 RDSSG=$(aws ec2 create-security-group --group-name RDSDbAccessSG --description "Security group to apply to apps that need access to RDS" --vpc-id $VPCID --query "GroupId" --output text)

 echo $RDSSG

Refering the step below to create Amazon RDS Postgres https://docs.aws.amazon.com/AmazonRDS/latest/UserGuide/CHAP_GettingStarted.CreatingConnecting.PostgreSQL.html#CHAP_GettingStarted.Creating.PostgreSQL

Note:

• Please use "postgres" as username, and password.

Challenge:

• How can you enable inbound traffic from EKS to be able to connect to Amazon RDS Postgres?

• Please take a look document below for Reference: https://docs.aws.amazon.com/vpc/latest/userguide/VPC_SecurityGroups.html#SecurityGroupRules

4.) Build docker and push to Amazon ECR

git clone https://github.com/chatchai-komrangded/eks-code2deploy

cd eks-code2deploy

docker build -t postgres-test-demo .

aws ecr create-repository --repository-name postgres-test-demo

aws ecr get-login-password --region ap-southeast-1 | docker login --username AWS --password-stdin <AWS ACCOUNT ID>.dkr.ecr.ap-southeast-1.amazonaws.com

docker tag postgres-test <AWS ACCOUNT ID>.dkr.ecr.ap-southeast-1.amazonaws.com/postgres-test-demo:latest

docker push <AWS ACCOUNT ID>.dkr.ecr.ap-southeast-1.amazonaws.com/postgres-test-demo:latest

• Please change "AWS ACCOUNT ID" to AWS Account number.

5.) Deploy Sample Application

Let’s deploy our application and test that only the desired pods can access our RDS database. Save the following as postgres-test.yaml. Replace the HOST, DATABASE, and USER environment variables with the values from the step above where you created the RDS database.

kubectl apply -f postgres-test.yaml

kubectl get pod postgres-test

kubectl describe pod postgres-test

kubectl get pod postgres-test

Challenge:

• How can you secure database credentials!! I do not want to store in kube manifest file.

• Please reference to sample code here to use AWS Secret manager.

  https://aws.amazon.com/th/secrets-manager/

  https://docs.aws.amazon.com/code-samples/latest/catalog/code-catalog-python-example_code-secretsmanager.html

6.) Checking if your pod can connect to Amazon RDS Postgres

kubectl logs postgres-test

Congrats, You are ready to develop your code, and deploy to Amazon EKS !!!

Lab 2: Build your own CI/CD

2.1) Automated CI/CD WITH CODEPIPELINE with Cloudformation

https://www.eksworkshop.com/intermediate/220_codepipeline

Please Complete this lab before you Create Manual One Yourself.

Challenge:

• You will face the error during Automated build, How can you investigate it?

2.2) Automated CI/CD WITH CODEPIPELINE with Your own

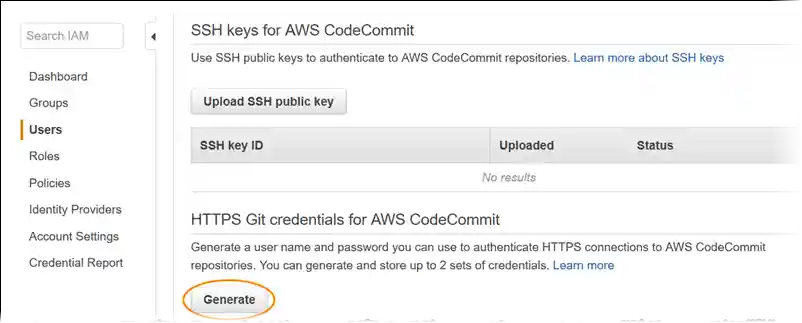

1.) Configure AWS CodeCommit: The easiest way to set up AWS CodeCommit is to configure HTTPS Git credentials for AWS CodeCommit. On the user details page in IAM console, choose the Security Credentials tab, and in HTTPS Git credentials for AWS CodeCommit, choose Generate.

2.) Create the AWS CodeCommit repository (console)

1. Open the AWS CodeCommit console at https://console.aws.amazon.com/codecommit

2. On the Welcome page, choose Get Started Now. (If a Dashboard page appears instead, choose Create repository.)

3. On the Create repository page, in the Repository name box, type WebAppRepo.

4. In the Description box, type My demonstration repository.

5. Choose Create repository to create an empty AWS CodeCommit repository named WebAppRepo.

Note The remaining steps in this tutorial assume you have named your AWS CodeCommit repository WebAppRepo. If you use a name other than WebAppRepo, be sure to use it throughout this tutorial. For more information about creating repositories, including how to create a repository from the terminal or command line, see Create a Repository.

3.) Clone the Repo In this step, you will connect to the source repository created in the previous step. Here, you use Git to clone and initialize a copy of your empty AWS CodeCommit repository. Then you specify the user name and email address used to annotate your commits.

From CodeCommit Console, you can get the https clone url link for your repo. Go to Cloud9 IDE terminal prompt Run git clone to pull down a copy of the repository into the local repo:

git clone https://git-codecommit.<YOUR-REGION>.amazonaws.com/v1/repos/WebAppRepo

Provide your Git HTTPs credential when prompted. You would be seeing the following message if cloning is successful. warning: You appear to have cloned an empty repository.

4.) Commit changes to Remote Repo

git clone https://github.com/chatchai-komrangded/eks-workshop-sample-api-service-go.git

cp eks-workshop-sample-api-service-go/* WebAppRepo/

cd WebAppRepo/

git status .

git add .

git commit -m "First commit"

git push origin master

5.) At this stage you already successfully migrate code from external repo to fully managed private git.

Next Challenge:

• Best way to understand is to Reverse engineer from Cloudformation template in step 2.1, You will Create AWS Codebuild project, and Creating CI/CD in AWS CodePipelines via AWS Console !

• Please follow instructor, We really need you to remember, and undertand for every click.

• In case you forget!, You can refer How to build CI/CD from zero to deployment as below link

  https://aws.amazon.com/getting-started/hands-on/create-continuous-delivery-pipeline-codepipeline-codebuild/?trk=gs_card

Optional Useful Lab (Level 200-300)

1.) DEPLOY THE EXAMPLE MICROSERVICES

https://www.eksworkshop.com/beginner/050_deploy/

2.) DEPLOYING MICROSERVICES TO EKS FARGATE

https://www.eksworkshop.com/beginner/180_fargate/

3.) DEPLOYING STATEFUL MICROSERVICES WITH AWS EFS

https://www.eksworkshop.com/beginner/190_efs/

4.) USING SPOT INSTANCES WITH EKS

https://www.eksworkshop.com/beginner/150_spotworkers/

5.) CI/CD WITH CODEPIPELINE

https://github.com/aws-samples/amazon-eks-cicd-codebuild

6.) Migration to CodeCommit

https://docs.aws.amazon.com/codecommit/latest/userguide/how-to-migrate-repository-existing.html

https://github.com/aws-samples/gitlab-to-codecommit-migration

Command Tip for EKS

Configures kubectl so that you can connect to an Amazon EKS cluster.

aws eks update-kubeconfig --name eksworkshop-eksctl

To validate yaml format

cat postgres-test.yaml | yq r  postgres-test.yaml

kubectl Cheat sheet

https://linuxacademy.com/site-content/uploads/2019/04/Kubernetes-Cheat-Sheet_07182019.pdf

https://kubernetes.io/docs/reference/kubectl/cheatsheet/

docker Cheat sheet

https://design.jboss.org/redhatdeveloper/marketing/docker_cheatsheet/cheatsheet/images/docker_cheatsheet_r3v2.pdf

https://www.docker.com/sites/default/files/d8/2019-09/docker-cheat-sheet.pdf

Reference

https://aws.amazon.com/blogs/containers/introducing-security-groups-for-pods

https://github.com/awsdocs/amazon-eks-user-guide/blob/master/doc_source/security-groups-for-pods.md

https://github.com/awsdocs/amazon-eks-user-guide/blob/master/doc_source/cni-upgrades.md

https://docs.aws.amazon.com/eks/latest/userguide/pod-networking.html

https://eksworkshop.com
