Scrolling GraphView

About

An adaptive scrollable graph view for iOS to visualise simple discrete datasets. Written in Swift. Originally written for a small personal project.

Features

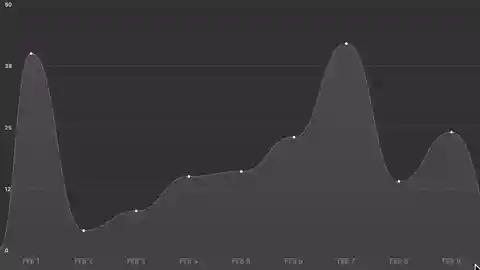

Animating!

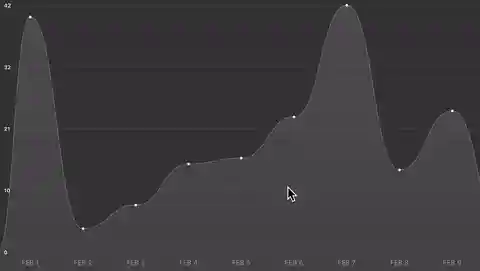

Manual/Auto/Adaptive Ranging!

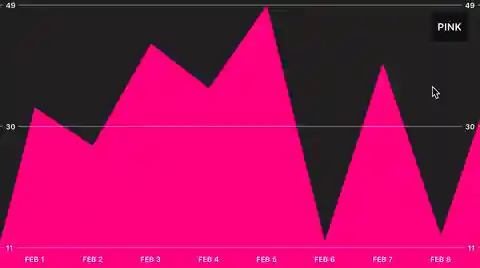

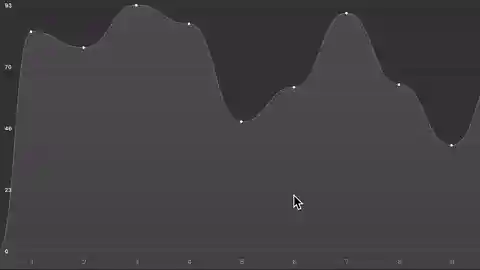

Scrolling!

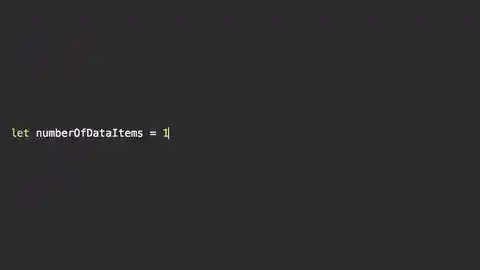

More Scrolling!

Customising!

Usage

Adding the GraphView to your project:

Add GraphView.swift to your project in Xcode

Create a GraphView instance and set the data and labels

let graphView = GraphView(frame: someFrame)
let data = [4, 8, 15, 16, 23, 42]
let labels = ["one", "two", "three", "four", "five", "six"]
graphView.setData(data, withLabels: labels)

Add the GraphView to the view hierarchy.

someViewController.view.addSubview(graphView)

Things you could use it for:

✔ Study applications to show time studied/etc
✔ Weather applications
✔ Prototyping
✔ Simple data visualisation

Things you shouldn't/cannot use it for:

✘ Rigorous statistical software
✘ Important & complex data visualisation
✘ Graphing continuous mathematical functions

Gallery/Themes

Note: Examples here use a "colorFromHex" extension for UIColor.

Default

let graphView = GraphView(frame: frame)
graphView.setData(data, withLabels: labels)
self.view.addSubview(graphView)

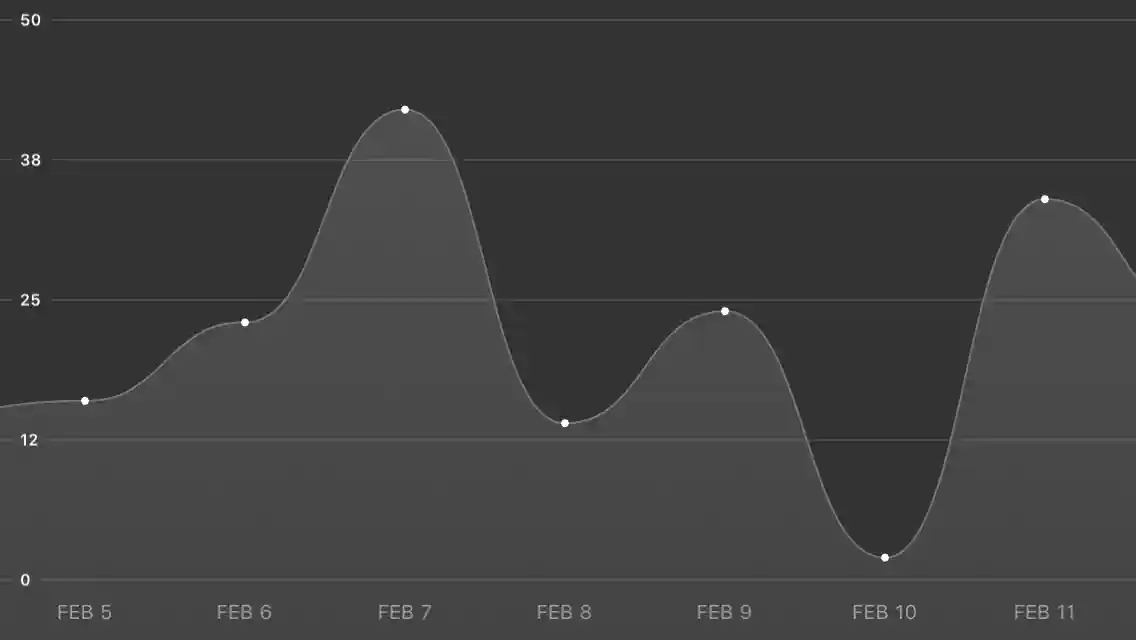

Smooth Dark

let graphView = GraphView(frame: frame)

graphView.backgroundFillColor = UIColor.colorFromHex("#333333")

graphView.rangeMax = 50

graphView.lineWidth = 1
graphView.lineColor = UIColor.colorFromHex("#777777")
graphView.lineStyle = GraphViewLineStyle.Smooth

graphView.shouldFill = true
graphView.fillType = GraphViewFillType.Gradient
graphView.fillColor = UIColor.colorFromHex("#555555")
graphView.fillGradientType = GraphViewGradientType.Linear
graphView.fillGradientStartColor = UIColor.colorFromHex("#555555")
graphView.fillGradientEndColor = UIColor.colorFromHex("#444444")

graphView.dataPointSpacing = 80
graphView.dataPointSize = 2
graphView.dataPointFillColor = UIColor.whiteColor()

graphView.referenceLineLabelFont = UIFont.boldSystemFontOfSize(8)
graphView.referenceLineColor = UIColor.whiteColor().colorWithAlphaComponent(0.2)
graphView.referenceLineLabelColor = UIColor.whiteColor()
graphView.dataPointLabelColor = UIColor.whiteColor().colorWithAlphaComponent(0.5)

graphView.setData(data, withLabels: labels)
self.view.addSubview(graphView)

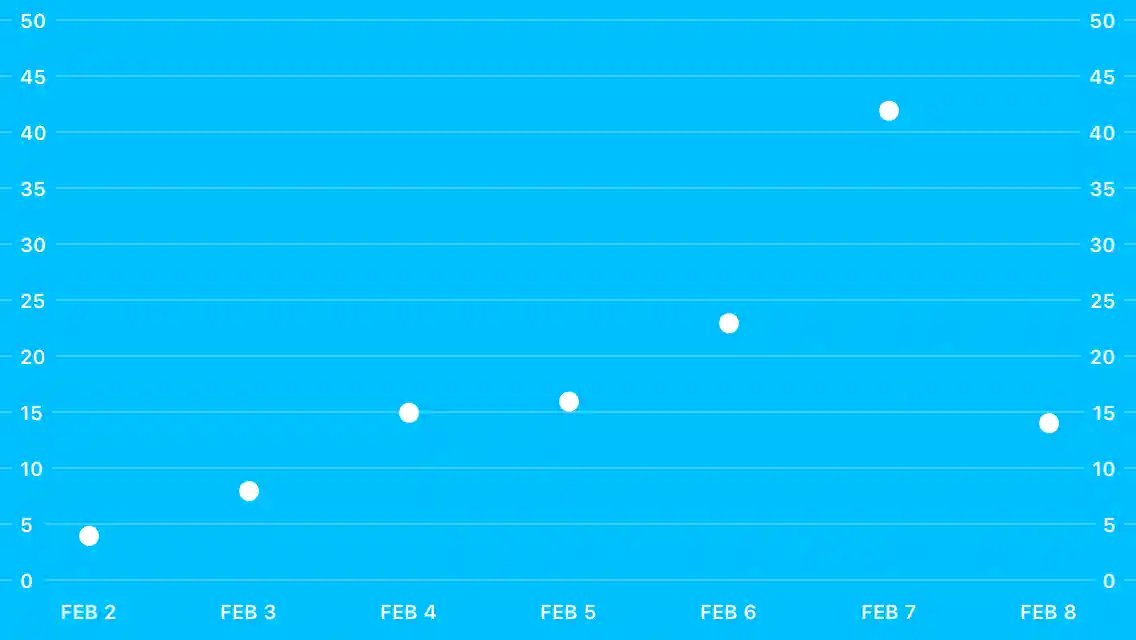

Dot

let graphView = GraphView(frame:frame)
graphView.backgroundFillColor = UIColor.colorFromHex("#00BFFF")
graphView.lineColor = UIColor.clearColor()

graphView.dataPointSize = 5
graphView.dataPointSpacing = 80
graphView.dataPointLabelFont = UIFont.boldSystemFontOfSize(10)
graphView.dataPointLabelColor = UIColor.whiteColor()
graphView.dataPointFillColor = UIColor.whiteColor()

graphView.referenceLineLabelFont = UIFont.boldSystemFontOfSize(10)
graphView.referenceLineColor = UIColor.whiteColor().colorWithAlphaComponent(0.5)
graphView.referenceLineLabelColor = UIColor.whiteColor()
graphView.referenceLinePosition = GraphViewReferenceLinePosition.Both

graphView.numberOfIntermediateReferenceLines = 9

graphView.rangeMax = 50

self.view.addSubview(graphView)

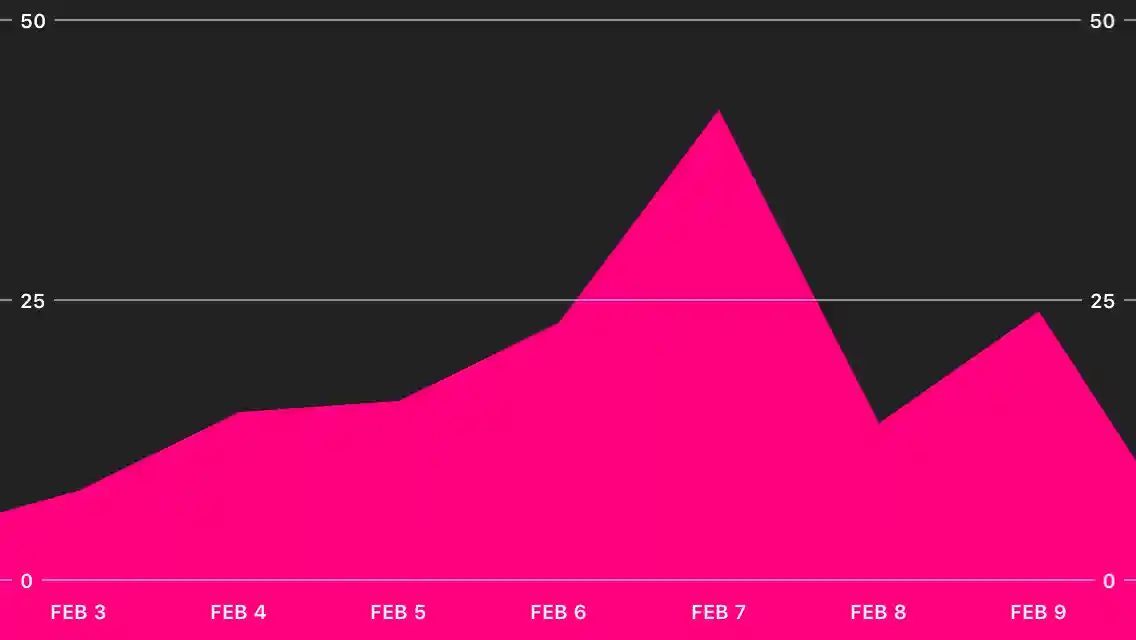

Pink Mountain

let graphView = GraphView(frame:frame)
graphView.backgroundFillColor = UIColor.colorFromHex("#222222")
graphView.lineColor = UIColor.clearColor()

graphView.shouldFill = true
graphView.fillColor = UIColor.colorFromHex("#FF0080")

graphView.shouldDrawDataPoint = false
graphView.dataPointSpacing = 80
graphView.dataPointLabelFont = UIFont.boldSystemFontOfSize(10)
graphView.dataPointLabelColor = UIColor.whiteColor()

graphView.referenceLineThickness = 1
graphView.referenceLineLabelFont = UIFont.boldSystemFontOfSize(10)
graphView.referenceLineColor = UIColor.whiteColor().colorWithAlphaComponent(0.5)
graphView.referenceLineLabelColor = UIColor.whiteColor()
graphView.referenceLinePosition = GraphViewReferenceLinePosition.Both

graphView.numberOfIntermediateReferenceLines = 1

graphView.rangeMax = 50

self.view.addSubview(graphView)

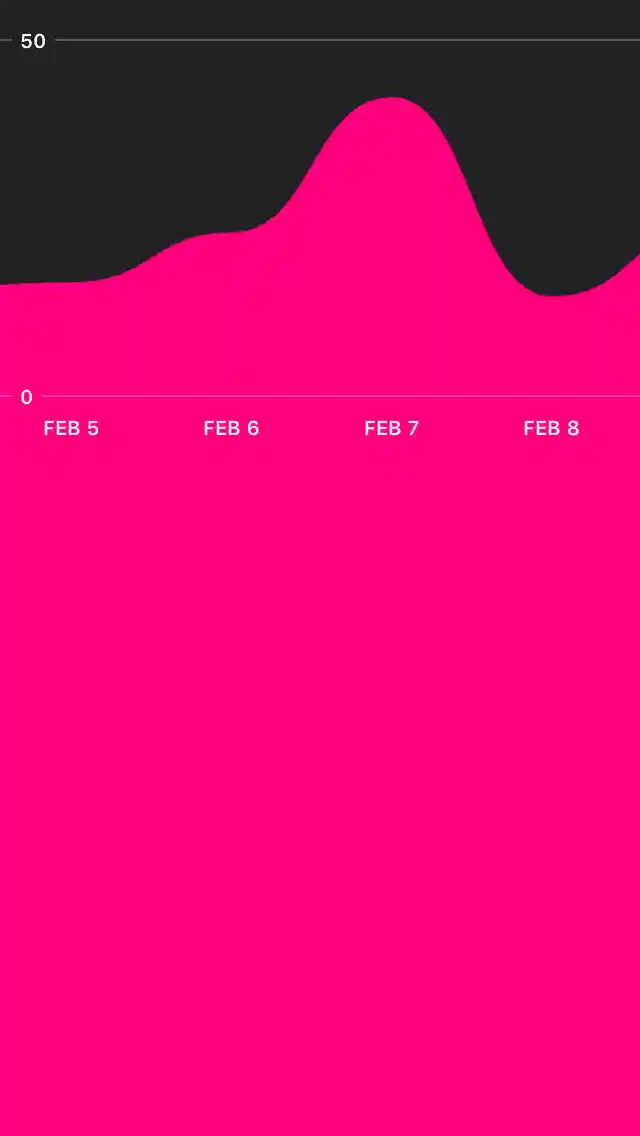

Solid Pink with Margins

You can use the top and bottom margin to leave space for other content:

let graphView = GraphView(frame:frame)

graphView.bottomMargin = 350
graphView.topMargin = 20

graphView.backgroundFillColor = UIColor.colorFromHex("#222222")
graphView.lineColor = UIColor.clearColor()
graphView.lineStyle = GraphViewLineStyle.Smooth

graphView.shouldFill = true
graphView.fillColor = UIColor.colorFromHex("#FF0080")

graphView.shouldDrawDataPoint = false
graphView.dataPointSpacing = 80
graphView.dataPointLabelFont = UIFont.boldSystemFontOfSize(10)
graphView.dataPointLabelColor = UIColor.whiteColor()

graphView.referenceLineThickness = 1
graphView.referenceLineLabelFont = UIFont.boldSystemFontOfSize(10)
graphView.referenceLineColor = UIColor.whiteColor().colorWithAlphaComponent(0.25)
graphView.referenceLineLabelColor = UIColor.whiteColor()

graphView.numberOfIntermediateReferenceLines = 0

graphView.rangeMax = 50

self.view.addSubview(graphView)

Customisation

The graph can be customised by setting any of the following public properties before displaying the GraphView. The defaults are shown below.

Line Styles

var lineWidth: CGFloat = 2

Specifies how thick the graph of the line is. In points.

var lineColor = UIColor.blackColor()

The color of the graph line. UIColor.

var lineStyle = GraphViewLineStyle.Straight

Whether or not the line should be rendered using bezier curves are straight lines.

Possible values:

GraphViewLineStyle.Straight
GraphViewLineStyle.Smooth

var lineJoin = kCALineJoinRound

How each segment in the line should connect. Takes any of the Core Animation LineJoin values.

var lineCap = kCALineCapRound

The line caps. Takes any of the Core Animation LineCap values.

Fill Styles

var backgroundFillColor = UIColor.whiteColor()

The background colour for the entire graph view, not just the plotted graph.

Specifies whether or not the plotted graph should be filled with a colour or gradient.

var fillType = GraphViewFillType.Solid

Specifies whether to fill the graph with a solid colour or gradient.

Possible values:

GraphViewFillType.Solid
GraphViewFillType.Gradient

var fillColor = UIColor.blackColor()

If fillType is set to .Solid then this colour will be used to fill the graph.

var fillGradientStartColor = UIColor.whiteColor()

If fillType is set to .Gradient then this will be the starting colour for the gradient.

var fillGradientEndColor = UIColor.blackColor()

If fillType is set to .Gradient, then this will be the ending colour for the gradient.

var fillGradientType = GraphViewGradientType.Linear

If fillType is set to .Gradient, then this defines whether the gradient is rendered as a linear gradient or radial gradient.

Possible values:

GraphViewFillType.Solid
GraphViewFillType.Gradient

Spacing

var topMargin: CGFloat = 10

How far the "maximum" reference line is from the top of the view's frame. In points.

var bottomMargin: CGFloat = 10

How far the "minimum" reference line is from the bottom of the view's frame. In points.

var leftmostPointPadding: CGFloat = 50

How far the first point on the graph should be placed from the left hand side of the view.

var rightmostPointPadding: CGFloat = 50

How far the final point on the graph should be placed from the right hand side of the view.

var dataPointSpacing: CGFloat = 40

How much space should be between each data point.

var direction = GraphViewDirection.LeftToRight

Which way the user is expected to scroll from.

Possible values:

GraphViewDirection.LeftToRight
GraphViewDirection.RightToLeft

Graph Range

The minimum value for the y-axis. This is ignored when shouldAutomaticallyDetectRange or shouldAdaptRange = true

var rangeMax: Double = 100

The maximum value for the y-axis. This is ignored when shouldAutomaticallyDetectRange or shouldAdaptRange = true

var shouldAutomaticallyDetectRange = false

If this is set to true, then the range will automatically be detected from the data the graph is given.

var shouldRangeAlwaysStartAtZero = false

Forces the graph's minimum to always be zero. Used in conjunction with shouldAutomaticallyDetectRange or shouldAdaptRange, if you want to force the minimum to stay at 0 rather than the detected minimum.

Data Point Drawing

var shouldDrawDataPoint = true

Whether or not to draw a symbol for each data point.

var dataPointType = GraphViewDataPointType.Circle

The shape to draw for each data point.

Possible values:

GraphViewDataPointType.Circle
GraphViewDataPointType.Square
GraphViewDataPointType.Custom

var dataPointSize: CGFloat = 5

The size of the shape to draw for each data point.

var dataPointFillColor: UIColor = UIColor.blackColor()

The colour with which to fill the shape.

var customDataPointPath: ((centre: CGPoint) -> UIBezierPath)?

If dataPointType is set to .Custom then you can provide a closure to create any kind of shape you would like to be displayed instead of just a circle or square. The closure takes a CGPoint which is the centre of the shape and it should return a complete UIBezierPath.

Adapting & Animations

var shouldAdaptRange = true

Whether or not the y-axis' range should adapt to the points that are visible on screen. This means if there are only 5 points visible on screen at any given time, the maximum on the y-axis will be the maximum of those 5 points. This is updated automatically as the user scrolls along the graph.

var shouldAnimateOnAdapt = true

If shouldAdaptRange is set to true then this specifies whether or not the points on the graph should animate to their new positions. Default is set to true. Looks very janky if set to false.

var animationDuration = 1

How long the animation should take. Affects both the startup animation and the animation when the range of the y-axis adapts to onscreen points.

var adaptAnimationType = GraphViewAnimationType.EaseOut

The animation style.

Possible values:

GraphViewAnimationType.EaseOut
GraphViewAnimationType.Elastic
GraphViewAnimationType.Custom

var customAnimationEasingFunction: ((t: Double) -> Double)?

If adaptAnimationType is set to .Custom, then this is the easing function you would like applied for the animation.

var shouldAnimateOnStartup = true

Whether or not the graph should animate to their positions when the graph is first displayed.

Reference Lines

var shouldShowReferenceLines = true

Whether or not to show the y-axis reference lines and labels.

var referenceLineColor = UIColor.blackColor()

The colour for the reference lines.

var referenceLineThickness: CGFloat = 0.5

The thickness of the reference lines.

var referenceLinePosition = GraphViewReferenceLinePosition.Left

Where the labels should be displayed on the reference lines.

Possible values:

GraphViewReferenceLinePosition.Left
GraphViewReferenceLinePosition.Right
GraphViewReferenceLinePosition.Both

var referenceLineType = GraphViewReferenceLineType.Cover

The type of reference lines. Currently only .Cover is available.

var numberOfIntermediateReferenceLines: Int = 3

How many reference lines should be between the minimum and maximum reference lines. If you want a total of 4 reference lines, you would set this to 2. This can be set to 0 for no intermediate reference lines.

This can be used to create reference lines at specific intervals. If the desired result is to have a reference line at every 10 units on the y-axis, you could, for example, set rangeMax to 100, rangeMin to 0 and numberOfIntermediateReferenceLines to 9.

var shouldAddLabelsToIntermediateReferenceLines = true

Whether or not to add labels to the intermediate reference lines.

var shouldAddUnitsToIntermediateReferenceLineLabels = false

Whether or not to add units specified by the referenceLineUnits variable to the labels on the intermediate reference lines.

Reference Line Labels

var referenceLineLabelFont = UIFont.systemFontOfSize(8)

The font to be used for the reference line labels.

var referenceLineLabelColor = UIColor.blackColor()

The colour of the reference line labels.

var shouldShowReferenceLineUnits = true

Whether or not to show the units on the reference lines.

var referenceLineUnits: String?

The units that the y-axis is in. This string is used for labels on the reference lines.

var referenceLineNumberOfDecimalPlaces: Int = 0

The number of decimal places that should be shown on the reference line labels.

Data Point Labels (x-axis)

var shouldShowLabels = true

Whether or not to show the labels on the x-axis for each point.

var dataPointLabelTopMargin: CGFloat = 10

How far from the "minimum" reference line the data point labels should be rendered.

var dataPointLabelBottomMargin: CGFloat = 0

How far from the bottom of the view the data point labels should be rendered.

var dataPointLabelFont: UIFont? = UIFont.systemFontOfSize(10)

The font for the data point labels.

var dataPointLabelColor = UIColor.blackColor()

The colour for the data point labels.

Improvements

Pull requests, improvements & criticisms to any and all of the code are more than welcome.

Known Issues

If you find any bugs please create an issue on Github.

Other

Follow me on twitter for interesting updates (read: gifs) about other things that I make.

Scrolling GraphView

About

Contents

Features

Animating!

Manual/Auto/Adaptive Ranging!

Scrolling!

More Scrolling!

Customising!

Usage

Adding the GraphView to your project:

Things you could use it for:

Things you shouldn't/cannot use it for:

Gallery/Themes

Default

Smooth Dark

Dot

Pink Mountain

Solid Pink with Margins

Customisation

Line Styles

Fill Styles

Spacing

Graph Range

Data Point Drawing

Adapting & Animations

Reference Lines

Reference Line Labels

Data Point Labels (x-axis)

Improvements

Known Issues

Other
