A flutter package which will help you to generate pin code fields with beautiful design and animations. Can be useful for OTP or pin code inputs 🤓🤓
Features 💚
- Automatically focuses the next field on typing and focuses previous field on deletation
- Cursor support ⚡️
- Can be set to any length. (3-6 fields recommended)
- 3 different shapes for text fields
- Highly customizable
- 3 different types of animation for input texts
- Animated active, inactive, selected and disabled field color switching
- Autofocus option
- Otp-code pasting from clipboard
- iOS autofill support
- Error animation. Currently have shake animation only. Watch the example app for how to integrate.
- Works with Flutter's Form. You can use Form validator right off the bat.
- Get currently typed text and use your condition to validate it. (for example: if (currentText.length != 6 || currentText != "your desired code"))
- Haptic Feedback support
- Animated obscure widget support
- Single placeholder text
Getting Started ⚡️

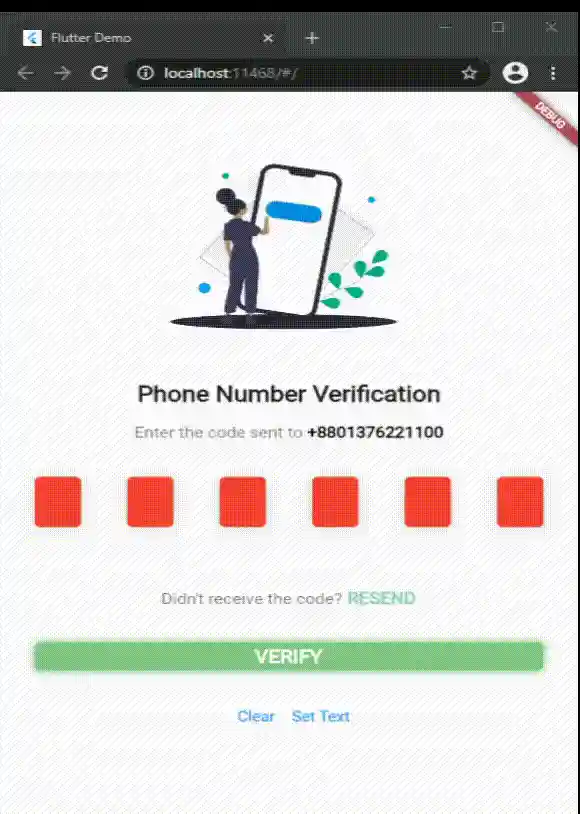

Demo

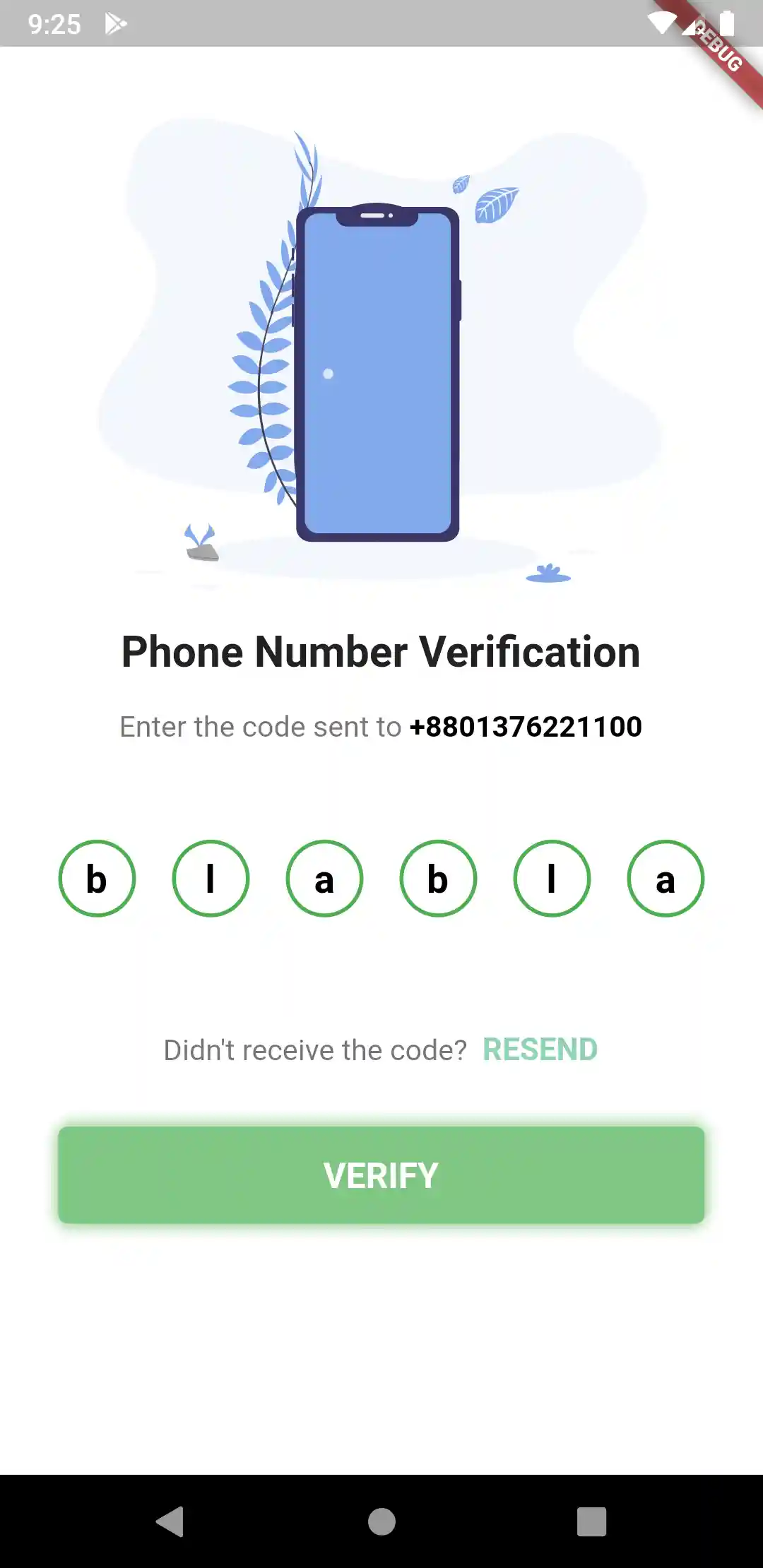

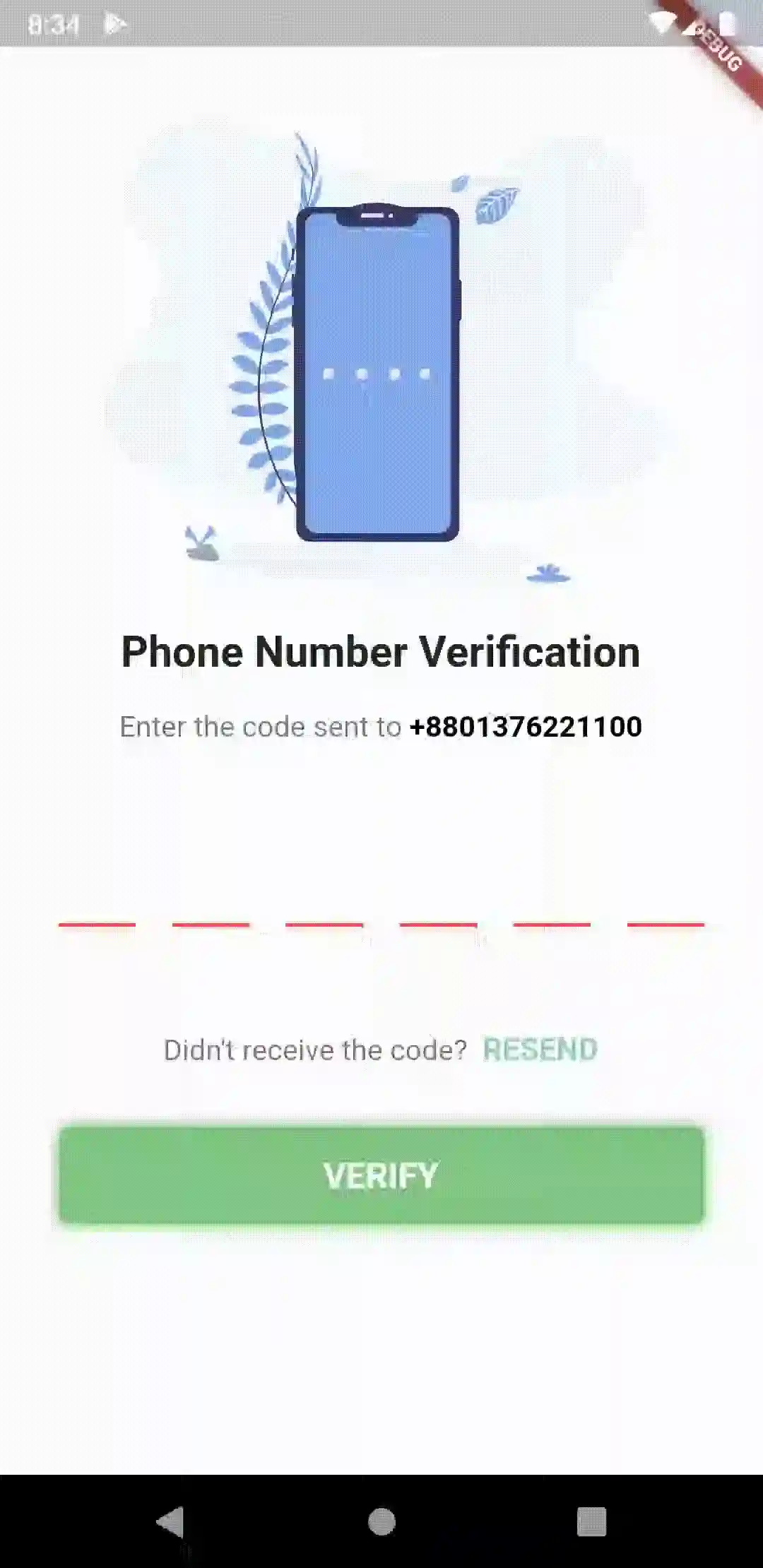

Different Shapes
Notes
- To enable "Fill color" for each cells,
enableActiveFillmust be set totrue. The default value isfalse. - To change the keyboard type, for example to use only number keyboard, or only for email use
keyboardTypeparameter, default is [TextInputType.visiblePassword] FocosNodeandTextEditingControllerwill get disposed automatically. UseautoDisposeControllers = falseto disable it.- to use v5.0.0 or above, developers must have Flutter SDK 1.20.0 or above.
- to use v6.0.0 or above, developers must have Flutter SDK 1.22.0 or above.
Properties 🔖
/// The [BuildContext] of the application final BuildContext appContext; ///Box Shadow for Pincode final List<BoxShadow>? boxShadows; /// length of how many cells there should be. 3-8 is recommended by me final int length; /// you already know what it does i guess :P default is false final bool obscureText; /// Character used for obscuring text if obscureText is true. /// /// Must not be empty. Single character is recommended. /// /// Default is ● - 'Black Circle' (U+25CF) final String obscuringCharacter; /// Widget used to obscure text /// /// it overrides the obscuringCharacter final Widget? obscuringWidget; /// Whether to use haptic feedback or not /// /// final bool useHapticFeedback; /// Haptic Feedback Types /// /// heavy, medium, light links to respective impacts /// selection - selectionClick, vibrate - vibrate /// check [HapticFeedback] for more final HapticFeedbackTypes hapticFeedbackTypes; /// Decides whether typed character should be /// briefly shown before being obscured final bool blinkWhenObscuring; /// Blink Duration if blinkWhenObscuring is set to true final Duration blinkDuration; /// returns the current typed text in the fields final ValueChanged<String> onChanged; /// returns the typed text when all pins are set final ValueChanged<String>? onCompleted; /// returns the typed text when user presses done/next action on the keyboard final ValueChanged<String>? onSubmitted; /// the style of the text, default is [ fontSize: 20, fontWeight: FontWeight.bold] final TextStyle? textStyle; /// the style of the pasted text, default is [fontWeight: FontWeight.bold] while /// [TextStyle.color] is [ThemeData.colorScheme.onSecondary] final TextStyle? pastedTextStyle; /// background color for the whole row of pin code fields. final Color? backgroundColor; /// This defines how the elements in the pin code field align. Default to [MainAxisAlignment.spaceBetween] final MainAxisAlignment mainAxisAlignment; /// [AnimationType] for the text to appear in the pin code field. Default is [AnimationType.slide] final AnimationType animationType; /// Duration for the animation. Default is [Duration(milliseconds: 150)] final Duration animationDuration; /// [Curve] for the animation. Default is [Curves.easeInOut] final Curve animationCurve; /// [TextInputType] for the pin code fields. default is [TextInputType.visiblePassword] final TextInputType keyboardType; /// If the pin code field should be autofocused or not. Default is [false] final bool autoFocus; /// Should pass a [FocusNode] to manage it from the parent final FocusNode? focusNode; /// A list of [TextInputFormatter] that goes to the TextField final List<TextInputFormatter> inputFormatters; /// Enable or disable the Field. Default is [true] final bool enabled; /// [TextEditingController] to control the text manually. Sets a default [TextEditingController()] object if none given final TextEditingController? controller; /// Enabled Color fill for individual pin fields, default is [false] final bool enableActiveFill; /// Auto dismiss the keyboard upon inputting the value for the last field. Default is [true] final bool autoDismissKeyboard; /// Auto dispose the [controller] and [FocusNode] upon the destruction of widget from the widget tree. Default is [true] final bool autoDisposeControllers; /// Configures how the platform keyboard will select an uppercase or lowercase keyboard. /// Only supports text keyboards, other keyboard types will ignore this configuration. Capitalization is locale-aware. /// - Copied from 'https://api.flutter.dev/flutter/services/TextCapitalization-class.html' /// Default is [TextCapitalization.none] final TextCapitalization textCapitalization; final TextInputAction textInputAction; /// Triggers the error animation final StreamController<ErrorAnimationType>? errorAnimationController; /// Callback method to validate if text can be pasted. This is helpful when we need to validate text before pasting. /// e.g. validate if text is number. Default will be pasted as received. final bool Function(String? text)? beforeTextPaste; /// Method for detecting a pin_code form tap /// work with all form windows final Function? onTap; /// Configuration for paste dialog. Read more [DialogConfig] final DialogConfig? dialogConfig; /// Theme for the pin cells. Read more [PinTheme] final PinTheme pinTheme; /// Brightness dark or light choices for iOS keyboard. final Brightness? keyboardAppearance; /// Validator for the [TextFormField] final FormFieldValidator<String>? validator; /// An optional method to call with the final value when the form is saved via /// [FormState.save]. final FormFieldSetter<String>? onSaved; /// enables auto validation for the [TextFormField] /// Default is [AutovalidateMode.onUserInteraction] final AutovalidateMode autovalidateMode; /// The vertical padding from the [PinCodeTextField] to the error text /// Default is 16. final double errorTextSpace; /// Margin for the error text /// Default is [EdgeInsets.zero]. final EdgeInsets errorTextMargin; /// [TextDirection] to control a direction in which text flows. /// Default is [TextDirection.ltr] final TextDirection errorTextDirection; /// Enables pin autofill for TextFormField. /// Default is true final bool enablePinAutofill; /// Error animation duration final int errorAnimationDuration; /// Whether to show cursor or not final bool showCursor; /// The color of the cursor, default to Theme.of(context).accentColor final Color? cursorColor; /// width of the cursor, default to 2 final double cursorWidth; /// Height of the cursor, default to FontSize + 8; final double? cursorHeight; /// Autofill cleanup action final AutofillContextAction onAutoFillDisposeAction; /// Use external [AutoFillGroup] final bool useExternalAutoFillGroup; /// Displays a hint or placeholder in the field if it's value is empty. /// It only appears if it's not null. Single character is recommended. final String? hintCharacter; /// the style of the [hintCharacter], default is [fontSize: 20, fontWeight: FontWeight.bold] /// and it also uses the [textStyle]'s properties /// [TextStyle.color] is [Colors.grey] final TextStyle? hintStyle; /// ScrollPadding follows the same property as TextField's ScrollPadding, default to /// const EdgeInsets.all(20), final EdgeInsets scrollPadding; /// Text gradient for Pincode final Gradient? textGradient; /// Makes the pin cells readOnly final bool readOnly; /// Enable auto unfocus final bool autoUnfocus; /// Builds separator children final IndexedWidgetBuilder? separatorBuilder;
PinTheme
/// Colors of the input fields which have inputs. Default is [Colors.green] final Color activeColor; /// Color of the input field which is currently selected. Default is [Colors.blue] final Color selectedColor; /// Colors of the input fields which don't have inputs. Default is [Colors.red] final Color inactiveColor; /// Colors of the input fields if the [PinCodeTextField] is disabled. Default is [Colors.grey] final Color disabledColor; /// Colors of the input fields which have inputs. Default is [Colors.green] final Color activeFillColor; /// Color of the input field which is currently selected. Default is [Colors.blue] final Color selectedFillColor; /// Colors of the input fields which don't have inputs. Default is [Colors.red] final Color inactiveFillColor; /// Color of the input field when in error mode. Default is [Colors.redAccent] final Color errorBorderColor; /// Border radius of each pin code field final BorderRadius borderRadius; /// [height] for the pin code field. default is [50.0] final double fieldHeight; /// [width] for the pin code field. default is [40.0] final double fieldWidth; /// Border width for the each input fields. Default is [2.0] final double borderWidth; /// this defines the shape of the input fields. Default is underlined final PinCodeFieldShape shape;
DialogConfig
/// title of the [AlertDialog] while pasting the code. Default to [Paste Code] final String dialogTitle; /// content of the [AlertDialog] while pasting the code. Default to ["Do you want to paste this code "] final String dialogContent; /// Affirmative action text for the [AlertDialog]. Default to "Paste" final String affirmativeText; /// Negative action text for the [AlertDialog]. Default to "Cancel" final String negativeText; /// The default dialog theme, should it be iOS or other(including web and Android) final Platform platform; //enum Platform { iOS, other } other indicates for web and android
Contributors ✨
Thanks to everyone whoever suggested their thoughts to improve this package. And special thanks goes to these people:
The pin code text field widget example
PinCodeTextField( length: 6, obscureText: false, animationType: AnimationType.fade, pinTheme: PinTheme( shape: PinCodeFieldShape.box, borderRadius: BorderRadius.circular(5), fieldHeight: 50, fieldWidth: 40, activeFillColor: Colors.white, ), animationDuration: Duration(milliseconds: 300), backgroundColor: Colors.blue.shade50, enableActiveFill: true, errorAnimationController: errorController, controller: textEditingController, onCompleted: (v) { print("Completed"); }, onChanged: (value) { print(value); setState(() { currentText = value; }); }, beforeTextPaste: (text) { print("Allowing to paste $text"); //if you return true then it will show the paste confirmation dialog. Otherwise if false, then nothing will happen. //but you can show anything you want here, like your pop up saying wrong paste format or etc return true; }, )
Shape can be among these 3 types
enum PinCodeFieldShape { box, underline, circle }
Animations can be among these 3 types
enum AnimationType { scale, slide, fade, none }
Haptic Feedbacks can be among these 5 types
enum HapticFeedbackTypes { heavy, light, medium, selection, vibrate, }
Trigger Error animation
- Create a StreamController
StreamController<ErrorAnimationType> errorController = StreamController<ErrorAnimationType>();
- And pass the controller like this.
PinCodeTextField( length: 6, obscureText: false, animationType: AnimationType.fade, animationDuration: Duration(milliseconds: 300), errorAnimationController: errorController, // Pass it here onChanged: (value) { setState(() { currentText = value; }); }, )
- Then you can trigger the animation just by writing this:
errorController.add(ErrorAnimationType.shake); // This will shake the pin code field
This full code is from the example folder. You can run the example to see.
class MyApp extends StatelessWidget { // This widget is the root of your application. @override Widget build(BuildContext context) { return MaterialApp( title: 'Flutter Demo', theme: ThemeData( primarySwatch: Colors.blue, ), home: PinCodeVerificationScreen( "+8801376221100"), // a random number, please don't call xD ); } } class PinCodeVerificationScreen extends StatefulWidget { final String phoneNumber; PinCodeVerificationScreen(this.phoneNumber); @override _PinCodeVerificationScreenState createState() => _PinCodeVerificationScreenState(); } class _PinCodeVerificationScreenState extends State<PinCodeVerificationScreen> { var onTapRecognizer; TextEditingController textEditingController = TextEditingController(); // ..text = "123456"; StreamController<ErrorAnimationType> errorController; bool hasError = false; String currentText = ""; final GlobalKey<ScaffoldState> scaffoldKey = GlobalKey<ScaffoldState>(); final formKey = GlobalKey<FormState>(); @override void initState() { onTapRecognizer = TapGestureRecognizer() ..onTap = () { Navigator.pop(context); }; errorController = StreamController<ErrorAnimationType>(); super.initState(); } @override void dispose() { errorController.close(); super.dispose(); } @override Widget build(BuildContext context) { return Scaffold( backgroundColor: Colors.blue.shade50, key: scaffoldKey, body: GestureDetector( onTap: () {}, child: Container( height: MediaQuery.of(context).size.height, width: MediaQuery.of(context).size.width, child: ListView( children: <Widget>[ SizedBox(height: 30), Container( height: MediaQuery.of(context).size.height / 3, child: FlareActor( "assets/otp.flr", animation: "otp", fit: BoxFit.fitHeight, alignment: Alignment.center, ), ), SizedBox(height: 8), Padding( padding: const EdgeInsets.symmetric(vertical: 8.0), child: Text( 'Phone Number Verification', style: TextStyle(fontWeight: FontWeight.bold, fontSize: 22), textAlign: TextAlign.center, ), ), Padding( padding: const EdgeInsets.symmetric(horizontal: 30.0, vertical: 8), child: RichText( text: TextSpan( text: "Enter the code sent to ", children: [ TextSpan( text: widget.phoneNumber, style: TextStyle( color: Colors.black, fontWeight: FontWeight.bold, fontSize: 15)), ], style: TextStyle(color: Colors.black54, fontSize: 15)), textAlign: TextAlign.center, ), ), SizedBox( height: 20, ), Form( key: formKey, child: Padding( padding: const EdgeInsets.symmetric( vertical: 8.0, horizontal: 30), child: PinCodeTextField( appContext: context, pastedTextStyle: TextStyle( color: Colors.green.shade600, fontWeight: FontWeight.bold, ), length: 6, obscureText: false, obscuringCharacter: '*', animationType: AnimationType.fade, validator: (v) { if (v.length < 3) { return "I'm from validator"; } else { return null; } }, pinTheme: PinTheme( shape: PinCodeFieldShape.box, borderRadius: BorderRadius.circular(5), fieldHeight: 60, fieldWidth: 50, activeFillColor: hasError ? Colors.orange : Colors.white, ), cursorColor: Colors.black, animationDuration: Duration(milliseconds: 300), textStyle: TextStyle(fontSize: 20, height: 1.6), backgroundColor: Colors.blue.shade50, enableActiveFill: true, errorAnimationController: errorController, controller: textEditingController, keyboardType: TextInputType.number, boxShadows: [ BoxShadow( offset: Offset(0, 1), color: Colors.black12, blurRadius: 10, ) ], onCompleted: (v) { print("Completed"); }, // onTap: () { // print("Pressed"); // }, onChanged: (value) { print(value); setState(() { currentText = value; }); }, beforeTextPaste: (text) { print("Allowing to paste $text"); //if you return true then it will show the paste confirmation dialog. Otherwise if false, then nothing will happen. //but you can show anything you want here, like your pop up saying wrong paste format or etc return true; }, )), ), Padding( padding: const EdgeInsets.symmetric(horizontal: 30.0), child: Text( hasError ? "*Please fill up all the cells properly" : "", style: TextStyle( color: Colors.red, fontSize: 12, fontWeight: FontWeight.w400), ), ), SizedBox( height: 20, ), RichText( textAlign: TextAlign.center, text: TextSpan( text: "Didn't receive the code? ", style: TextStyle(color: Colors.black54, fontSize: 15), children: [ TextSpan( text: " RESEND", recognizer: onTapRecognizer, style: TextStyle( color: Color(0xFF91D3B3), fontWeight: FontWeight.bold, fontSize: 16)) ]), ), SizedBox( height: 14, ), Container( margin: const EdgeInsets.symmetric(vertical: 16.0, horizontal: 30), child: ButtonTheme( height: 50, child: FlatButton( onPressed: () { formKey.currentState.validate(); // conditions for validating if (currentText.length != 6 || currentText != "towtow") { errorController.add(ErrorAnimationType .shake); // Triggering error shake animation setState(() { hasError = true; }); } else { setState(() { hasError = false; scaffoldKey.currentState.showSnackBar(SnackBar( content: Text("Aye!!"), duration: Duration(seconds: 2), )); }); } }, child: Center( child: Text( "VERIFY".toUpperCase(), style: TextStyle( color: Colors.white, fontSize: 18, fontWeight: FontWeight.bold), )), ), ), decoration: BoxDecoration( color: Colors.green.shade300, borderRadius: BorderRadius.circular(5), boxShadow: [ BoxShadow( color: Colors.green.shade200, offset: Offset(1, -2), blurRadius: 5), BoxShadow( color: Colors.green.shade200, offset: Offset(-1, 2), blurRadius: 5) ]), ), SizedBox( height: 16, ), Row( mainAxisAlignment: MainAxisAlignment.center, children: <Widget>[ FlatButton( child: Text("Clear"), onPressed: () { textEditingController.clear(); }, ), FlatButton( child: Text("Set Text"), onPressed: () { textEditingController.text = "123456"; }, ), ], ) ], ), ), ), ); } }
