ROS 2 Triager : Advanced Runtime Diagnostics for Robotic Systems

ROS 2 Triager is a powerful command-line interface (CLI) plugin designed for real-time runtime graph diagnostics in ROS 2 environments. It goes beyond static configuration checks to actively monitor your running robot, identifying critical issues like dead topics, QoS mismatches, TF tree problems, and more, all while providing actionable suggestions for resolution.

ros2doctor answers: "Is your ROS 2 system installed correctly?" ros2 triage answers: "Is your robot behaving correctly right now?"

Key Differentiators & Novelty

ROS 2 Triager stands out by focusing on dynamic runtime analysis, offering capabilities crucial for maintaining the health and performance of complex robotic deployments. Its novel features provide unparalleled insight and automation potential:

• Live Monitoring (--watch): Continuously observe your robot's health in real-time, with automatic refreshes and clear terminal output, allowing for immediate detection and response to emerging issues.
• Snapshot-based Differencing (--snapshot-save, --snapshot-diff): Establish a "golden" baseline of a healthy system's graph state and then automatically compare current states against it. This enables proactive detection of regressions, unexpected changes, and graph drift over time.
• Expected Node Checking (--expected YAML): Define the anticipated set of running nodes in a simple YAML file. ROS 2 Triager will then report any missing or unexpected nodes, ensuring all critical components are operational.
• Actionable Suggestions: Every detected finding is accompanied by clear, concise, and context-aware suggestions, empowering users to quickly diagnose and resolve problems.
• CI/CD Integration (--json): Generate machine-readable JSON output and leverage exit codes for severity levels, facilitating seamless integration into automated testing and continuous integration/continuous deployment pipelines.

Features

ROS 2 Triager provides a comprehensive suite of checks to ensure the robustness of your robotic applications:

Core Checks

Advanced Diagnostics

Visualization & Monitoring

All findings are severity-ranked (1=INFO, 2=WARN, 3=CRIT) and include actionable suggestions.

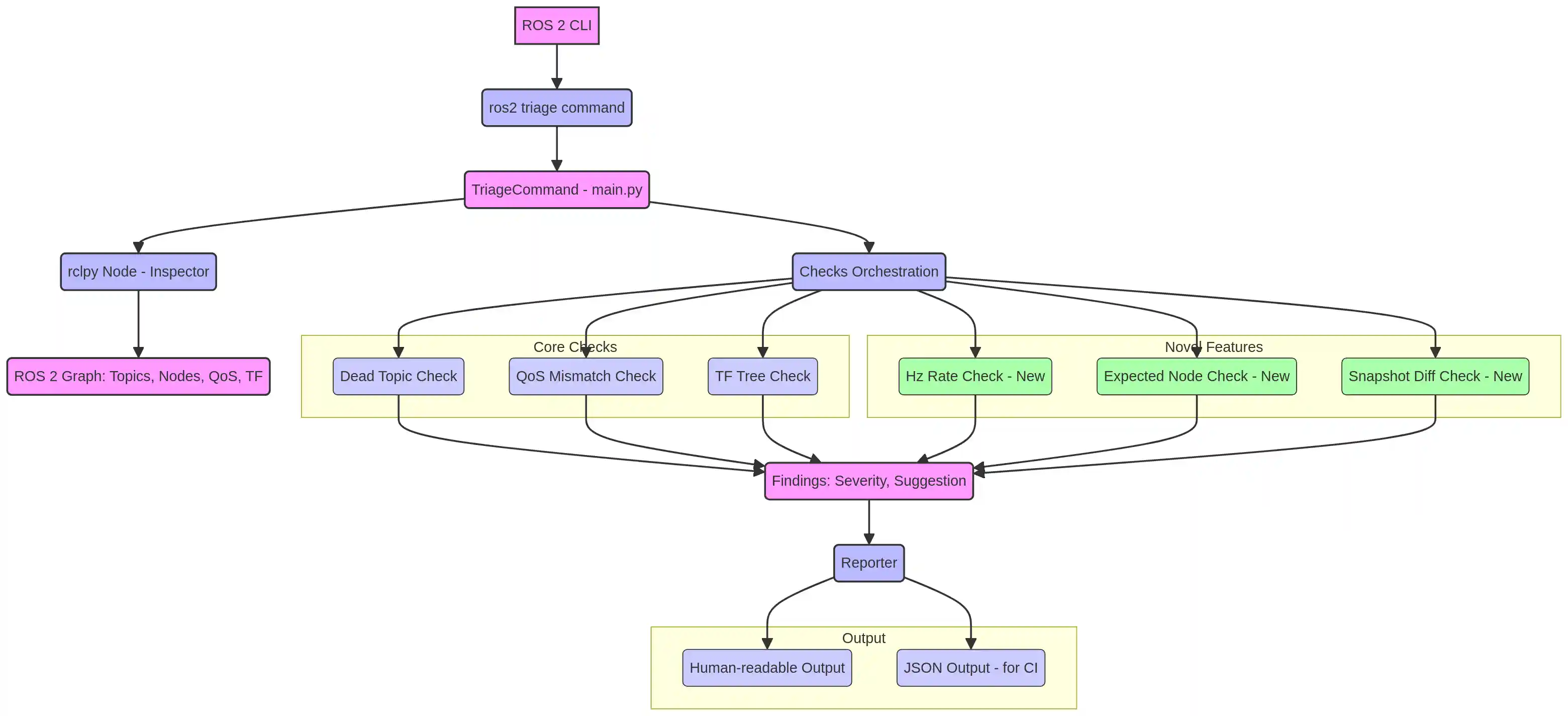

Architecture

The modular architecture of ROS 2 Triager ensures efficient and extensible diagnostic capabilities. It operates by leveraging a temporary rclpy node to non-intrusively inspect the live ROS 2 graph.

Core Components:

• ROS 2 CLI Integration: Seamlessly integrates as a ros2 subcommand (ros2 triage).
• TriageCommand: The primary entry point, handling argument parsing and orchestrating the diagnostic process.
• rclpy Node (Inspector): A transient ROS 2 node responsible for gathering real-time information about topics, nodes, QoS settings, and the TF tree.
• Checks Orchestration: Manages the execution of various diagnostic modules, including both foundational and advanced checks.
• Findings: Standardized data structures encapsulating detected issues, their severity, and suggested resolutions.
• Reporter: Formats findings for human-readable console output (with color-coding) or machine-readable JSON for automated systems.

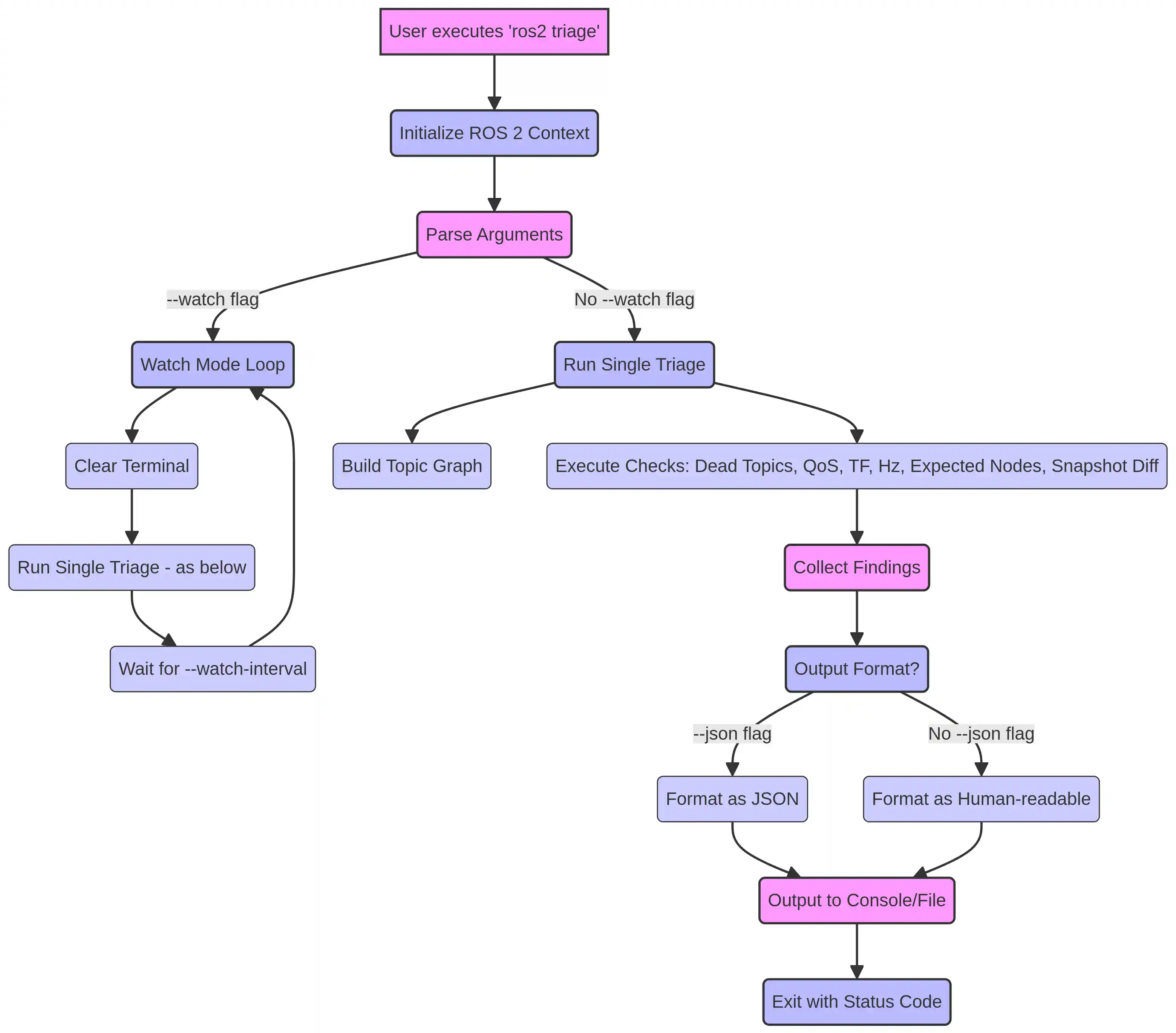

Workflow

ROS 2 Triager's workflow is designed for both interactive debugging and automated system health monitoring.

Diagnostic Flow:

1. Command Execution: A user or automated system invokes ros2 triage.
2. Initialization & Argument Parsing: The tool initializes the ROS 2 context and processes command-line arguments to determine the desired checks and output format.
3. Execution Mode Selection: Depending on the --watch flag, it either performs a single diagnostic run or enters a continuous monitoring loop.
4. Graph Introspection: The Inspector Node builds a real-time snapshot of the ROS 2 graph.
5. Check Execution: All enabled diagnostic checks are performed against the current graph state.
6. Finding Collection: Results from each check are aggregated into a comprehensive list of findings.
7. Reporting: Findings are presented in the specified format (human-readable or JSON).
8. Exit Status: The tool exits with a status code reflecting the highest severity finding, enabling CI/CD pipeline integration.

Quickstart

Prerequisites

# ROS 2 Humble (or compatible distro, e.g., Jazzy, Rolling)
source /opt/ros/humble/setup.bash

Build

cd ~/ros2-triager
colcon build --symlink-install --packages-select ros2_triage
source install/local_setup.bash

Run

# Full check (all default checks enabled)
ros2 triage

# JSON output for CI/CD pipelines
ros2 triage --json

# Only critical findings (severity 3)
ros2 triage --severity-threshold 3

# Skip QoS check
ros2 triage --no-qos

# Enable Hz rate check (measures for 3 seconds by default)
ros2 triage --check-hz

# Check against an expected_nodes.yaml file
ros2 triage --expected path/to/expected_nodes.yaml

# Save a snapshot of the current healthy graph state
ros2 triage --snapshot-save healthy_baseline.json

# Diff current state against a saved snapshot
ros2 triage --snapshot-diff healthy_baseline.json

# Live monitoring mode (refreshes every 5 seconds)
ros2 triage --watch

# Advanced: Check message latency and jitter
ros2 triage --check-latency --latency-window 5.0

# Advanced: Probe DDS domain for conflicts
ros2 triage --check-dds

# Advanced: Enable root cause analysis
ros2 triage --correlate

# Advanced: Interactive TUI dashboard
ros2 triage --interactive

# Help
ros2 triage --help

Example Output

============================================================
  ros2 triage - Runtime Diagnostic Report
============================================================

    DEAD TOPICS
  Topics with missing publishers or subscribers
  ------------------------------------------------------------
  [CRIT]  /cmd_vel
         1 subscriber(s) [nav2_node] but 0 publishers - topic is UNPUBLISHED.
          Check if the node that should publish this topic is running:
            `ros2 node list`. Verify launch files include the publisher node.

    QoS MISMATCHES
  Publisher <-> Subscriber QoS incompatibilities
  ------------------------------------------------------------
  [CRIT]  /sensor_data
         Reliability mismatch: publisher [sensor_node]=RELIABLE,
         subscriber [processor]=BEST_EFFORT. Messages will be DROPPED.
          Change processor subscription QoS to RELIABLE.

============================================================
  Summary: 2 CRITICAL  0 WARNING  0 INFO
============================================================

JSON output (--json)

{
  "schema_version": "1.0",
  "total_findings": 2,
  "summary": {"critical": 2, "warning": 0, "info": 0},
  "checks": [
    {
      "name": "dead_topics",
      "findings": [
        {
          "check": "dead_topics",
          "topic": "/cmd_vel",
          "severity": 3,
          "message": "1 subscriber(s) [nav2_node] but 0 publishers - topic is UNPUBLISHED.",
          "suggestion": "Check if the node that should publish this topic is running..."
        }
      ]
    }
  ]
}

CI Integration

Leverage --json output and exit codes to automate checks in your CI/CD pipelines:

# .github/workflows/ros2_check.yml
- name: Run ros2 triage
  run: |
    source /opt/ros/humble/setup.bash
    source install/local_setup.bash
    ros2 triage --json --severity-threshold 3 > triage_report.json
  # Exits with code 1 if any severity-3 findings exist

Development & Testing

Project Structure

ros2_triage/
|-- command/
|   |-- triage.py          # TriageCommand - main CLI entry point
|-- checks/
|   |-- finding.py         # Finding dataclass + severity constants
|   |-- graph_utils.py     # rclpy topic graph snapshot
|   |-- dead_topic.py      # Dead publisher/subscriber detection
|   |-- qos_check.py       # QoS reliability/durability mismatch
|   |-- tf_check.py        # TF tree frame connectivity
|   |-- hz_check.py        # Topic rate anomaly check
|   |-- node_check.py      # Missing/unexpected node check
|   |-- snapshot.py        # Graph state save/diff
|   |-- latency_engine.py  # Message timing analysis
|   |-- dds_probe.py       # DDS domain conflict detection
|-- correlation_engine.py  # Multi-signal root cause analysis
|-- interactive_tui.py     # Keyboard-navigable Rich TUI
|-- reporter.py            # Human (Rich/colorama) + JSON output
test/
|-- test_dead_topic.py
|-- test_qos_check.py
|-- test_finding.py
|-- test_correlation_engine.py
|-- test_latency_engine.py
|-- test_dds_probe.py
|-- test_reporter.py

Running Tests

cd ~/ros2-triager/src/ros2_triage
source /opt/ros/humble/setup.bash
python3 -m pytest test/ -v

License

Apache 2.0
