Splunk Attack Range

Purpose

This framework allows the security analyst to quickly and repeatedly replicate and generate data as close to "ground truth" as possible, in a format that allows the creation of detections, investigations, knowledge objects, and playbooks in Splunk.

The data includes logs, network captures, endpoint events, and so on, derived from either known attack-simulation engines (Atomic Red Team/AttackIQ) or recent exploit code on local (Vagrant) or cloud enviroments (Terraform). Inspired by DetectionLab.

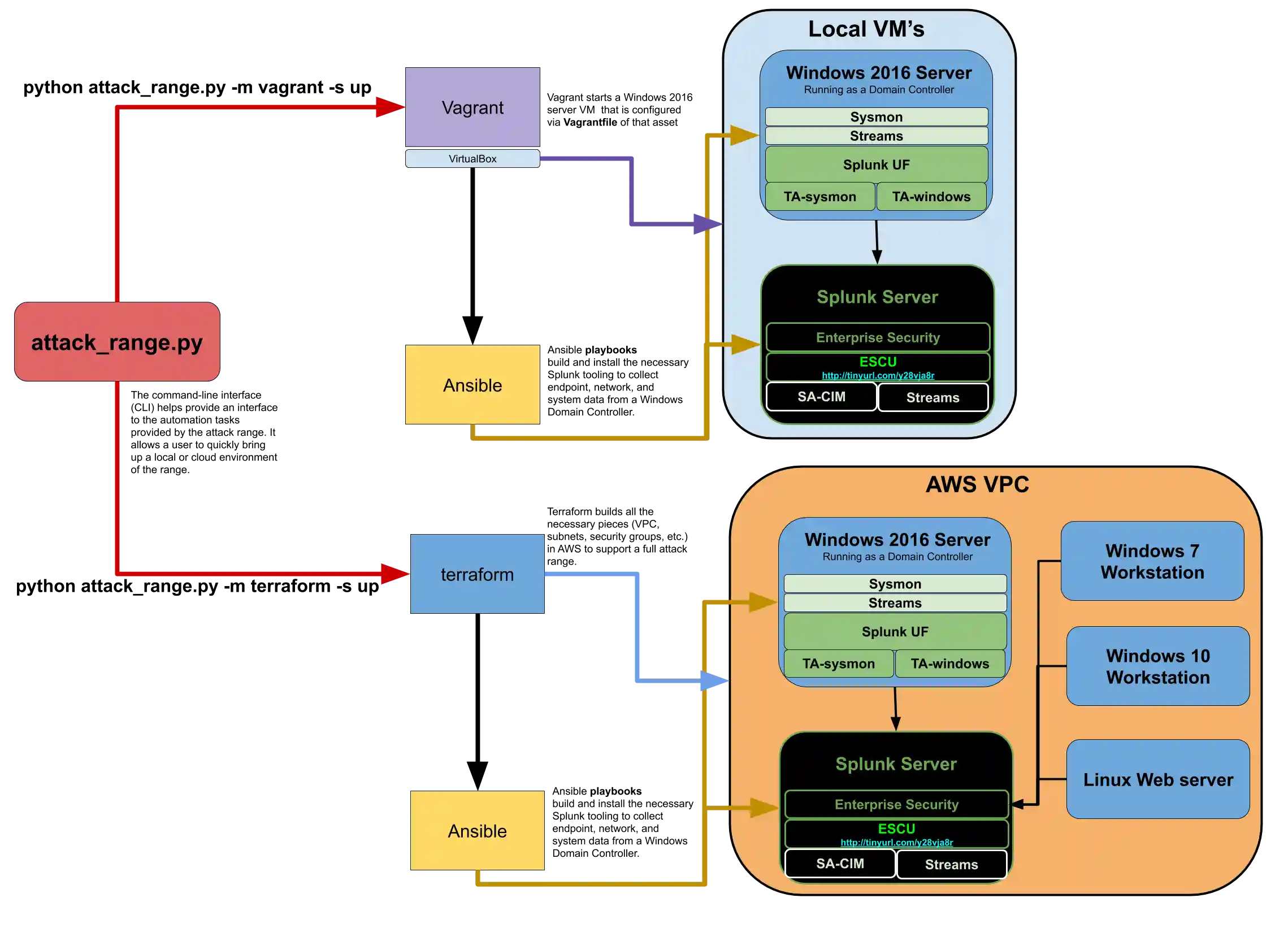

Architecture

Usage

usage: attack_range.py [-h] [-b APPBIN] -m MODE -s STATE [-v VERSION]
                       [-vbox VAGRANT_BOX] [-vls] [-se SIMULATION_ENGINE]

starts a attack range ready to collect attack data into Splunk

optional arguments:
  -h, --help            show this help message and exit
  -b APPBIN, --appbin APPBIN
                        directory to store binaries in
  -m MODE, --mode MODE  mode of operation, Terraform/Vagrant, please see
                        configuration for each at:
                        https://github.com/splunk/attack_range
  -s STATE, --state STATE
                        state of the range, defaults to "up", up/down allowed
  -v VERSION, --version VERSION
                        shows current attack_range version
  -vbox VAGRANT_BOX, --vagrant_box VAGRANT_BOX
                        select the individual Vagrant box to stand up or destroy
  -vls, --vagrant_list  prints out all avaiable vagrant boxes
  -se SIMULATION_ENGINE, --simulation_engine SIMULATION_ENGINE
                        please select a simulation engine; defaults to
                        "atomic_red_team"

Running

1. git clone https://github.com/splunk/attack_range && cd attack_range clone project and cd into the project dir
2. virtualenv -p python3 venv && source venv/bin/activate && pip install -r requirements.txt create virtualenv and install requirements
3. python attack_range.py --state up --mode vagrant start up a range locally using vagrant or python attack_range.py --state up --mode terraform to deploy it to "the cloud"

See Usage for more options, make sure that you configure the mode first

If you are on OSX, you will have to install sshpass brew install https://raw.githubusercontent.com/kadwanev/bigboybrew/master/Library/Formula/sshpass.rb

Configure

For Terraform

1. brew install terraform install Terraform CLI on OSX other platforms
2. brew install awscli install AWS CLI on OSX otherwise see: guide
3. Get AWS API token aws configure
4. Set Terraform variables under terraform/terraform.tfvars

For Vagrant

1. brew cask install virtualbox if you don't already have virtual box installed on OSX, otherwise see their installation instructions.
2. brew cask install vagrant install Vagrant CLI on OSX, otherwise see: guide

Range Settings

To configure general range settings like your Splunk server default username, sysmon template to deploy, or Active Directory admin creds, edit: ansible/vars/vars.yml

Developing

1. Create virtualenv and install requirements: virtualenv -p python3 venv && source venv/bin/activate && pip install -r requirements.txt
2. Install pre-commit hooks pre-commit install
3. Install Ansible on OSX brew install ansible

Support

You can get help with setting up your own attack range in the Splunk Community Slack under the #security-research channel.

Author

• Jose Hernandez

Contributors

• Rod Soto
• Bhavin Patel
• Russ Nolen

To Dos

• Implement Atomic Red Team simulation engine execution
• Implement Attack IQ simulation engine execution
• Create global .conf file
