GitHub - fishi0x01/network-observability-cli: An OpenShift / Kubernetes CLI tool for network observability

network-observability-cli is a lightweight Flow, Packet and Metrics visualization tool. It deploys NetObserv eBPF agent on your k8s cluster to collect flows or packets from nodes network interfaces and streams data to a local collector for analysis and visualization. Output files are generated under output/flow and output/pcap directories per host name

On Openshift environments, you can also capture metrics in your monitoring stack and display a fully configured dashboard.

Prerequisites

To run this CLI, you will need:

  • A running kubernetes / OpenShift cluster
  • either oc or kubectl command installed and connected to your cluster
  • Cluster admin rights

Build

To build the project locally:

Install shellcheck package

sudo dnf install -y shellcheck

Build the project

This will also copy resources and commands to the build directory.

Images

To build your own images of CLI, run the following command replacing USER and VERSION accordingly:

USER=netobserv VERSION=dev make images

Run

Flow Capture

Run the following command to start capturing flows, replacing USER, VERSION and COMMAND_ARGS accordingly:

USER=netobserv VERSION=dev COMMAND_ARGS=--interfaces=br-ex make flows

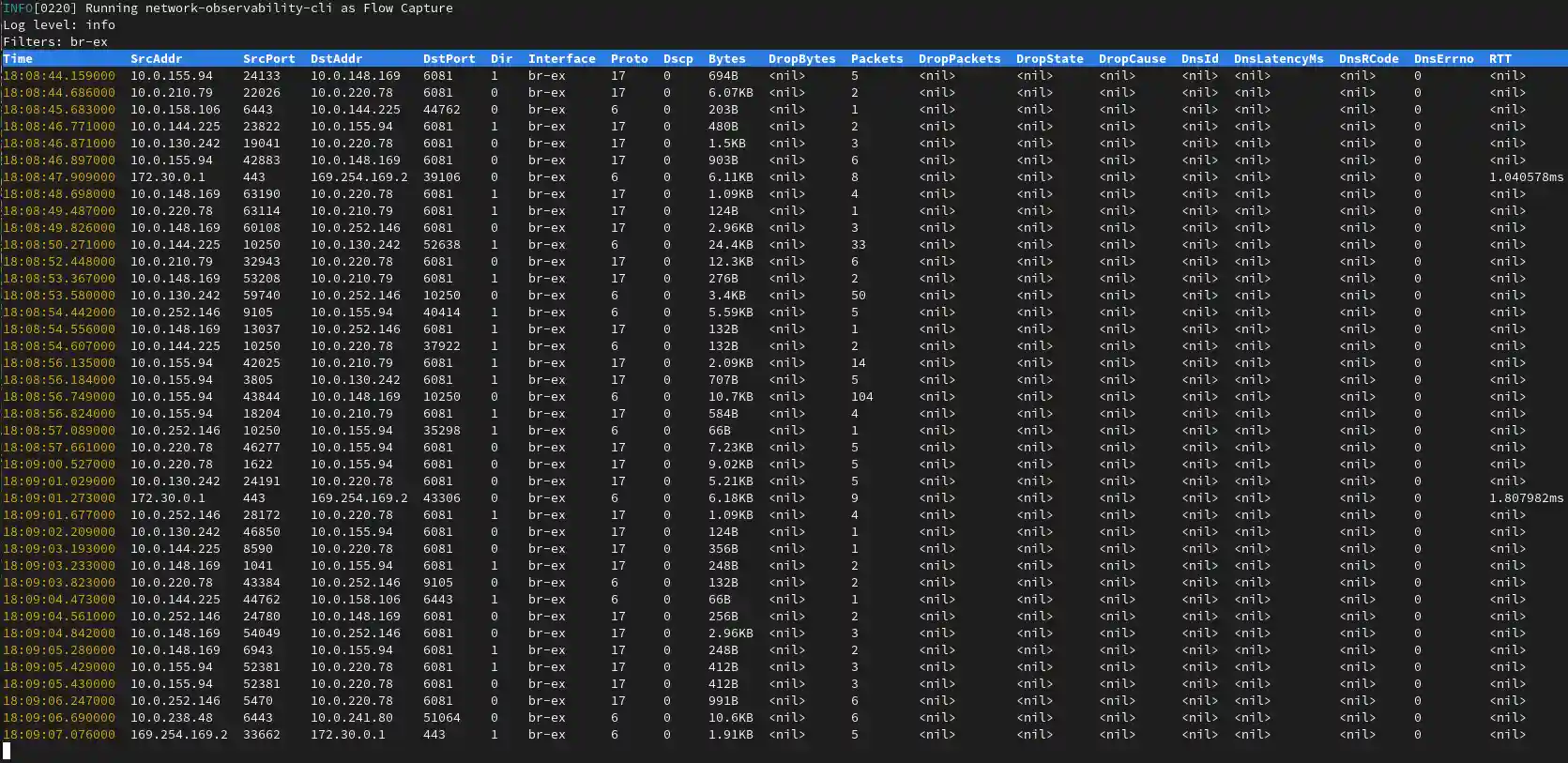

flows

It will display a table view with latest flows collected and write data under output/flow directory. To stop capturing press Ctrl-C.

This will write data into two separate files:

  • ./output/flow/<CAPTURE_DATE_TIME>.json containing json array of received data such as:
{
  "AgentIP": "10.0.1.76",
  "Bytes": 561,
  "DnsErrno": 0,
  "Dscp": 20,
  "DstAddr": "f904:ece9:ba63:6ac7:8018:1e5:7130:0",
  "DstMac": "0A:58:0A:80:00:37",
  "DstPort": 9999,
  "Duplicate": false,
  "Etype": 2048,
  "Flags": 16,
  "FlowDirection": 0,
  "IfDirection": 0,
  "Interface": "ens5",
  "K8S_FlowLayer": "infra",
  "Packets": 1,
  "Proto": 6,
  "SrcAddr": "3e06:6c10:6440:2:a80:37:b756:270f",
  "SrcMac": "0A:58:0A:80:00:01",
  "SrcPort": 46934,
  "TimeFlowEndMs": 1709741962111,
  "TimeFlowRttNs": 121000,
  "TimeFlowStartMs": 1709741962111,
  "TimeReceived": 1709741964
}
  • ./output/flow/<CAPTURE_DATE_TIME>.db database that can be inspected using sqlite3 for example:
bash-5.1$ sqlite3 ./output/flow/<CAPTURE_DATE_TIME>.db
SQLite version 3.34.1 2021-01-20 14:10:07
Enter ".help" for usage hints.
sqlite> SELECT DnsLatencyMs, DnsFlagsResponseCode, DnsId, DstAddr, DstPort, Interface, Proto, SrcAddr, SrcPort, Bytes, Packets FROM flow WHERE DnsLatencyMs >10 LIMIT 10;
12|NoError|58747|10.128.0.63|57856||17|172.30.0.10|53|284|1
11|NoError|20486|10.128.0.52|56575||17|169.254.169.254|53|225|1
11|NoError|59544|10.128.0.103|51089||17|172.30.0.10|53|307|1
13|NoError|32519|10.128.0.52|55241||17|169.254.169.254|53|254|1
12|NoError|32519|10.0.0.3|55241||17|169.254.169.254|53|254|1
15|NoError|57673|10.128.0.19|59051||17|172.30.0.10|53|313|1
13|NoError|35652|10.0.0.3|46532||17|169.254.169.254|53|183|1
32|NoError|37326|10.0.0.3|52718||17|169.254.169.254|53|169|1
14|NoError|14530|10.0.0.3|58203||17|169.254.169.254|53|246|1
15|NoError|40548|10.0.0.3|45933||17|169.254.169.254|53|174|1

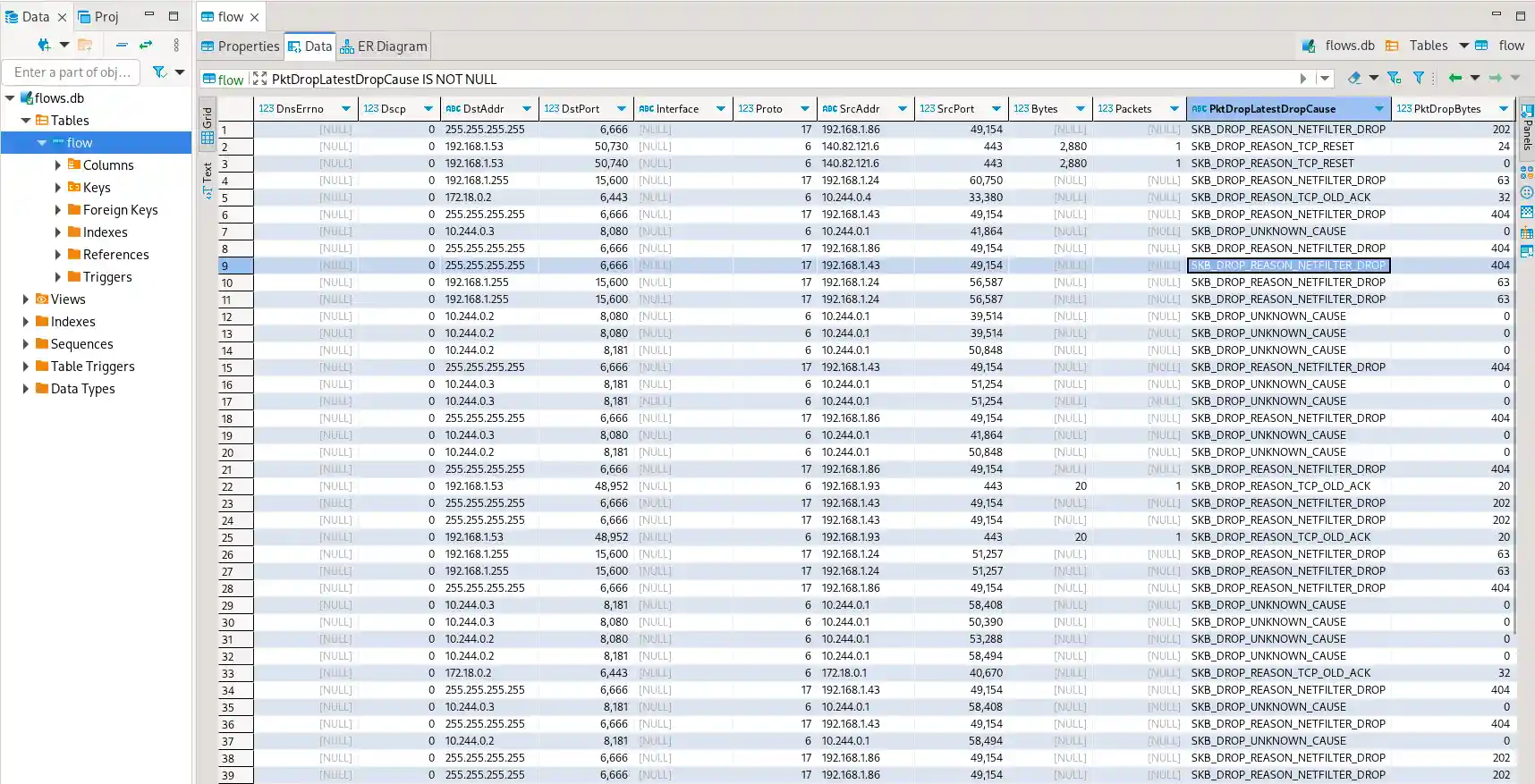

or dbeaver: dbeaver

Packet Capture

Run the following command to start capturing packets, replacing USER, VERSION and COMMAND_ARGS accordingly:

USER=netobserv VERSION=dev COMMAND_ARGS="--protocol=TCP --port=80" make packets

Similarly to flow capture, it will display a table view with latest flows. However, it will collect packets and write data under output/pcap directory. To stop capturing press Ctrl-C.

This will write pcapng into a single file located in ./output/pcap/<CAPTURE_DATE_TIME>.pcapng that can be opened with Wireshark for example:

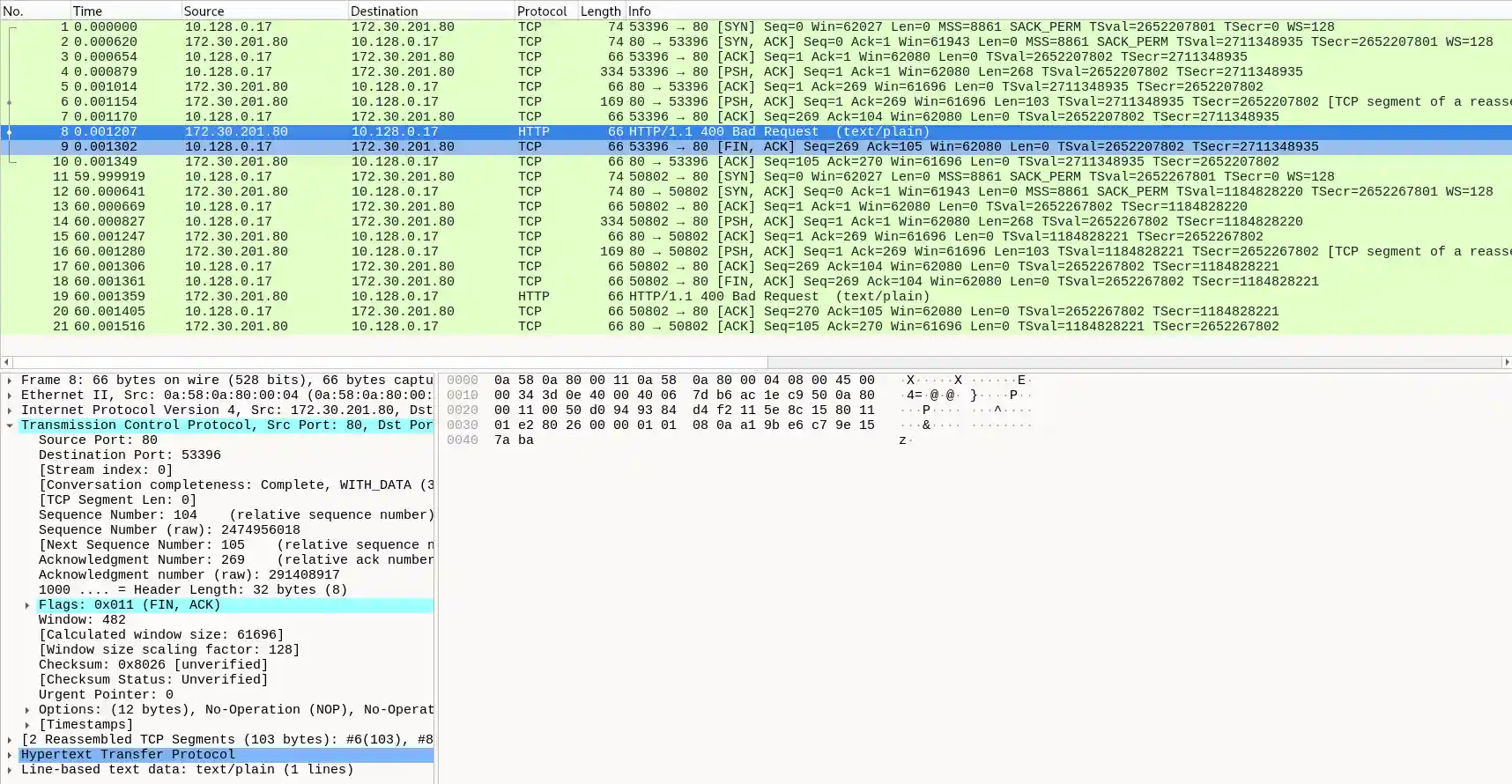

wireshark

Metrics dashboard (OCP only)

Run the following command to start capturing metrics, replacing USER, VERSION and COMMAND_ARGS accordingly:

USER=netobserv VERSION=dev COMMAND_ARGS='--enable_pkt_drop --enable_dns --enable_rtt' make metrics

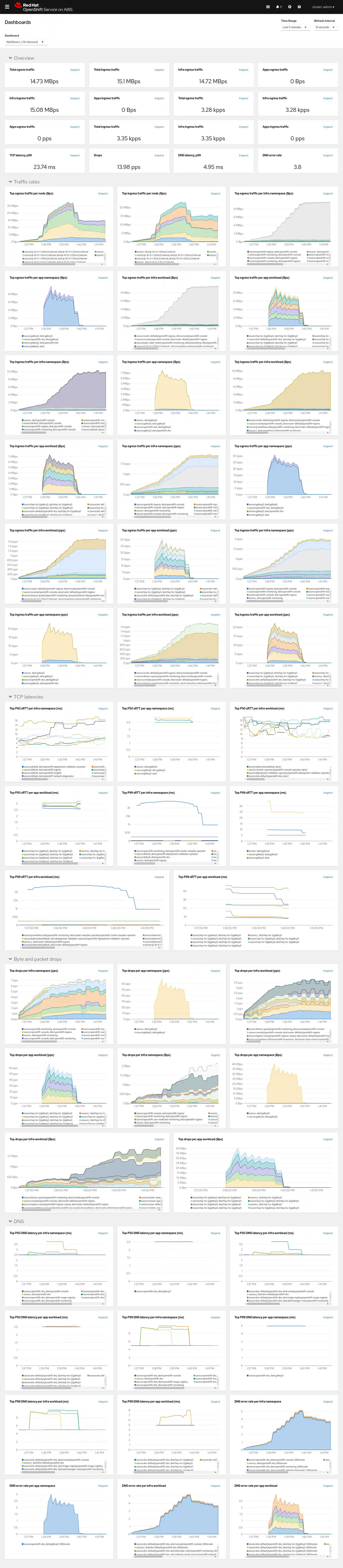

metrics

It will generate a monitoring dashboard called "NetObserv / On Demand" in your Openshift cluster. The url to access it is automatically generated from the CLI. Simply click on the link to open the page.

Cleanup

The cleanup function will automatically remove the eBPF programs when the CLI exits. However you may need to run it manually if running in background or an error occurs.

USER=netobserv VERSION=dev make cleanup

Extending OpenShift or Kubernetes CLI with plugins

You can add this plugin to your favorite oc or kubectl commands using the following steps:

K8S_CLI_BIN=oc make install-commands

OR

K8S_CLI_BIN=kubectl make install-commands

This will add netobserv commands to your CLI. You can verify the commands are available using:

OR

It will display as result:

The following compatible plugins are available:
...
/usr/bin/<oc|kubectl>-netobserv

More info on official OpenShift documentation.
