Mpcium is a high-performance, open-source Multi-Party Computation (MPC) engine for securely generating and managing cryptographic wallets across distributed nodes—without ever exposing the full private key.

At its cryptographic core, Mpcium integrates tss-lib, a production-grade threshold signature scheme library developed by Binance. It supports:

• ECDSA (secp256k1): Bitcoin, Ethereum, BNB, Polygon, and EVM-compatible L2 chains

• EdDSA (Ed25519): for Solana, Polkadot, Cardano, and other modern blockchains

Resources

• MPC nodes architecture: MPC Fundamental and MPCIUM architecture
• MPC clients:
  • TypeScript Client
  • Golang Client

📦 Dependencies Overview

Threshold & Nodes

Mpcium uses a t-of-n threshold scheme to securely generate and sign with private keys.

• n = total number of MPC nodes (key shares)
• t = minimum number of nodes required to sign

Only t out of n nodes need to participate — the full private key is never reconstructed.

To maintain security against compromised nodes, Mpcium enforces:

Example: 2-of-3 Threshold

• ✅ node0 + node1 → signs successfully
• ✅ node1 + node2 → signs successfully
• ❌ node0 alone → not enough shares

This ensures:

• No single point of compromise
• Fault tolerance if some nodes go offline
• Configurable security by adjusting t and n

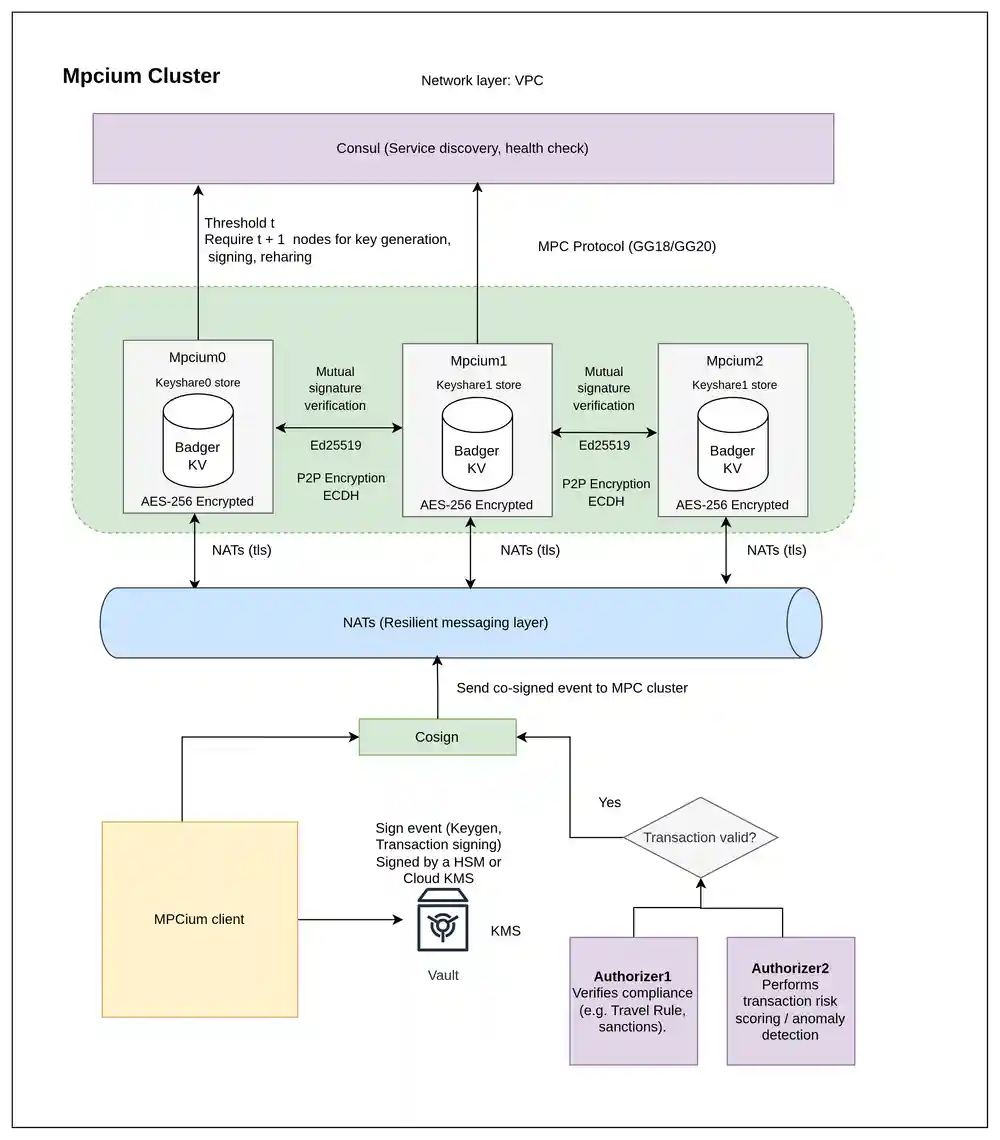

Architecture

Overview

Each Mpcium node:

• Holds a key share in local AES-256 encrypted storage (via Badger KV)
• Participates in threshold signing using tss-lib
• Communicates over a resilient messaging layer using NATS
• Registers itself with Consul for service discovery and health checks
• Verifies incoming messages using Ed25519-based mutual authentication

Message Flow & Signature Verification

1. A signing request is broadcast to the MPC cluster through NATS as an authenticated event. Each node verifies the sender's Ed25519 signature before processing the request.
2. NATS broadcasts the request to the MPC nodes.
3. Each participating node verifies:
   • The signature of the sender (Ed25519)
   • The authenticity of the message (non-replayable, unique session)
4. If the node is healthy and within the quorum (t), it:
   • Computes a partial signature using its share
   • Publishes the result back via NATS
5. Once t partial signatures are received, they are aggregated into a full signature.

Properties

• No single point of compromise: Keys are never fully assembled
• Byzantine-resilient: Only t of n nodes are required to proceed
• Scalable and pluggable: Easily expand the cluster or integrate additional tools
• Secure peer authentication: All inter-node messages are signed and verified using Ed25519

Configuration

The application uses a YAML configuration file (config.yaml) with the following key settings:

Database Configuration

• badger_password: Password for encrypting the BadgerDB database
• db_path: Path where the database files are stored

Backup Configuration

• backup_enabled: Enable/disable automatic backups (default: true)
• backup_period_seconds: How often to perform backups in seconds (default: 300)
• backup_dir: Directory where encrypted backups are stored

Network Configuration

• nats.url: NATS server URL
• consul.address: Consul server address

MPC Configuration

• mpc_threshold: Threshold for multi-party computation
• event_initiator_pubkey: Public key of the event initiator
• max_concurrent_keygen: Maximum concurrent key generation operations

chain_code (REQUIRED)

• Required for Hierarchical Deterministic (HD) wallet functionality to derive child keys
• Must be a 32-byte hexadecimal string (64 characters)
• All nodes MUST use the exact same chain_code value
• Generate with: openssl rand -hex 32
• See INSTALLATION.md for detailed setup instructions

Installation

• Local Development: For quick setup and testing, see INSTALLATION.md
• Production Deployment: For secure production deployment with systemd, see deployments/systemd/README.md

Preview usage

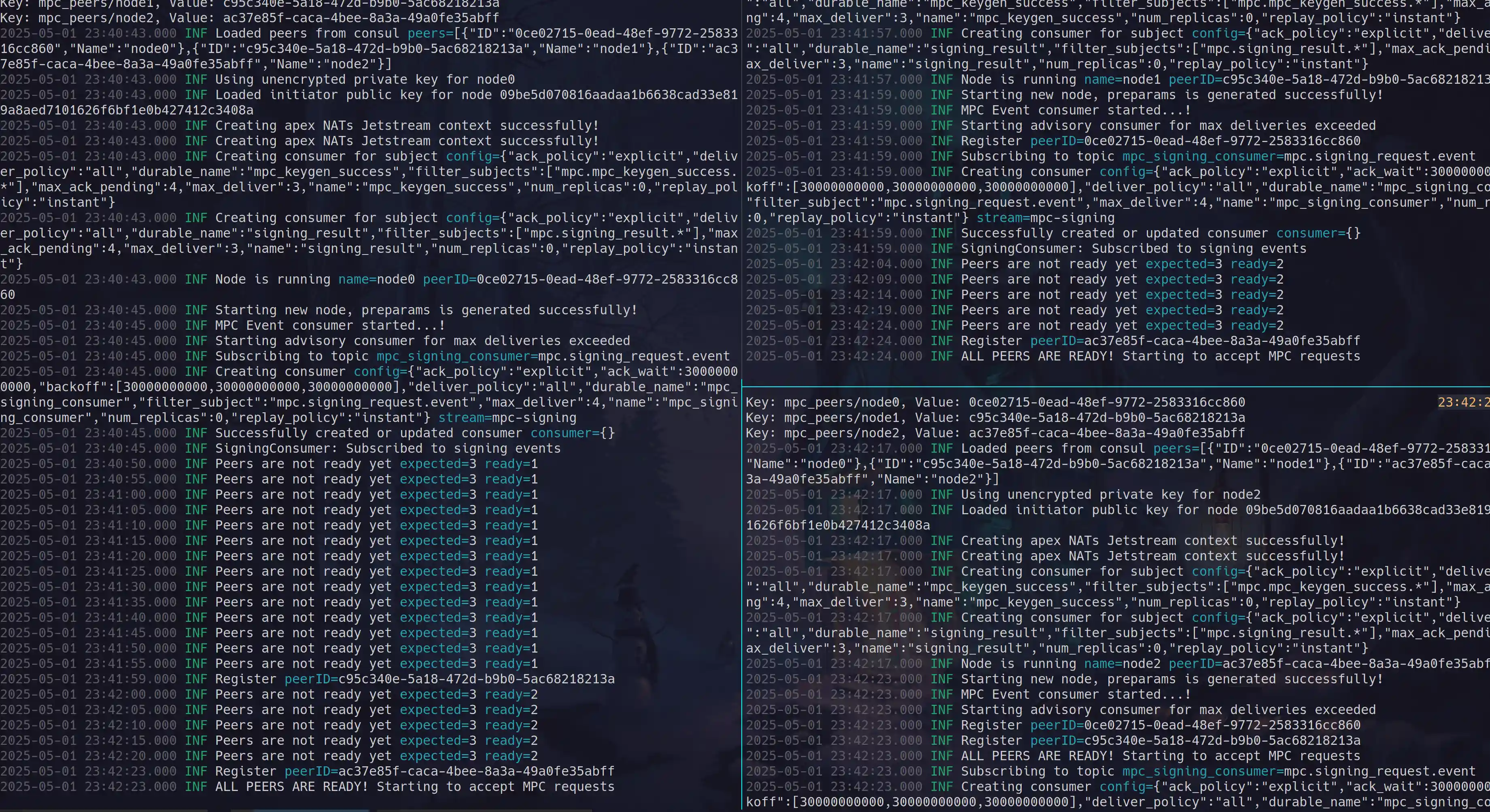

Start nodes

$ mpcium start -n node0
$ mpcium start -n node1
$ mpcium start -n node2

Client Implementations

• Go: Available in the pkg/client directory. Check the examples folder for usage samples.
• TypeScript: Available at github.com/fystack/mpcium-client-ts

Client Usage

Mpcium supports flexible client authentication through a signer interface, allowing you to use either local keys or AWS KMS for signing operations.

Client ID (Result Routing)

When multiple client instances connect to the same MPC cluster, each client must set a unique ClientID to avoid result routing conflicts. Without distinct client IDs, two clients requesting operations concurrently may race for the same result message, causing one client to receive the other's response.

• ClientID scopes the NATS consumer and result subject so each client only receives its own results.
• Allowed characters: alphanumeric, hyphens, and underscores (e.g. "backend-svc-1", "mobile_api").
• If you only run a single client instance, ClientID can be omitted (empty string).

Local Signer (Ed25519)

import (
    "github.com/fystack/mpcium/pkg/client"
    "github.com/fystack/mpcium/pkg/event"
    "github.com/fystack/mpcium/pkg/types"
    "github.com/google/uuid"
    "github.com/nats-io/nats.go"
)

func main() {
    // Connect to NATS
    natsConn, err := nats.Connect(natsURL)
    if err != nil {
        logger.Fatal("Failed to connect to NATS", err)
    }
    defer natsConn.Close()

    // Create local signer with Ed25519 key
    localSigner, err := client.NewLocalSigner(types.EventInitiatorKeyTypeEd25519, client.LocalSignerOptions{
        KeyPath: "./event_initiator.key",
    })
    if err != nil {
        logger.Fatal("Failed to create local signer", err)
    }

    // Create MPC client with signer and a unique client ID
    mpcClient := client.NewMPCClient(client.Options{
        NatsConn: natsConn,
        Signer:   localSigner,
        ClientID: "backend-svc-1", // unique per client instance
    })

    // Handle wallet creation results
    err = mpcClient.OnWalletCreationResult(func(event event.KeygenResultEvent) {
        logger.Info("Received wallet creation result", "event", event)
    })
    if err != nil {
        logger.Fatal("Failed to subscribe to wallet-creation results", err)
    }

    // Create a wallet
    walletID := uuid.New().String()
    if err := mpcClient.CreateWallet(walletID); err != nil {
        logger.Fatal("CreateWallet failed", err)
    }
    logger.Info("CreateWallet sent, awaiting result...", "walletID", walletID)
}

Local Signer (P256 with encrypted key)

// Create local signer with P256 key (encrypted with age)
localSigner, err := client.NewLocalSigner(types.EventInitiatorKeyTypeP256, client.LocalSignerOptions{
    KeyPath:   "./event_initiator_p256.key.age",
    Encrypted: true,
    Password:  "your-encryption-password",
})

AWS KMS Signer

Production (IAM Role-based Authentication)

For production environments using IAM roles (recommended):

import (
    "github.com/fystack/mpcium/pkg/client"
    "github.com/fystack/mpcium/pkg/types"
)

func main() {
    // KMS signer with role-based authentication (no static credentials)
    kmsSigner, err := client.NewKMSSigner(types.EventInitiatorKeyTypeP256, client.KMSSignerOptions{
        Region: "us-east-1",
        KeyID:  "arn:aws:kms:us-east-1:123456789012:key/12345678-1234-1234-1234-123456789012",
        // No AccessKeyID/SecretAccessKey - uses IAM role
    })
    if err != nil {
        logger.Fatal("Failed to create KMS signer", err)
    }

    mpcClient := client.NewMPCClient(client.Options{
        NatsConn: natsConn,
        Signer:   kmsSigner,
        ClientID: "kms-client-1", // unique per client instance
    })
    // ... rest of the client code
}

Development with Static Credentials

// KMS signer with static credentials (development only)
kmsSigner, err := client.NewKMSSigner(types.EventInitiatorKeyTypeP256, client.KMSSignerOptions{
    Region:          "us-west-2",
    KeyID:           "12345678-1234-1234-1234-123456789012",
    AccessKeyID:     "AKIA...",
    SecretAccessKey: "...",
})

LocalStack Development

// KMS signer with LocalStack for local development
kmsSigner, err := client.NewKMSSigner(types.EventInitiatorKeyTypeP256, client.KMSSignerOptions{
    Region:          "us-east-1",
    KeyID:           "48e76117-fd08-4dc0-bd10-b1c7d01de748",
    EndpointURL:     "http://localhost:4566",  // LocalStack endpoint
    AccessKeyID:     "test",                   // LocalStack dummy credentials
    SecretAccessKey: "test",
})

AWS Cloud Config Variations

// Different regions and key formats
configs := []client.KMSSignerOptions{
    // Key ID only
    {
        Region: "eu-west-1",
        KeyID:  "12345678-1234-1234-1234-123456789012",
    },
    // Full ARN
    {
        Region: "ap-southeast-1",
        KeyID:  "arn:aws:kms:ap-southeast-1:123456789012:key/12345678-1234-1234-1234-123456789012",
    },
    // Key alias
    {
        Region: "us-east-2",
        KeyID:  "alias/mpcium-signing-key",
    },
}

Note: AWS KMS only supports P256 (ECDSA) keys, not Ed25519. If you need Ed25519, use the local signer.

Test with AWS KMS (LocalStack)

For local development and testing with AWS KMS functionality, you can use LocalStack to simulate AWS KMS services.

Setup LocalStack

1. Install and start LocalStack:

   # Using Docker
   docker run -d \
     -p 4566:4566 \
     -p 4510-4559:4510-4559 \
     localstack/localstack

   # Or using LocalStack CLI
   pip install localstack
   localstack start

2. Configure AWS CLI for LocalStack:

   aws configure set aws_access_key_id test
   aws configure set aws_secret_access_key test
   aws configure set region us-east-1

Create P256 Key in LocalStack

1. Create a P256 keypair in AWS KMS:

   aws kms create-key \
     --endpoint-url=http://localhost:4566 \
     --description "Test P-256 keypair for Mpcium" \
     --key-usage SIGN_VERIFY \
     --customer-master-key-spec ECC_NIST_P256

   Expected response:

   {
     "KeyMetadata": {
       "AWSAccountId": "000000000000",
       "KeyId": "330a9df7-4fd9-4e86-bfc5-f360b4c4be39",
       "Arn": "arn:aws:kms:us-east-1:000000000000:key/330a9df7-4fd9-4e86-bfc5-f360b4c4be39",
       "CreationDate": "2025-08-28T16:42:18.487655+07:00",
       "Enabled": true,
       "Description": "Test P-256 keypair for Mpcium",
       "KeyUsage": "SIGN_VERIFY",
       "KeyState": "Enabled",
       "Origin": "AWS_KMS",
       "KeyManager": "CUSTOMER",
       "CustomerMasterKeySpec": "ECC_NIST_P256",
       "KeySpec": "ECC_NIST_P256",
       "SigningAlgorithms": ["ECDSA_SHA_256"],
       "MultiRegion": false
     }
   }

2. Get the public key (save the KeyId from step 1):

   export KMS_KEY_ID="330a9df7-4fd9-4e86-bfc5-f360b4c4be39"  # Replace with your KeyId

   aws kms get-public-key \
     --endpoint-url=http://localhost:4566 \
     --key-id $KMS_KEY_ID \
     --query PublicKey \
     --output text | base64 -d | xxd -p -c 256

   Expected response (hex-encoded public key):

   3059301306072a8648ce3d020106082a8648ce3d030107034200042b7539fc51123c3ba53c71e244be71d2d3138cbed4909fa259b924b56c92148cadd410cf98b789269d7f672c3ba978e99fc1f01c87daee97292d3666357738fd


Configure Mpcium for LocalStack KMS

Update your config.yaml file with the KMS public key and algorithm:

# MPC Configuration
mpc_threshold: 2
event_initiator_pubkey: "3059301306072a8648ce3d020106082a8648ce3d030107034200042b7539fc51123c3ba53c71e244be71d2d3138cbed4909fa259b924b56c92148cadd410cf98b789269d7f672c3ba978e99fc1f01c87daee97292d3666357738fd"
event_initiator_algorithm: "p256"

# Other configuration...
nats:
  url: "nats://localhost:4222"
consul:
  address: "localhost:8500"

Test KMS Integration

Run the KMS example:

# Run the KMS example directly
go run examples/generate/kms/main.go -n 1

The example will:

1. Connect to LocalStack KMS endpoint
2. Load the P256 public key from KMS
3. Use KMS for signing wallet creation events
4. Generate wallets using the MPC cluster

Authorization (Optional)

Mpcium can enforce an extra authorization layer on top of the initiator signature. When enabled, every keygen, signing, or reshare request must include signatures from trusted authorizers, strengthening decentralization and operational control. Authorization is disabled by default—activate it by extending your config.yaml (or per-node configs) with the block below:

authorization:
  enabled: true
  required_authorizers:
    - authorizer1
    - authorizer2
  authorizer_public_keys:
    authorizer1:
      public_key: "4711ec2728feb66f223078140323e0947a70a5fa36615c21382c2a9bc9241524"
      algorithm: "ed25519"
    authorizer2:
      public_key: "33d5b5b3973c9bd46d782bc5488ea1840188234b0cbed66153b691caafe85385"
      algorithm: "p256"

• enabled: toggle the feature without removing existing configuration.
• authorizer_public_keys: register every authorizer ID and algorithm. Ed25519 keys must be 32-byte hex strings. P256 keys must use the hex-encoded PKIX (DER) bytes generated by the CLI.
• required_authorizers: list the IDs that must sign every request. Leave empty to accept any subset of the registered authorizers.
• When authorization is on, upstream clients must attach matching signatures in the request payload; missing or invalid entries cause the node to reject the operation.

Generating Authorizers

Use mpcium-cli to issue authorizer identities and keys. The command below writes a JSON identity file (containing the public_key to paste into config.yaml) and a private key file, optionally protected with Age:

mpcium generate-authorizer \
  --name authorizer1 \
  --algorithm p256 \
  --output-dir ./authorizers \
  --encrypt

• --algorithm supports ed25519 and p256 (default: ed25519).
• --encrypt stores the private key as <name>.authorizer.key.age; omit it to write the plain hex key.
• The identity JSON is saved as <name>.authorizer.identity.json; copy the public_key into authorization.authorizer_public_keys.

Testing

1. Unit tests

2. Integration tests

Benchmarking

Test MPC performance with the integrated benchmark tool:

Keygen Benchmark

# Test wallet creation
mpcium-cli benchmark keygen 10

# With config and output file
mpcium-cli benchmark --config config.yaml --output results.txt keygen 50

Signing Benchmark

# Test ECDSA signing
mpcium-cli benchmark sign-ecdsa 100 wallet-id

# Test EdDSA signing
mpcium-cli benchmark sign-eddsa 100 wallet-id

# With custom batch size and output
mpcium-cli benchmark --config config.yaml --output signing-results.txt \
  sign-ecdsa 1000 wallet-id --batch-size 20

Use --prompt-password for secure key password input and --help for all options.
