Open Prose Metrics
https://opm.gonzotraining.com
Feed this web application a file, url, or paste with prose in English and it will provide data from which an assessment can be made, for the purposes of:
-
planning substantive revision
-
setting writing goals or objectives, as case managers might do
-
track a your progress toward a writing objective or accomplishing a challenge
-
or, track the progress of a student toward written langauge goals, or written expression or mechanics objects.
-
Generate speech from text for proofing or an accessibility toool (downloadable as mp3)
Python3, Flask, Apache2, mod_wsgi, stanford_ner, and NLTK are involved. The repo includes a Vagrantfile (contents at the end of this document).
However, the other tools can be used to install on Ubuntu 18.04, or adapted for other releases and distros.
Tested Environment
Linux: vagrant box "bento/ubuntu-18.04"
Python: Python3.7.5
According to flask --version:
Python 3.7.5 Flask 1.1.1 Werkzeug 0.16.0
Apache2
mod_wsgi 7.7.1
Try It
File structure, rough deployment script, building mod_wsgi from source, and a sample apache2 virtual server conf for the application are provided below.

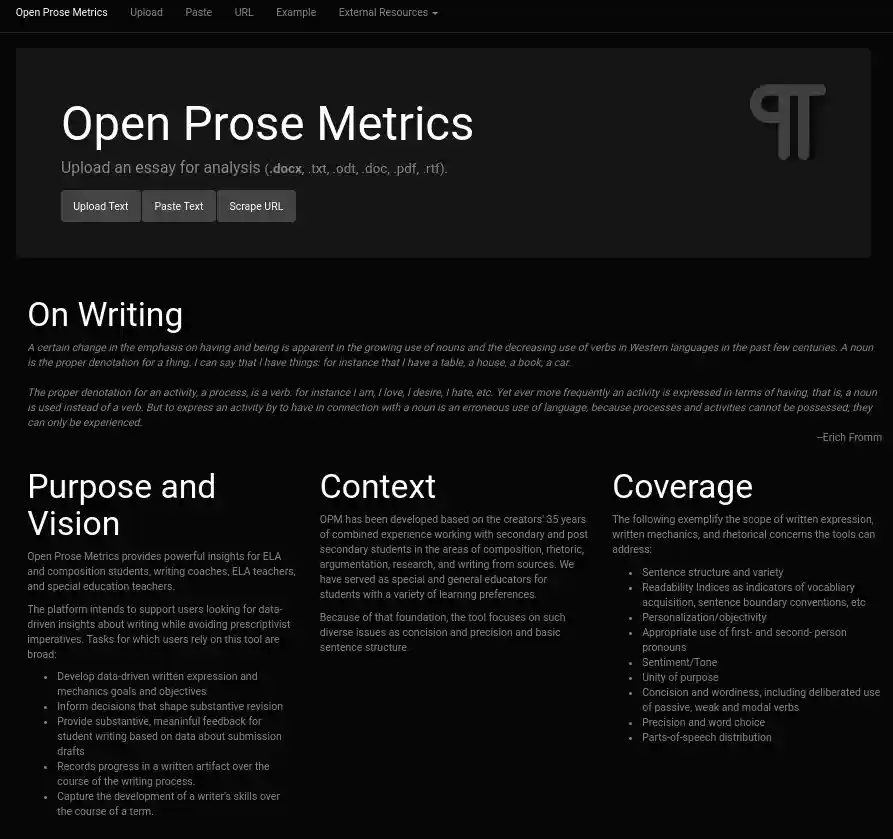

demo server at https://opm.gonzotraining.com. interface is a bit different than what's provided here.
Install for your school or test env or home with this repo.
The deployment script assumes /vagrant exists and the user is vagrant.
However, there are vars at the top of the script. Replace /vagrant with $installer_dir and set the var to the path to your target directory without a trailing slash (such as /var/www/html/open-prose-metrics). A simple change is necessary for the alias definition in the virtual host config (below) as well.
File Structure
/
--/home/$USER/opm/ # app home. No ___init__.py present.
|--wsgi.py # gunicorn wsgi file
|--input/read_document # from opm/app/input/ directory, not opm/opm/input/
--/tmp/
|--gunicorn.sock # created dynamically as needed. Will have permissions from service definition(?)
--/usr/share/
|--stanfor-ner/ # create using sudo as $USER (owner of app);
|--nltk-data/ # create directory, then python -m nltk.downloader -d /usr/share/nltk_data stopwords words punkt brown vader_lexicon averaged_perceptron_tagger maxent_ne_chunker
--/etc/
|--systemd/system/gunicorn.service # specifically for opm
|--/etc/apache2/sites-available/opm.conf #
--/var/
|--log/opm/ # todo: change to opm
|--error.log # for the apache vhost
|--log/extraeyes/
|--app.log # flask output to stdout and stderror when running with flask app in venv
Draft Deployment: Flask, Apache2 w mod_wsgi (ubuntu-18.04)
application user: vagrant
#!/bin/bash -ex INSTALLER_DIR="/vagrant" TARGET_DIR="/var/www/html/open-prose-metrics" APP_OWNER="vagrant" APP_GROUP="www-data" LOG_DIR="/var/log/opm" VENV="/var/www/html/open-prose-metrics/virtualenv" NER_DIR="/usr/share" NLTK_DATA_DIR="/usr/share/nltk_data" # dpkg-reconfigure tzdata (automation?) ln -fs /usr/share/zoneinfo/US/Eastern /etc/localtime && dpkg-reconfigure -f noninteractive tzdata # Repository - General echo "Install from Ubuntu Package Manager" apt update && apt upgrade -y apt install -y linux-headers-$(uname -r) apt install -y apache2 python3 python3-dev python3-pip apt install -y python3.7 python3.7-dev apt install -y libenchant-dev unzip openjdk-8-jre-headless # Repository - depends for pycurl apt install -y libcurl4-openssl-dev libssl-dev # Repository - for scipy and numpy apt install -y libatlas-base-dev # Repository - possibly required by numpy and scipy apt install -y libpython3.7 libpython3.7-dev gcc gfortran python-dev libopenblas-dev liblapack-dev cython # Repository - compiling mod-wsgi for python: dependencies apt install -y apache2-dev # Stanford NER (Required by nltk for opm NER) wget https://nlp.stanford.edu/software/stanford-ner-4.0.0.zip unzip stanford-ner-4.0.0.zip -d $NER_DIR chown -R $APP_OWNER:$APP_GROUP $NER_DIR mv $NER_DIR/stanford-ner-4.0.0 $NER_DIR/stanford-ner # depends for pycurl apt install -y libcurl4-openssl-dev libssl-dev # Pip: system-wide dependencies echo "Get Pip for Python3.7" curl https://bootstrap.pypa.io/get-pip.py -o get-pip.py python3.7 get-pip.py pip3.7 install wheel virtualenv ipython echo "Create VENV" virtualenv -p python3.7 $VENV source $VENV/bin/activate echo "Install from venv pip" pip install -r /vagrant/opm/requirements.txt # opm echo "Copy App Folder" cp -r /vagrant/opm $TARGET_DIR/opm # move app folder #Create and set permissions echo "Create Files and Directories and Set Permissions" mkdir /var/log/extraeyes /var/log/opm /home/$APP_OWNER/.plotly touch /var/log/extraeyes/app.log chown -R $APP_OWNER:$APP_GROUP /var/log/extraeyes chown -R $APP_OWNER:$APP_GROUP /var/log/opm chown -R $APP_OWNER:$APP_GROUP /home/$APP_OWNER/.plotly chmod 775 /home/$APP_OWNER/.plotly chown -R $APP_OWNER:$APP_GROUP $TARGET_DIR #nltk_data echo "Fetching NLTK data" python -m nltk.downloader -d /usr/share/nltk_data stopwords words punkt brown vader_lexicon averaged_perceptron_tagger maxent_ne_chunker #for ner echo "Pre-create Postagger (depends on stanford NER)" chown -R $APP_OWNER:$APP_GROUP $NER_DIR/stanford-ner cd $TARGET_DIR/opm && python postagger.py echo "Seeding Database and Testing Backend" cd $TARGET_DIR/opm && python seed_database.py echo "Configuring Apache2" cp $INSTALLER_DIR/opm-configs/etc/apache2/sites-available/*.conf /etc/apache2/sites-available/ sed -i "s|{{ owner }}|$APP_OWNER|" /etc/apache2/sites-available/opm.conf sed -i "s|{{ group }}|$APP_GROUP|" /etc/apache2/sites-available/opm.conf a2dissite 000-default a2ensite opm.conf apt clean #systemctl reload apache2 # END - mod_wsgi will be called echo "Finished. Next, wsgi-install will be called to compile, install mod_wsgi and reload apache2"
Configure, Make, Install mod_wsgi
cd /vagrant/ unzip /vagrant/4.7.1.zip cd mod_wsgi-4.7.1/ ./configure --with-python=/usr/bin/python3.7 make make install #cp /usr/lib/apache2/modules/mod_wsgi.so /etc/apache2/modules/ chmod 644 /usr/lib/apache2/modules/mod_wsgi.so systemctl reload apache2
http server conf apache2
LoadModule wsgi_module /usr/lib/apache2/modules/mod_wsgi.so <VirtualHost *> ServerName blah.com ServerAlias opm.blah.com ServerAlias essayeyes.com #WSGIDaemonProcess opm user={{ owner }} group={{ group }} threads=5 WSGIDaemonProcess opm user=vagrant group=www-data threads=5 python-path=/var/www/html/open-prose-metrics/opm:/var/www/html/open-prose-metrics/virtualenv/lib/python3.7/site-packages WSGIScriptAlias / /var/www/html/open-prose-metrics/opm/opm.wsgi <Directory /var/www/html/open-prose-metrics> WSGIProcessGroup opm WSGIApplicationGroup %{GLOBAL} #Order deny,allow Allow from all </Directory> ErrorLog /var/log/opm/error.log </VirtualHost>
Sample Vagrant File
# -*- mode: ruby -*- # vi: set ft=ruby : Vagrant.configure("2") do |config| config.vm.box = "bento/ubuntu-18.04" config.vm.network "forwarded_port", guest: 80, host: 8081 config.vm.network "forwarded_port", guest: 5000, host: 5000 #config.vm.provision "file", source: "opm", destination: "~/opm" #config.vm.provision "file", source: "flask-nginx-gunicorn/gunicorn/systemd/gunicorn.service", destination: "/etc/systemd/system/gunicorn.service" #config.vm.provision "file", source: "flask-nginx-gunicorn/nginx/opm", destination: "/etc/nginx/sites-available/opm" config.vm.provision "shell", path: "deploy.sh" config.vm.provision "shell", path: "wsgi-install.sh" config.vm.provider :virtualbox do |vb| # # Don't boot with headless mode # vb.gui = true # # # Use VBoxManage to customize the VM. For example to change memory: vb.customize ["modifyvm", :id, "--memory", "1024", "--cpus", "2"] # once installed, 2048 is ok. One vcpu is file end end
© rik goldman, MIT LICENSE
High-school students at Chelsea School in Hyattsville, MD, gave encouragement and supported initial explorations into just how viable this project would be.
