GitHub - heartacker/VariableBox.Avalonia

Want to help

欢迎任何人士帮忙支持并让这个简单控件变得更好，我们需要你们。

welcome any one to help and make this simple control better, we need you.

VariableBox is an Avalonia Control for building cross-platform UIs with Avalonia UI.

Theme	Fluent	Semi

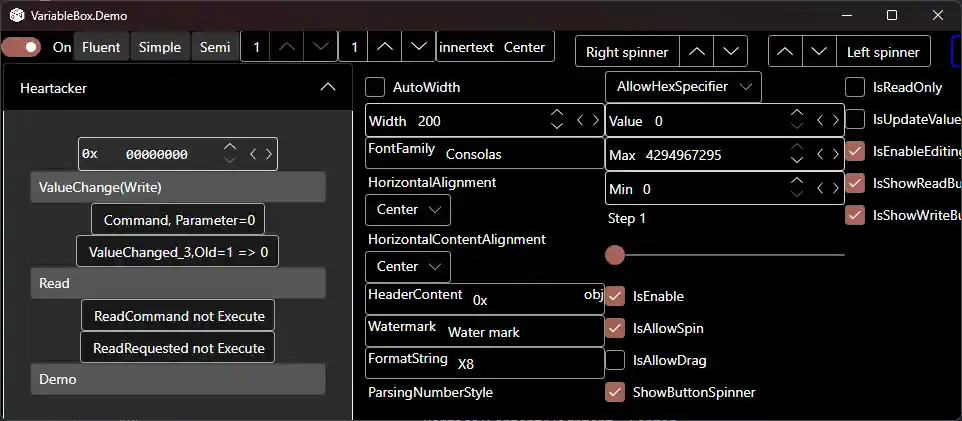

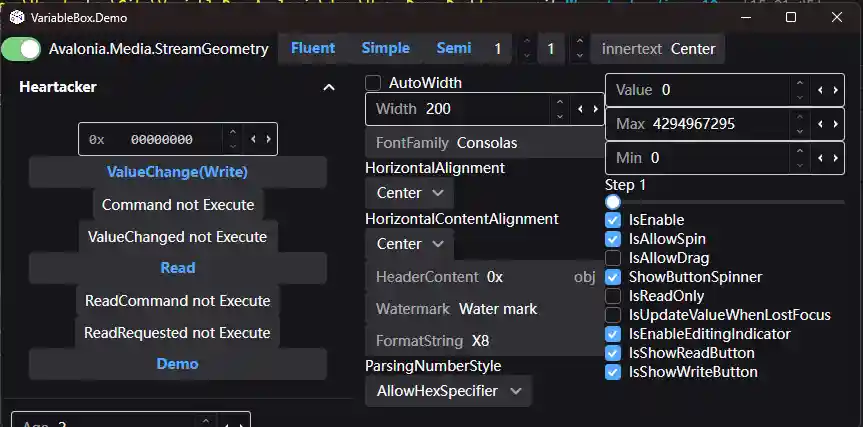

Dark

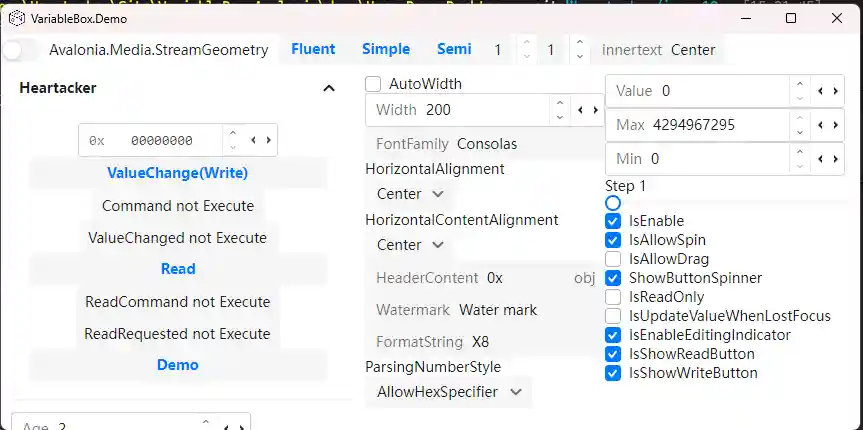

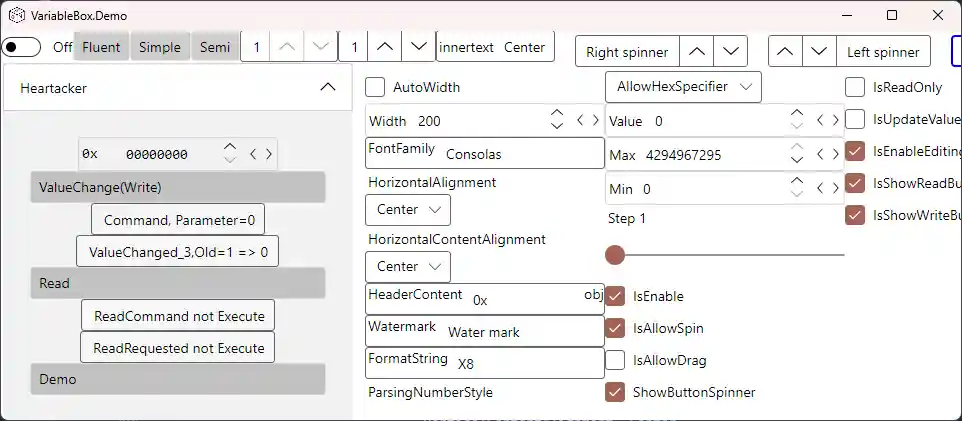

Light

ChangeLog

2025/03/10(0.8.0)
- unify the semi NumericalBox and VariableBox
- Use MonoSpace etc. font by default
- Update readme for event and command
- Update demo for event and command
2025/02/25(0.7.0)
- Mass UI Polish
- Uniform the UI for each App Theme
- An new Spinner Theme for FluentTheme
  - you can change the NumericUpDown Theme just like VariableBox
2025/02/21(v0.6.0)
1. unify the tab key focus behavior, only the text box and read write button can be focused
2. fix the enter key trigger behavior bug
3. style polish, uniform the style of the button spinner and the disabled style
4. demo update
2025/02/20(v0.5.0)
1. remote property IsEnableEditingIndicator indicator
2. please use the PseudoClasses
  1. :editing for editing
  2. :invalid for invalid input
2025/02/19(v0.4.0)
1. fix the style of buttonspinner and the disabled style
  1. fluent,semi and simple is all supported
2025/1/21(v0.3.0)
1. Add an overall border to create a more unified visual effect.
2. other polish
2025/1/9 (v0.2.1)
1. Using a theme pack that is compatible with Simple, Fluent, and SemiThemes.
2. Package Theme To the Control Package, You do not need another package anymore

Feature

NumericalUpDown

all numerical type support
spinning updown support
get (read) /set (write) support
rich formatting support like hex, dec and bin
drag support, you can use mouse to drag
mouse scroll support
shortcut and arrow key support
- Esc for cancel editing
- Enter for trigger
- up for increase
- down for decrease
- alt+left for read
- alt+right/alt+enterfor trigger (force) write
identify support
- * for editing
- red * for error input
- green * for right input

EnumerationUpDown

compact mode
boarder

How to use

VariableBox

Add nuget package:

dotnet add package VariableBox.Avalonia

You can now use VariableBox controls in your Avalonia Application.

<Window
    ...
    xmlns:vbox="VariableBox"
    ...>
    <StackPanel Margin="20">
        <vbox:VariableBoxUInt Value="{Binding Value}"
            FormatString="X8"
            HeaderContent="0x"
            ParsingNumberStyle="AllowHexSpecifier"
            Step="2"
            IsEnableEditingIndicator="True"
            />
    </StackPanel>
</Window>

CommandS and Events

FYI, you can see demo.

Event

we have Read and Write(ValueChenged)Event.

ValueChanged or you click write, you can get the old and new value

public event EventHandler<ValueChangedEventArgs<T>>? ValueChanged
ReadRequestedEvent When you Click Read,

you can update your value while reading and there is not valueChangeEvent

public event RoutedEvent<RoutedEventArgs> ReadRequestedEvent
HeaderDoubleTapedEvent When you Double the header

public static readonly RoutedEvent<TappedEventArgs> HeaderDoubleTapedEvent

Command for MVVM

Commnad Value changed or click the write

Please don't set the CommandParater to Current Value, Like CommandParameter="{Binding Value}" will get you the old value
1. you can just binding with a command like WriteCommnad(uint v), you don't need to set the Command parater by default
2. we will send the updated-value for you
ReadCommand When you click Read

same as Commnad, The default parameter will be the current value
HeaderDoubleTapedCommand when you double click the Header

Demo

//view
Command="{Binding TrythisCommand}"
ReadCommand="{Binding ReadDemoCommand}"

// viewmodel
[RelayCommand]
void Trythis(uint v)
{
    CommandUpdateText =
    $"Binding without CommandParater, and the default parameter will be the new value={v}";
}

// viewmodel
[RelayCommand]
void Trythis()
{
    // also work too
}

// viewmodel
[RelayCommand]
void ReadDemo(uint v)
{
    CommandUpdateText =
    $"Binding without CommandParater,
    and the default parameter will be the current value={v}";
}

// viewmodel
[RelayCommand]
void ReadDemo()
{
    // also work too
}

Note for command

CommandParameter="{Binding Value}" will get you the old value

PseudoClasses

VariableBox is based vbox:NumericUpDown

:editing for editing
:invalid for invalid input

e.g.:

<Style Selector="vbox|NumericUpDown:editing">
  <Style Selector="^ /template/ TextBox#PART_TextBox">
      <Setter Property="Foreground" Value="Green" />
  </Style>
  <Style Selector="^:invalid /template/ TextBox#PART_TextBox">
      <Setter Property="Foreground" Value="Red" />
  </Style>
</Style>

VariableBox.Themes

To make VariableBox controls show up in your application, you need to reference to a theme package designed for VariableBox.

YOU do not need any other VariableBox package now

vbox:FluentTheme is compatible with <FluentTheme/>
vbox:SemiTheme is a theme package for VariableBox inspired by Semi Design.

you need to add package Semi.Avalonia first
vbox:SimpleTheme is compatible with <SimpleTheme/>

You can add it to your project by following steps.

Add nuget package:

dotnet add package VariableBox.Avalonia

Include Styles in application:

FluentTheme

<Application...
    xmlns:vbox="VariableBox"
    ....>
    <Application.Styles>
        <!-- set this theme -->
        <vbox:FluentTheme Locale="zh-CN"/>
    </Application.Styles>

SimpleTheme

<Application...
    xmlns:vbox="VariableBox"
    ....>
    <Application.Styles>
        <SimpleTheme/>
        <vbox:SimpleTheme Locale="zh-CN"/>
    </Application.Styles>

SemiTheme

dotnet add package Semi.Avalonia

<Application...
    xmlns:vbox="VariableBox"
    ....>
    <Application.Styles>
        <!-- if use semi -->
        <semi:SemiTheme Locale="zh-CN"/>
        <vbox:SemiTheme Locale="zh-CN"/>
    </Application.Styles>

Additional Theme for Fluent ButtonSpinner

for FluentTheme user, you can changed the ButtonSpinner just like VariableBox

for example:

ButtonSpinner

<ButtonSpinner Content="10" Theme="{DynamicResource FluentButtonSpinner}" />

Sys NumericUpDown

<NumericUpDown InnerLeftContent="Theme" Value="2">
  <NumericUpDown.Styles>
    <Style Selector=":is(ButtonSpinner)">
        <Setter Property="Theme" Value="{DynamicResource FluentButtonSpinner}" />
    </Style>
  </NumericUpDown.Styles>
</NumericUpDown>

<Style Selector="NumericUpDown /template/ :is(ButtonSpinner)">
    <Setter Property="Theme" Value="{DynamicResource FluentButtonSpinner}" />
</Style>
