CPython-Internals/BasicObject/enum/enum.md at master · iloeng/CPython-Internals

contents

related file

  • cpython/Objects/enumobject.c
  • cpython/Include/enumobject.h
  • cpython/Objects/clinic/enumobject.c.h

memory layout

enumerate is a type. The instance of an enumerate object is an iterable object; you can iterate through the real delegated object while counting the index at the same time

layout

example

normal

def gen():
    yield "I"
    yield "am"
    yield "handsome"

e = enumerate(gen())

>>> type(e)
<class 'enumerate'>

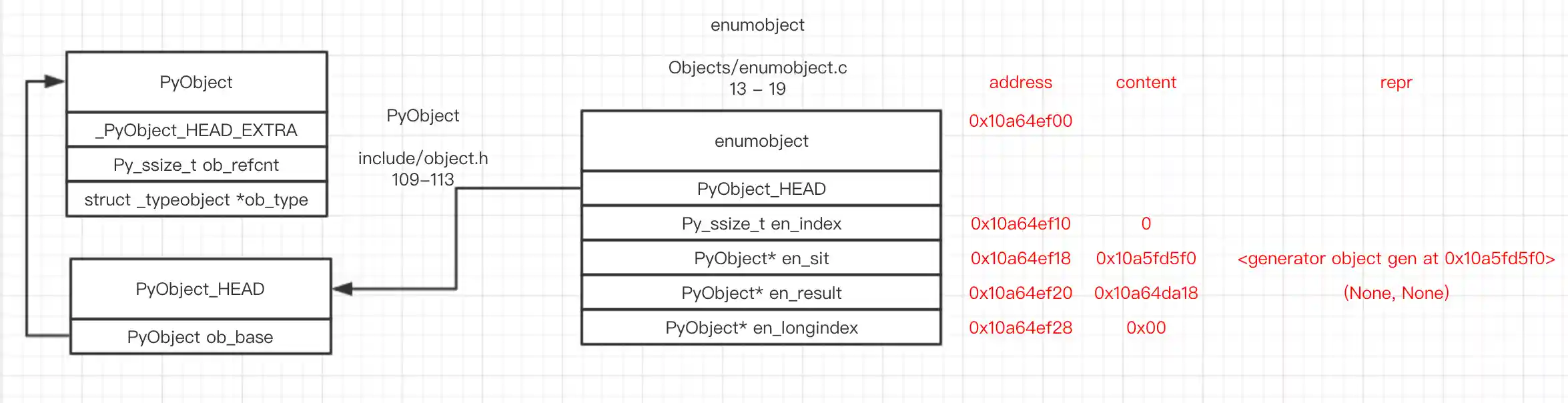

Before iterating through the object e, the en_index field is 0, en_sit stores the actual generator object being iterated, and en_result points to a tuple object with two empty values.

We will see the meaning of en_longindex later

example0

>>> t1 = next(e)
>>> t1
(0, 'I')
>>> id(t1)
4469348888

Now the en_index becomes 1. The tuple in en_result is the last tuple object returned. The elements in the tuple are changed, but the address in en_result doesn't change, and this is not because of the free-list mechanism in tuple.

It's a trick in the enumerate iterating function

static PyObject *
enum_next(enumobject *en)
{
    /* omit */
    PyObject *result = en->en_result;
    /* omit */
    if (result->ob_refcnt == 1) {
        /* reference count of the tuple object is 1
          the only count is from the current enumerate object
          since we no longer need the old two element in tuple
          we can reset it instead of creating a new one
          */
        Py_INCREF(result);
        old_index = PyTuple_GET_ITEM(result, 0);
        old_item = PyTuple_GET_ITEM(result, 1);
        PyTuple_SET_ITEM(result, 0, next_index);
        PyTuple_SET_ITEM(result, 1, next_item);
        Py_DECREF(old_index);
        Py_DECREF(old_item);
        return result;
    }
    /*
    reach here, there are other reference to the old tuple
    we must create a new one instead of reset it
    */
    result = PyTuple_New(2);
    if (result == NULL) {
        Py_DECREF(next_index);
        Py_DECREF(next_item);
        return NULL;
    }
    PyTuple_SET_ITEM(result, 0, next_index);
    PyTuple_SET_ITEM(result, 1, next_item);
    return result;
}

It's clear: because only the current enumerate object keeps a reference to the old tuple object -> (None, None) object.

enum_next resets the 0th element in the tuple to 0 and the 1st element in the tuple to 'I', so the address en_result points to is the same

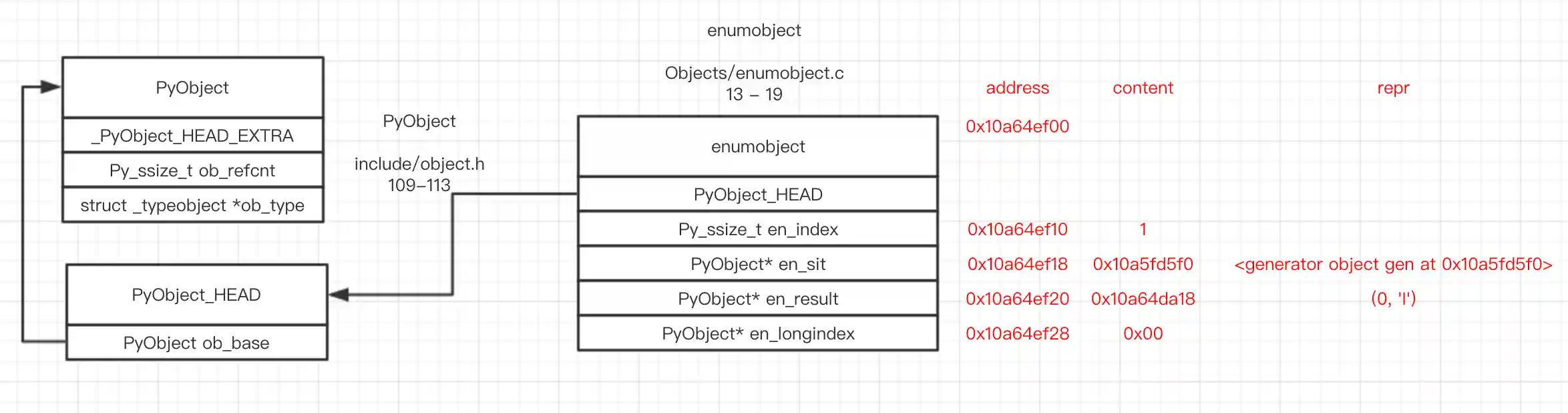

example1

Because the reference count of the tuple object (0, 'I') # id(4469348888) now becomes 2 (one from the enumerate object and one from variable t1), the enum_next function will create and return a new tuple instead of resetting the one stored in en_result.

The en_index is incremented, and en_result still points to the old tuple object (0, 'I') # id(4469348888)

example2

after del t1, the reference count of tuple object (0, 'I') # id(4469348888) becomes 1, so enum_next will reset the tuple en_result pointed to and returns it again

>>> del t1 # decrement the reference count of the object referenced by t1
>>> next(e)
(2, 'handsome')

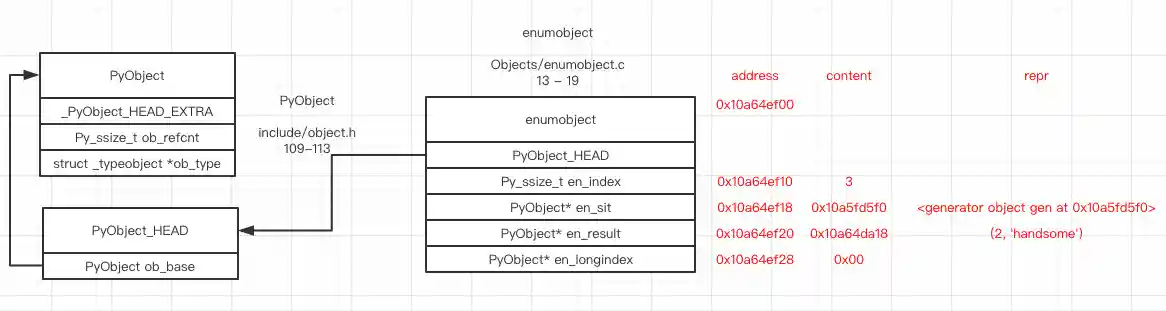

example3

The termination state is indicated by the object inside the en_sit field; nothing changed in the enumerate object

>>> next(e)
Traceback (most recent call last):
  File "<stdin>", line 1, in <module>
StopIteration

example3

en_longindex

Usually, the index of an enumerate object is stored in the en_index field. en_index is of type Py_ssize_t in C, and Py_ssize_t is defined as

#ifdef HAVE_SSIZE_T
typedef ssize_t         Py_ssize_t;
#elif SIZEOF_VOID_P == SIZEOF_SIZE_T
typedef Py_intptr_t     Py_ssize_t;
#else
#   error "Python needs a typedef for Py_ssize_t in pyport.h."
#endif

Most of the time it's a ssize_t, which is type int in 32-bit OS and long int in 64-bit OS.

On my machine, it's type long int.

What if the index is so big that a signed 64-bit integer can't hold it?

e = enumerate(gen(), 1 << 62)

The en_index can hold the value

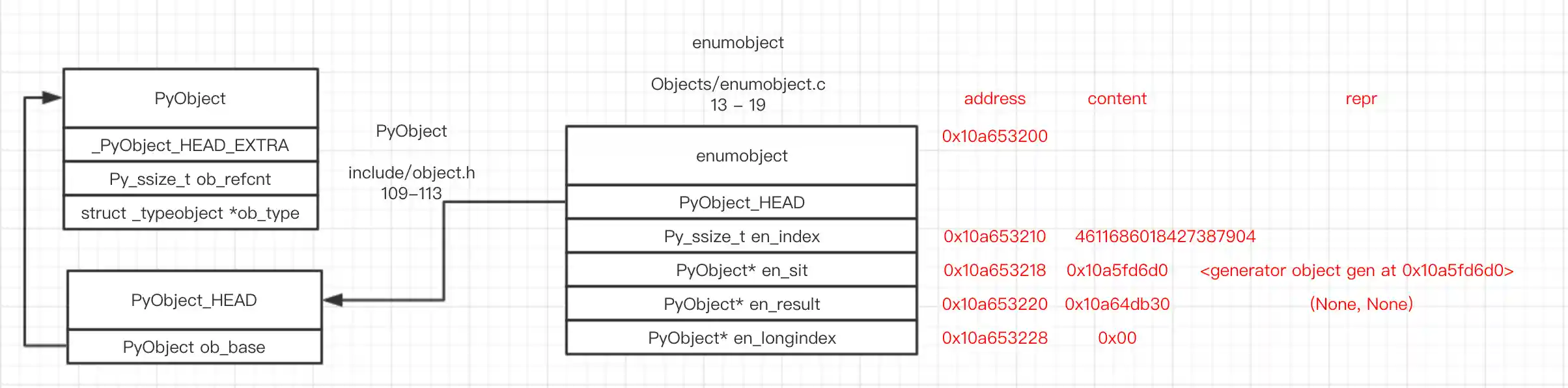

longindex0

The max value en_index can represent is ((1 << 63) - 1) (PY_SSIZE_T_MAX).

Now the actual index is larger than PY_SSIZE_T_MAX, so en_longindex is used to represent the actual index.

What en_longindex points to is a PyLongObject (Python type int), which can represent variable-size integers

>>> e = enumerate(gen(), (1 << 63) + 100)

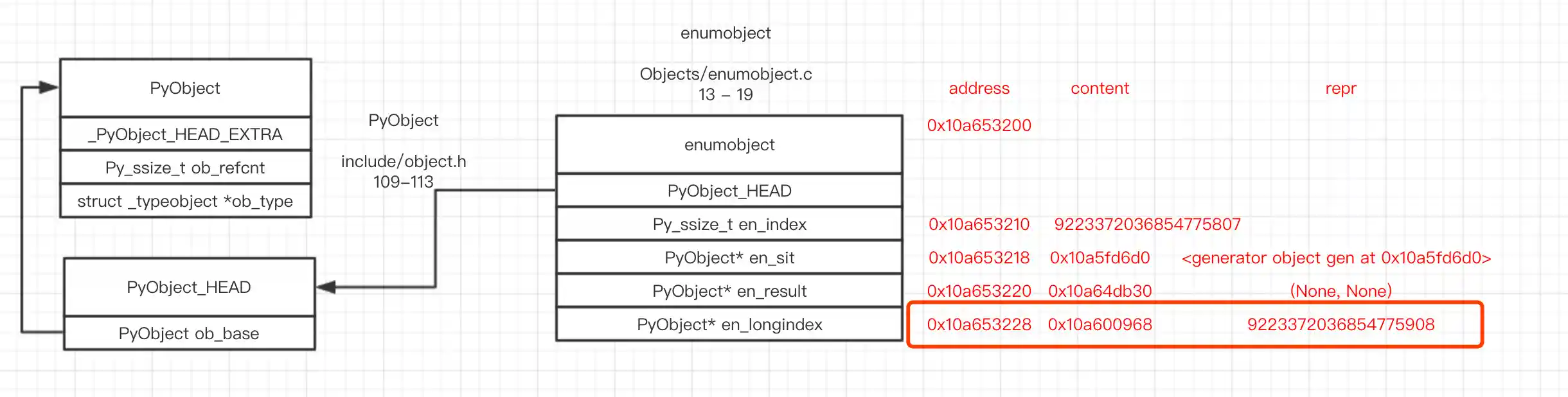

longindex1
