GitHub - intervalrain/Weda-Template: A clean architecture template with NATS, DB, JWT authentication, CQRS, Wiki integration. Enable to quickly build up a microservice with a light infrastructure.

中文版

A production-ready Clean Architecture template for .NET 10 applications, featuring Domain-Driven Design (DDD), CQRS pattern, and comprehensive testing practices.

Features

  • Clean Architecture - Layered architecture with clear separation of concerns
  • Domain-Driven Design - Entities, Value Objects, Aggregate Roots, Domain Events
  • CQRS Pattern - Command Query Responsibility Segregation with Mediator
  • Multiple Database Support - SQLite, PostgreSQL, MongoDB
  • JWT Authentication - Role-based and permission-based authorization
  • NATS Messaging - Event-driven architecture with request-reply and pub-sub patterns
  • API Versioning - Built-in API versioning support
  • Swagger/OpenAPI - Auto-generated API documentation
  • Comprehensive Testing - Unit, integration, and subcutaneous tests
  • Distributed Cache - NATS KV-based distributed caching with IDistributedCache
  • Object Store - Binary file storage with NATS Object Store
  • SAGA Pattern - Distributed transaction orchestration with compensation
  • Observability - OpenTelemetry tracing and metrics

Preview

Developer UI

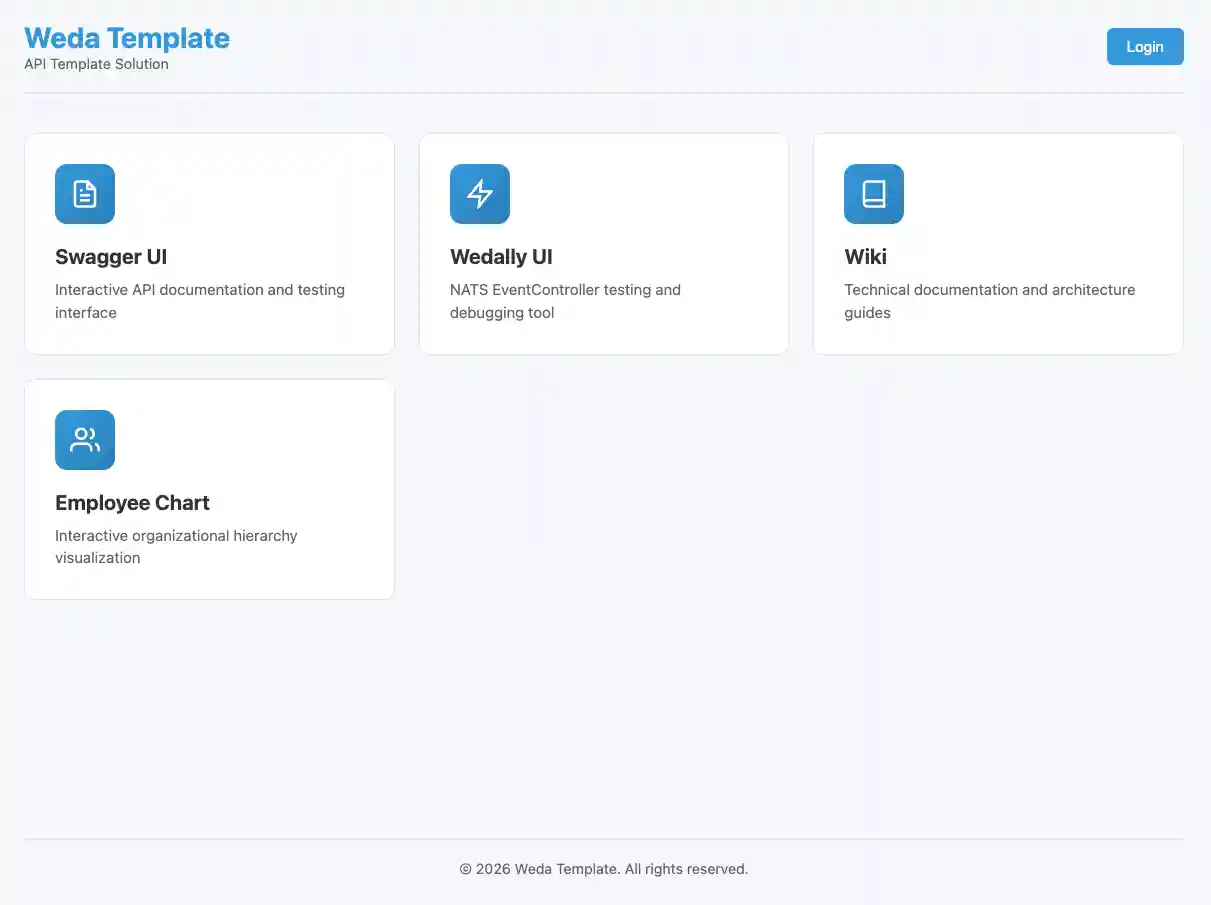

  • Developer-friendly UI including Swagger UI, Wedally UI, and Wiki homepage

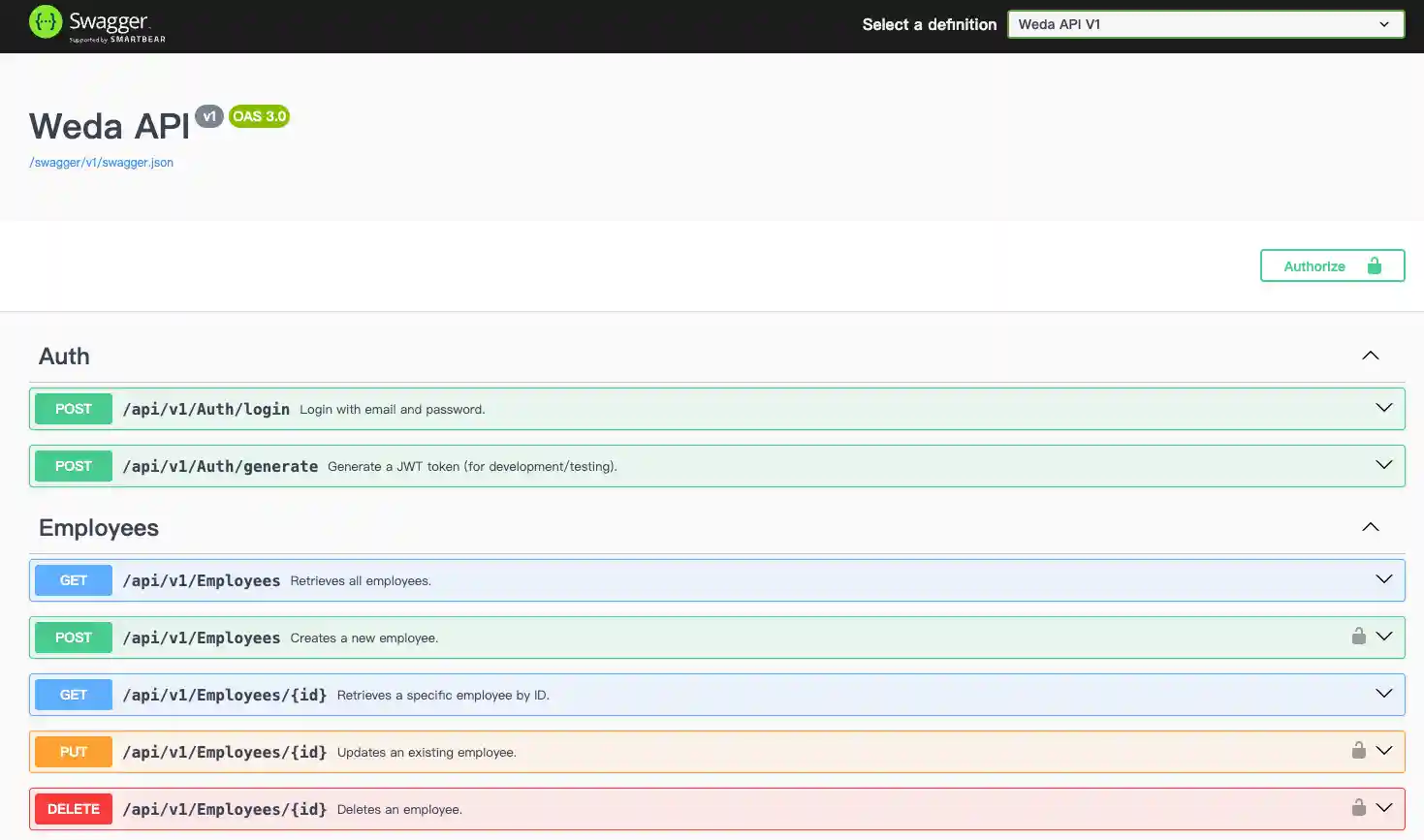

Pre-configured Swagger UI

  • Pre-configured Swagger UI with Grouping, Tags, and SecurityRequirement settings swagger

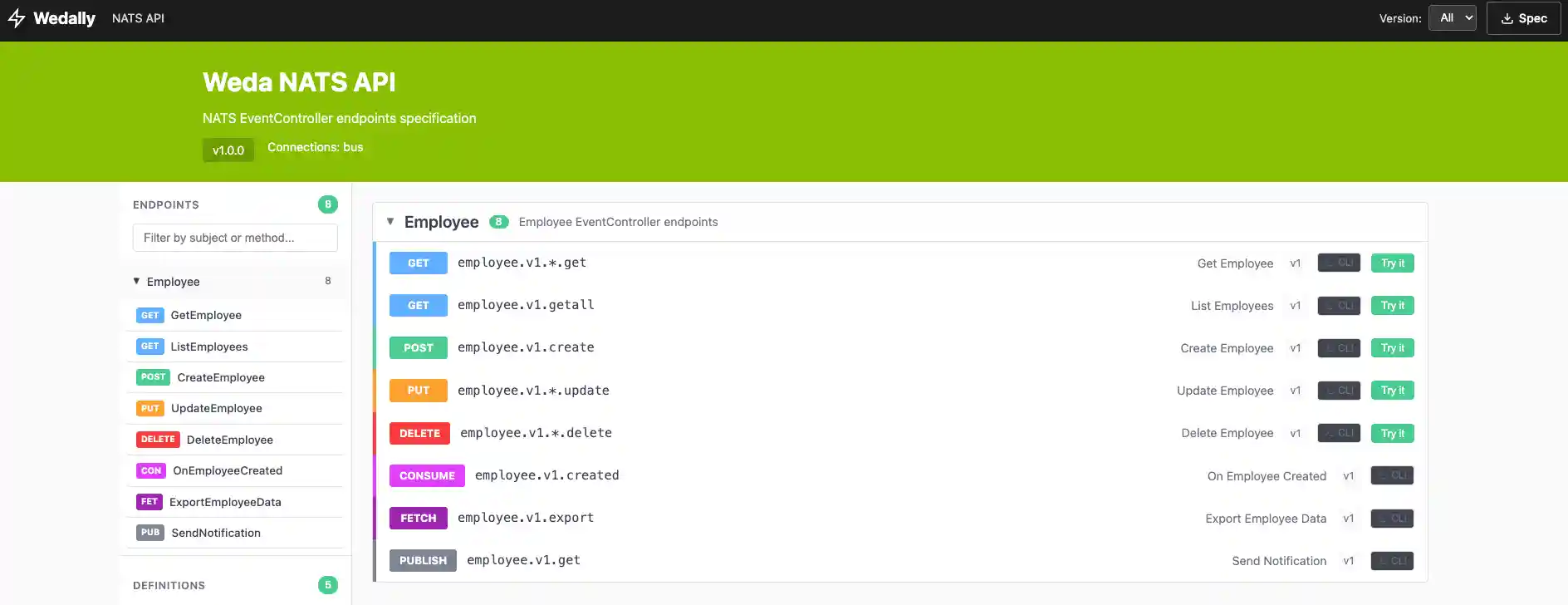

NATS Endpoint UI (Wedally UI)

  • Swagger-like UI for NATS endpoints with direct interaction support and copy-paste ready payloads wedally

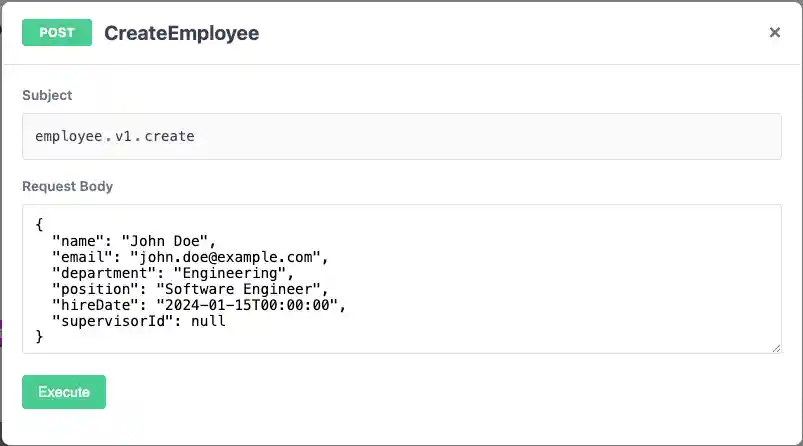

  • Direct operation support wedally_req

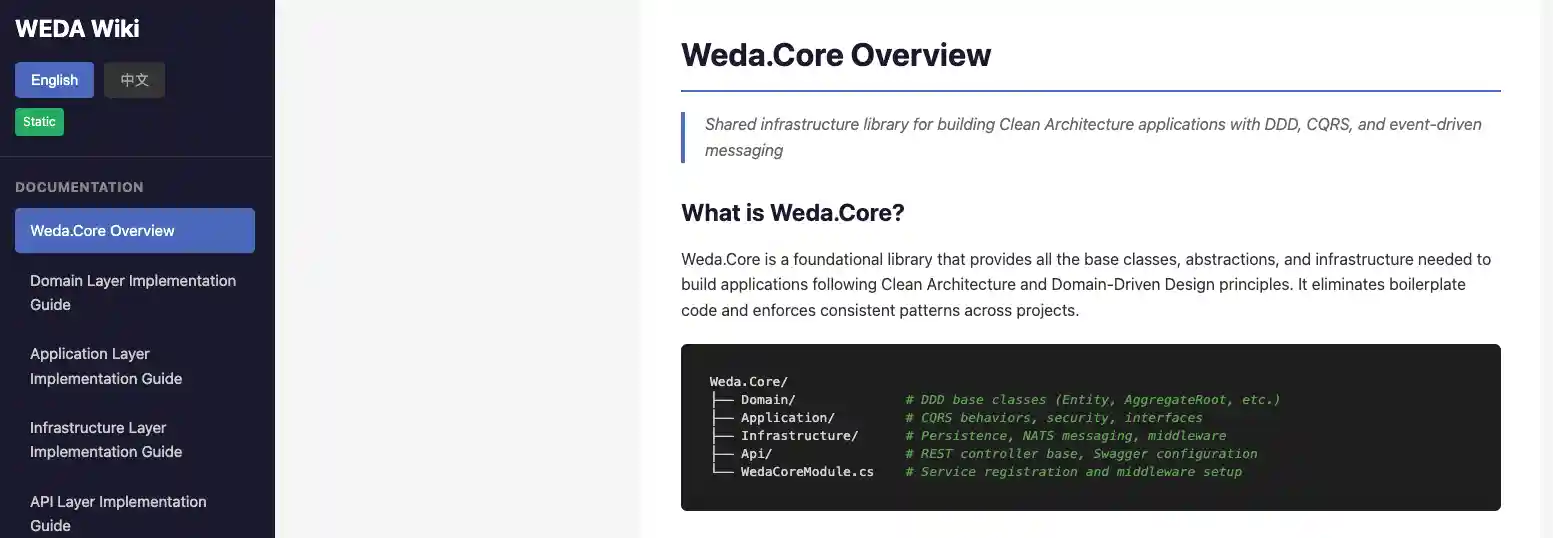

Auto-generated Wiki Pages

  • Automatically converts articles from docs/wiki/{en,zh} to static web pages
  • Supports markdown rendering wiki

Project Structure

WedaTemplate/
├── src/
│   ├── Weda.Core/                    # Shared infrastructure (DDD, CQRS, NATS, Cache, SAGA)
│   ├── Weda.Template.Api/            # REST API layer
│   ├── Weda.Template.Application/    # Application/CQRS layer
│   ├── Weda.Template.Contracts/      # DTOs and contracts
│   ├── Weda.Template.Domain/         # Domain layer
│   └── Weda.Template.Infrastructure/ # Infrastructure layer
├── tests/
│   ├── Weda.Template.Api.IntegrationTests/
│   ├── Weda.Template.Application.UnitTests/
│   ├── Weda.Template.Domain.UnitTests/
│   ├── Weda.Template.Infrastructure.UnitTests/
│   └── Weda.Template.TestCommon/
└── tools/
    └── WikiGenerator/

Getting Started

Prerequisites

  • .NET 10 SDK
  • Docker & Docker Compose (optional)
  • NATS Server (optional, for messaging features)

Run with .NET CLI

dotnet run --project src/Weda.Template.Api

Run with Docker Compose

The API will be available at http://localhost:5001

Access Swagger UI

Navigate to http://localhost:5001/swagger to explore the API documentation.

Domain Models

Employee

  • Hierarchical organization structure with supervisor relationships
  • Department management (Engineering, HR, Finance, Marketing, Sales, Operations)
  • Status tracking (Active, OnLeave, Inactive)
  • Subordinate management with circular reference prevention

User

  • Email-based authentication
  • Role management (User, Admin, SuperAdmin)
  • Permission-based access control
  • Login tracking

API Endpoints

Auth

Method Endpoint Description
POST /api/v1/auth/login User login

Users

Method Endpoint Role Description
GET /api/v1/users/me Authenticated Get current user
GET /api/v1/users Admin List all users
GET /api/v1/users/{id} Admin Get user by ID
POST /api/v1/users Admin Create user
PUT /api/v1/users/{id} Admin Update user
PUT /api/v1/users/{id}/roles SuperAdmin Update roles
DELETE /api/v1/users/{id} Admin Delete user

Employees

Method Endpoint Description
GET /api/v1/employees List all employees
GET /api/v1/employees/{id} Get employee by ID
POST /api/v1/employees Create employee
PUT /api/v1/employees/{id} Update employee
DELETE /api/v1/employees/{id} Delete employee
GET /api/v1/employees/{id}/subordinates Get subordinates

NATS Integration

EventController - ApiController-like Experience for NATS

The template provides EventController, an abstraction similar to ASP.NET Core's ApiController but for NATS messaging. This allows you to handle NATS messages with familiar patterns.

[ApiVersion("1")]
public class EmployeeEventController : EventController
{
    // Request-Reply pattern with subject-based routing
    [Subject("[controller].v{version:apiVersion}.{id}.get")]
    public async Task<GetEmployeeResponse> GetEmployee(int id)
    {
        var query = new GetEmployeeQuery(id);
        var result = await Mediator.Send(query);
        return new GetEmployeeResponse(result.Value);
    }

    // Create employee
    [Subject("[controller].v{version:apiVersion}.create")]
    public async Task<GetEmployeeResponse> CreateEmployee(CreateEmployeeRequest request)
    {
        var command = new CreateEmployeeCommand(request.Name, request.Email, ...);
        var result = await Mediator.Send(command);
        return new GetEmployeeResponse(result.Value);
    }

    // JetStream Consume pattern (fire-and-forget)
    [Subject("[controller].v{version:apiVersion}.created")]
    public async Task OnEmployeeCreated(CreateEmployeeNatsEvent @event)
    {
        var command = new CreateEmployeeCommand(@event.Name, @event.Email, ...);
        await Mediator.Send(command);
    }
}

Supported NATS Patterns

Pattern Description Use Case
Request-Reply Synchronous request with response CRUD operations
JetStream Consume Continuous message processing Event handlers
JetStream Fetch Batch message processing Bulk operations
Core Pub-Sub Fire-and-forget messaging Notifications

NATS Endpoints

Subject Description
employee.v1.{id}.get Get employee by ID
employee.v1.getAll List all employees
employee.v1.create Create employee
employee.v1.{id}.update Update employee
employee.v1.{id}.delete Delete employee

NATS CLI Examples

Copy and paste these commands to interact with the NATS endpoints directly:

Get Employee by ID:

nats req employee.v1.1.get ''

List All Employees:

nats req employee.v1.getAll ''

Create Employee:

nats req employee.v1.create '{"name":"John Doe","email":"john@example.com","department":"Engineering","position":"Software Engineer"}'

Update Employee:

nats req employee.v1.1.update '{"name":"John Doe","email":"john.doe@example.com","department":"Engineering","position":"Senior Engineer","status":"Active"}'

Delete Employee:

nats req employee.v1.1.delete ''

Configuration

Database

{
  "Database": {
    "Provider": "Sqlite",
    "ConnectionString": "Data Source=Weda.Template.sqlite"
  }
}

Supported providers: Sqlite, PostgreSQL, MongoDB

JWT Settings

{
  "JwtSettings": {
    "Secret": "your-secret-key-at-least-32-characters",
    "TokenExpirationInMinutes": 60,
    "Issuer": "WedaTemplate",
    "Audience": "WedaTemplate"
  }
}

NATS Messaging

{
  "Nats": {
    "Url": "nats://localhost:4222",
    "Name": "weda-template"
  }
}

Email Notifications

{
  "EmailSettings": {
    "EnableEmailNotifications": false,
    "DefaultFromEmail": "your-email@example.com",
    "SmtpSettings": {
      "Server": "smtp.gmail.com",
      "Port": 587,
      "Username": "your-email@gmail.com",
      "Password": "your-password"
    }
  }
}

Authorization

The template supports three types of authorization:

Role-Based Authorization

[Authorize(Roles = "Admin")]
public record GetUserQuery(Guid Id) : IAuthorizeableRequest<ErrorOr<User>>;

Permission-Based Authorization

[Authorize(Permissions = "users:read")]
public record ListUsersQuery : IAuthorizeableRequest<ErrorOr<List<User>>>;

Policy-Based Authorization

[Authorize(Policies = "SelfOrAdmin")]
public record UpdateUserCommand(Guid Id, ...) : IAuthorizeableRequest<ErrorOr<User>>;

Testing

# Run all tests
dotnet test

# Run with coverage
dotnet test --collect:"XPlat Code Coverage"

Test Types

  • Domain Unit Tests - Test domain entities and value objects
  • Application Unit Tests - Test handlers and pipeline behaviors
  • Infrastructure Unit Tests - Test repositories and persistence
  • Integration Tests - End-to-end API testing

Architecture Patterns

Pattern Implementation
Domain-Driven Design Entity, AggregateRoot, Value Objects, Domain Events
CQRS Mediator-based command/query separation
Repository Pattern Generic and specialized repositories
Pipeline Behaviors Validation and authorization cross-cutting
Eventual Consistency Middleware-based domain event publishing
Event-Driven NATS messaging for async communication
Distributed Cache NATS KV with IDistributedCache interface
Object Store NATS Object Store for binary files
SAGA Pattern Orchestration-based distributed transactions
Observability OpenTelemetry tracing and metrics

Weda.Core Infrastructure

The Weda.Core library provides production-ready infrastructure patterns:

Distributed Cache (NATS KV)

// Inject IDistributedCache
public class MyService(IDistributedCache cache)
{
    public async Task CacheDataAsync(string key, MyData data)
    {
        var json = JsonSerializer.Serialize(data);
        await cache.SetStringAsync(key, json, new DistributedCacheEntryOptions
        {
            AbsoluteExpirationRelativeToNow = TimeSpan.FromMinutes(30)
        });
    }
}

Object Store (Binary Files)

// Inject IBlobStorage
public class FileService(IBlobStorage storage)
{
    public async Task<string> UploadAsync(Stream file, string filename)
    {
        return await storage.UploadAsync(file, filename);
    }

    public async Task<Stream> DownloadAsync(string filename)
    {
        return await storage.DownloadAsync(filename);
    }
}

SAGA Pattern

// Define saga steps
public class CreateOrderStep : ISagaStep<OrderSagaData>
{
    public string Name => "CreateOrder";

    public async Task<ErrorOr<OrderSagaData>> ExecuteAsync(OrderSagaData data, CancellationToken ct)
    {
        // Create order logic
        return data;
    }

    public async Task<ErrorOr<OrderSagaData>> CompensateAsync(OrderSagaData data, CancellationToken ct)
    {
        // Rollback order creation
        return data;
    }
}

// Execute saga
var result = await sagaOrchestrator.ExecuteAsync(saga, initialData);

Observability Configuration

{
  "Observability": {
    "ServiceName": "MyService",
    "Tracing": {
      "Enabled": true,
      "UseConsoleExporter": true,
      "OtlpEndpoint": "http://localhost:4317"
    },
    "Metrics": {
      "Enabled": true,
      "UseConsoleExporter": false
    }
  }
}

License

This project is licensed under the MIT License.
