Description

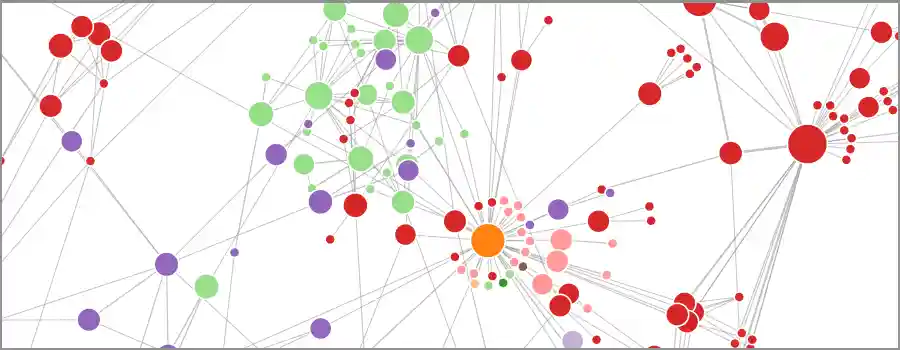

Analyze your XlsForms as directed graphs. Survey elements, such as
select_one ..., calculate, or note become nodes in such a graph. In other
words, the nodes of the graph are the individual XlsForm questions (rows in an
XlsForm). The edges are dependencies on other questions. If question B depends
on question A being answered a specific way (e.g. through ${...} in the
relevant column), then an edge points from A to B. A dependency could also
be when a label in question D displays the value of survey element C. Here
an edge points from C to D.
Installation
All package dependencies, networkx and xlrd, are on PyPI. To install, a
single pip call on the command line suffices:
python3 -m pip install https://github.com/jkpr/OdkGraph/zipball/master
Usage
✅ First, make sure the ODK Xlsform converts cleanly to XML.
Import the OdkGraph class with
from odkgraph import OdkGraph
Next, create an OdkGraph object. The __init__ method accepts a path to the
file:
odk_graph = OdkGraph('/path/to/odk/xlsform.xlsx')
Access Xlsform nodes
Access nodes through a variety of ways
odk_graph['age'] # Get the ODK survey element (node) named 'age' odk_graph[0] # Zero-indexed node access. This example returns the first node odk_graph.excel_row(2) # Return the ODK survey element from row 2 in the Excel file
Slicing is also supported.
Learn stuff
Some useful things this code does now that we have an OdkGraph object:
odk_graph.number_edges() # The number of edges (dependencies) odk_graph.number_nodes() # The number of nodes (survey elements) odk_graph.forward_dependencies() # The ODK elements that depend on things that are defined after them in the Xlsform odk_graph.terminal_nodes() # The ODK elements that depend on other elements, but nothing depends on them odk_graph.isolates() # The ODK elements that depend on nothing else, and nothing depends on them odk_graph.simple_cycles() # A list of cyclical dependencies
With node(s) in hand, we can do
age = odk_graph['age'] odk_graph.predecessors(age) # All nodes that 'age' directly depends on odk_graph.successors(age) # All nodes that directly depend on 'age' odk_graph.all_dependencies_of([age]) # All nodes that 'age directly or indirectly depends on odk_graph.all_nodes_dependent_on([age]) # All nodes that directly or indirectly depend on 'age'
The underlying networkx network (documentation here) can be accessed with
See all methods and attributes on OdkGraph and their docstrings with
or by reading the source code.
Bugs
Submit bug reports to James K. Pringle at jpringleBEAR@jhu.edu minus the bear.
