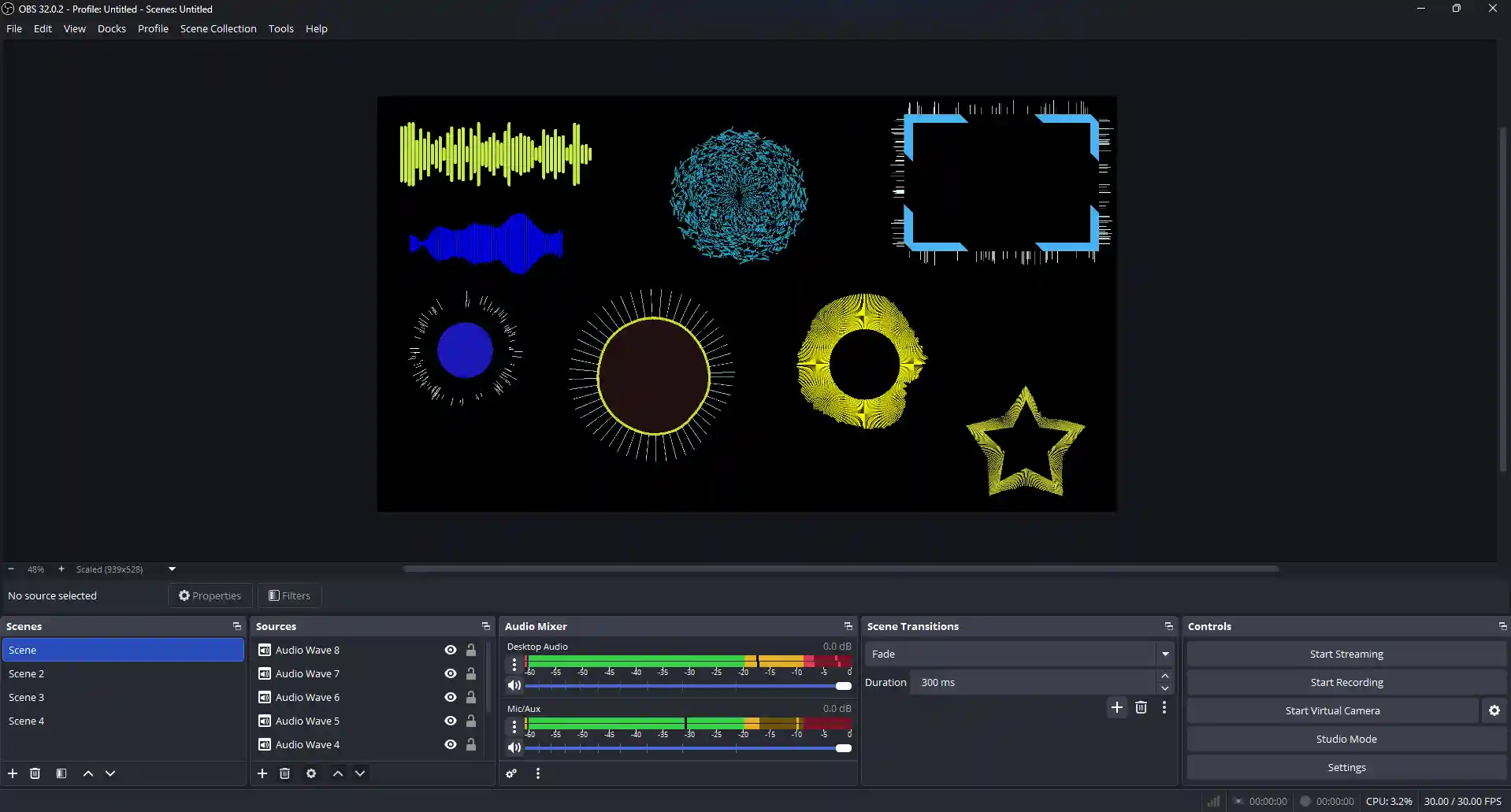

Audio Wave is a lightweight, real-time audio visualizer source for OBS Studio.
It listens to any audio source in your scene and draws a clean waveform or shape that reacts to the sound.

Perfect for:

• Music and chill streams
• “Just Chatting” overlays
• Podcasts and talk shows
• “Now Playing” or idle scenes

✨ Key Features

• Attach to any audio source in your scene (mic, desktop, music, game, etc.)
• Multiple shapes (line, circle, rectangle, hexagon, star, triangle, diamond)
• Multiple styles (line wave, bars, smooth line, filled wave)
• Custom color, size, amplitude, and curve power
• Optional mirror mode and shape density control

For a full explanation of every setting and theme, visit the detailed guide:
👉 https://mmltools.github.io/audio-wave/

🧩 Installation (Manual)

1. Download the latest release from GitHub:
   👉 https://github.com/mmlTools/audio-wave/releases

2. Extract the archive and place the plugin file(s) as follows:

   Windows (Standard OBS):

   • Put the .dll file into:
     C:\Program Files\obs-studio\obs-plugins\64bit

   Windows (Portable OBS):

   • Put the .dll file into:
     obs-studio-portable\obs-plugins\64bit

   macOS:

   • Right-click OBS.app → Show Package Contents
   • Copy the plugin into:
     OBS.app/Contents/PlugIns

   Linux / Flatpak:

   • Use your system’s OBS plugin paths, e.g.:
     /usr/lib/obs-plugins or
     ~/.var/app/com.obsproject.Studio/config/obs-studio/plugins/

3. Restart OBS Studio.

After restart, you should see a new source type: “Audio Wave”.

🚀 Quick Start

1. In OBS, click + under Sources.
2. Select Audio Wave.
3. Pick an Audio Source (e.g. Desktop Audio, Mic/Aux, Music).
4. Adjust shape, style, color, amplitude, and curve to match your overlay.
5. Resize and position it in your scene like any other source.

For screenshots, examples, and detailed usage tips:
👉 https://mmltools.github.io/audio-wave/
