Data Model

Basics of Data model

what is data model?

A data model is an abstract model that organizes elements of data and standardizes how they relate to one another and to the properties of real-world entities.

Why is Data Modeling Important?

A data model is like a blueprint for organizing information in a database.
It helps in understanding how data relates to each other.
It guides how data should be stored and accessed.
Without a data model, managing and using data would be messy and disorganized.
So, a data model is essential for keeping data organized, consistent, and easy to work with.

Who Does This Type of Work?

Data Scientist
Software Engineers
Data Engineers
Anyone involved in the process of using and analyzing data

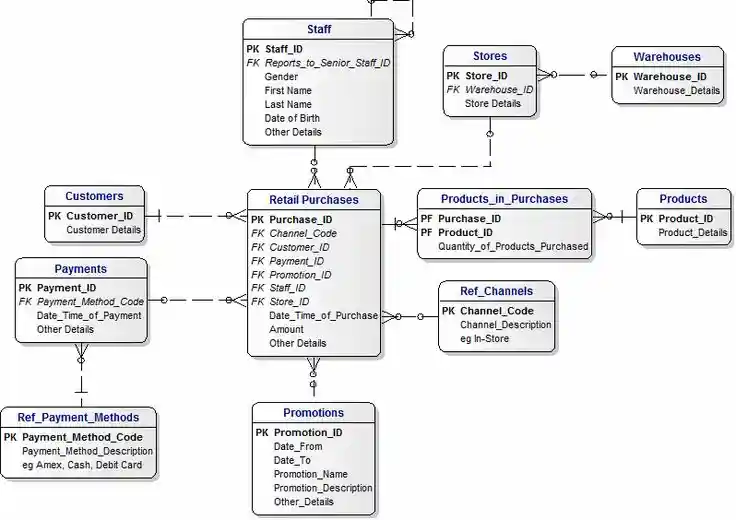

Relational Model and Database

Organizes data into one or more tables of columns and rows, with a unique key identifying each row.

Database/Schema

Collection of Tables

Tables/Relations

A group of rows sharing the same labeled elements.
- Students
- Subjects
- Marks

Advantages of using a Relational Database

Ease of use - SQL
Ability to do JOINS
Ability to do aggregations and analytics
Smaller Data Volumes
Flexibility of queries
ACID transactions - data integrity

ACID Properties

ACID_Blog

When to not use Relational Database

Large amounts of Data
Need to be able to store different data types formats
Need a flexible schema
Need high availability
Need horizontal scalability

Exercise 1 - Creating Tables in Postgres using python

refer - 1_working_with_postgresDB_through_python.ipynb

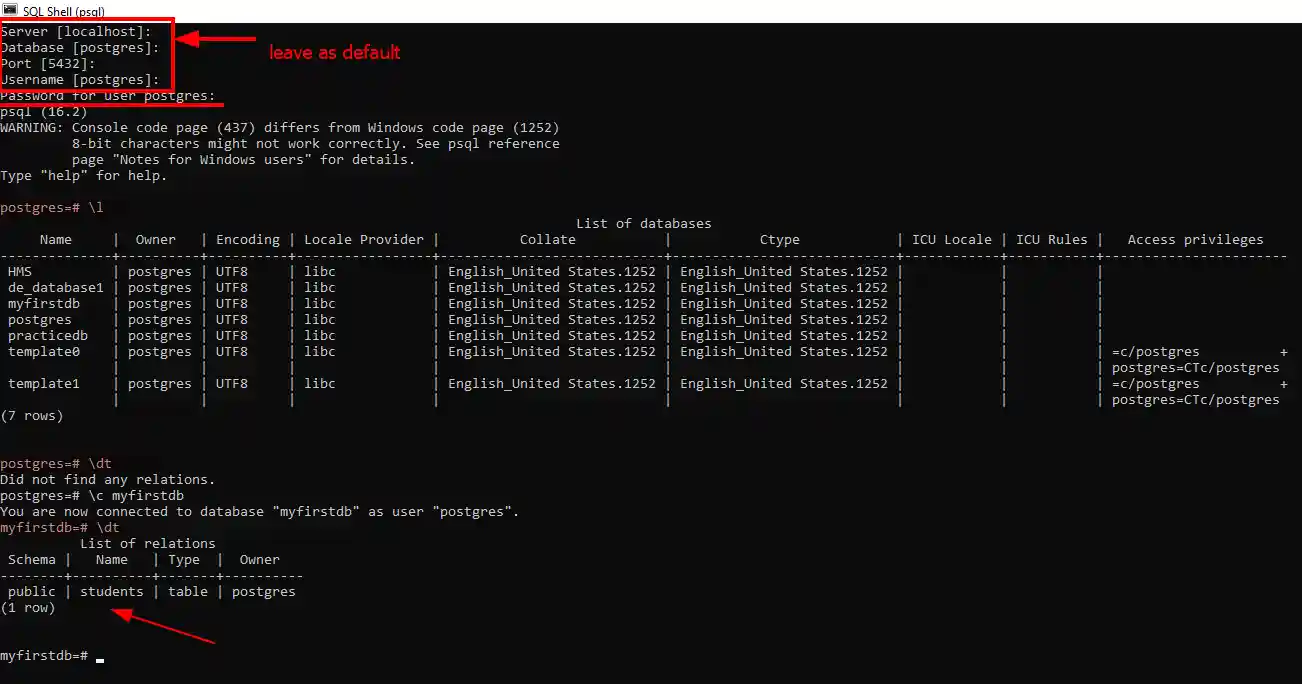

postgres shell commands

Command	Description
`\l`	List all databases
`\q`	Close the current database connection
`\dt`	List all tables in the current database
`\c database_name`	Connect to a specific database
`\d schemaName."tableName";`	Describe the table
`\dn`	List the schema in current database

Reference

🎯 Get Data Set For Project
👉 opendata.aws
👉 dataset search
👉 UCI Dataset
👉 kaggle
