Layout detection framework for DirectX11 applications. Serves currently as a concept document.
Concepts
OK NEW CONCEPT MY DUDES:
- Feature Match
- If distance is high enough, template exists
- Template match
- Template match with scaling
- MASK ALGORITHM

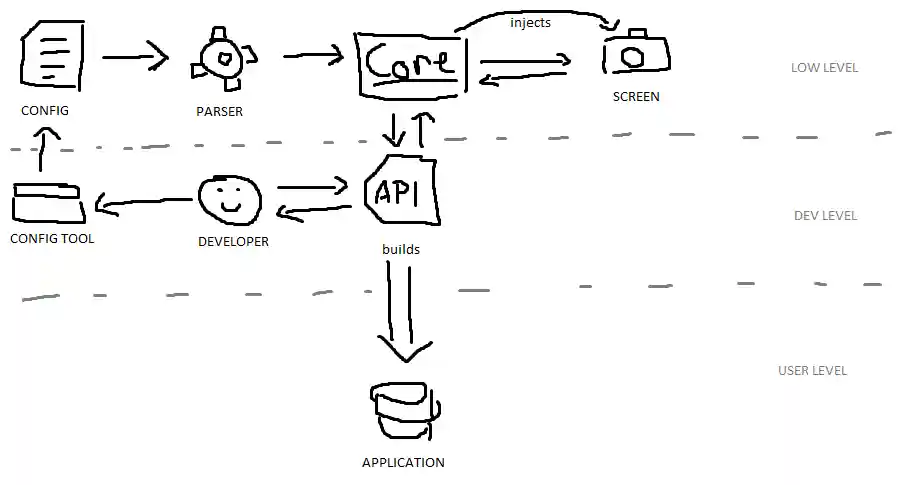

Extremly professional concept art

// All scenes scenes: [ // Single scene object { // Name of the scene name: 'foundry', // Children objects objects: [ // Single children object { name: 'item', // Name of the object template: 'foundry_item.jpg', // Template image mask: 'foundry_item_mask.jpg', // Mask of the template // This could theoretically be made out of the transparent zone in the template states: [ // States the item has { // Single state // Still not sure about this section // Could be done with templates, or params, or both name: 'building', // item.building conditions: [ // Conditions to meet { function: 'ocr', match: 'BUILD', params: [280, 80, 300, 100], }, ... ], } ], }, ... ], }, ... ],
