GitHub - northwind/FlyImage: Download, cache, render small images with UIImageView category

FlyImage takes the advantages of SDWebImage, FastImageCache and AFNetworking, is a simple and high performance image library.

Features:

High Performance, reduce memory operations while rendering, avoid Memory warning caused by image
Store and retrieve different size of small images in one memory file, smooth scrolling
Simple, support UIImageView, CALayer category
An asynchronous image downloader
Support WebP format
Support mmap to improve I/O performace

Installation with CocoaPods

Set the Podfile like this:

platform :ios, '8.0'
pod 'FlyImage', '~>1.0'

If you are using Swift, be sure to add use_frameworks!:

platform :ios, '8.0'
use_frameworks!
pod 'FlyImage', '~>1.0'

If you want to support WebP, just change the Podfile:

platform :ios, '8.0'
pod 'FlyImage/WebP', '~>1.0'

How To Use

Using UIImageView and CALayer Category

#import "FlyImage.h"
...

UIImageView *imageView = [[UIImageView alloc] initWithFrame:frame];
[imageView setPlaceHolderImageName:@"default"
						thumbnailURL:[NSURL urlWithString:@"http://thumbnail"]
						originalURL:[NSURL urlWithString:@"http://original"]];
[]self.view addSubview:imageView];
...

UIImageView *iconView = [[UIImageView alloc] initWithFrame:frame];
[iconView setIconURL:[NSURL urlWithString:@"http://original"]];
[]self.view addSubview:iconView];
...

Using FlyImageCache

// retrieve a specific key, and get callback
[[FlyImageCache sharedInstance] asyncGetImageWithKey:key
	  									   completed:^(NSString *key, UIImage *image) {
		imageView.image = image;
}];

// remove a image from the cache
[[FlyImageCache sharedInstance] removeImageWithKey:key];

// delete all images
[[FlyImageCache sharedInstance] purge];

Using FlyImageIconCache

// add a new icon with a specific key
[[FlyImageIconCache sharedInstance] addImageWithKey:key
        size:drawSize
        drawingBlock:^(CGContextRef context, CGRect contextBounds) {
        	UIImage *image = [UIImage imageWithName:@"imageName"];

    		UIGraphicsPushContext(context);
		    [image drawInRect:contextBounds];
		    UIGraphicsPopContext();
        }
        completed:nil];

// retrieve a specific key, and get callback
[[FlyImageCache sharedInstance] asyncGetImageWithKey:key
	  									   completed:^(NSString *key, UIImage *image) {
		imageView.image = image;
}];

More demos in folder Examples

Performance Mesure

Memory when scrolling images

Demo Target: FlyImageView / Device: iPhone6 Plus

Memory	FlyImage	SDWebImage	UIKit
All Heap Allocations	2~7M	2~4M	2~5M
All Anonymous VM	17~30M	310M	17~30M

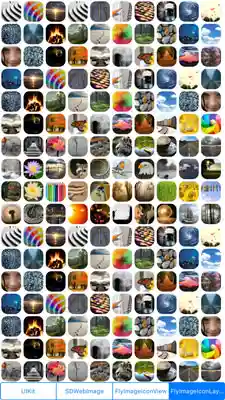

FPS when more than 170 small images in the same screen

Demo Target: FlyImageIconView / Device: iPhone6 Plus

FlyImage	SDWebImage	UIKit
58~60FPS	6~7FPS	6~7FPS

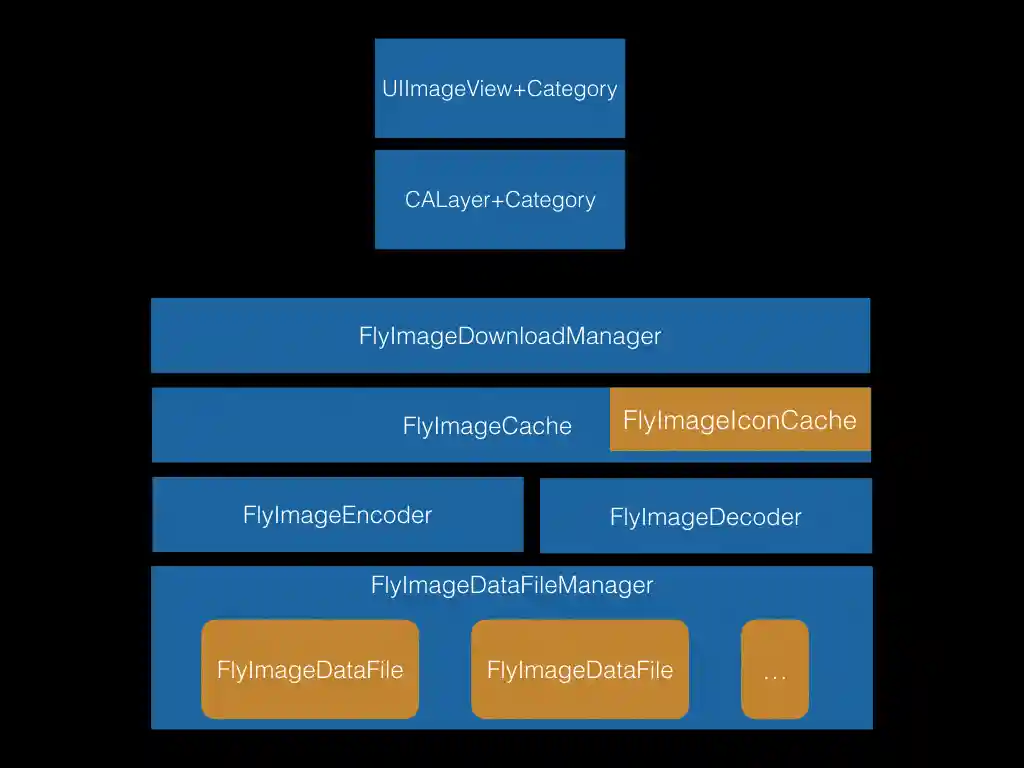

Architecture

License

FlyImage is made available under the MIT license
