GitHub - qlibs/mph: C++20 [Minimal] Static Perfect Hash library

// Overview / Examples / API / FAQ / Resources

https://en.wikipedia.org/wiki/Perfect_hash_function

Use cases

A static perfect hash function maps a set of keys known in advance to a set of values with no collisions

Features

Single header (https://raw.githubusercontent.com/qlibs/mph/main/mph) / C++20 module (https://raw.githubusercontent.com/qlibs/mph/main/mph.cppm)
Self verification upon include (can be disabled by -DNTEST - see FAQ)
Compiles cleanly with (-Wall -Wextra -Werror -pedantic -pedantic-errors -fno-exceptions -fno-rtti)
Minimal API
Optimized run-time execution (see performance / benchmarks)
Fast compilation times (see compilation)
Trade-offs (see FAQ)

Requirements

C++20 (gcc-12+, clang-15+) / [optional] (bmi2), [optional] (simd),

Overview

Hello world (https://godbolt.org/z/dzd6o3Pxo)

enum class color { red, green, blue };

constexpr auto colors = std::array{
  std::pair{"red"sv, color::red},
  std::pair{"green"sv, color::green},
  std::pair{"blue"sv, color::blue},
};

static_assert(color::green == mph::lookup<colors>("green"));
static_assert(color::red   == mph::lookup<colors>("red"));
static_assert(color::blue  == mph::lookup<colors>("blue"));

std::print("{}", mph::lookup<colors>("green"sv)); // prints 1

Note

mph::lookup assumes only valid input and returns mapped value direclty.

static_assert(not mph::find<colors>("unknown"));
static_assert(mph::find<colors>("green"));
static_assert(mph::find<colors>("red"));
static_assert(mph::find<colors>("blue"));

std::print("{}", *mph::find<colors>("green"sv)); // prints 1

Note

mph::find doesnt assume valid input and returns optional of mapped value.

[Minimal] Lookup (https://godbolt.org/z/rqYj9a1cr)

int lookup(int id) {
  static constexpr std::array ids{
    std::pair{54u, 91u},
    std::pair{64u, 324u},
    std::pair{91u, 234u},
  };
  return mph::lookup<ids>(id);
}

lookup: // g++ -DNDEBUG -std=c++20 -O3
  imull   $1275516394, %edi, %eax
  shrl    $23, %eax
  movl    $24029728, %ecx
  shrxl   %eax, %ecx, %eax
  andl    $511, %eax
  retq

Lookup (https://godbolt.org/z/vv6W4nGfb)

int lookup(int id) {
  static constexpr std::array ids{
    std::pair{54u, 91u},
    std::pair{324u, 54u},
    std::pair{64u, 324u},
    std::pair{234u, 64u},
    std::pair{91u, 234u},
  };
  return mph::lookup<ids>(id);
}

lookup: // g++ -DNDEBUG -std=c++20 -O3
  andl    $7, %edi
  leaq    lookup(%rip), %rax
  movl    (%rax,%rdi,4), %eax
  retq

lookup:
 .long   324
 .long   0
 .long   64
 .long   234
 .long   54
 .long   0
 .long   91

Find (https://godbolt.org/z/qMzxKK4sd)

int find(int id) {
  static constexpr std::array ids{
    std::pair{27629, 1},
    std::pair{6280, 2},
    // 1..128 pairs...
    std::pair{33691, 128},
  };
  return *mph::find<ids>(id);
}

find: // g++ -DNDEBUG -std=c++20 -O3 -mbmi2 -mavx512f
  vpbroadcastd    %edi, %zmm0
  shll            $4, %edi
  movzbl          %dil, %ecx
  leaq            find
  vpcmpeqd        (%rdx,%rcx,4), %zmm0, %k0
  kmovw           %k0, %esi
  kortestw        %k0, %k0
  rep             bsfq %rax, %rax
  movl            $64, %eax
  addl            %eax, %ecx
  xorl            %eax, %eax
  testw           %si, %si
  cmovnel         1024(%rdx,%rcx,4), %eax
  vzeroupper
  retq

find:
  ... // see godbolt

Find Strings (https://godbolt.org/z/KaKzf7Pax)

int find(std::span<const char, 8> str) {
  static constexpr auto symbols = std::array{
    std::pair{"AMZN    "sv, 1},
    std::pair{"AAPL    "sv, 2},
    std::pair{"GOOGL   "sv, 3},
    std::pair{"META    "sv, 4},
    std::pair{"MSFT    "sv, 5},
    std::pair{"NVDA    "sv, 6},
    std::pair{"TSLA    "sv, 7},
  };
  return *mph::find<symbols>(str);
}

find: // g++ -DNDEBUG -std=c++20 -O3 -mbmi2
  movq    8(%rsi), %rax
  movl    $1031, %ecx
  leaq    find(%rip), %rdx
  xorl    %esi, %esi
  movq    (%rax), %rax
  pextq   %rcx, %rax, %rcx
  shll    $4, %ecx
  cmpq    (%rcx,%rdx), %rax
  movzbl  8(%rcx,%rdx), %eax
  cmovnel %esi, %eax
  retq

find:
  ... // see godbolt

Find Strings (https://godbolt.org/z/fdMPsYWjE)

int find(std::string_view str) {
  using std::literals::operator""sv;
  // values assigned from 0..N-1
  static constexpr std::array symbols{
    "BTC "sv, "ETH "sv, "BNB "sv,
    "SOL "sv, "XRP "sv, "DOGE"sv,
    "TON "sv, "ADA "sv, "SHIB"sv,
    "AVAX"sv, "LINK"sv, "BCH "sv,
  };
  return *mph::find<symbols>(str);
}

find: // g++ -DNDEBUG -std=c++20 -O3 -mbmi2
  shll    $3, %edi
  bzhil   %edi, (%rsi), %eax
  movl    $789, %ecx
  pextl   %ecx, %eax, %ecx
  leaq    find(%rip), %rdx
  xorl    %esi, %esi
  cmpl    (%rdx,%rcx,8), %eax
  movzbl  4(%rdx,%rcx,8), %eax
  cmovnel %esi, %eax
  retq

find:
  ... // see godbolt

Examples

[feature] lookup/find customization point - https://godbolt.org/z/enqeGxKK9
[feature] to customization point - https://godbolt.org/z/jTMx4n6j3
[example] branchless dispatcher - https://godbolt.org/z/5PTE3ercE
[performance - https://wg21.link/P2996] enum_to_string - https://godbolt.org/z/ojohP6j7f
[performance - https://wg21.link/P2996] string_to_enum - https://godbolt.org/z/83vGhY7M8

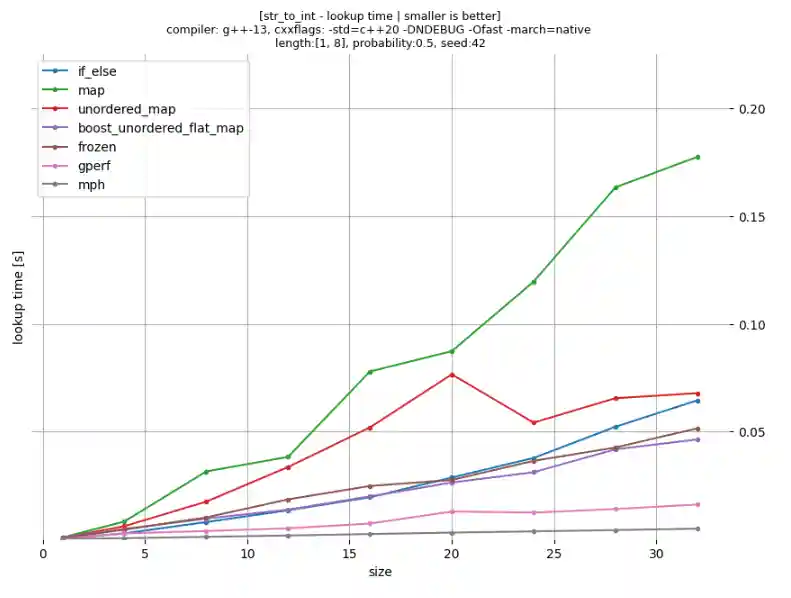

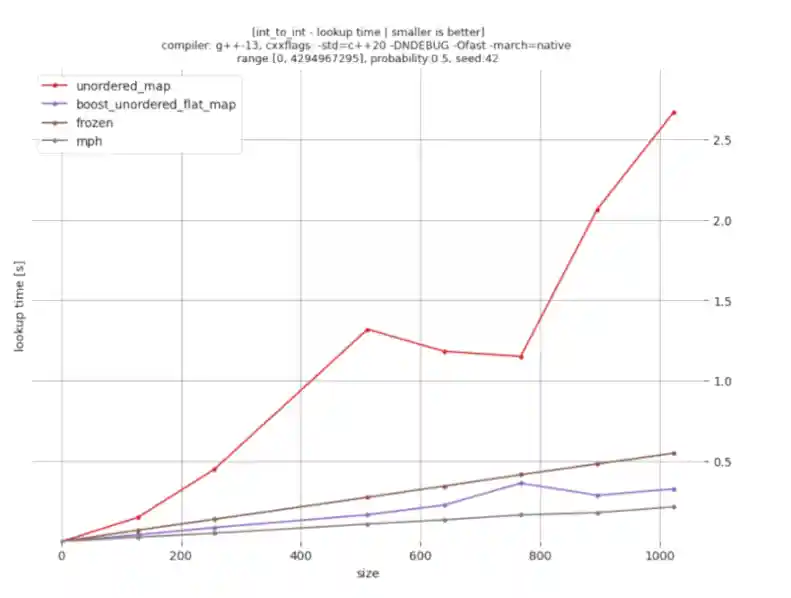

Benchmarks (run-time)

https://github.com/qlibs/mph/tree/benchmark

clang++ -std=c++20 -O3 -DNDEBUG -mbmi2 benchmark.cpp

| ns/op |           op/s | err% |total | benchmark
|------:|---------------:|-----:|-----:|:----------
| 12.25 |  81,602,449.70 | 0.3% | 0.15 | `random_strings_5_len_4.std.map`
|  5.56 | 179,750,906.50 | 0.2% | 0.07 | `random_strings_5_len_4.std.unordered_map`
|  9.17 | 109,096,850.98 | 0.2% | 0.11 | `random_strings_5_len_4.boost.unordered_map`
| 13.48 |  74,210,250.54 | 0.3% | 0.16 | `random_strings_5_len_4.boost.flat_map`
|  7.70 | 129,942,965.18 | 0.3% | 0.09 | `random_strings_5_len_4.gperf`
|  1.61 | 621,532,188.81 | 0.1% | 0.02 | `random_strings_5_len_4.mph`
| 14.66 |  68,218,086.71 | 0.8% | 0.18 | `random_strings_5_len_8.std.map`
| 13.45 |  74,365,239.56 | 0.2% | 0.16 | `random_strings_5_len_8.std.unordered_map`
|  9.68 | 103,355,605.09 | 0.2% | 0.12 | `random_strings_5_len_8.boost.unordered_map`
| 16.00 |  62,517,180.19 | 0.4% | 0.19 | `random_strings_5_len_8.boost.flat_map`
|  7.70 | 129,809,356.36 | 0.3% | 0.09 | `random_strings_5_len_8.gperf`
|  1.58 | 633,084,194.24 | 0.1% | 0.02 | `random_strings_5_len_8.mph`
| 17.21 |  58,109,576.87 | 0.3% | 0.21 | `random_strings_6_len_2_5.std.map`
| 15.28 |  65,461,167.99 | 0.2% | 0.18 | `random_strings_6_len_2_5.std.unordered_map`
| 12.21 |  81,931,391.20 | 0.4% | 0.15 | `random_strings_6_len_2_5.boost.unordered_map`
| 17.15 |  58,323,741.08 | 0.5% | 0.21 | `random_strings_6_len_2_5.boost.flat_map`
|  7.94 | 125,883,197.55 | 0.5% | 0.09 | `random_strings_6_len_2_5.gperf`
|  6.05 | 165,239,616.00 | 0.5% | 0.07 | `random_strings_6_len_2_5.mph`
| 31.61 |  31,631,402.94 | 0.2% | 0.38 | `random_strings_100_len_8.std.map`
| 15.32 |  65,280,594.09 | 0.2% | 0.18 | `random_strings_100_len_8.std.unordered_map`
| 17.13 |  58,383,850.20 | 0.3% | 0.20 | `random_strings_100_len_8.boost.unordered_map`
| 31.42 |  31,822,519.67 | 0.2% | 0.38 | `random_strings_100_len_8.boost.flat_map`
|  8.04 | 124,397,773.85 | 0.2% | 0.10 | `random_strings_100_len_8.gperf`
|  1.58 | 632,813,481.73 | 0.1% | 0.02 | `random_strings_100_len_8.mph`
| 32.62 |  30,656,015.03 | 0.3% | 0.39 | `random_strings_100_len_1_8.std.map`
| 19.34 |  51,697,107.73 | 0.5% | 0.23 | `random_strings_100_len_1_8.std.unordered_map`
| 19.51 |  51,254,525.17 | 0.3% | 0.23 | `random_strings_100_len_1_8.boost.unordered_map`
| 33.58 |  29,780,574.17 | 0.6% | 0.40 | `random_strings_100_len_1_8.boost.flat_map`
| 13.06 |  76,577,037.07 | 0.7% | 0.16 | `random_strings_100_len_1_8.gperf`
|  6.02 | 166,100,665.07 | 0.2% | 0.07 | `random_strings_100_len_1_8.mph`
|  1.28 | 778,723,795.75 | 0.1% | 0.02 | `random_uints_5.mph`

g++ -std=c++20 -O3 -DNDEBUG -mbmi2 benchmark.cpp

| ns/op |           op/s | err% |total | benchmark
|------:|---------------:|-----:|-----:|:----------
| 12.28 |  81,460,330.38 | 0.9% | 0.15 | `random_strings_5_len_4.std.map`
|  5.29 | 188,967,241.90 | 0.3% | 0.06 | `random_strings_5_len_4.std.unordered_map`
|  9.69 | 103,163,192.67 | 0.2% | 0.12 | `random_strings_5_len_4.boost.unordered_map`
| 13.56 |  73,756,333.08 | 0.4% | 0.16 | `random_strings_5_len_4.boost.flat_map`
|  7.69 | 130,055,662.66 | 0.6% | 0.09 | `random_strings_5_len_4.gperf`
|  1.39 | 718,910,252.82 | 0.1% | 0.02 | `random_strings_5_len_4.mph`
| 14.26 |  70,103,007.82 | 2.4% | 0.17 | `random_strings_5_len_8.std.map`
| 13.36 |  74,871,047.51 | 0.4% | 0.16 | `random_strings_5_len_8.std.unordered_map`
|  9.82 | 101,802,074.00 | 0.3% | 0.12 | `random_strings_5_len_8.boost.unordered_map`
| 15.97 |  62,621,571.95 | 0.3% | 0.19 | `random_strings_5_len_8.boost.flat_map`
|  7.92 | 126,265,206.30 | 0.3% | 0.09 | `random_strings_5_len_8.gperf`
|  1.40 | 713,596,376.62 | 0.4% | 0.02 | `random_strings_5_len_8.mph`
| 15.98 |  62,576,142.34 | 0.5% | 0.19 | `random_strings_6_len_2_5.std.map`
| 17.56 |  56,957,868.12 | 0.5% | 0.21 | `random_strings_6_len_2_5.std.unordered_map`
| 11.68 |  85,637,378.45 | 0.3% | 0.14 | `random_strings_6_len_2_5.boost.unordered_map`
| 17.25 |  57,965,732.68 | 0.6% | 0.21 | `random_strings_6_len_2_5.boost.flat_map`
|  9.13 | 109,580,632.48 | 0.7% | 0.11 | `random_strings_6_len_2_5.gperf`
|  7.17 | 139,563,745.72 | 0.4% | 0.09 | `random_strings_6_len_2_5.mph`
| 30.20 |  33,117,522.76 | 0.7% | 0.36 | `random_strings_100_len_8.std.map`
| 15.01 |  66,627,962.89 | 0.4% | 0.18 | `random_strings_100_len_8.std.unordered_map`
| 16.79 |  59,559,414.60 | 0.6% | 0.20 | `random_strings_100_len_8.boost.unordered_map`
| 31.36 |  31,884,629.57 | 0.8% | 0.38 | `random_strings_100_len_8.boost.flat_map`
|  7.75 | 128,973,947.61 | 0.7% | 0.09 | `random_strings_100_len_8.gperf`
|  1.50 | 667,041,673.54 | 0.1% | 0.02 | `random_strings_100_len_8.mph`
| 30.92 |  32,340,612.08 | 0.4% | 0.37 | `random_strings_100_len_1_8.std.map`
| 25.35 |  39,450,222.09 | 0.4% | 0.30 | `random_strings_100_len_1_8.std.unordered_map`
| 19.76 |  50,609,820.90 | 0.2% | 0.24 | `random_strings_100_len_1_8.boost.unordered_map`
| 32.39 |  30,878,018.77 | 0.6% | 0.39 | `random_strings_100_len_1_8.boost.flat_map`
| 11.20 |  89,270,687.92 | 0.2% | 0.13 | `random_strings_100_len_1_8.gperf`
|  7.17 | 139,471,159.67 | 0.5% | 0.09 | `random_strings_100_len_1_8.mph`
|  1.93 | 519,047,110.39 | 0.3% | 0.02 | `random_uints_5.mph`

Benchmarks (compilation-time)

https://qlibs.github.io/mph/perfect_hashing

API

namespace mph::inline v5_0_5 {
  /**
   * Static [minimal] perfect hash lookup function
   * @tparam entries constexpr array of keys or key/value pairs
   */
  template<const auto& entries>
  inline constexpr auto lookup = [](const auto& key) {
    if constexpr(constexpr lookup$magic_lut<entries> lookup{}; lookup) {
      return lookup(key);
    } else {
      return lookup$pext<entries>(key);
    }
  };

  /**
   * Static perfect hash find function
   * @tparam entries constexpr array of keys or key/value pairs
   */
  template<const auto& entries>
  inline constexpr auto find =
    []<u8 probability = 50u>(const auto& key, const auto& unknown = {}) -> optional {
      if constexpr (entries.size() == 0u) {
        return unknown;
      } else if constexpr (entries.size() <= 64u) {
        return find$pext<entries>.operator()<probability>(key, unknown);
      } else {
        constexpr auto bucket_size = simd_size_v<key_type, simd_abi::native<key_type>>;
        return find$simd<entries, bucket_size>.operator()<probability>(key, unknown);
      }
    };
} // namespace mph

FAQ

Trade-offs?

mph supports different types of key/value pairs and thousands of key/value pairs, but not millions - (see benchmarks).
All keys have to fit into uint128_t, that includes strings.

If the above criteria are not satisfied mph will SFINAE away lookup function.
In such case different backup policy should be used instead (which can be also used as customization point for user-defined lookup implementation), for example:
template<const auto& entries> requires (entries.size() > 1'000'000)
inline constexpr auto mph::find =
    [](const auto& key, const auto& unknown = {}) -> optional { ... }
How mph is working under the hood?

mph takes advantage of knowing the key/value pairs at compile-time as well as the specific hardware instructions. The following is a pseudo code of the lookup algorithm for minimal perfect hash table.
def lookup$magic_lut[entries: array](key : any, max_attempts = 100'000):
  # 0. magic and lut for entries [compile-time]
  nbits = sizeof(u32) * CHAR_BIT - countl_zero(max(entries.second))
  mask = (1u << nbits) - 1u;
  shift = sizeof(u32) * CHAR_BIT - nbits;
  lut = {};
  while max_attempts--:
    magic = rand()
    for k, v in entries:
      lut |= v << (k * magic >> shift);

    for k, v in entries:
      if (lut >> (k * magic >> shift) & mask) != v:
        lut = {}
        break

  assert magic != 0 and lut != 0 and shift != 0 and mask != 0

  # 1. lookup [run-time]
  return (lut >> ((key * magic) >> shift)) & mask;
The following is a pseudo code of the find algorithm for perfect hash table.
# word: 00101011
# mask: 11100001
#    &: 000____1
# pext: ____0001 # intel/intrinsics-guide/index.html#text=pext
def pext(a : uN, mask : uN):
  dst, m, k = ([], 0, 0)

  while m < nbits(a):
    if mask[m] == 1:
      dst.append(a[m])
      k += 1
    m += 1

  return uN(dst)
def find$pext[entries: array](key : any, unknown: any):
  # 0. find mask which uniquely identifies all keys [compile-time]
  mask = 0b111111...

  for i in range(nbits(mask)):
    masked = []
    mask.unset(i)

    for k, v in entries:
      masked.append(k & mask)

    if not unique(masked):
      mask.set(i)

  assert unique(masked)
  assert mask != ~mask{}

  # 1. create lookup table [compile-time]
  lookup = array(typeof(entries[0]), 2**popcount(mask))
  for k, v in entries:
    lookup[pext(k, mask)] = (k, v)

  # 2. lookup [run-time] # if key is a string convert to integral first (memcpy)
  k, v = lookup[pext(key, mask)]

  if k == key: # cmove
    return v
  else:
    return unknown
def find$simd[entries: array](key : any, unknown: any):
  # 0. find mask which uniquely identifies all keys [compile-time]
  mask = 0b111111...
  bucket_size = simd_size_v<entries[0].first, native>

  for i in range(nbits(mask)):
    masked = []
    mask.unset(i)

    for k, v in entries:
      masked.append(k & mask)

    if not unique(masked, bucket_size):
      mask.set(i)

  assert unique(masked, bucket_size)
  assert mask != ~mask{}

  # 1. create lookup table [compile-time]
  keys   = array(typeof(entries[0].first), bucket_size * 2**popcount(mask))
  values = array(typeof(entries[0].second), bucket_size * 2**popcount(mask))
  for k, v in entries:
    slot = pext(k, mask)
    while (keys[slot]) slot++;
    keys[slot] = k
    values[slot] = v

  # 2. lookup [run-time] # if key is a string convert to integral first (memcpy)
  index = bucket_size * pext(key, mask)
  match = k == keys[&index] # simd element-wise comparison

  if any_of(match):
    return values[index + find_first_set(match)]
  else:
    return unknown
More information
How to tweak lookup/find performance for my data/use case?

Always measure!

[bmi2 (Intel Haswell+, AMD Zen3+)] hardware instruction acceleration is faster than software emulation. (AMD Zen2 pext takes 18 cycles, is worth disabling hardware accelerated version)

For integral keys, use u32 or u64.

For strings, consider aligning the input data and passing it with compile-time size via span, array.

If all strings length is less than 4 that will be more optimized than if all string length will be less than 8 and 16. That will make the lookup table smaller and getting the value will have one instruction less.

Experiment with different probability values to optimize lookups. Especially benefitial if its known that input keys are always coming from predefined entries (probability = 100) as it will avoid the comparison.

Consider passing cache size alignment (hardware_destructive_interference_size - usually 64u) to the lookup/find. That will align the underlying lookup table.
How to fix compilation error constexpr evaluation hit maximum step limit?

The following options can be used to increase the limits, however, compilation-times should be monitored.
gcc:   -fconstexpr-ops-limit=N
clang: -fconstexpr-steps=N
Is support for bmi2 instructions required?

mph works on platforms without bmi2 instructions which can be emulated with some limitations (*).
// bmi2
mov     ecx, 789
pext    ecx, eax, ecx
intel.com/pext / uops.info/pext
// no bmi2
mov     ecx, eax
and     ecx, 789
imul    ecx, ecx, 57
shr     ecx, 2
and     ecx, 248
https://stackoverflow.com/questions/14547087/extracting-bits-with-a-single-multiplication (*)
How to disable cmov generation?

Set probability value to something else than 50u (default) - it means that the input data is predictable in some way and jmp will be generated instead. Additionaly the following compiler options can be used.
clang: -mllvm -x86-cmov-converter=false
How to disable running tests at compile-time?

When -DNTEST is defined static_asserts tests wont be executed upon inclusion. Note: Use with caution as disabling tests means that there are no gurantees upon inclusion that given compiler/env combination works as expected.

Similar projects?

gperf, frozen, nbperf, cmph, perfecthash, lemonhash, pthash, shockhash, burr, hash-prospector

Resources

Minimal Perfect Hashing - http://stevehanov.ca/blog/index.php?id=119

Pefect Hashing - https://github.com/tpn/pdfs/tree/master/Perfect%20Hashing

Hash Functions - https://nullprogram.com/blog/2018/07/31

gperf - https://www.dre.vanderbilt.edu/~schmidt/PDF/C++-USENIX-90.pdf

cmph - https://cmph.sourceforge.net/papers

pthash - https://arxiv.org/pdf/2104.10402

smasher - https://github.com/rurban/smhasher

License

MIT
