🎯 About rConfig v8 Core

rConfig v8 Core is a powerful, free, and open-source Network Configuration Management (NCM) solution designed to help you easily manage configurations across networks of any size—from small deployments to large, heterogeneous enterprise environments.

Why Choose rConfig?

• 🚀 Fast & Efficient - Optimized for high-performance configuration backups
• 🔒 Secure - Built with security best practices from the ground up
• 🌐 Multi-Vendor Support - Works with Cisco, Juniper, HP, and more
• 📦 Easy Deployment - Docker support for quick setup
• 💰 Cost-Free - No licensing fees, truly open source
• 🛠️ Actively Maintained - Regular updates and community support

(⬆ back to top)

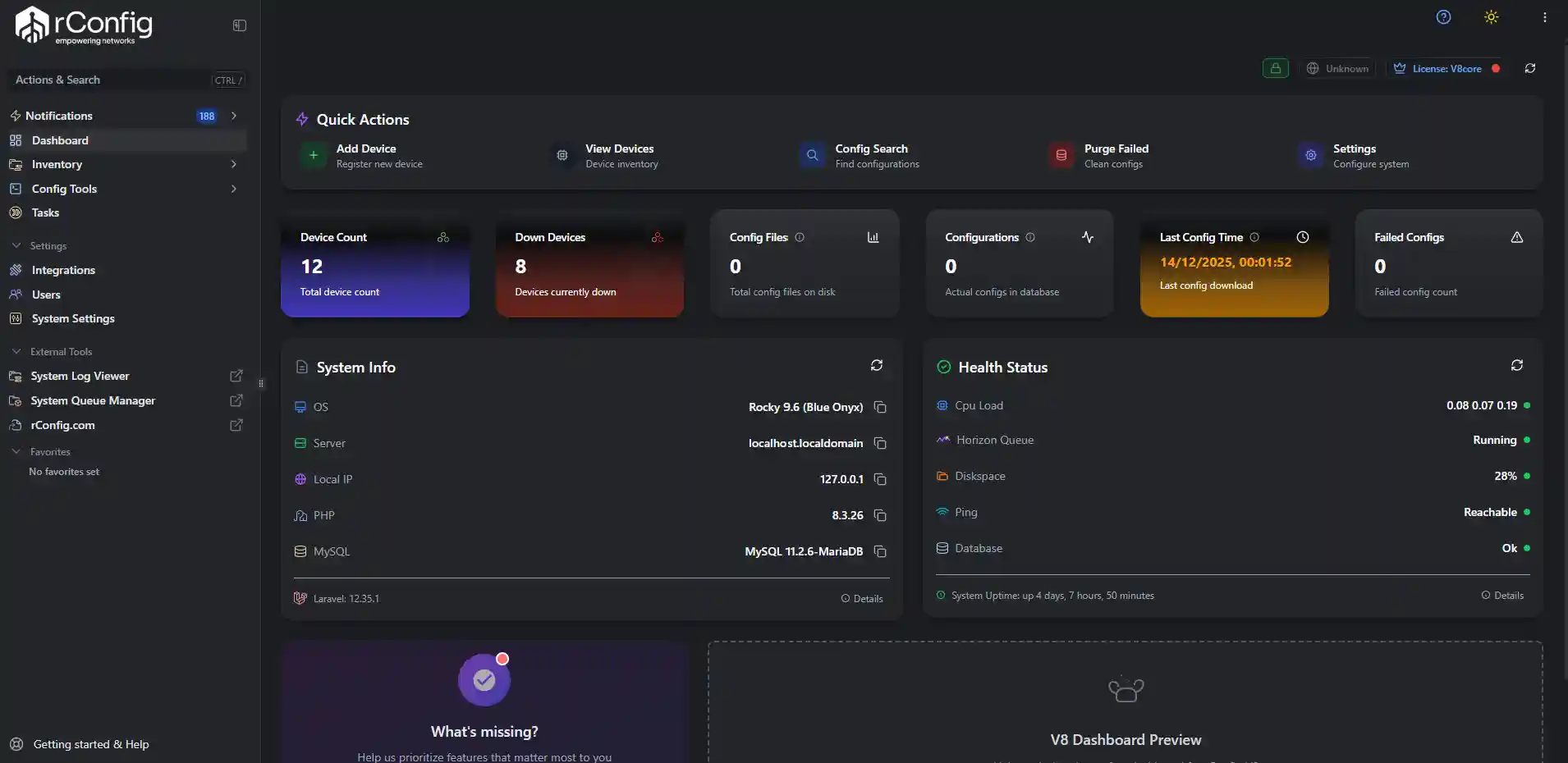

📸 Screenshots

✨ Features

🆚 rConfig Editions Comparison

(⬆ back to top)

🚀 Quick Start

Get rConfig v8 Core up and running in minutes!

Option 1: 🐳 Docker (Recommended for Quick Testing)

For Docker installation, please use our dedicated Docker repository:

👉 rconfig8coredocker

# Clone the Docker repository
git clone https://github.com/rconfig/rconfig8coredocker.git
cd rconfig8coredocker

# Start the containers
docker-compose up -d

# Access at http://localhost:8080

Default credentials:

• 📧 Email: admin@domain.com
• 🔑 Password: admin

⚠️ Important: Change these credentials immediately after first login!

Option 2: 💻 Native Installation

See the Full Installation Guide below.

(⬆ back to top)

📦 Installation

Prerequisites

Supported OS: Rocky Linux 8/9+ (recommended), CentOS 8/9+, RHEL 8/9+, Ubuntu 22.04+, Alma Linux 8/9+, AWS Linux 2023

Required Software: PHP 8.4+, Composer 2.4+, Apache 2.4+, MySQL 5.7+/MariaDB 10.5+, Node.js 14.17+, Git 2.25+, Supervisor 4.2+

💡 Tip: We provide automated setup scripts! Visit docs.rconfig.com/getstarted/os-setup

🗄️ Database Setup

# Login to MySQL
mysql -u root -p

# Create database
CREATE DATABASE rconfig;

# Create user (recommended for Ubuntu 22.04+)
CREATE USER 'rconfig_user'@'localhost' IDENTIFIED BY 'your_secure_password';
GRANT ALL PRIVILEGES ON rconfig.* TO 'rconfig_user'@'localhost';
FLUSH PRIVILEGES;
EXIT;

📥 Installation Steps

# 1. Navigate to web directory
cd /var/www/html

# 2. Clone the repository
git clone https://github.com/rconfig/rconfig.git
cd rconfig

# 3. Create environment file
cp .env.example .env

# 4. Edit .env with your settings
nano .env

Update these variables in .env:

APP_URL="https://your-server.domain.com"
APP_DIR_PATH=/var/www/html/rconfig
DB_HOST=localhost
DB_PORT=3306
DB_DATABASE=rconfig
DB_USERNAME=rconfig_user
DB_PASSWORD=your_secure_password

# 5. Install PHP dependencies
export COMPOSER_ALLOW_SUPERUSER=1
composer self-update --2
yes | composer install --no-dev

# 6. Setup Apache
chmod +x setup_apache.sh
./setup_apache.sh

# 7. Setup Supervisor
chmod +x setup_supervisor.sh
./setup_supervisor.sh

# 8. Run the beautiful installation wizard 🎨
php artisan v8core:install

🎉 When prompted about cron scheduling, type yes and press Enter.

🔧 Final Configuration

# Update Apache virtual host
# For CentOS/RHEL:
sudo nano /etc/httpd/conf.d/rconfig-vhost.conf

# For Ubuntu:
sudo nano /etc/apache2/sites-enabled/rconfig-vhost.conf

Update ServerName:

ServerName your-server.domain.com
ServerAlias your-server.domain.com

# Restart Apache
# CentOS/RHEL:
sudo systemctl restart httpd

# Ubuntu:
sudo systemctl restart apache2

# Set permissions and clear cache
# CentOS/RHEL:
cd /var/www/html/rconfig
chown -R apache storage bootstrap/cache
php artisan rconfig:clear-all

# Ubuntu:
cd /var/www/html/rconfig
chown -R www-data storage bootstrap/cache
php artisan rconfig:clear-all

🎊 Access Your Installation

Open your browser and navigate to: https://your-server.domain.com

Default System Credentials:

• 📧 Email: admin@domain.com
• 🔑 Password: admin

⚠️ Security Notice: Change or remove these credentials immediately after creating a new admin user!

(⬆ back to top)

🐳 Docker Installation

Running rConfig v8 Core in Docker provides:

• ✨ Easy Setup - Get started in minutes
• 🔒 Isolation - Clean containerized environment
• 🚚 Portability - Move between systems easily
• 📦 Consistency - Same behavior everywhere

Docker Repository

We maintain a dedicated Docker repository for rConfig v8 Core:

👉 rconfig8coredocker

Quick Docker Setup

# Clone the Docker repository
git clone https://github.com/rconfig/rconfig8coredocker.git
cd rconfig8coredocker

# Build and start containers
docker-compose up -d

# Access at http://localhost:8080

📖 Full Docker documentation: rconfig8coredocker repository

(⬆ back to top)

🔄 Updating

⚠️ Before updating:

• Backup your database
• Backup your .env file
• Backup your storage directory
• Backup your entire server if possible

PHP 8.4 Update (Required as of Feb 2024)

# For CentOS/RHEL/Rocky:
cd /home
yum -y install wget
wget https://dl.rconfig.com/downloads/php-updates/centos-php8-update.sh -O /home/centos-php8-update.sh
chmod +x centos-php8-update.sh
./centos-php8-update.sh

# For Ubuntu:
cd /home
sudo apt-get install wget
wget https://dl.rconfig.com/downloads/php-updates/ubuntu-php8-update.sh -O /home/ubuntu-php8-update.sh
chmod +x ubuntu-php8-update.sh
./ubuntu-php8-update.sh

Update Commands

# CentOS/Rocky/RHEL:
cd /var/www/html/rconfig
git pull
php artisan migrate
php artisan rconfig:sync-tasks
composer install
systemctl restart httpd
php artisan rconfig:clear-all

# Ubuntu:
cd /var/www/html/rconfig
git pull
php artisan migrate
php artisan rconfig:sync-tasks
composer install
systemctl restart apache2
php artisan rconfig:clear-all

💡 Git Conflicts? Try: git stash && git pull

(⬆ back to top)

🤝 Contributing

Contributions make the open-source community amazing! Any contributions you make are greatly appreciated.

Contribution Guidelines

We maintain high standards for code quality and style. Contributors should have:

• Strong working knowledge of PHP, Laravel, and Vue.js
• Understanding of best practices and coding standards
• Ability to write clean, maintainable code

How to Contribute

1. 🍴 Fork the Project
2. 🌿 Create your Feature Branch (git checkout -b feature/AmazingFeature)
3. ✍️ Commit your Changes (git commit -m 'Add some AmazingFeature')
4. 📤 Push to the Branch (git push origin feature/AmazingFeature)
5. 🔀 Open a Pull Request to the develop branch

Running Tests

# 1. Create test database
# 2. Copy environment file
cp .env.example .env.testing

# 3. Generate test key
php artisan key:generate --env=testing

# 4. Update .env.testing
# Set APP_ENV=testing
# Update database credentials

# 5. Run tests
php artisan test

Frontend Development

# Install dev dependencies
npm install --include=dev

# Start dev server
npm run dev

💡 Network issues with npm? Try: export NODE_OPTIONS="--dns-result-order=ipv4first"

(⬆ back to top)

📺 Video Tutorials

Check out our YouTube channel for installation walkthroughs and tutorials:

(⬆ back to top)

📄 License

This codebase is distributed under License from rConfig. See LICENSE.txt for more information.

ℹ️ rConfig v8 Professional is excluded from this license and repository.

(⬆ back to top)

💬 Support

Community Support (rConfig Core)

• 🐛 Report Issues
• 💡 Request Features
• 📖 Documentation
• ⭐ Star us on GitHub

ℹ️ rConfig v8 Core is provided on a best-effort basis. Response times may vary.

Priority Support (rConfig Professional)

For business-critical environments and guaranteed response times:

• 🎫 Dedicated support portal
• 📞 Priority response SLA
• 🔧 Expert assistance
• 📊 Advanced features

👉 Learn more about rConfig Professional

(⬆ back to top)

🙏 Acknowledgments

Built with amazing open-source technologies:

• Laravel - The PHP Framework for Web Artisans (V12)
• Vue.js - The Progressive JavaScript Framework
• shadcn/ui - Beautifully designed components
• Vite - Next Generation Frontend Tooling

See composer.json and package.json for the complete list of dependencies.
