Ultra-fast 2D & 3D Hilbert space-filling curve encode/decode kernels for Python.

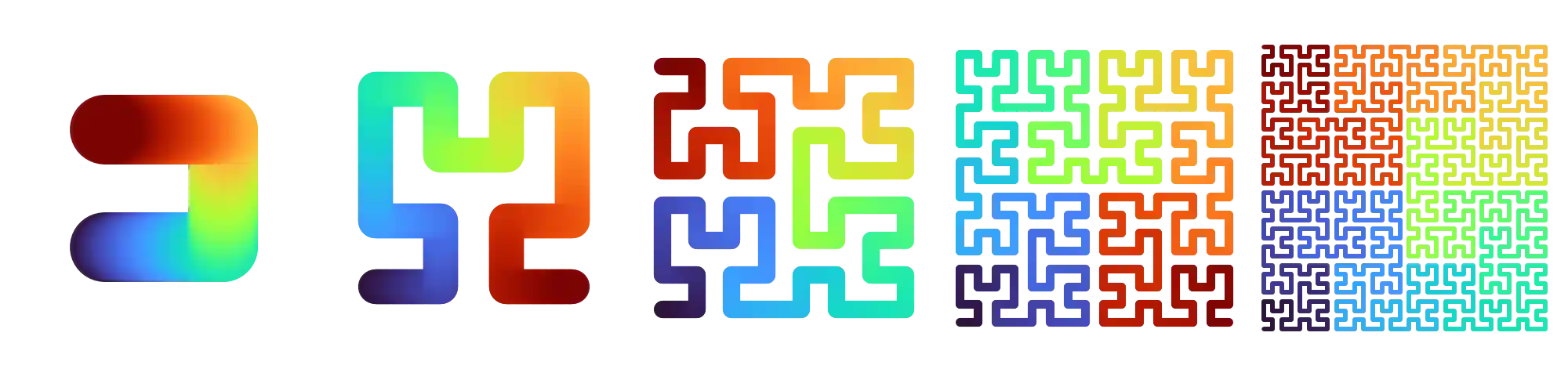

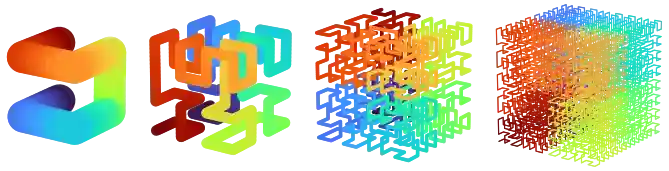

_{2D Hilbert curves (nbits 1..5) and 3D Hilbert curves (nbits 1..4, animated).}

This project is performance-first and implemented entirely in Python. The hot kernels are JIT-compiled with Numba and tuned for:

• Branchless, fully unrolled inner loops
• SIMD via LLVM vector intrinsics
• Small, L1-cache-friendly lookup tables (LUTs)
• Reduced dependency chains for better ILP and MLP
• Optional multi-threading for batch operations

It provides both convenient Python APIs and kernel accessors designed to be embedded into other Numba kernels.

Performance

HilbertSFC is orders of magnitude faster than existing Python implementations. It also outperforms the Fast Hilbert implementation in Rust by a factor of ~8x. In fact, HilbertSFC takes only ~6 CPU cycles per point for 2D encode/decode of 32-bit coordinates.

2D Points - Random, nbits=32, n=5,000,000

System info: Intel Core Ultra 7 258v, Ubuntu 24.04.4, Python 3.12.12, Numba 0.63.1

Additional benchmarks and details are available in the benchmark.md.

For a deep dive into how the HilbertSFC kernels are derived and why the implementation maps well to modern CPUs (FSM/LUT formulation, dependency chains, ILP/MLP, unrolling, constant folding, vectorization, gathers), see the performance deep dive notebook.

Quickstart

Installation

With pip:

Or with uv:

Usage

Hilbert curves map multi-dimensional integer coordinates onto a single scalar index while preserving spatial locality. hilbertsfc provides an encode and decode API for 2D and 3D coordinates that support both scalar values and vectorized array inputs.

The nbits parameter specifies the number of bits per coordinate, defining the grid domain as [0, 2**nbits). If omitted, it's inferred from the input array dtype (for arrays) or defaults to the maximum (32 for 2D, 21 for 3D).

Scalar 2D

Encode a single (x, y) coordinate into a Hilbert index, and decode it back:

from hilbertsfc import hilbert_decode_2d, hilbert_encode_2d

index = hilbert_encode_2d(17, 23, nbits=10)  # index = 534
x, y = hilbert_decode_2d(index, nbits=10)    # x, y = (17, 23)

Batch 2D

The same functions operate elementwise on NumPy arrays, preserving shape and avoiding Python loops:

import numpy as np
from hilbertsfc import hilbert_decode_2d, hilbert_encode_2d

xs = np.arange(1024, dtype=np.uint16)
ys = xs[::-1]

indices = hilbert_encode_2d(xs, ys, nbits=10)    # shape (1024,), dtype uint32
xs2, ys2 = hilbert_decode_2d(indices, nbits=10)  # xs2 = xs, ys2 = ys

This is the preferred use for high-throughput workloads. It can be further accelerated with parallel=True.

Batch 3D

3D works identically, mapping (x, y, z) coordinates to a single Hilbert index:

import numpy as np
from hilbertsfc import hilbert_decode_3d, hilbert_encode_3d

nbits = 10
n = 10_000
rng = np.random.default_rng(0)

xs = rng.integers(0, 2**nbits, size=n, dtype=np.uint32)
ys = rng.integers(0, 2**nbits, size=n, dtype=np.uint32)
zs = rng.integers(0, 2**nbits, size=n, dtype=np.uint32)

indices = hilbert_encode_3d(xs, ys, zs, nbits=nbits)      # shape (10000,), dtype uint32
xs2, ys2, zs2 = hilbert_decode_3d(indices, nbits=nbits)   # xs2 = xs, ys2 = ys, zs2 = zs

This is can be useful for applications like 3D spatial indexing, volumetric data processing, compression, and more.

Embedding kernels in your own Numba code

While the main API is designed for ease of use, the package also provides kernel accessors that expose the scalar encode/decode kernels. This allows you to embed the Hilbert curve logic directly into your own Numba kernels, enabling further optimizations like loop fusion and reduced Python call overhead.

Example embedding the 2D encode kernel:

import numpy as np
import numba as nb

from hilbertsfc import get_hilbert_encode_2d_kernel

encode_2d_10 = get_hilbert_encode_2d_kernel(nbits=10)

@nb.njit
def encode_many(xs: np.ndarray, ys: np.ndarray) -> np.ndarray:
    out = np.empty(xs.shape, dtype=np.uint32)
    for i in range(xs.size):
        out[i] = encode_2d_10(xs[i], ys[i])
    return out

The same pattern works for decode and for 3D kernels.

Demo Notebook

For more examples, see the demo notebook which includes visualizations of the curves and embedding the kernels into custom Numba code.

API notes

• nbits specifies the number of bits per coordinate. Coordinates must be in [0, 2**nbits). A tighter nbits improves performance and reduces output dtypes. Excess bits are ignored.
• Hilbert indices obtained with a certain nbits are compatible with those from another nbits, given that the coordinates are within the valid range. This is because the kernels resolve the starting state parity to ensure compatibility.
• The batched API accepts arbitrary shapes and preserves the input shape. The requirement is that inputs/outputs support a zero-copy 1D view. Most strided views are supported but they can reduce performance since the kernels are close to memory-bandwidth bound.
• You can pass out=... buffers for batch encode, and out_xs/out_ys/out_zs for batch decode. This can for example be useful to write into memory-mapped arrays or to reuse buffers across multiple calls.
• parallel=True dispatches the parallel version of the kernel (when available). The number of threads can be controlled with the environment variable NUMBA_NUM_THREADS or during runtime with numba.set_num_threads().

Documentation

Documentation is hosted online. It includes a quick start guide, and API reference.

To serve the docs locally:

uv run --no-dev --group docs mkdocs serve

Build a static site into site/:

uv run --no-dev --group docs mkdocs build

Development

The repo uses uv for environment management. CI and local development workflows (lint, tests, type checking, docs) are automated with nox.

Sync a local environment with dev dependencies:

Run the full nox suite:

More details are in CONTRIBUTING.md.
