GitHub - robertlevonyan/material-chip-view: Material Chip view. Can be used as tags for categories, contacts or creating text clouds

Material Chip view. Can be used as tags for categories, contacts or creating text clouds. This library can be an alternative for Material Chip from Jetpack library.
Android Arsenal Android Arsenal API
MaterialChipVersion Maven Central
ComposeChipVersion Maven Central
Material3ComposeChipVersion Maven Central

Setup

Add following line of code to your project level gradle file

  repositories {
    mavenCentral()
  }

Add following line of code to your module(app) level gradle file

Groovy:

    implementation 'com.robertlevonyan.view:MaterialChipView:<MaterialChipVersion>'

Kotlin:

    implementation("com.robertlevonyan.view:MaterialChipView:$MaterialChipVersion")

Maven:

  <dependency>
    <groupId>com.robertlevonyan.view</groupId>
    <artifactId>MaterialChipView</artifactId>
    <version>MaterialChipVersion</version>
    <type>pom</type>
  </dependency>

For Jetpack Compose version

    implementation("com.robertlevonyan.compose:materialchip:$ComposeChipVersion")

or if you want to yse Material3 version

    implementation("com.robertlevonyan.compose:material3chip:$Material3ComposeChipVersion")

Usage

  <com.robertlevonyan.views.chip.Chip
    android:id="@+id/chip"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="@string/customTitle" />

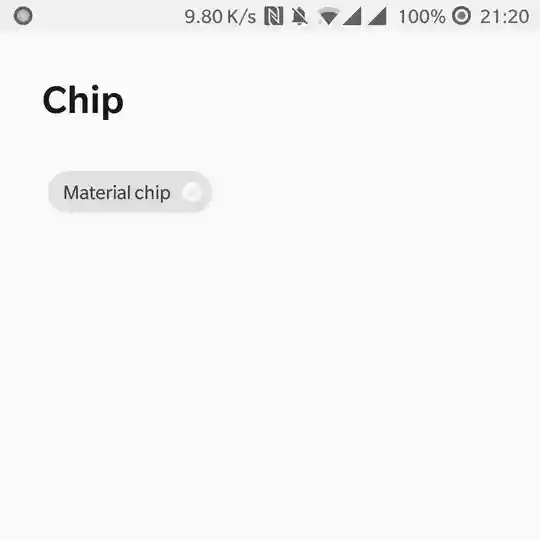

alt text

Cutomizing Chip

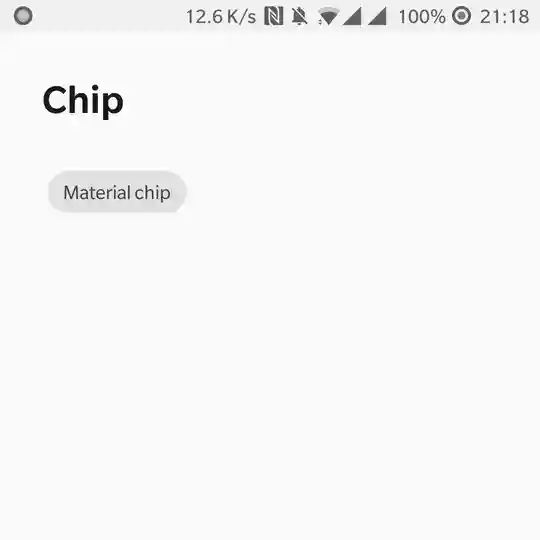

alt text

    app:mcv_selectable="true"

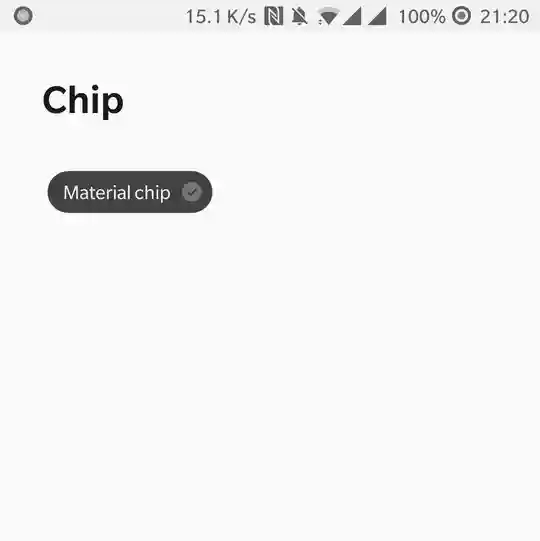

alt text alt text
    app:mcv_chipIcon="@drawable/customIcon"

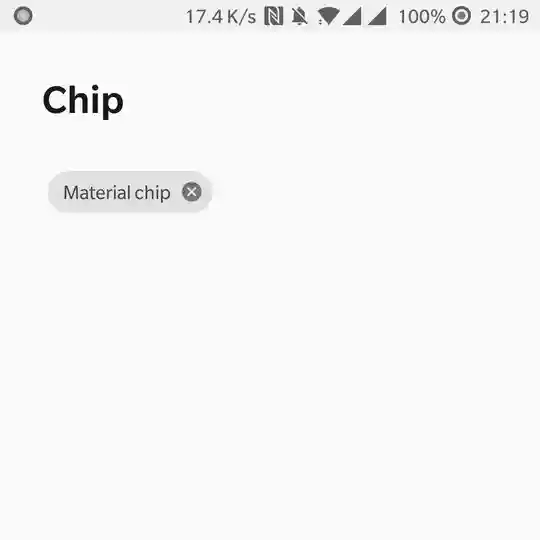

alt text

    app:mcv_backgroundColor="@color/customChipBackgroundColor"
    app:mcv_closeColor="@color/customCloseIconColor"
    app:mcv_selectedBackgroundColor="@color/customSelectedChipColor"
    app:mcv_textColor="@color/customTitleColor"

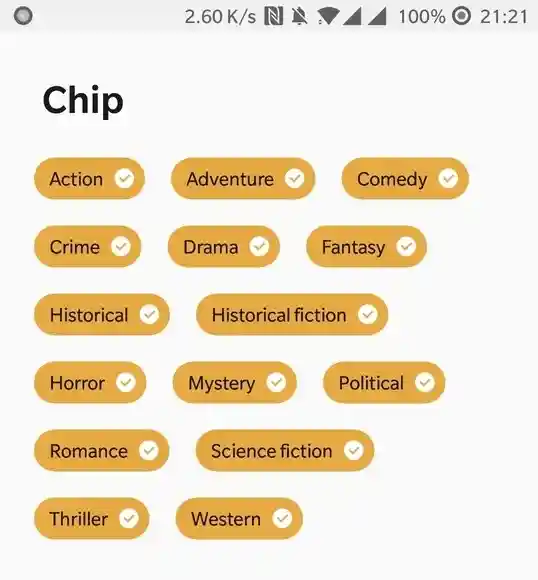

alt text alt text

Attributes

Custom Atributes Description
app:mcv_textColor Custom color for text label
app:mcv_backgroundColor Custom background color
app:mcv_selectedBackgroundColor Custom background color when selected
app:mcv_chipIcon Icon resource for Chip
app:mcv_closable Chip with close button
app:mcv_closeColor Custom color for close button
app:mcv_selectable Chip with selection button
app:mcv_selectedTextColor Custom color for label when selected
app:mcv_cornerRadius Change the corner radius of your Chip
app:mcv_strokeSize Add stroke to your Chip
app:mcv_strokeColor Choose a custom stroke color for your Chip
app:mcv_selectedStrokeSize Stroke size when selected
app:mcv_selectedStrokeColor Custom stroke color when selected
app:mcv_iconText Instead of an image create icon from String
app:mcv_iconTextColor Select a color for your String icon
app:mcv_iconTextBackgroundColor Select a background color for String icon

Setting Listeners

    val chip = findViewById(R.id.chip);

Chip click listener

    chip.setOnClickListener { view ->
         //Your action here...
    }

On Close button click listener

    chip.setOnCloseClickListener { view ->
         //Your action here...
    }

On Icon click listener

    chip.setOnIconClickListener { view ->
         //Your action here...
    }

On Select button click listener

    chip.setOnSelectClickListener { view: View, selected: Boolean ->
         //Your action here...
    }

Customizing Chip from code

        chip.text = "My awesome Chip" // Set Chip label
        chip.chipTextColor = chipTextColor // Set Chip label color
        chip.chipBackgroundColor = chipBackgroundColor //Set custom background color
        chip.chipSelectedBackgroundColor = chipSelectedBackgroundColor //Set custom background color when selected
        chip.chipIcon = myIconDrawable //Set Icon Drawable for Chip
        chip.chipIconBitmap = myIconBitmap //Set Icon Bitmap for Chip
        chip.closable = true //Set Chip has close button
        chip.chipCloseColor = chipCloseColor //Set custom color for close button
        chip.chipSelectedCloseColor = chipSelectedCloseColor //Set custom color for close button on selected state
        chip.selectable = false //Set Chip has selection button
        chip.chipSelected = true // Set Chip selected
        chip.chipSelectedTextColor = chipSelectedTextColor //Set custom color for label when selected
        chip.cornerRadius = 5 // Set corner radius of your Chip
        chip.strokeSize = 2 // Set width of stroke
        chip.strokeColor = strokeColor // Set stroke color for your Chip
        chip.selectedStrokeSize = 2 // Set width of stroke when selected
        chip.selectedStrokeColor = selectedStrokeColor // Set stroke color for your Chip when selected
        chip.setIconText(text, iconTextColor, iconTextBackgroundColor); // Set Chip icon text, text color and background color (in case of Kotlin iconTextColor and iconTextBackgroundColor have default value of 0)
        chip.chipHorizontalPadding = 10 // Set horizontal padding for chip

For Jetpack Compose version

setContent {
  Box(modifier = Modifier.fillMaxWidth()) {
    MaterialChip(
      text = "Some Text",
      chipIcon = ChipIconRes(icon = R.drawable.android), // ChipIconBitmap or ChipIconDrawable
      interaction = ChipInteraction.Closable, // Selectable, SelectableWithoutIcon or None
      strokeSize = 1.dp,
      selectedStrokeSize = 2.dp,
      strokeColor = Color.Red,
      selectedStrokeColor = Color.Blue,
      onSelectClick = { selected ->
        // your code here
      },
      onIconClick = {
        // your code here
      },
      onChipClick = {
        // your code here
      },
      onCloseClick = {
        // your code here
      }
    )
  }
}

Also there is a MaterialChipGroup available for Jetpack Compose version

setContent {
  Box(modifier = Modifier.fillMaxWidth()) {
    MaterialChipGroup(
      items = listOf("Chip1", "Chip2", "Chip3"),
      createTitle = { it }, //returns a String for the title
      initialSelectedElementIndex = 1, // default value is -1 (means nothing is selected)
      onItemSelected = { position, element ->
        // do something
      },
      // the rest is for Chip appearance
      interaction = ChipInteraction.Selectable,
      strokeSize = 1.dp,
      selectedStrokeSize = 2.dp,
      strokeColor = Color.Red,
      selectedStrokeColor = Color.Blue,
      backgroundColor = Color.Red,
      selectedBackgroundColor = Color.Blue,
    )
  }
}

Versions

1.0.0 (Material3)

Jetpack compose version with Material 3 styling

3.0.0

Jetpack Compose support added Chip Group added for JetpackCompose

2.2.1 - 2.2.7

Update to Java 11 SDK 31 ready Minor updates

2.2.0

Migration to mavenCentral

2.1.1 - 2.1.7

Minor changes, some missing parts pushed

2.1.0

New update, now it is possible to make chip selectable without selection icon

2.0.1 - 2.0.7

Minor changes, some missing parts pushed

2.0.0

New version of the library. Fully rewritten with Kotlin and AndroidX ready 🤩

1.2.1, 1.2.2

General bug fixed

1.1.3

Selection option added

1.1.2

Icon text issue fixed

1.1.1

Updated version of Material Chip View: - the attribute names are changed to escape conflicts with other libs - added new features like customizable corner radius and stroke - recreation issue fixed for post Lollipop versions

1.0.1

Recreation issues are fixed

1.0.0

First version of library
