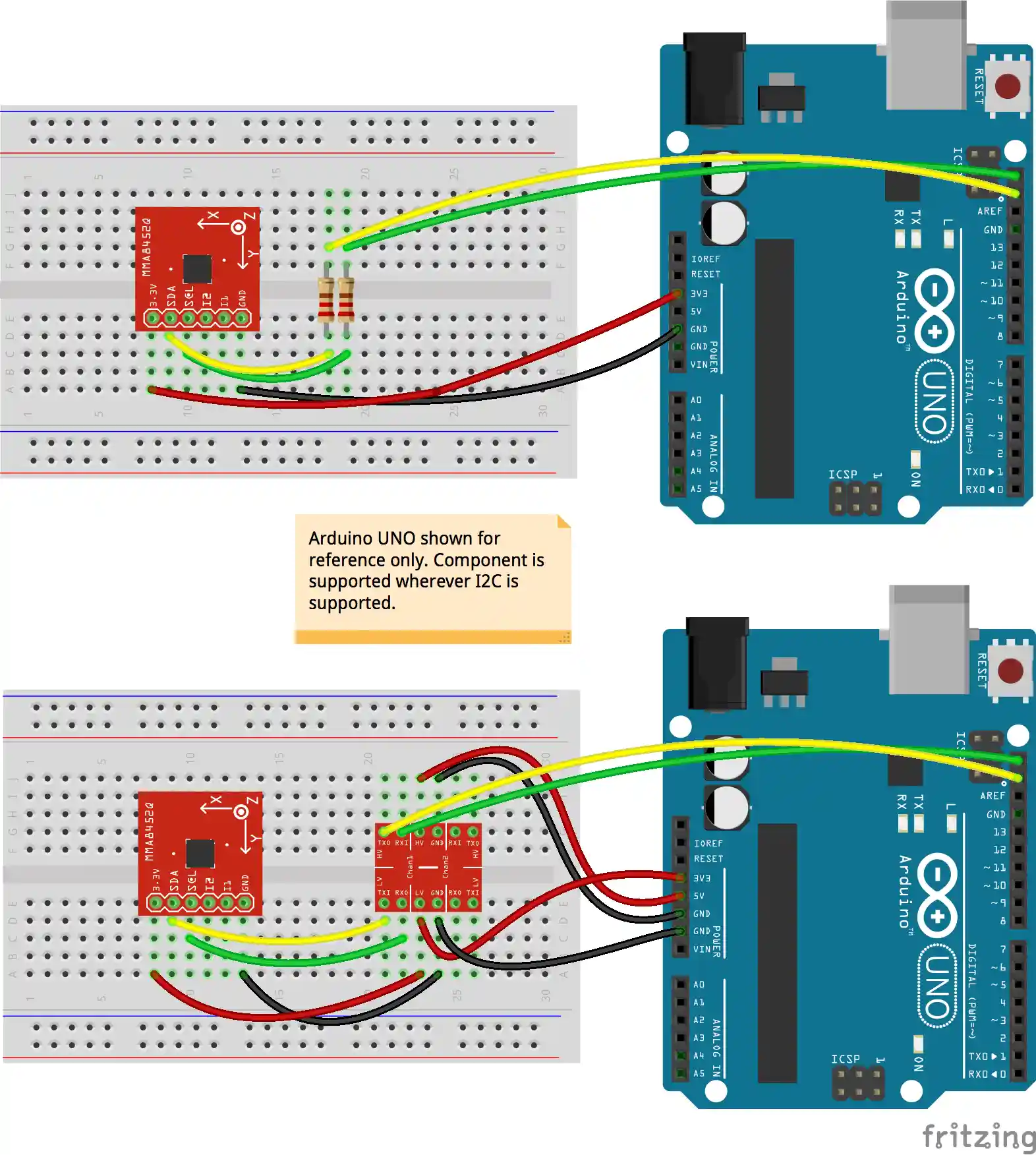

Breadboard for "Accelerometer - MMA8452"
Fritzing diagram: docs/breadboard/accelerometer-MMA8452.fzz
Run this example from the command line with:
node eg/accelerometer-MMA8452.js
const { Accelerometer, Board } = require("johnny-five"); const board = new Board(); board.on("ready", () => { const accelerometer = new Accelerometer({ controller: "MMA8452" }); accelerometer.on("change", () => { const {acceleration, inclination, orientation, pitch, roll, x, y, z} = accelerometer; console.log("Accelerometer:"); console.log(" x : ", x); console.log(" y : ", y); console.log(" z : ", z); console.log(" pitch : ", pitch); console.log(" roll : ", roll); console.log(" acceleration : ", acceleration); console.log(" inclination : ", inclination); console.log(" orientation : ", orientation); console.log("--------------------------------------"); }); ["tap", "tap:single", "tap:double"].forEach((event) => { accelerometer.on(event, () => console.log(event)); }); });
