Configuration details:

1. EC2 instance name: todaysphere-app
2. Docker node.js app image name : todaysphere_app
3. Docker node.js app container name: todaysphereapp
4. App URL format - http://EC2_INSTANCE_PUBLIC_IP_ADDRESS:3000

Deployment link - https://todaysphere-app.onrender.com

Table of Contents

• About the Project
  • Description
  • Technologies
  • APIs used
  • Screenshots
• Getting Started
  • Prerequisites
  • Commands used

About The Project

Description

TodaySphere Node.js App which has completely automated deployment using Jenkins, AWS EC2, Docker and GitHub CI/CD. This app accepts location as an input from the user and based on that it shows the current weather, news for that location/region, an activity of the day which the user can perform and NASA's Astronomy Picture of the Day. A one-stop solution to start a good day! 😃

For the Devops part of this project, I created an AWS EC2 instance, installed Jenkins on the server, then integrated Jenkins with this GitHub repository containing Node.js app code. Next, using Docker, I dockerized the Node.js app and automated this process on Jenkins. Finally automated the whole process using GitHub Webhooks.

App Name: Today + Atmosphere(around you) - TodaySphere 😉

Technologies used

1. Node.js
2. AWS EC2
3. Jenkins
4. Docker
5. GitHub Webhooks (for CI/CD)

APIs used

1. WeatherStack
2. Mapbox
3. NewsAPI.org
4. NASA Open APIs
5. Bored API

Screenshots

Getting Started

To get started with the project, follow these steps:

Prerequisites

• AWS account
• GitHub account

Commands used

Note:

• Make sure to enable port 8080 inbound traffic while creating the EC2 instance

• (with default settings) Login as "ubuntu" using putty with the .ppk file

• Inside the EC2 instance (choose OS as Ubuntu)

• Installing Java inside EC2 instance

sudo apt install openjdk-11-jre

• Installing Jenkins on EC2 instance

wget -q -O - https://pkg.jenkins.io/debian-stable/jenkins.io.key |sudo gpg --dearmor -o /usr/share/keyrings/jenkins.gpg

sudo sh -c 'echo deb [signed-by=/usr/share/keyrings/jenkins.gpg] http://pkg.jenkins.io/debian-stable binary/ > /etc/apt/sources.list.d/jenkins.list'

curl -fsSL https://pkg.jenkins.io/debian-stable/jenkins.io-2023.key | sudo tee \
  /usr/share/keyrings/jenkins-keyring.asc > /dev/null

echo deb [signed-by=/usr/share/keyrings/jenkins-keyring.asc] \
  https://pkg.jenkins.io/debian-stable binary/ | sudo tee \
  /etc/apt/sources.list.d/jenkins.list > /dev/null

sudo systemctl start jenkins.service

sudo systemctl status jenkins

sudo cat /var/lib/jenkins/secrets/initialAdminPassword

• After setting up Jenkins, use the following commands to integrate it with GitHub

• Running the Node.js app on EC2 instance

cd /var/lib/jenkins/workspace/todaysphere-app

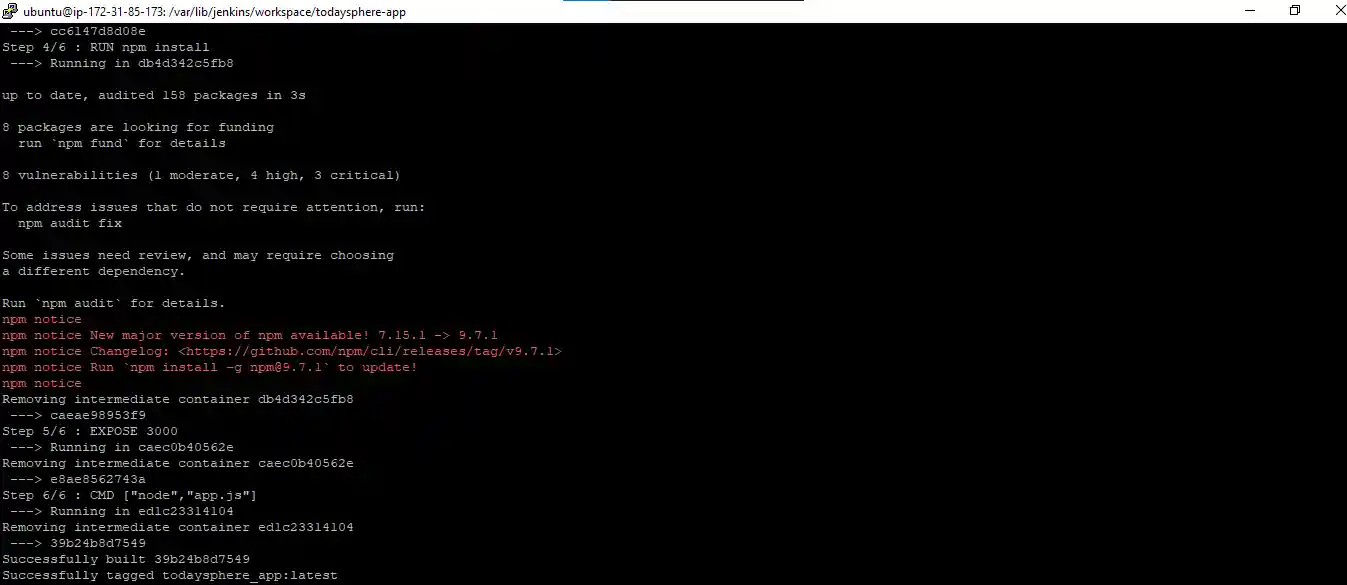

• Installing Docker and Containerizing the Node.js app

sudo apt install docker.io

sudo chmod 777 /var/run/docker.sock

sudo docker build . -t todaysphere_app

sudo docker run -d --name todaysphereapp -p 3000:3000 todaysphere_app:latest

• Jenkins Build step (execute shell)

docker build . -t todaysphere_app

docker container rm -f todaysphereapp

docker run -d --name todaysphereapp -p 3000:3000 todaysphere_app:latest

• Optional - To open access to ports/firewall modification (incase 8080 port does not open)
