Step 2

Multiple Screens and Navigation

Setup

To follow this tutorial:

Open your terminal and run tuist generate in the Samples/Tutorial directory.
After the project opens, build the Tutorial-Workspace Scheme.

Start from the implementation of Tutorial1 if you're skipping ahead. You can do this by updating the AppDelegate to import Tutorial1 instead of TutorialBase.

Second Workflow

Let's add a second screen and workflow so we have somewhere to land after we log in. Our next screen will be a list of "todo" items, as todo apps are the best apps. To see an example, modify the TutorialHostingViewController to show the TodoListSampleViewController. Once you're done looking around, the TodoListSampleViewController can be removed, as we will be replacing it with a screen and workflow.

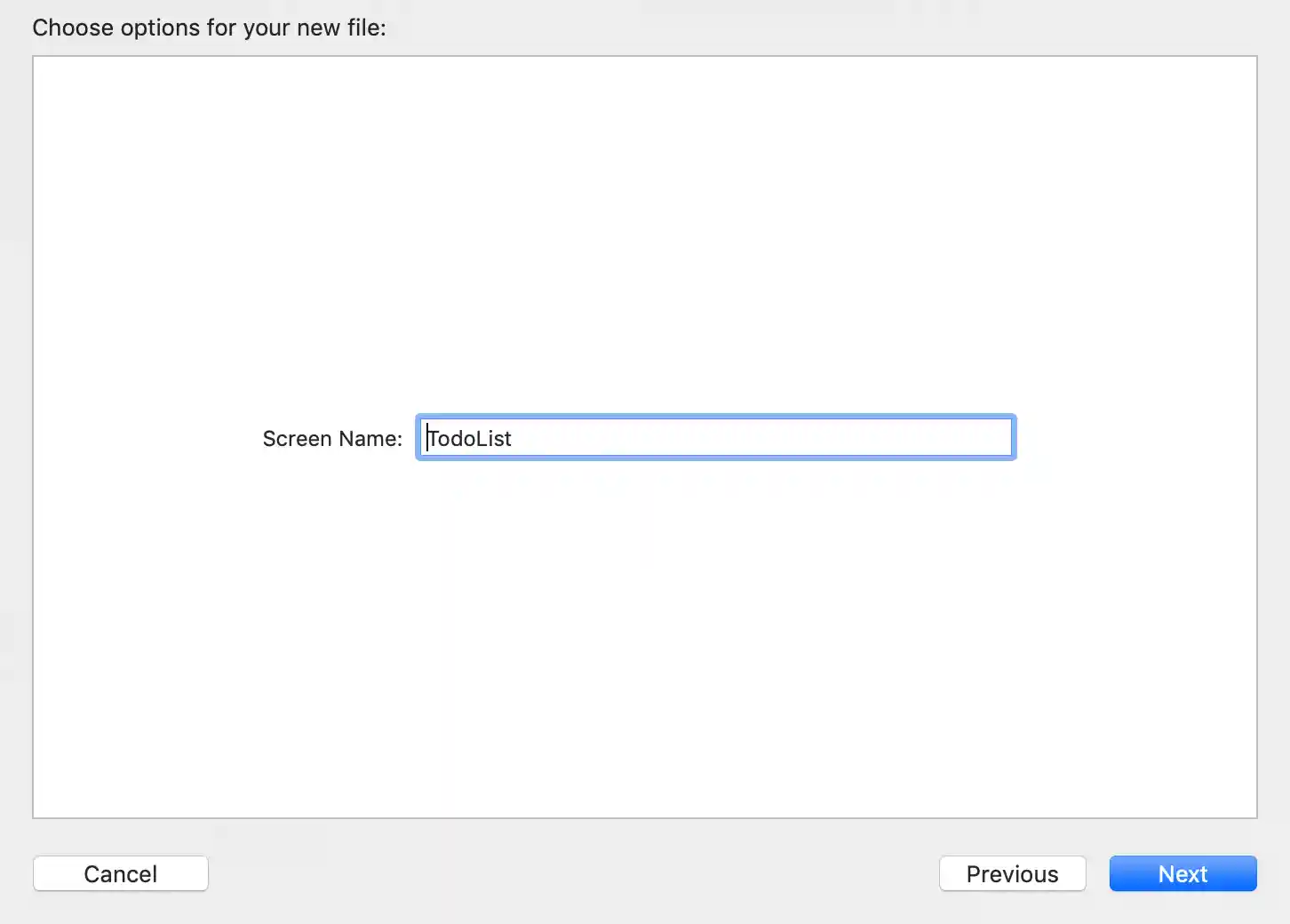

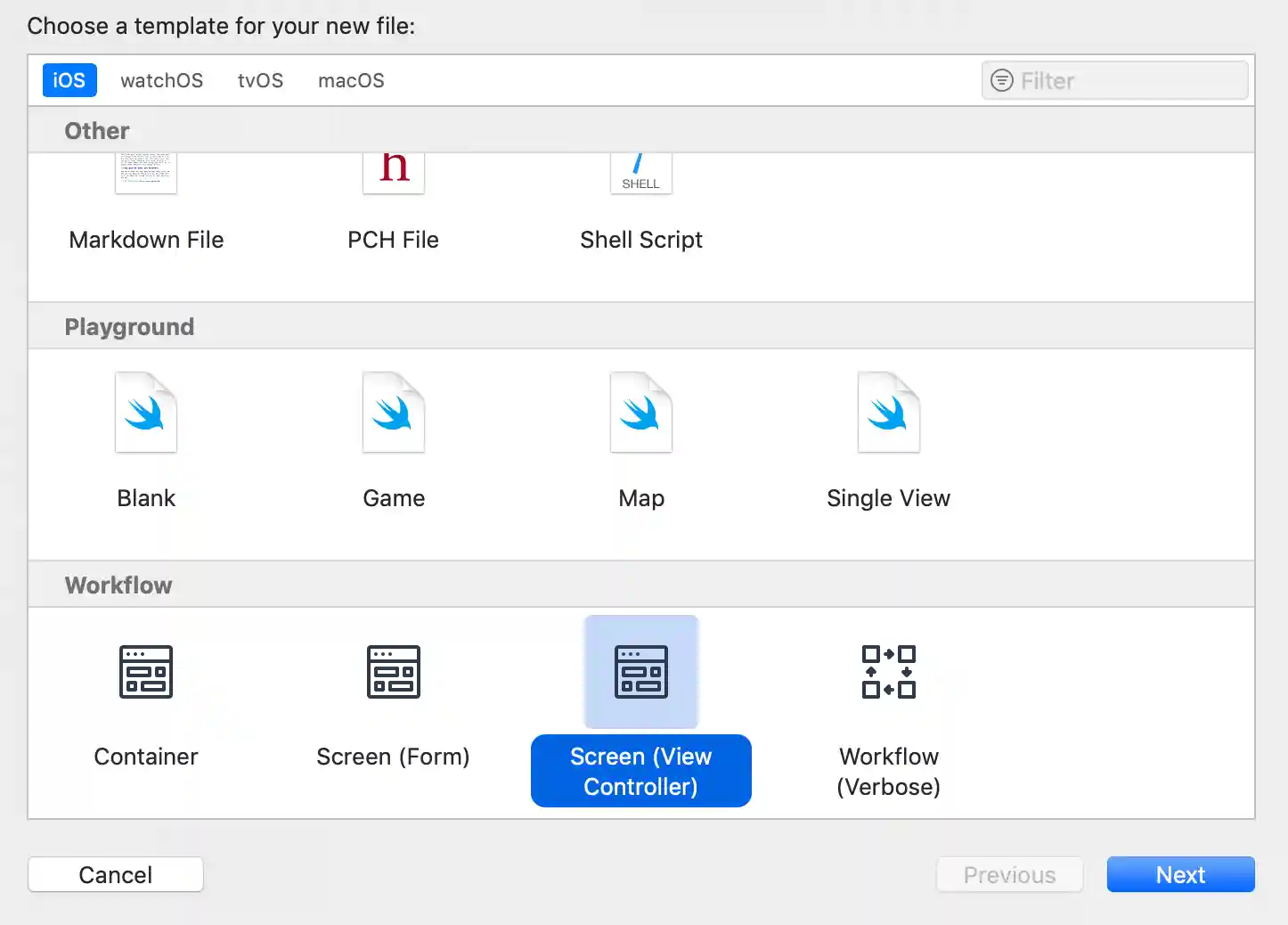

Create a new Screen/ViewController pair called TodoList:

Add the provided TodoListView from TutorialViews as a subview to the newly created view controller:

import TutorialViews


struct TodoListScreen: Screen {
    // This should contain all data to display in the UI

    // It should also contain callbacks for any UI events, for example:
    // var onButtonTapped: () -> Void

    func viewControllerDescription(environment: ViewEnvironment) -> ViewControllerDescription {
        return TodoListViewController.description(for: self, environment: environment)
    }
}


final class TodoListViewController: ScreenViewController<TodoListScreen> {
    private var todoListView: TodoListView!

    required init(screen: TodoListScreen, environment: ViewEnvironment) {
        super.init(screen: screen, environment: environment)
    }

    override func viewDidLoad() {
        super.viewDidLoad()

        todoListView = TodoListView(frame: view.bounds)
        view.addSubview(todoListView)

        updateView(with: screen)
    }

    override func viewDidLayoutSubviews() {
        super.viewDidLayoutSubviews()

        todoListView.frame = view.bounds.inset(by: view.safeAreaInsets)
    }

    override func screenDidChange(from previousScreen: TodoListScreen, previousEnvironment: ViewEnvironment) {
        super.screenDidChange(from: previousScreen, previousEnvironment: previousEnvironment)

        guard isViewLoaded else { return }

        updateView(with: screen)
    }

    private func updateView(with screen: TodoListScreen) {
        // TODO
    }

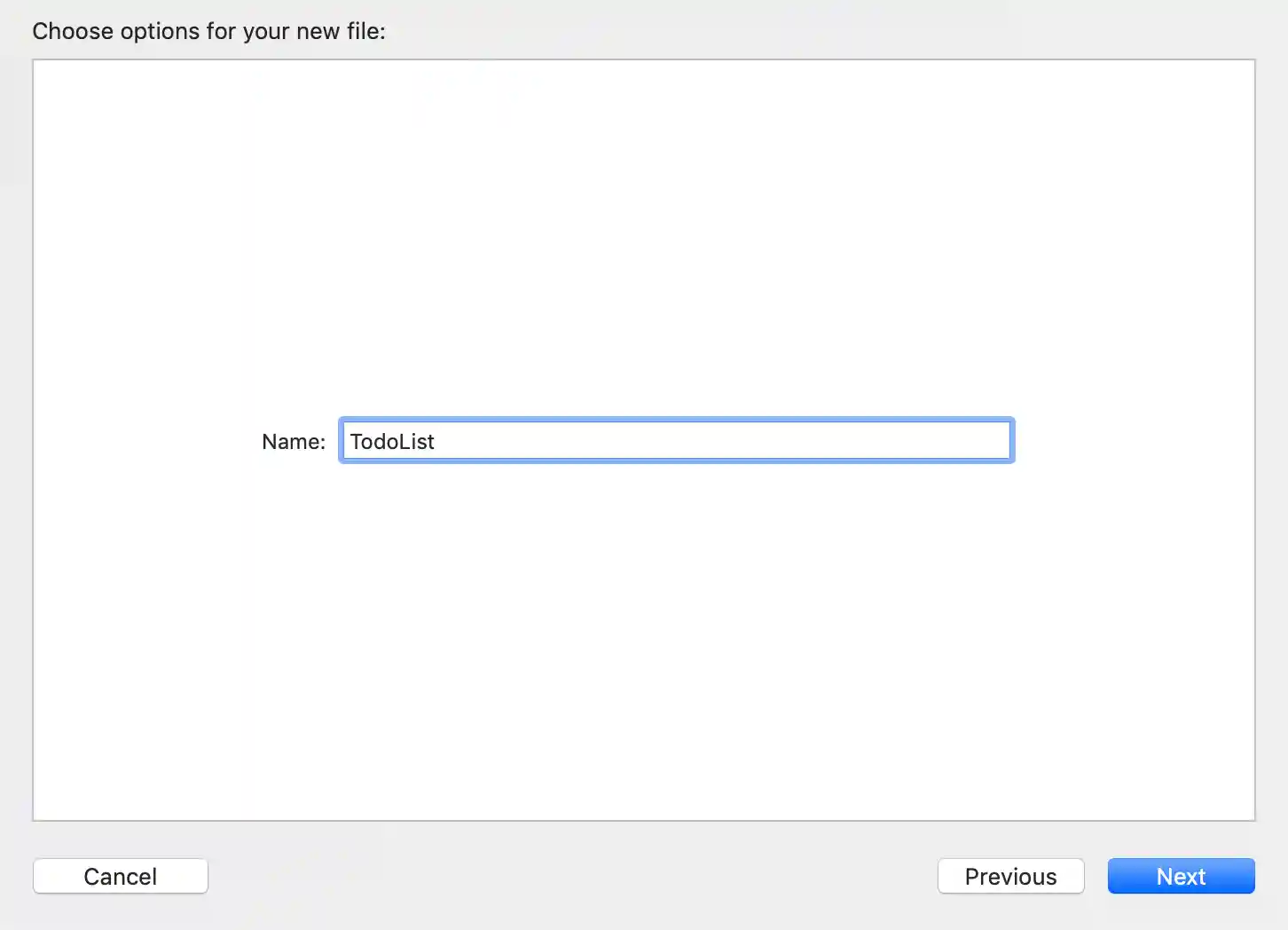

And then create the corresponding workflow called "TodoList":

Modify the rendering to return a TodoListScreen, we can leave everything else as the default for now:

// MARK: Rendering

extension TodoListWorkflow {

    typealias Rendering = TodoListScreen

    func render(state: TodoListWorkflow.State, context: RenderContext<TodoListWorkflow>) -> Rendering {
        return TodoListScreen()
    }
}

Showing the new screen and workflow

For now, let's just show this new screen instead of the login screen/workflow. Update the TutorialHostingViewController to show the TodoListWorkflow:

public final class TutorialHostingViewController: UIViewController {
    let containerViewController: UIViewController

    public init() {
        // Create a `WorkflowHostingController` with the `WelcomeWorkflow` as the root workflow.
//        containerViewController = WorkflowHostingController(
//            workflow: WelcomeWorkflow()
//        )
        // Show the TodoList Workflow instead:
        containerViewController = WorkflowHostingController(
            workflow: TodoListWorkflow()
        )

        super.init(nibName: nil, bundle: nil)
    }

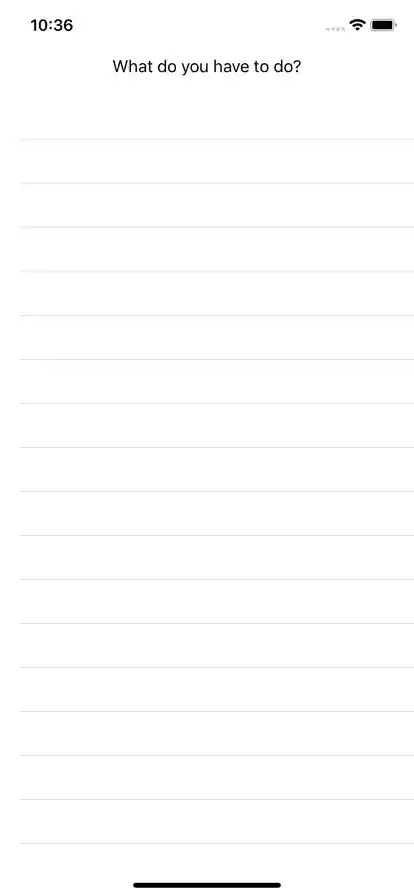

Run the app again, and now the empty todo list (table view) will be shown:

Populating the Todo List

The empty list is rather boring, so let's fill it in with some sample data for now. Update the State type to include a list of todo model objects and change makeInitialState to include a default one:

// TodoListWorkflow.swift

// MARK: State and Initialization

extension TodoListWorkflow {

    struct State {
        var todos: [TodoModel]
    }

    func makeInitialState() -> TodoListWorkflow.State {
        return State(todos: [TodoModel(title: "Take the cat for a walk", note: "Cats really need their outside sunshine time. Don't forget to walk Charlie. Hamilton is less excited about the prospect.")])
    }

    func workflowDidChange(from previousWorkflow: TodoListWorkflow, state: inout State) {

    }
}

Add a todoTitles property to the TodoScreen, and fill in updateView to update the TodoListView to change what it shows anytime the screen updates:

struct TodoListScreen: Screen {
    // The titles of the todo items
    var todoTitles: [String]

    // Callback when a todo is selected
    var onTodoSelected: (Int) -> Void

    func viewControllerDescription(environment: ViewEnvironment) -> ViewControllerDescription {
        return TodoListViewController.description(for: self, environment: environment)
    }
}

final class TodoListViewController: ScreenViewController<TodoListScreen> {
    // ...snipped...

    private func updateView(with screen: TodoListScreen) {
        // Update the todoList on the view with what the screen provided:
        todoListView.todoList = screen.todoTitles
        todoListView.onTodoSelected = screen.onTodoSelected
    }
}

Finally, update render for TodoListWorkflow to send the titles of the todo models whenever the screen is updated:

// MARK: Rendering

extension TodoListWorkflow {

    typealias Rendering = TodoListScreen

    func render(state: TodoListWorkflow.State, context: RenderContext<TodoListWorkflow>) -> Rendering {
        let titles = state.todos.map(\.title)

        return TodoListScreen(
            todoTitles: titles,
            onTodoSelected: { _ in }
        )
    }
}

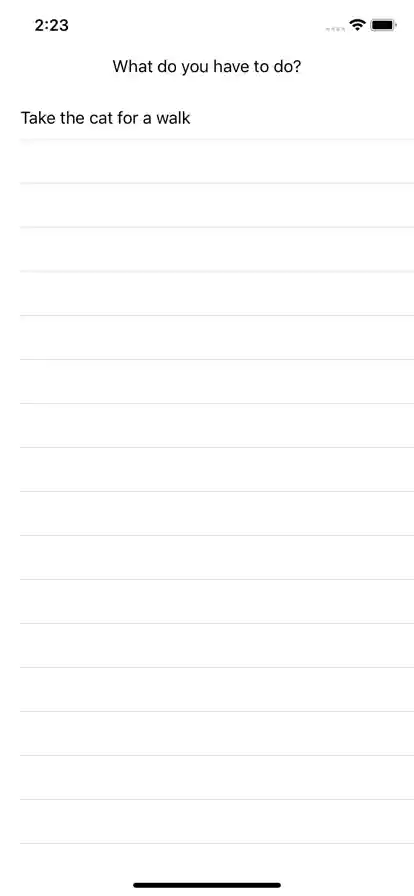

Run the app again, and now there should be a single visible item in the list:

Composition and Navigation

Now that there are two different screens, we can make our first workflow showing composition with a single parent and two child workflows. Our WelcomeWorkflow and TodoListWorkflow will be the leaf nodes with a new workflow as the root.

Root Workflow

Create a new workflow called Root with the templates.

We'll start with the RootWorkflow returning only showing the WelcomeScreen via the WelcomeWorkflow. Updated the Rendering typealias and render to have the RootWorkflow defer to a child:

// MARK: Rendering

extension RootWorkflow {
    typealias Rendering = WelcomeScreen

    func render(state: RootWorkflow.State, context: RenderContext<RootWorkflow>) -> Rendering {
        // Render a child workflow of type `WelcomeWorkflow`. When `rendered(in:)` is called, the infrastructure will create
        // a child workflow with state if one is not already running.
        let welcomeScreen = WelcomeWorkflow()
            .rendered(in: context)

        return welcomeScreen
    }
}

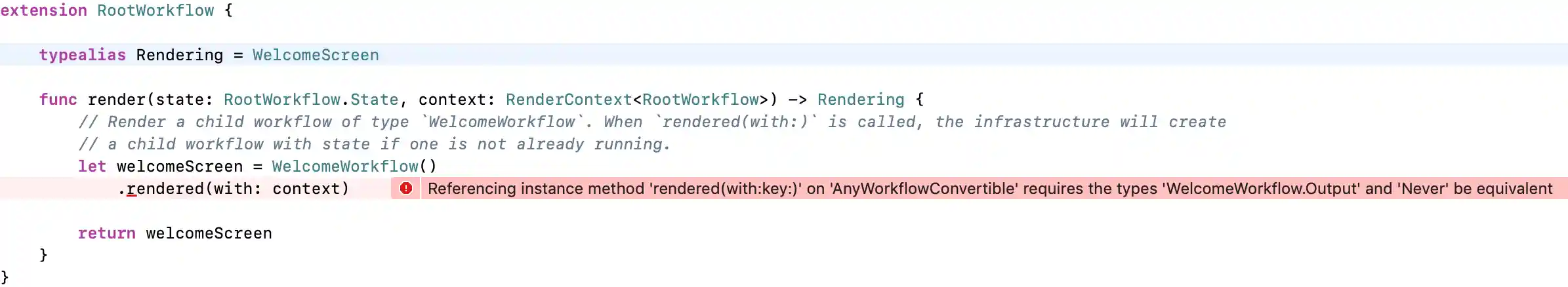

However, this won't compile immediately, and the compiler will provide a less than useful error message:

Anytime a child workflow is run, the parent needs a way of converting the child's Output into an Action the parent can handle. The WelcomeWorkflow's output type is currently an empty enum: enum Output { }.

For now, delete the Output on WelcomeWorkflow and replace it with a typealias to Never:

struct WelcomeWorkflow: Workflow {
    typealias Output = Never
}

Update the TutorialHostingViewController to start at the RootWorkflow and we'll see the welcome screen again:

public final class TutorialHostingViewController: UIViewController {
    let containerViewController: UIViewController

    public init() {
        // ...

        // Create a `WorkflowHostingController` with the `RootWorkflow` as the root workflow.
        containerViewController = WorkflowHostingController(
            workflow: RootWorkflow()
        )

        super.init(nibName: nil, bundle: nil)
    }
    // ...
}

Navigating between Workflows

Now that there is a root workflow, it can be updated to navigate between the Welcome and TodoList workflows.

Start by defining the state that needs to be tracked at the root - specifically which screen we're showing, and the actions to login and logout:

// MARK: State and Initialization

extension RootWorkflow {

    // The state is an enum, and can either be on the welcome screen or the todo list.
    // When on the todo list, it also includes the name provided on the welcome screen
    enum State {
        // The welcome screen via the welcome workflow will be shown
        case welcome
        // The todo list screen via the todo list workflow will be shown. The name will be provided to the todo list.
        case todo(name: String)
    }

    func makeInitialState() -> RootWorkflow.State {
        return .welcome
    }
    // ...
}

// MARK: Actions

extension RootWorkflow {
    enum Action: WorkflowAction {
        typealias WorkflowType = RootWorkflow

        case logIn(name: String)
        case logOut

        func apply(toState state: inout RootWorkflow.State) -> RootWorkflow.Output? {
            switch self {
            case .logIn(name: let name):
                state = .todo(name: name)
            case .logOut:
                state = .welcome
            }

            return nil
        }
    }
}

The root workflow is now modeling our states and actions. Soon we will be able to navigate between the welcome and todo list screens.

Workflow Output

Workflows can only communicate with each other through their "properties" as inputs and "outputs" as actions. When a child workflow emits an output, the parent workflow will receive it and map it into an action they can handle.

Our welcome workflow has a login button that doesn't do anything, and we'll now handle it and let our parent know that we've "logged in" so it can navigate to another screen.

Add an action for didLogIn and define our Output type to be able to message our parent:

// MARK: Actions

extension WelcomeWorkflow {
    enum Action: WorkflowAction {
        typealias WorkflowType = WelcomeWorkflow

        case nameChanged(name: String)
        case didLogIn

        func apply(toState state: inout WelcomeWorkflow.State) -> WelcomeWorkflow.Output? {
            switch self {
            case .nameChanged(name: let name):
                // Update our state with the updated name.
                state.name = name
                // Return `nil` for the output, we want to handle this action only at the level of this workflow.
                return nil

            case .didLogIn:
                // Return an output of `didLogIn` with the name.
                return .didLogIn(name: state.name)
            }
        }
    }
}

struct WelcomeWorkflow: Workflow {
    enum Output {
        case didLogIn(name: String)
    }
}

And fire the .didLogIn action any time the login button is pressed:

// MARK: Rendering

extension WelcomeWorkflow {
    typealias Rendering = WelcomeScreen

    func render(state: WelcomeWorkflow.State, context: RenderContext<WelcomeWorkflow>) -> Rendering {
        // Create a "sink" of type `Action`. A sink is what we use to send actions to the workflow.
        let sink = context.makeSink(of: Action.self)

        return WelcomeScreen(
            name: state.name,
            onNameChanged: { name in
                sink.send(.nameChanged(name: name))
            },
            onLoginTapped: {
                // Whenever the login button is tapped, emit the `.didLogIn` action.
                sink.send(.didLogIn)
            }
        )
    }
}

Finally, map the output event from WelcomeWorkflow in RootWorkflow to the login action:

// MARK: Rendering

extension RootWorkflow {
    typealias Rendering = WelcomeScreen

    func render(state: RootWorkflow.State, context: RenderContext<RootWorkflow>) -> Rendering {
        // Render a child workflow of type `WelcomeWorkflow`. When `rendered(in:)` is called, the infrastructure will create
        // a child workflow with state if one is not already running.
        let welcomeScreen = WelcomeWorkflow()
            .mapOutput({ output -> Action in
                switch output {
                // When `WelcomeWorkflow` emits `didLogIn`, turn it into our `logIn` action.
                case .didLogIn(name: let name):
                    return .logIn(name: name)
                }
            })
            .rendered(in: context)

        return welcomeScreen
    }
}

Showing a different workflow from state

Now we are handling the Output of WelcomeWorkflow, and updating the state to show the Todo screen. However, we still need to update our render method to defer to a different workflow.

We'll update the render method to show either the WelcomeWorkflow or TodoListWorkflow depending on the state of RootWorkflow

Temporarily define the Output of TodoListWorkflow as Never (we can only go forward!):

// MARK: Input and Output

struct TodoListWorkflow: Workflow {
    typealias Output = Never
}

And update the render method of the RootWorkflow:

// MARK: Rendering

extension RootWorkflow {
    typealias Rendering = AnyScreen

    func render(state: RootWorkflow.State, context: RenderContext<RootWorkflow>) -> Rendering {
        switch state {
        case .welcome:
            // When the state is `.welcome`, defer to the WelcomeWorkflow.

            // Render a child workflow of type `WelcomeWorkflow`. When `rendered(in:)` is called, the infrastructure will create
            // a child workflow with state if one is not already running.
            let welcomeScreen = WelcomeWorkflow()
                .mapOutput { output -> Action in
                    switch output {
                    // When `WelcomeWorkflow` emits `didLogIn`, turn it into our `logIn` action.
                    case .didLogIn(name: let name):
                        return .logIn(name: name)
                    }
                }
                .rendered(in: context)

            return AnyScreen(welcomeScreen)

        case .todo(name: let name):
            // When the state is `.todo`, defer to the TodoListWorkflow.
            let todoListScreen = TodoListWorkflow()
                .rendered(in: context)

            return AnyScreen(todoListScreen)
        }
    }
}

AnyScreen and type erasure

The Rendering type of RootWorkflow was changed to AnyScreen from the WelcomeScreen to be able to show different screen types. This is needed as Swift is strongly typed, and we are potentially returning different types. To accomplish this, we use a technique called "type erasure." Effectively, we wrap the real type into a type that hides the underlying type.

On the infrastructure side, when we display the different screen types, the view controller is swapped out from Welcome to instead show the TodoList.

This is the "escape hatch" for having a workflow show different screen types based on the state.

This works, but with no animation between the two screens it's pretty unsatisfying. We'll fix that by using a different "container" to provide the missing transition animation.

Back Stack and "Containers"

We want to put our different screens in a navigation controller. Because we want all of our navigation state to be declarative, we need to use the BackStackContainer to do this - by using the BackStackScreen:

public struct BackStackScreen: Screen {
    var items: [Item]

    public init(items: [BackStackScreen.Item]) {
        self.items = items
    }

    // ...snipped...
}

The BackStackScreen contains a list of all screens in the back stack that are specified on each render pass. Update the RootWorkflow to return a BackStackScreen with a list of back stack items:

// Don't forget to import `BackStackContainer` to be able to use `BackStackScreen`.
import BackStackContainer

// ...snipped...

// MARK: Rendering

extension RootWorkflow {
    typealias Rendering = BackStackScreen<AnyScreen>

    func render(state: RootWorkflow.State, context: RenderContext<RootWorkflow>) -> Rendering {
        // Create a sink to handle the back action from the TodoListWorkflow to log out.
        let sink = context.makeSink(of: Action.self)

        // Our list of back stack items. Will always include the "WelcomeScreen".
        var backStackItems: [BackStackScreen<AnyScreen>.Item] = []

        let welcomeScreen = WelcomeWorkflow()
            .mapOutput { output -> Action in
                switch output {
                // When `WelcomeWorkflow` emits `didLogIn`, turn it into our `logIn` action.
                case .didLogIn(name: let name):
                    return .logIn(name: name)
                }
            }
            .rendered(in: context)

        let welcomeBackStackItem = BackStackScreen.Item(
            key: "welcome",
            screen: AnyScreen(welcomeScreen),
            // Hide the navigation bar.
            barVisibility: .hidden
        )

        // Always add the welcome back stack item.
        backStackItems.append(welcomeBackStackItem)

        switch state {
        case .welcome:
            // We always add the welcome screen to the backstack, so this is a no op.
            break

        case .todo(name: let name):
            // When the state is `.todo`, defer to the TodoListWorkflow.
            let todoListScreen = TodoListWorkflow()
                .rendered(in: context)

            let todoListBackStackItem = BackStackScreen.Item(
                key: "todoList",
                screen: AnyScreen(todoListScreen),
                // Specify the title, back button, and right button.
                barContent: BackStackScreen.BarContent(
                    title: "Welcome \(name)",
                    // When `back` is pressed, emit the .logOut action to return to the welcome screen.
                    leftItem: .button(.back(handler: {
                        sink.send(.logOut)
                    })),
                    rightItem: .none
                )
            )

            backStackItems.append(todoListBackStackItem)
        }

        // Finally, return the BackStackScreen with a list of BackStackScreen.Items
        return BackStackScreen(items: backStackItems)
    }
}

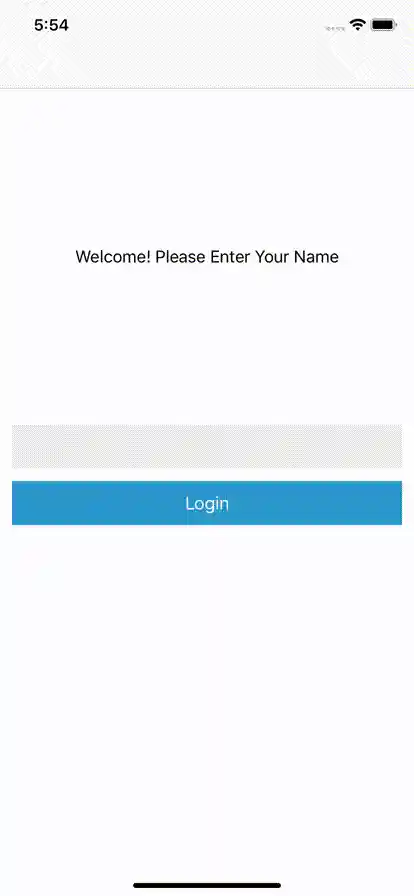

Neat! We can now log in and log out, and show the name entered as our title!

Next, we will add our Todo Editing screen.

Tutorial 3
