Purpose

For anomaly detection, autoencoder is widely used.
But using autoencoder, which have many variables with strong correlations, is said to cause a decline of detection power.
To avoid the above problem, the technique to apply L1 regularization to LSTM autoencoder is advocated in the below paper.

N. Gugulothu, P. Malhotra, L. Vig, and G. Shroff, “Sparse neural networks for anomaly detection in high-dimensional time series,” in AI4IOT Workshop in Conjunction with ICML, International Joint Conference on Artificial Intelligence and European Conference on Artificial Intelligence, Stockholm, Sweden, 2018.

The point is to use L1 regularization at the second layer of the sequence model(right under the input data).

Algorithm and How to implement

For the implementation, tensorflow and keras are used.

Structure of layers

    def create_dataset(self, X, y, time_steps=1):
        self.X = X
        self.y = y
        self.Xs, self.ys = [], []
        self.time_steps = time_steps
        for self.i in range(len(self.X) - self.time_steps):
            self.v = self.X.iloc[self.i:(self.i + self.time_steps)].values
            self.Xs.append(self.v)
            self.ys.append(self.y.iloc[self.i + self.time_steps])
        return np.array(self.Xs), np.array(self.ys)

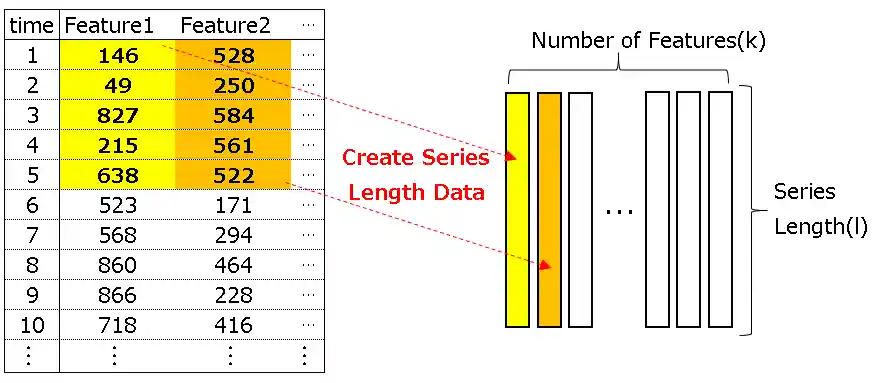

At first, define "Standard RNN EncoderDecoder", then define "Sparse RNN Encoder-Decoder".
Sparse RNN Encoder-Decoder is built by adding some changes to Standard RNN EncoderDecoder as below;
- Flatten the input
- Insert the custom layer(with L1 regularization)
- Reshape the 2. output
Structure of Standard RNN EncoderDecoder

def Usual_LSTM(X):
    hidden = 5
    timesteps=X.shape[1]
    num_features=X.shape[2]
    model = Sequential([
        LSTM(hidden, input_shape=(timesteps, num_features)),
        RepeatVector(timesteps),
        LSTM(hidden, return_sequences=True),
        TimeDistributed(Dense(num_features))
    ])
    model.summary()
    model.compile(loss='mse', optimizer='adam')
    return model

Seq	Layer	Input Shape	Output Shape
1	LSTM	(None, l, k)	(None, h)
2	RepeatVector	(None, h)	(None, l, h)
3	LSTM	(None, l, h)	(None, l, h)
4	TimeDistributed	(None, l, h)	(None, l ,k)

Structure of Sparse RNN Encoder-Decoder

class MyLayer(tf.keras.layers.Layer):
    def __init__(self, units):
        super().__init__()
        self.units = units
    def build(self, input_shape):
        self.kernel = self.add_weight(
        "kernel", shape=[1, self.units],
        initializer='uniform', trainable=True,
        regularizer = tf.keras.regularizers.l1(0.001)
        )
    def call(self, input):
        output = input*self.kernel
        return tf.nn.relu(output)

def Sparse_LSTM(X):
    hidden = 5
    timesteps=X.shape[1]
    num_features=X.shape[2]
    model = Sequential([
        Flatten(input_shape=(timesteps, num_features)),
        MyLayer(timesteps*num_features),
        Reshape(target_shape=(timesteps, num_features)),
        LSTM(hidden, input_shape=(timesteps, num_features)),
        RepeatVector(timesteps),
        LSTM(hidden, return_sequences=True),
        TimeDistributed(Dense(num_features))
    ])
    model.compile( loss="mse", optimizer='adam')
    model.summary()
    return model

Seq	Layer	Input Shape	Output Shape
1	Flatten	(None, l, k)	(None, l×k)
2	Custom	(None, l×k)	(None, l×k)
3	Reshape	(None, l×k)	(None, l, k)
4	LSTM	(None, l, k)	(None, h)
5	RepeatVector	(None, h)	(None, l, h)
6	LSTM	(None, l, h)	(None, l, h)
7	TimeDistributed	(None, l, h)	(None, l ,k)

Results

Assume that there are two types of data, the one is sine wave with noise(F1), and the other is normal random number with noise(F2).

Assume two case, (1)[F1, F2](features are both independent), (2)[F1, F2, F2, F2, F2](partical Features are not independent)

Create train data with former 10,000 records, and define latter 5,000 records as test data.
How to plot Learning history

    def plotting_history(self, history):
        self.history = history
        plt.figure(figsize=(4, 4))
        plt.plot(self.history.history['loss'], label='Training Loss')
        plt.plot(self.history.history['val_loss'], label='Validation Loss')
        plt.xlabel("Epochs")
        plt.ylabel("loss")
        plt.legend()
        plt.show()

How to compute Mahalanobis Distance

def compute_mahalanobis(model, X_train, X_test):
    train_error = model.predict(X_train) - X_train
    cov = np.cov(train_error.reshape(-1, X_train.shape[-1]).T)
    mean = np.mean(train_error.reshape(-1, X_train.shape[-1]), axis=0)
    test_error = model.predict(X_test) - X_test
    temp_reshape = test_error.reshape(-1, test_error.shape[-1])
    return np.mean(np.array([distance.mahalanobis(mean, temp_reshape[i], cov) for i in range(len(temp_reshape))]).reshape(-1, X_train.shape[1]), axis=1)

Relu Output of Sparse RNN(Sample)

partial input equal to zero

Standard RNN

Case(1)

Learning history	Mahalanobis Distance (=Anomaly Index)

Case(2)

Learning history	Mahalanobis Distance (=Anomaly Index)

Sparse RNN

Case(1)

Learning history	Mahalanobis Distance (=Anomaly Index)

Case(2)

Learning history	Mahalanobis Distance (=Anomaly Index)

Conclustion

Both results are almost the same. But in Case(2), Standard RNN could not capture the F1 ascending trend(seen in Case(1)), which is caused by sine wave.
Sparse RNN seems to be able to capture the above trend, so it might have the ability to eliminate the effect of strong correlation among features to some extent.
Sparse RNN seems that it could not learn well at first, so it should be noted that the patience of EarlyStopping has to be set as a somewhat higher number.
