Table of Contents

• Install
• Features
  • Syntax Highlighting
  • ASCII Preview
  • Auto-formatting
  • Validation
  • Playground
• Documentation

Install

Using vim-plug

Plug 'terrastruct/d2-vim'

Using lazy.nvim

{
  "terrastruct/d2-vim",
  ft = { "d2" },
}

Features

Syntax Highlighting

This plugin provides basic syntax highlighting for D2 files. However, for Neovim users, we recommend using the Tree-sitter parser for more accurate syntax highlighting:

ravsii/tree-sitter-d2

It is well-tested and maintained (thank you @ravsii).

The plugin standalone will still be used as a fallback for regular Vim users or when Tree-sitter is not available.

ASCII Preview

Requirements: D2 version 0.7.1 or higher is required for ASCII features.

Render D2 diagrams as ASCII text for quick preview without leaving Vim. This feature provides a live preview of your diagrams in text format, perfect for:

• Quick previews without external tools
• Working in terminal environments
• Sharing diagrams in text-only contexts
• Understanding diagram structure while editing

The ASCII preview opens in a vertical split pane and automatically updates when you save your D2 file.

Demos

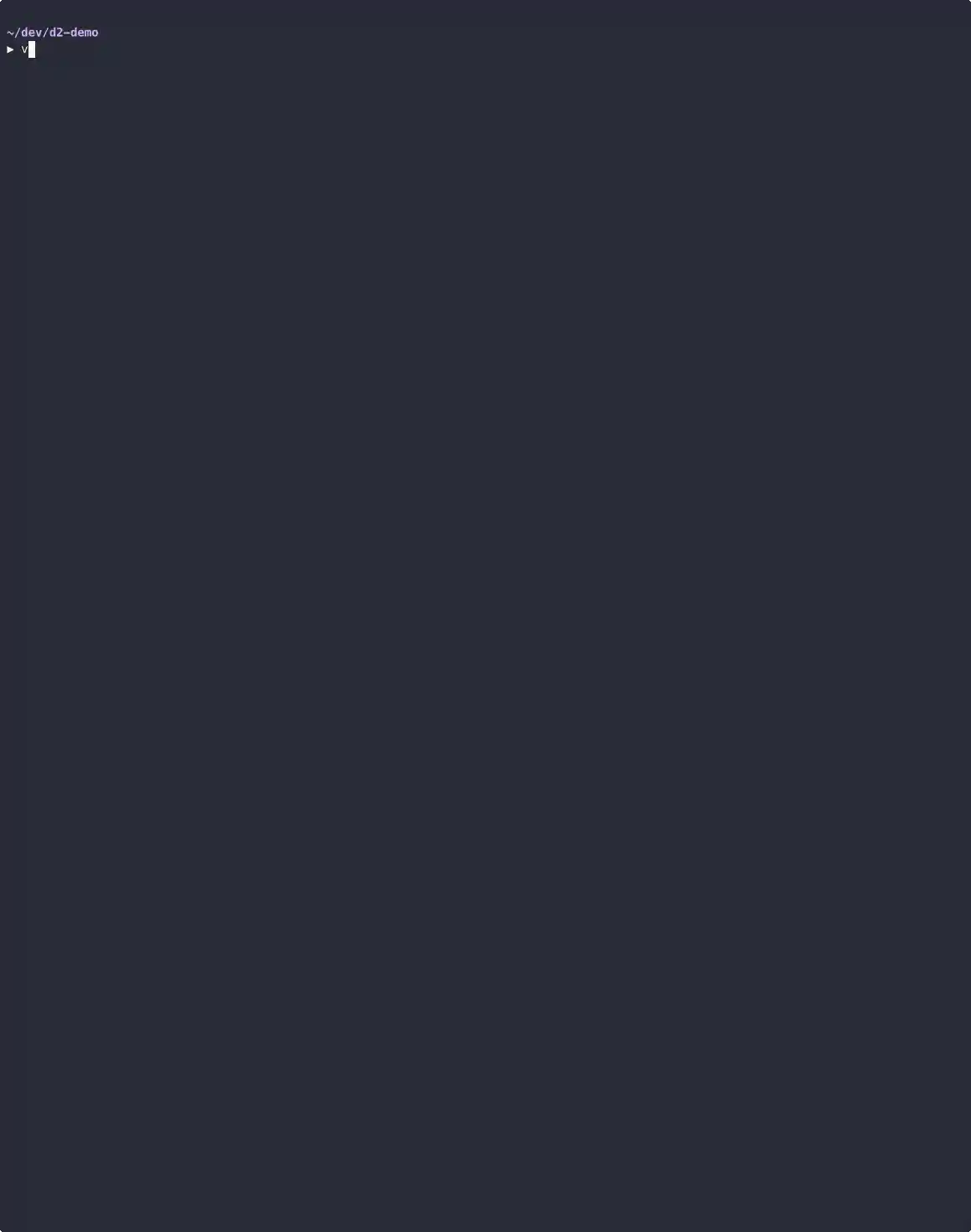

Preview: Open a .d2 file, press <Leader>d2 to open up preview pane, upon save, the ascii re-renders.

Replace: Open any file (here we have a Go file), comment some d2 code, select it in visual mode, press <Leader>rd2 to replace the d2 code with an ASCII diagram.

Configuration

" Enable/disable auto ASCII render on save (default: 1)
let g:d2_ascii_autorender = 1

" Customize the ASCII render command (default: "d2")
let g:d2_ascii_command = "d2"

" Set preview window width for vertical split (default: half screen)
let g:d2_ascii_preview_width = &columns / 2

" Set ASCII mode: "extended" (Unicode) or "standard" (basic ASCII)
let g:d2_ascii_mode = "extended"

ASCII Modes

Extended Mode (default): Uses Unicode box-drawing characters for cleaner, more readable output:

┌─────────────┐     ┌──────────────┐
│    user     │────▶│   server     │
└─────────────┘     └──────────────┘

Standard Mode: Uses basic ASCII characters for maximum compatibility:

+-------------+     +--------------+
|    user     |---->|   server     |
+-------------+     +--------------+

Commands

• :D2Preview - Render current buffer as ASCII in preview window
• :D2PreviewToggle - Toggle ASCII preview window on/off
• :D2PreviewUpdate - Update existing preview window with current content
• :D2PreviewCopy - Copy ASCII preview content to clipboard and yank register
• :D2PreviewSelection - Render selected text as ASCII (works in any file)
• :D2ReplaceSelection - Replace selected D2 code with ASCII render (works in any file)
• :D2AsciiToggle - Toggle automatic ASCII rendering on save

Keybindings

• <Leader>d2 - Render selected text as ASCII (visual mode, any file)
• <Leader>d2 - Render entire buffer as ASCII (normal mode, D2 files only)
• <Leader>rd2 - Replace selected D2 code with ASCII render (visual mode, any file)
• <Leader>yd2 - Copy ASCII preview content to clipboard and yank register (normal mode, any file)

Auto-formatting

D2 files are automatically formatted on save using d2 fmt. This can be configured:

" Enable/disable auto format on save (default: 1)
let g:d2_fmt_autosave = 1

" Customize the format command (default: "d2 fmt")
let g:d2_fmt_command = "d2 fmt"

" Fail silently when formatting fails (default: 0)
let g:d2_fmt_fail_silently = 0

Commands:

• :D2Fmt - Format current buffer
• :D2FmtToggle - Toggle auto format on save

Validation

D2 files can be validated using d2 validate. This can be configured:

" Enable/disable auto validate on save (default: 0)
let g:d2_validate_autosave = 0

" Customize the validate command (default: "d2 validate")
let g:d2_validate_command = "d2 validate"

" Use quickfix or locationlist for errors (default: "quickfix")
let g:d2_list_type = "quickfix"

" Fail silently when validation fails (default: 0)
let g:d2_validate_fail_silently = 0

Commands:

• :D2Validate - Validate current buffer
• :D2ValidateToggle - Toggle auto validate on save

Playground

Open D2 files in the online playground at play.d2lang.com. This is useful for an ad-hoc way of sharing your d2 diagram with someone.

" Customize the play command (default: "d2 play")
let g:d2_play_command = "d2 play"

" Set the theme ID (default: 0)
let g:d2_play_theme = 0

" Enable sketch mode (default: 0)
let g:d2_play_sketch = 0

Commands:

• :D2Play - Open current buffer in D2 playground

Documentation

See :help d2-vim or ./doc/d2.txt for options and additional documentation.
