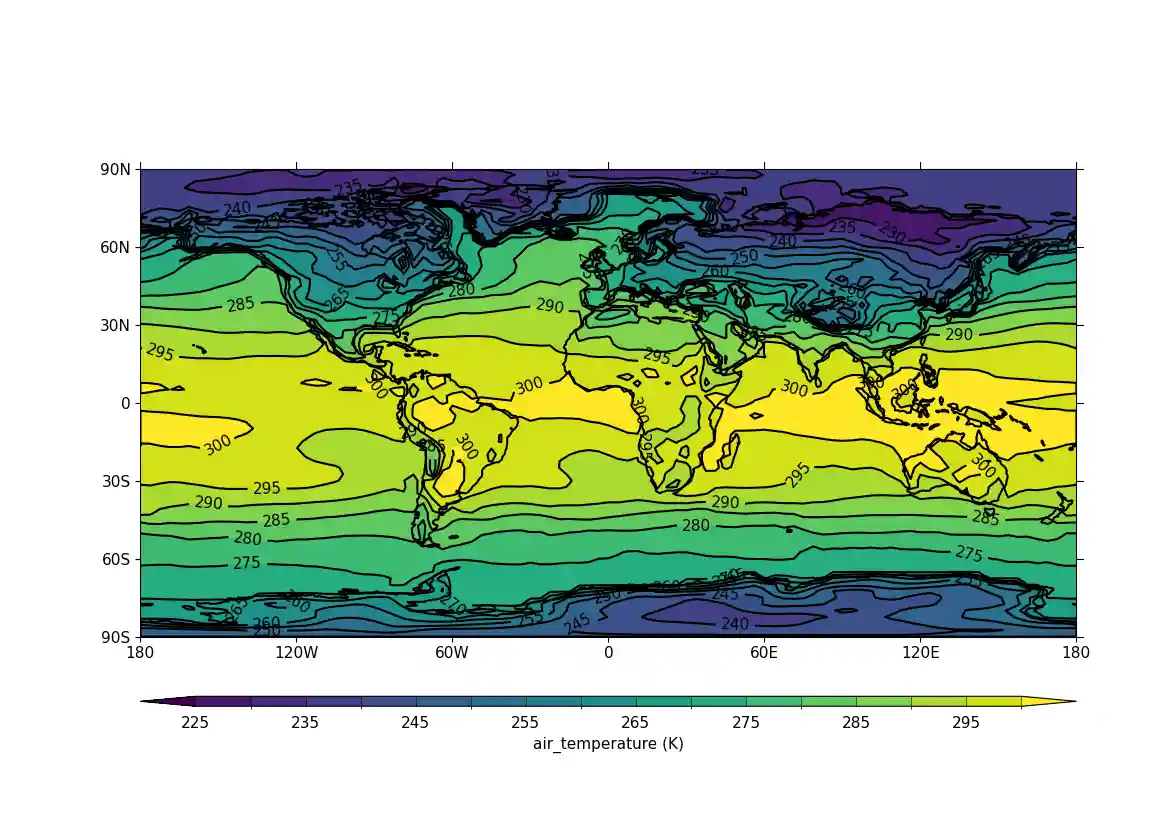

Example 1: Basic contour plot in default projection#
Making a basic default contour plot which uses the default projection, Cylindrical, and has contour lines explicitly filled and shown with value labels#
f = cf.read(f"cfplot_data/tas_A1.nc")[0] cfp.con(f.subspace(time=15))

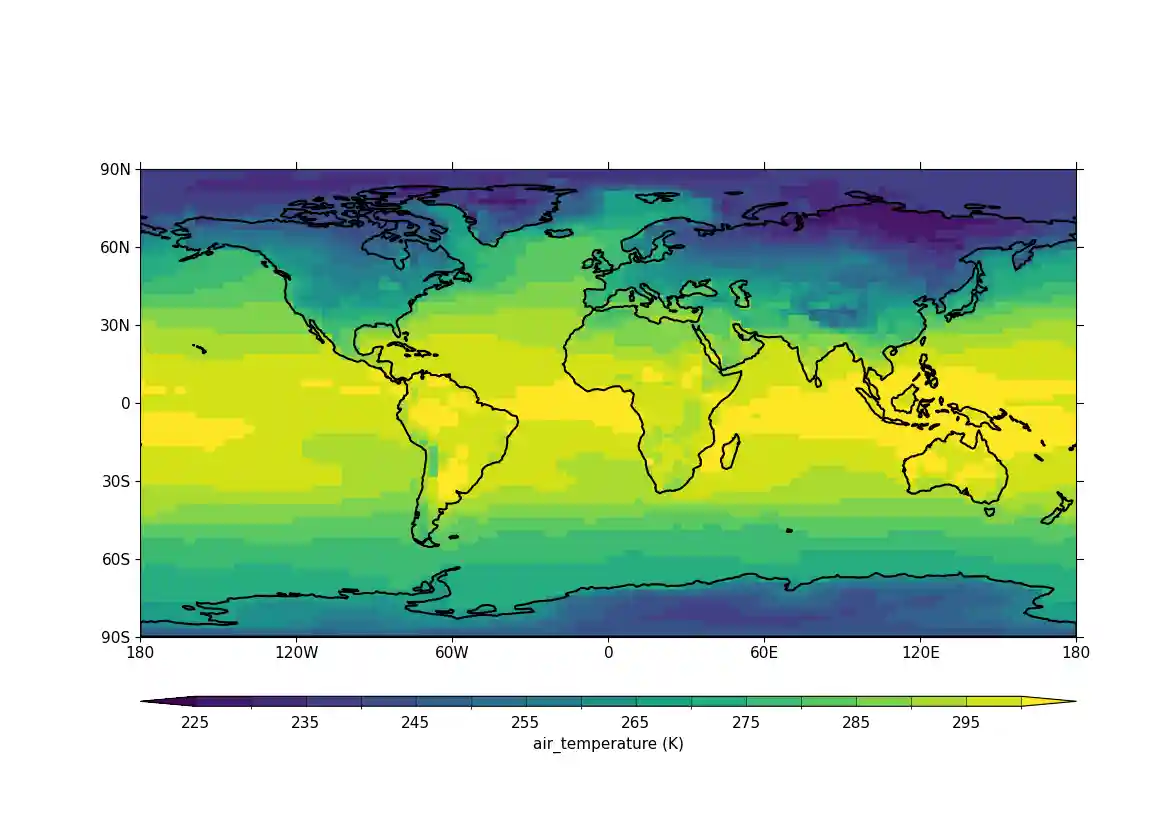

Example 2: Basic blockfill plot in default projection#
Making a basic blockfill plot which uses the default, Cylindrical, projection#
f = cf.read(f"cfplot_data/tas_A1.nc")[0] cfp.con(f.subspace(time=15), blockfill=True, lines=False)

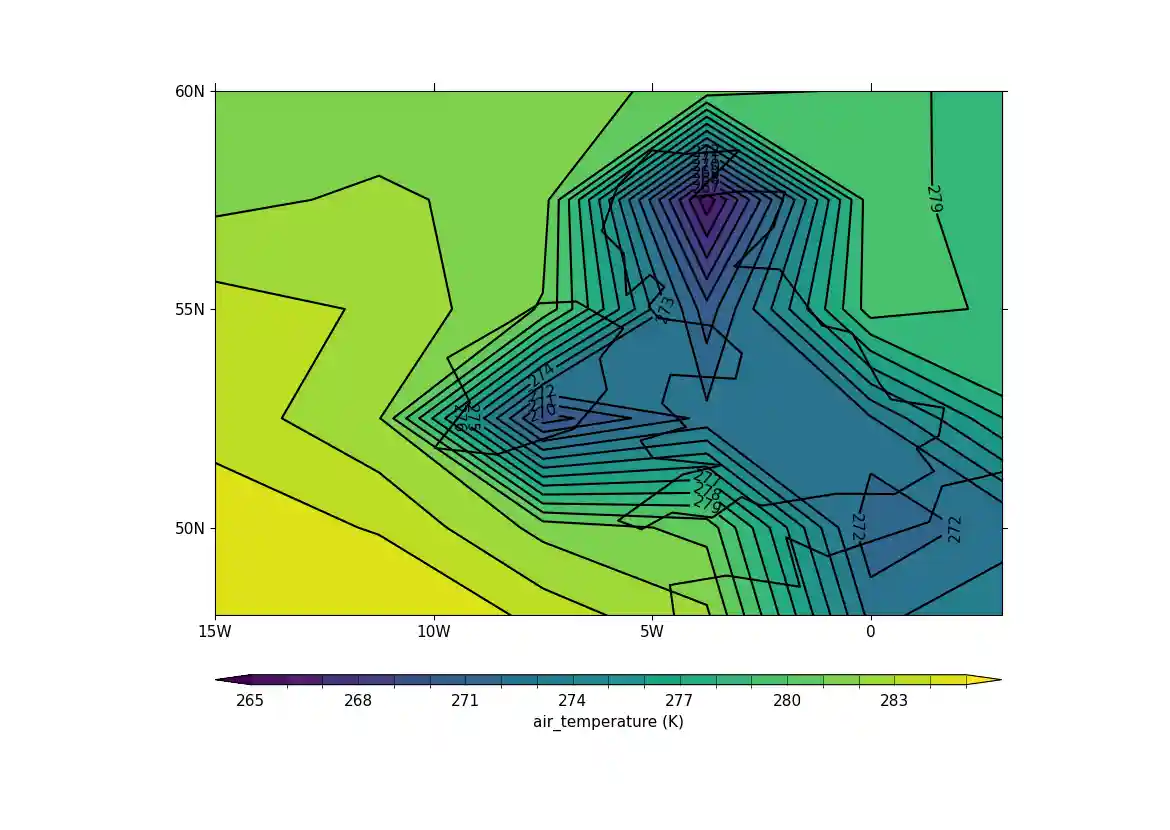

Example 3: Contour plot with altered map limits and levels#
Altering a contour plot to show different limits of latitude and longitude and to change the contour levels displayed#
f = cf.read(f"cfplot_data/tas_A1.nc")[0] cfp.mapset(lonmin=-15, lonmax=3, latmin=48, latmax=60) cfp.levs(min=265, max=285, step=1) cfp.con(f.subspace(time=15))
