Google OR-Tools: operations_research::Constraint Class Reference

A constraint is the main modeling object. It provides two methods:

  • Post() is responsible for creating the demons and attaching them to immediate demons().
  • InitialPropagate() is called once just after Post and performs the initial propagation. The subsequent propagations will be performed by the demons Posted during the post() method.

Definition at line 3929 of file constraint_solver.h.

#include <constraint_solver.h>

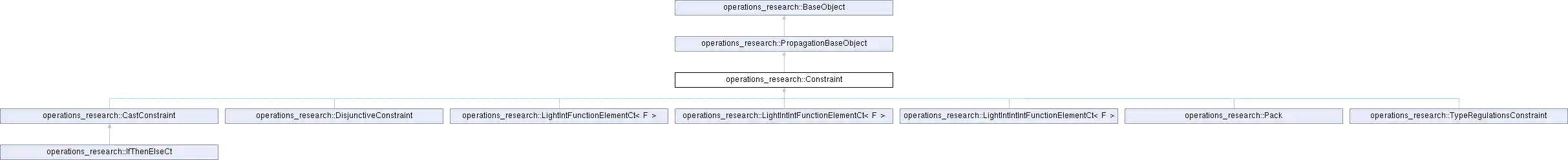

operations_research::PropagationBaseObject operations_research::BaseObject operations_research::CastConstraint operations_research::DisjunctiveConstraint operations_research::LightIntFunctionElementCt< F > operations_research::LightIntIntFunctionElementCt< F > operations_research::LightIntIntIntFunctionElementCt< F > operations_research::Pack operations_research::TypeRegulationsConstraint operations_research::IfThenElseCt

Public Member Functions

 Constraint (Solver *const solver)
 Constraint (const Constraint &)=delete
Constraint & operator= (const Constraint &)=delete
 ~Constraint () override
virtual void Post ()=0
virtual void InitialPropagate ()=0
std::string DebugString () const override
void PostAndPropagate ()
virtual void Accept (ModelVisitor *visitor) const
 Accepts the given visitor.
bool IsCastConstraint () const
 Is the constraint created by a cast from expression to integer variable?
virtual IntVar * Var ()
Public Member Functions inherited from operations_research::PropagationBaseObject
 PropagationBaseObject (Solver *const s)
 PropagationBaseObject (const PropagationBaseObject &)=delete
PropagationBaseObject & operator= (const PropagationBaseObject &)=delete
 ~PropagationBaseObject () override
std::string DebugString () const override
Solver * solver () const
void FreezeQueue ()
void UnfreezeQueue ()
void EnqueueDelayedDemon (Demon *const d)
void EnqueueVar (Demon *const d)
void ExecuteAll (const SimpleRevFIFO< Demon * > &demons)
void EnqueueAll (const SimpleRevFIFO< Demon * > &demons)
void set_action_on_fail (Solver::Action a)
void reset_action_on_fail ()
 This method clears the failure callback.
void set_variable_to_clean_on_fail (IntVar *v)
 Shortcut for variable cleaner.
virtual std::string name () const
 Object naming.
void set_name (absl::string_view name)
bool HasName () const
 Returns whether the object has been named or not.
virtual std::string BaseName () const
 Returns a base name for automatic naming.
Public Member Functions inherited from operations_research::BaseObject
 BaseObject ()
 BaseObject (const BaseObject &)=delete
BaseObject & operator= (const BaseObject &)=delete
virtual ~BaseObject ()=default
operations_research::Constraint::Constraint ( Solver *const solver)
inlineexplicit

◆ Constraint() [2/2]

operations_research::Constraint::Constraint ( const Constraint & )
delete

◆ ~Constraint()

operations_research::Constraint::~Constraint ( )
inlineoverride

◆ Accept()

void operations_research::Constraint::Accept ( ModelVisitor * visitor) const
virtual

◆ DebugString()

std::string operations_research::Constraint::DebugString ( ) const
overridevirtual

◆ InitialPropagate()

virtual void operations_research::Constraint::InitialPropagate ( )
pure virtual

◆ IsCastConstraint()

bool operations_research::Constraint::IsCastConstraint ( ) const

Is the constraint created by a cast from expression to integer variable?

Definition at line 3322 of file constraint_solver.cc.

◆ operator=()

◆ Post()

virtual void operations_research::Constraint::Post ( )
pure virtual

◆ PostAndPropagate()

void operations_research::Constraint::PostAndPropagate ( )

Calls Post and then Propagate to initialize the constraints. This is usually done in the root node.

Definition at line 3308 of file constraint_solver.cc.

◆ Var()

IntVar * operations_research::Constraint::Var ( )
virtual

Creates a Boolean variable representing the status of the constraint (false = constraint is violated, true = constraint is satisfied). It returns nullptr if the constraint does not support this API.

Definition at line 3326 of file constraint_solver.cc.

The documentation for this class was generated from the following files:
