Google OR-Tools: operations_research::IntExpr Class Reference

The class IntExpr is the base of all integer expressions in constraint programming. It contains the basic protocol for an expression:

  • setting and modifying its bound
  • querying if it is bound
  • listening to events modifying its bounds
  • casting it into a variable (instance of IntVar)

Definition at line 4194 of file constraint_solver.h.

#include <constraint_solver.h>

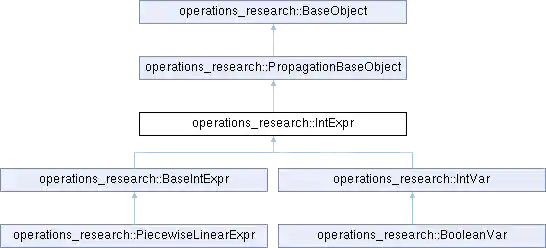

operations_research::PropagationBaseObject operations_research::BaseObject operations_research::BaseIntExpr operations_research::IntVar operations_research::PiecewiseLinearExpr operations_research::BooleanVar

Public Member Functions

 IntExpr (Solver *const s)
 IntExpr (const IntExpr &)=delete
IntExpr & operator= (const IntExpr &)=delete
 ~IntExpr () override
virtual int64_t Min () const =0
virtual void SetMin (int64_t m)=0
virtual int64_t Max () const =0
virtual void SetMax (int64_t m)=0
virtual void Range (int64_t *l, int64_t *u)
virtual void SetRange (int64_t l, int64_t u)
 This method sets both the min and the max of the expression.
virtual void SetValue (int64_t v)
 This method sets the value of the expression.
virtual bool Bound () const
 Returns true if the min and the max of the expression are equal.
virtual bool IsVar () const
 Returns true if the expression is indeed a variable.
virtual IntVar * Var ()=0
 Creates a variable from the expression.
IntVar * VarWithName (const std::string &name)
virtual void WhenRange (Demon *d)=0
 Attach a demon that will watch the min or the max of the expression.
void WhenRange (Solver::Closure closure)
 Attach a demon that will watch the min or the max of the expression.
void WhenRange (Solver::Action action)
 Attach a demon that will watch the min or the max of the expression.
virtual void Accept (ModelVisitor *visitor) const
 Accepts the given visitor.
Public Member Functions inherited from operations_research::PropagationBaseObject
 PropagationBaseObject (Solver *const s)
 PropagationBaseObject (const PropagationBaseObject &)=delete
PropagationBaseObject & operator= (const PropagationBaseObject &)=delete
 ~PropagationBaseObject () override
std::string DebugString () const override
Solver * solver () const
void FreezeQueue ()
void UnfreezeQueue ()
void EnqueueDelayedDemon (Demon *const d)
void EnqueueVar (Demon *const d)
void ExecuteAll (const SimpleRevFIFO< Demon * > &demons)
void EnqueueAll (const SimpleRevFIFO< Demon * > &demons)
void set_action_on_fail (Solver::Action a)
void reset_action_on_fail ()
 This method clears the failure callback.
void set_variable_to_clean_on_fail (IntVar *v)
 Shortcut for variable cleaner.
virtual std::string name () const
 Object naming.
void set_name (absl::string_view name)
bool HasName () const
 Returns whether the object has been named or not.
virtual std::string BaseName () const
 Returns a base name for automatic naming.
Public Member Functions inherited from operations_research::BaseObject
 BaseObject ()
 BaseObject (const BaseObject &)=delete
BaseObject & operator= (const BaseObject &)=delete
virtual ~BaseObject ()=default

◆ IntExpr() [1/2]

operations_research::IntExpr::IntExpr ( Solver *const s)
inlineexplicit

◆ IntExpr() [2/2]

operations_research::IntExpr::IntExpr ( const IntExpr & )
delete
operations_research::IntExpr::~IntExpr ( )
inlineoverride

◆ Accept()

void operations_research::IntExpr::Accept ( ModelVisitor * visitor) const
virtual

◆ Bound()

virtual bool operations_research::IntExpr::Bound ( ) const
inlinevirtual

◆ IsVar()

virtual bool operations_research::IntExpr::IsVar ( ) const
inlinevirtual

◆ Max()

virtual int64_t operations_research::IntExpr::Max ( ) const
pure virtual

◆ Min()

virtual int64_t operations_research::IntExpr::Min ( ) const
pure virtual

◆ operator=()

IntExpr & operations_research::IntExpr::operator= ( const IntExpr & )
delete

◆ Range()

virtual void operations_research::IntExpr::Range ( int64_t * l,
int64_t * u )
inlinevirtual

By default calls Min() and Max(), but can be redefined when Min and Max code can be factorized.

Definition at line 4212 of file constraint_solver.h.

◆ SetMax()

virtual void operations_research::IntExpr::SetMax ( int64_t m)
pure virtual

◆ SetMin()

virtual void operations_research::IntExpr::SetMin ( int64_t m)
pure virtual

◆ SetRange()

virtual void operations_research::IntExpr::SetRange ( int64_t l,
int64_t u )
inlinevirtual

◆ SetValue()

virtual void operations_research::IntExpr::SetValue ( int64_t v)
inlinevirtual

◆ Var()

virtual IntVar * operations_research::IntExpr::Var ( )
pure virtual

◆ VarWithName()

IntVar * operations_research::IntExpr::VarWithName ( const std::string & name)

Creates a variable from the expression and set the name of the resulting var. If the expression is already a variable, then it will set the name of the expression, possibly overwriting it. This is just a shortcut to Var() followed by set_name().

Definition at line 51 of file expressions.cc.

◆ WhenRange() [1/3]

virtual void operations_research::IntExpr::WhenRange ( Demon * d)
pure virtual

◆ WhenRange() [2/3]

void operations_research::IntExpr::WhenRange ( Solver::Action action)
inline

Attach a demon that will watch the min or the max of the expression.

Definition at line 4249 of file constraint_solver.h.

◆ WhenRange() [3/3]

void operations_research::IntExpr::WhenRange ( Solver::Closure closure)
inline

Attach a demon that will watch the min or the max of the expression.

Definition at line 4243 of file constraint_solver.h.

The documentation for this class was generated from the following files:
